Audio-Technica ATW-3211DE2 Wireless Bodypack System, DE2 Band

Audio-Technica ATW-3211DE2 Wireless Bodypack System, DE2 Band

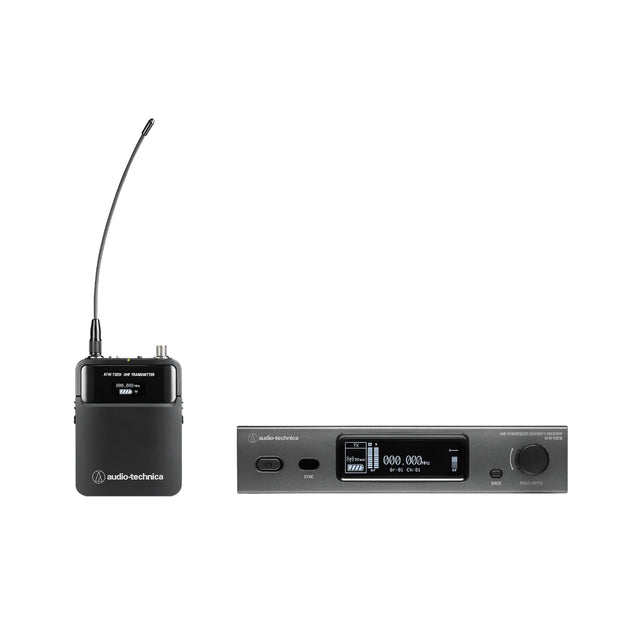

The Audio-Technica ATW-3211DE2 Wireless Bodypack System, DE2 Band, is designed for superior audio performance and reliability. This system includes the ATW-R3210 receiver and the ATW-T3201 body-pack transmitter, both equipped with a cH-style screw-down 4-pin connector. To complete the system, select a compatible microphone or cable with the same connector. Additionally, the AT-cWcH Adapter Cable (sold separately) lets you use wireless microphones with a cW-style locking 4-pin connector. Ideal for a variety of applications, this wireless bodypack system offers robust features and exceptional audio clarity.

This system operates across four different frequency bands (DE2, EE1, EF1, FG1), each offering thousands of available frequencies to ensure optimal signal strength and minimal interference. Whether used in a live performance or for broadcast purposes, the Audio-Technica ATW-3211DE2 stands out for its impressive operating range of up to 100 meters and a frequency response tailored to different microphone elements.

With user-friendly features and flexible power options, this wireless bodypack system is suitable for professional musicians, presenters, and entertainment professionals seeking unparalleled audio quality and versatility. Its rugged construction ensures durability and long-term performance even in demanding environments.

Key Features

• Includes ATW-R3210 receiver and ATW-T3201 body-pack transmitter
• cH-style screw-down 4-pin connector for secure connections
• Compatible with AT-cWcH Adapter Cable for cW-style 4-pin connectors
• Wide frequency range with multiple bands (DE2, EE1, EF1, FG1)
• Up to 100 meters (328 feet) operating range
• True Diversity receiver system
• Rugged and durable design for professional use

Specifications

• Operating Frequencies: DE2 (470.125 - 529.975 MHz), EE1 (530.000 - 589.975 MHz), EF1 (590.000 - 649.975 MHz), FG1 (650.000 - 699.875 MHz)
• Minimum Frequency Step: 25 kHz
• Modulation Mode: FM
• Frequency Response: ATW-T3201 (31 Hz to 15,500 Hz), ATW-T3202 (25 Hz to 16,700 Hz)
• Total Harmonic Distortion: <1.0% (at 1 kHz)
• Operating Temperature Range: -5° C to +45° C (23° F to 113° F)
• RF Power Output: High: 30 mW, Low: 10 mW (switchable)
• Battery Type: Two 1.5V AA (not included)
• Receiver Dimensions: 210.0 mm x 191.0 mm x 43.4 mm (W x D x H)
• Receiver Weight: 1100 g (38.8 oz) without accessories
• Body-Pack Dimensions: 64 mm x 82 mm x 23 mm
• Body-Pack Weight: 102 g (3.6 oz) without batteries
• Image Rejection: 60 dB nominal
• Receiver System: True Diversity
• RF Sensitivity: 20 dBuV at 60 dBA S/N ratio

Package Contents

• Two flexible UHF antennas
• AC adapter (country dependent)
• Rack-mount adapters
