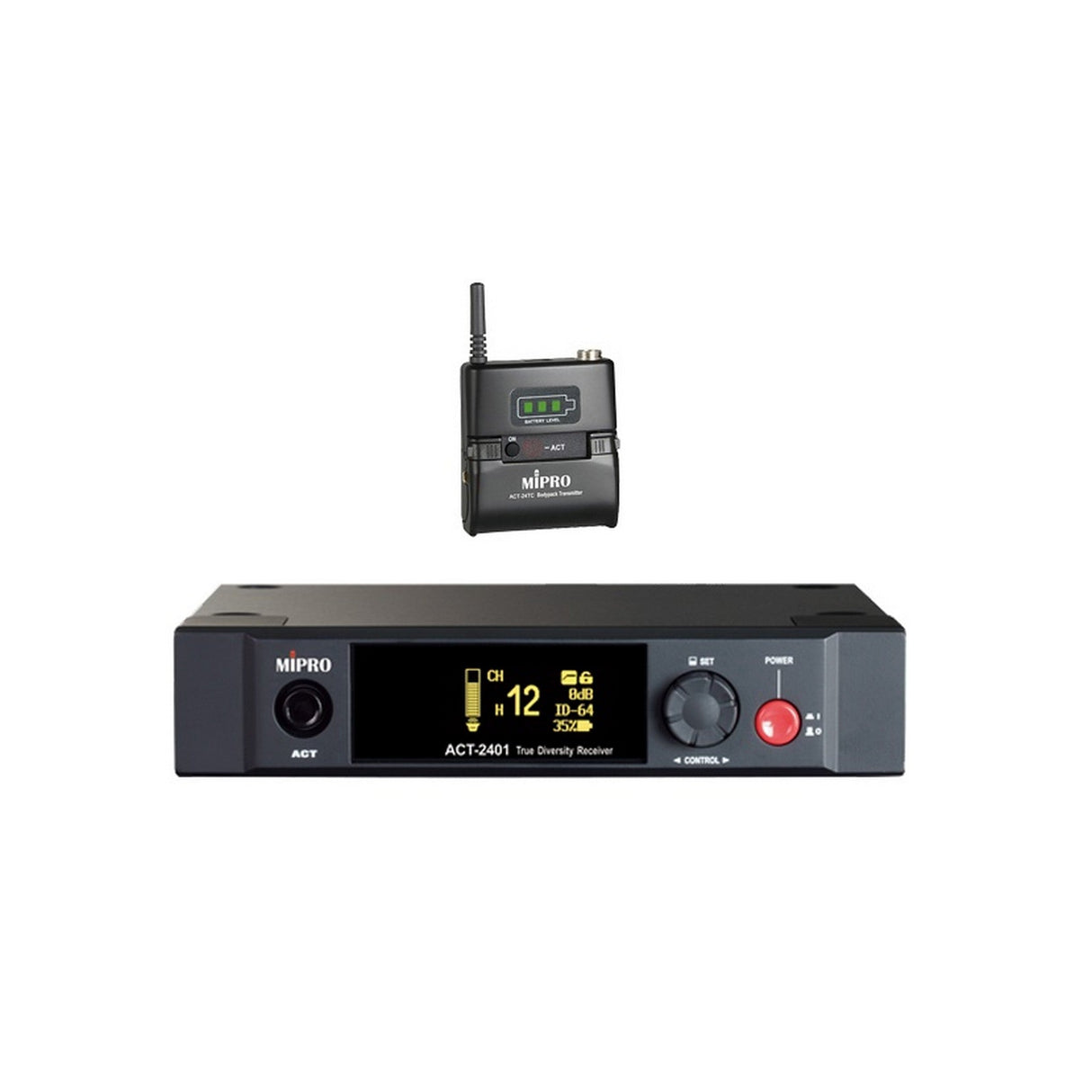

MIPRO ACT-2401/ACT-24TC Single Channel 2.4GHZ Wireless Bodypack System
The MIPRO ACT-2401/ACT-24TC Single Channel 2.4GHZ Wireless Bodypack System tackles common challenges associated with 2.4GHz wireless systems, specifically addressing range, signal stability, and channel density. This system utilizes dual-tuner true diversity technology, delivering exceptional range of up to 100 meters and dropout-free operation. An intelligent frequency hopping feature effectively avoids Wi-Fi interference, ensuring a reliable signal.
The ACT-2401/ACT-24TC boasts 12 compatible channels, allowing for the operation of multiple systems simultaneously without any interference. Pristine 24-bit digital audio guarantees clear and detailed sound, while the Lo-cut and Flat EQ settings provide the flexibility to tailor the sound to your specific needs.
The MIPRO ACT-2401/ACT-24TC Single Channel 2.4GHZ Wireless Bodypack System is both versatile and compact. It features a switchable input for microphone or guitar use and a secure mini-XLR connector. The miniature and ergonomic design ensures comfortable wear for extended use. Additionally, the rechargeable transmitter delivers over 10 hours of operation on a single charge. In situations requiring a quick turnaround, a 25-minute fast charge provides up to 1 hour of use. The included intelligent battery charger maintains a high charge capacity for up to 600 charge cycles.
The complete MIPRO ACT-2401/ACT-24TC Single Channel 2.4GHZ Wireless Bodypack System includes a single-channel receiver, a bodypack transmitter, a lavalier microphone, and a charging station. This system is ideal for singers, performers, musicians, presenters, fitness instructors, and aerobics classes, offering a reliable wireless solution with crystal-clear sound and long-lasting battery life.
Key Features
- Simultaneous operation of 12 channels that are compatible with each other
- Digital audio sampling at a resolution of 24 bits and a frequency of 44.1 kHz
- EQ settings available for Lo-Cut and Flat modes
- Adjustable AF gain and RF power output for customization
- Single and dual channel systems available in a compact half rack size
- Receiver is securely enclosed in a durable metal case
- Antennas are conveniently located on the front of the unit
- Optional rack mount hardware can be added for additional convenience
Technical Specifications
Receiver
Chassis
EIA Standard 19″ 1/2U
Display Graphic
OLED
Frequency Range
2.4GHz ISM band (2.4 – 2.4835GHz)
Preset Frequency
12
Frequency-hopping
Each channel has 4 preset hopping frequencies
Receiving Mode
Dual-tuner Digital Diversity
Audio Sampling
24-bit / 44.1 kHz
Sensitivity
-95 dBm
S/N Ratio
> 115 dB(A)
T.H.D.
0.1 % @ 1 kHz
Audio Frequency Response
20 Hz – 20 kHz (-2 dB)
Output Connectors
Balanced XLR & Unbalanced 6.3 mm (1/4 “)
Audio Output Adjustment
0 dB (standard), -10 – +20 dB adjustable range
Latency
< 4.0 ms
Antenna
2 × 50 Ω fixed antenna
Power Supply
External AC Power Supply
Power Consumption
1.6 W
Dimensions
210 × 44 × 180 mm / 8.3 × 1.7 × 7.1 “
Weight
Approx. 0.75 kg / 1.7 lbs
Operating Temperature
-10 – +60℃
Transmitter
Frequency Range
2.4GHz ISM band (2.4 – 2.4835GHz)
Channel Set-Up
ACT Sync
RF Output Power
2 mW / 10 mW switchable (country dependent)
Transmitting Mode
Frequency hopping
Max. Audio Input
6.5 dBV
Impedance
1.0M Ω
Mute Connector
Optional MJ-70 remote mute switch
Battery Meter
4-level green / red LED display
Battery Type
1 ICR-18500 rechargeable lithium battery
Current Consumption
Approx. 138 mA
Operating Time
A 25-minute fast charge provides up to 1 hour operation. Minimum 10 hours of operation per 4-hour full charge (depending on the battery quality)
Dimensions (W × H × D)
63 × 70 × 25 mm / 2.5 × 2.8 × 1 “
Net Weight
Approx. 66 g / 2.3 oz
