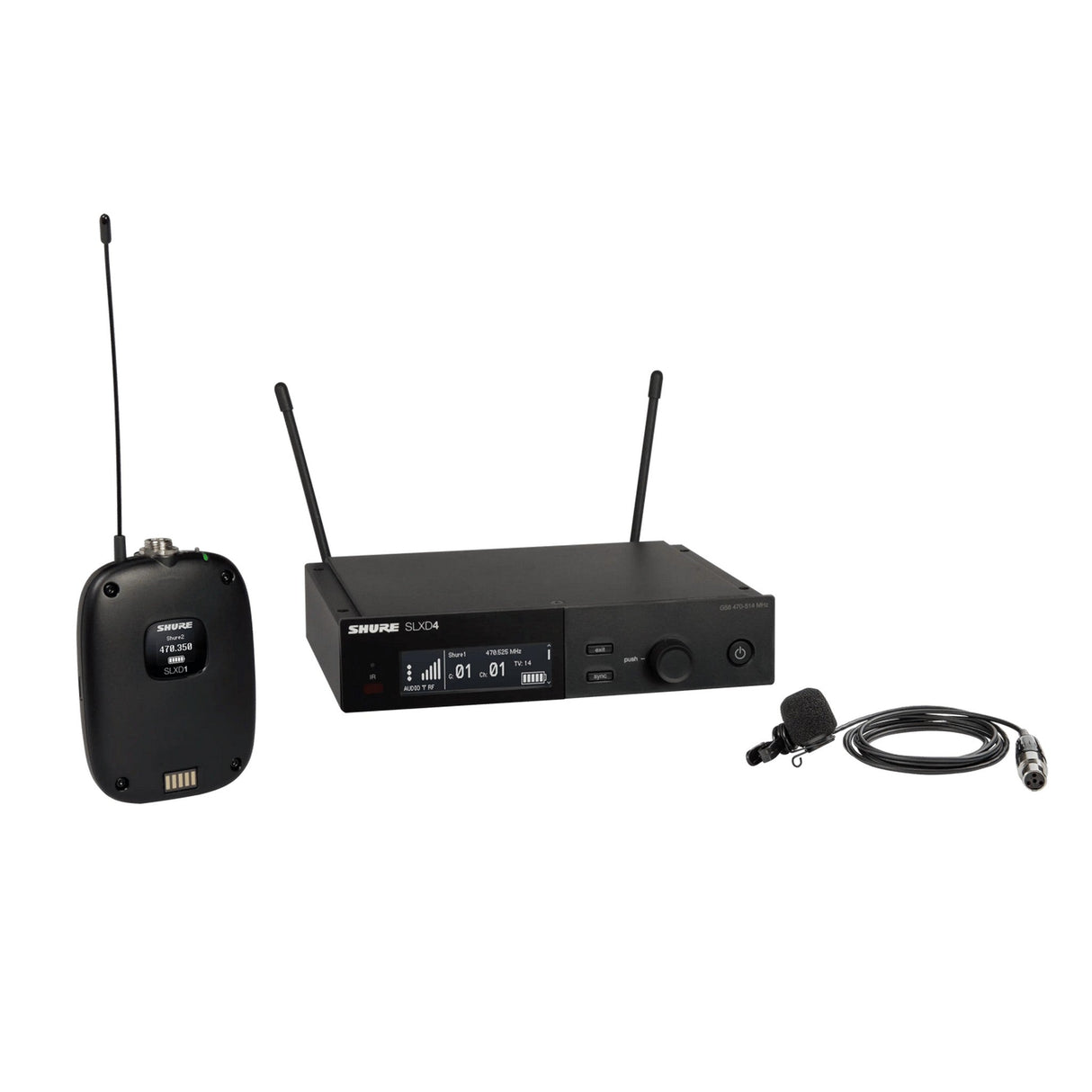

Shure SLXD14/85M Wireless System with WL185m Low-Profile Cardioid Lavalier Microphone - G58: 470–514 MHz

Shure SLXD14/85M Professional Wireless System with WL185m Cardioid Lavalier Microphone

The Shure SLXD14/85M Professional Wireless System is engineered to deliver top-notch audio quality for professionals in diverse fields, including live performances, corporate presentations, and theatrical productions. Combining the durability and reliability of Shure's digital wireless technology with the precision of the WL185m low-profile cardioid lavalier microphone, this system guarantees crystal-clear sound with minimal interference and dropouts. Featuring advanced functionalities such as automatic frequency selection and digital diversity, the SLXD14/85M ensures uninterrupted audio transmission, providing peace of mind and confidence for any user.

The low-profile design of the WL185m lavalier microphone makes it an ideal choice for settings where discretion is needed, yet audio clarity cannot be compromised. Its cardioid polar pattern focuses on the speaker's voice while effectively rejecting background noise, making it suitable for noisy environments. The system's broad frequency range ensures compatibility with various regulatory standards globally, allowing users to operate seamlessly across different regions.

Whether you are an experienced audio professional or a newcomer, the SLXD14/85M offers an intuitive and user-friendly experience. The SLXD1 bodypack transmitter enhances mobility and flexibility, while the SLXD4 digital wireless receiver simplifies setup and monitoring with its easy-to-read LCD display and straightforward controls. This makes the SLXD14/85M a versatile and invaluable addition to any audio toolkit.

Key Features

• WL185m low-profile cardioid lavalier microphone for unobtrusive, high-quality audio capture
• Automatic frequency selection for efficient and quick setup
• Digital diversity technology for reliable transmission
• Wide frequency coverage for interference-free operation
• Large, easy-to-read LCD display for simple monitoring and adjustments

Specifications

• Frequencies: G58: 470–514 MHz, H55: 514–558 MHz, J52: 558–616 MHz
• SLXD4 Receiver Dimensions: 1.65" x 7.76" x 5.98" (42 x 197 x 152 mm)
• Weight: 1.8 lbs (816 g) without antennas
• Housing: Galvanized Steel
• Power Requirements: 15 VDC @ 600 mA, supplied by external power supply (tip positive)
• RF Input Spurious Rejection: >75 dB (Typical)
• Connector Type: BNC
• Impedance: 50 Ω
• AUDIO OUTPUT:
• Gain Adjustment Range: –18 to +42 dB in 1 dB steps
• Configuration: 1/4" (6.35 mm) Balanced (Tip=audio +, Ring=audio –, Sleeve=ground), XLR Balanced (1=ground, 2=audio +, 3=audio –)
• Impedance: 1/4" (6.35 mm) 1.3 kΩ (670 Ω Unbalanced), XLR (line) 400 Ω (200 Ω Unbalanced), XLR (mic) 150 Ω
• Full Scale Output: 1/4" (6.35 mm) +15 dBV differentially (+9 dBV single), XLR (LINE setting) +15 dBV, XLR (MIC setting) –15 dBV
• Mic/Line Switch: 30 dB pad
• Phantom Power Protection: Yes for 1/4" (6.35 mm) and XLR
• NETWORKING:
• Network Interface: Single Port Ethernet 10/100 Mbps
• Network Addressing Capability: DHCP or Manual IP address
• Maximum Cable Length: 100 m (328 ft)
• SLXD1 Bodypack Transmitter:
• Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
• Dimensions: 3.86" x 2.68" x 1.0" (98 x 68 x 25.5 mm)
• Weight: 3.1 oz (89 g)
• Housing: PC/ABS
• AUDIO INPUT:
• Connector: 4-Pin male mini connector (TA4M)
• Configuration: Unbalanced
• Impedance: 1 MΩ
• Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
• Preamplifier Equivalent Input Noise (EIN): –118 dBV
• RF OUTPUT:
• Antenna Type: 1/4 Wave
• Occupied Bandwidth: <200 kHz
• Modulation Type: Shure Proprietary Digital
• Power: 1 mW/10 mW, varies by region

Package Contents

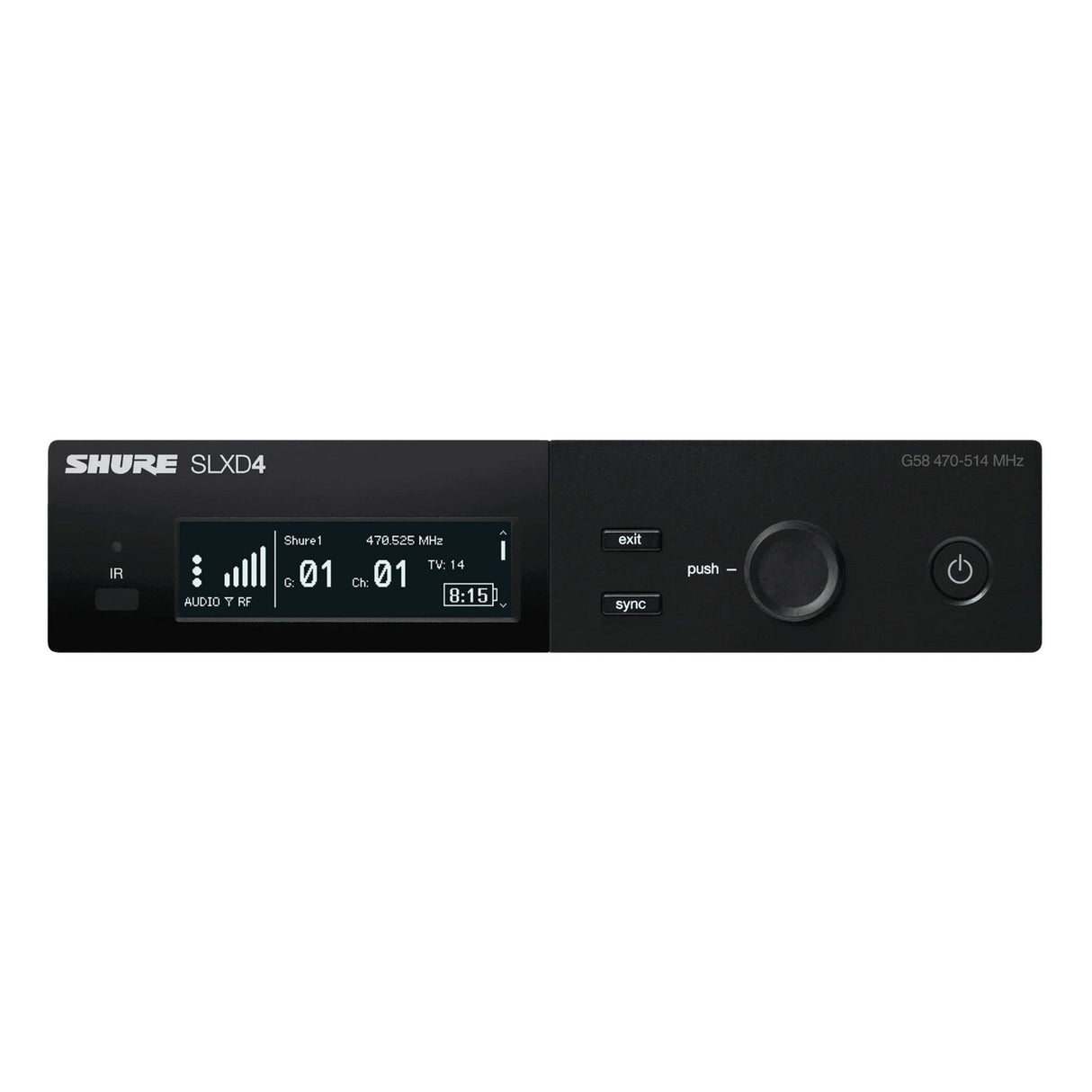

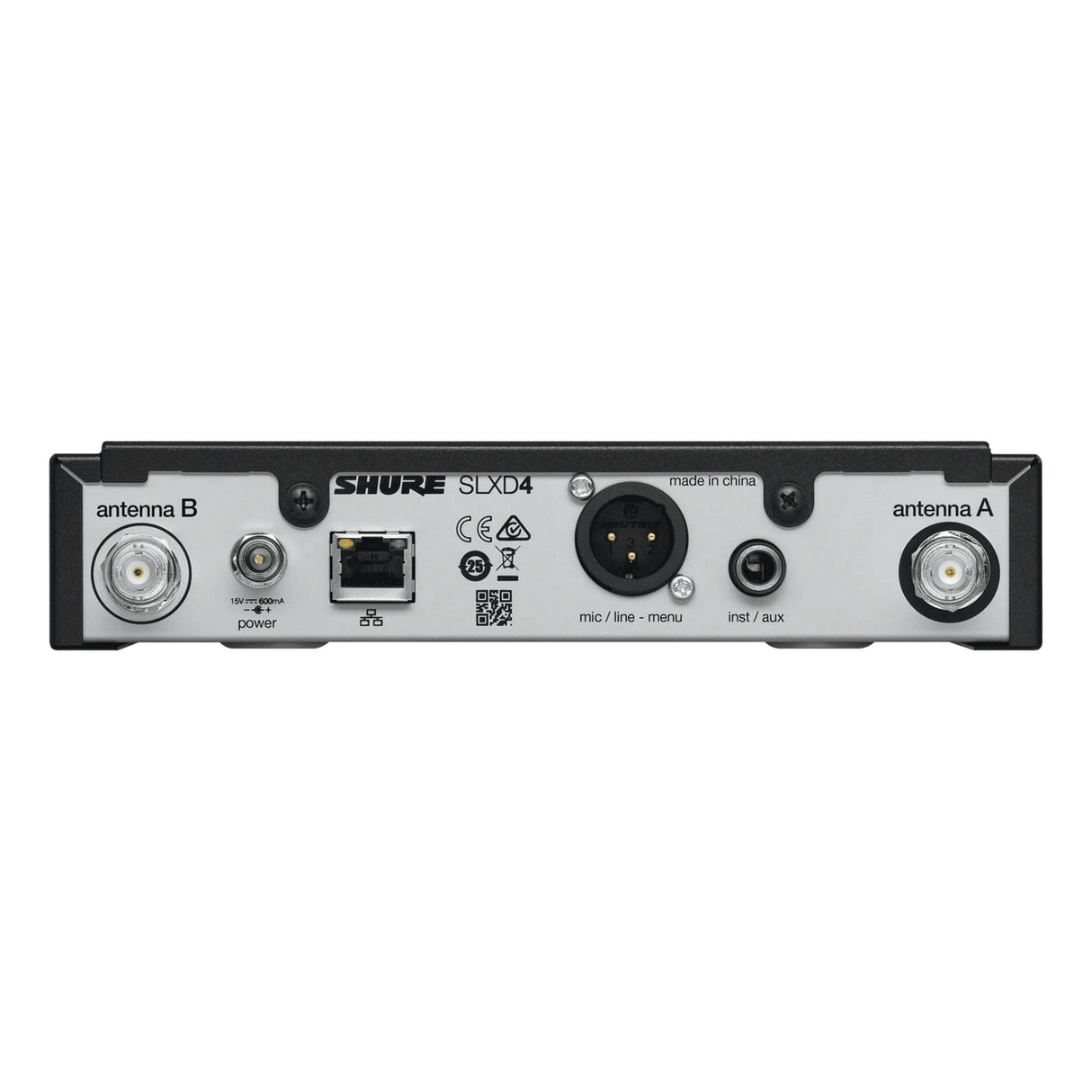

• 1 SLXD4 Digital Wireless Receiver

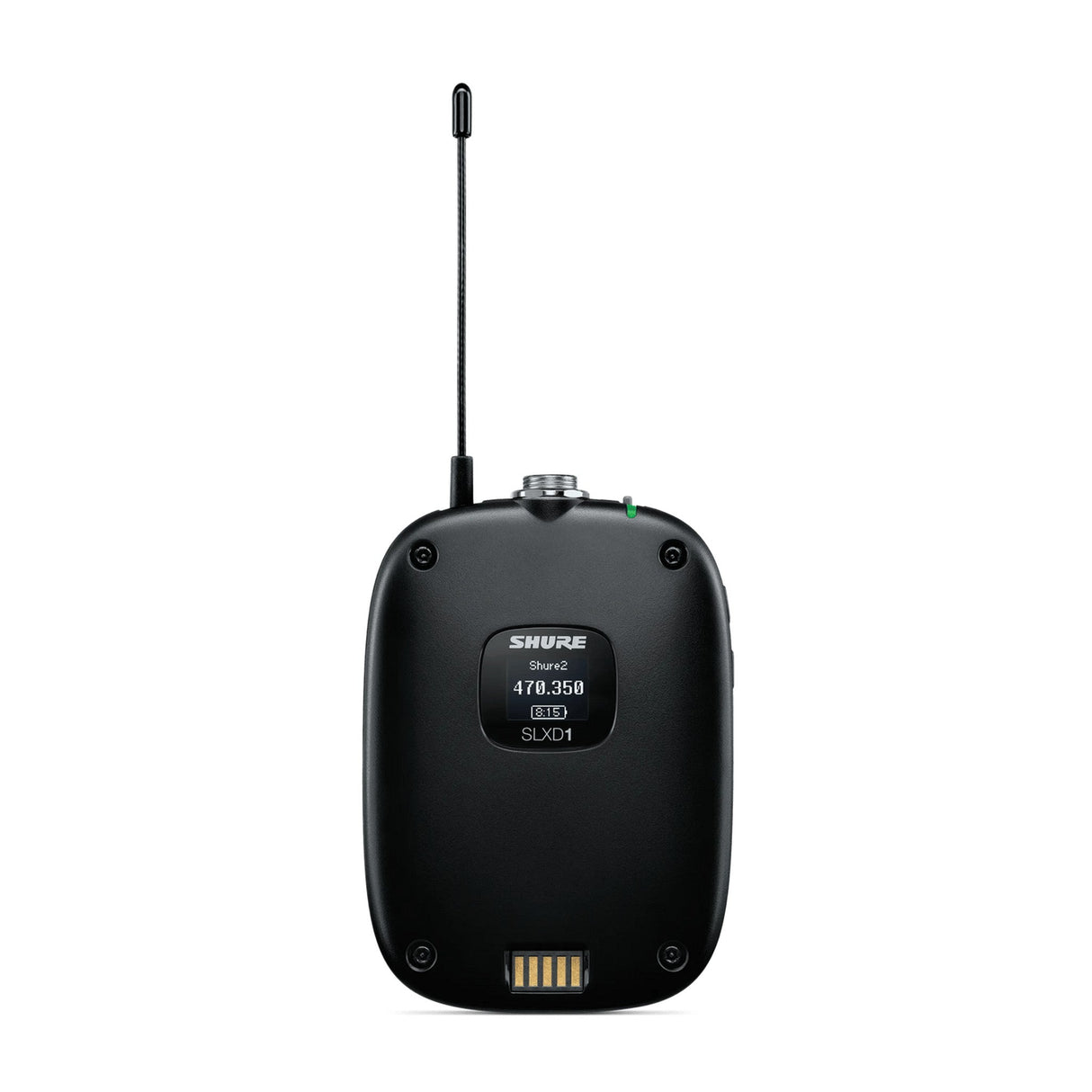

• 1 SLXD1 Bodypack Transmitter
• 1 Rackmount Kit
• 2 AA Batteries
• 1 Power Supply
• 1 WL185m Low-profile Cardioid Lavalier Microphone
• 1 Single-Mount Tie Clip
• 1 Snap-Fit Windscreen
• 1 Carrying Pouch
