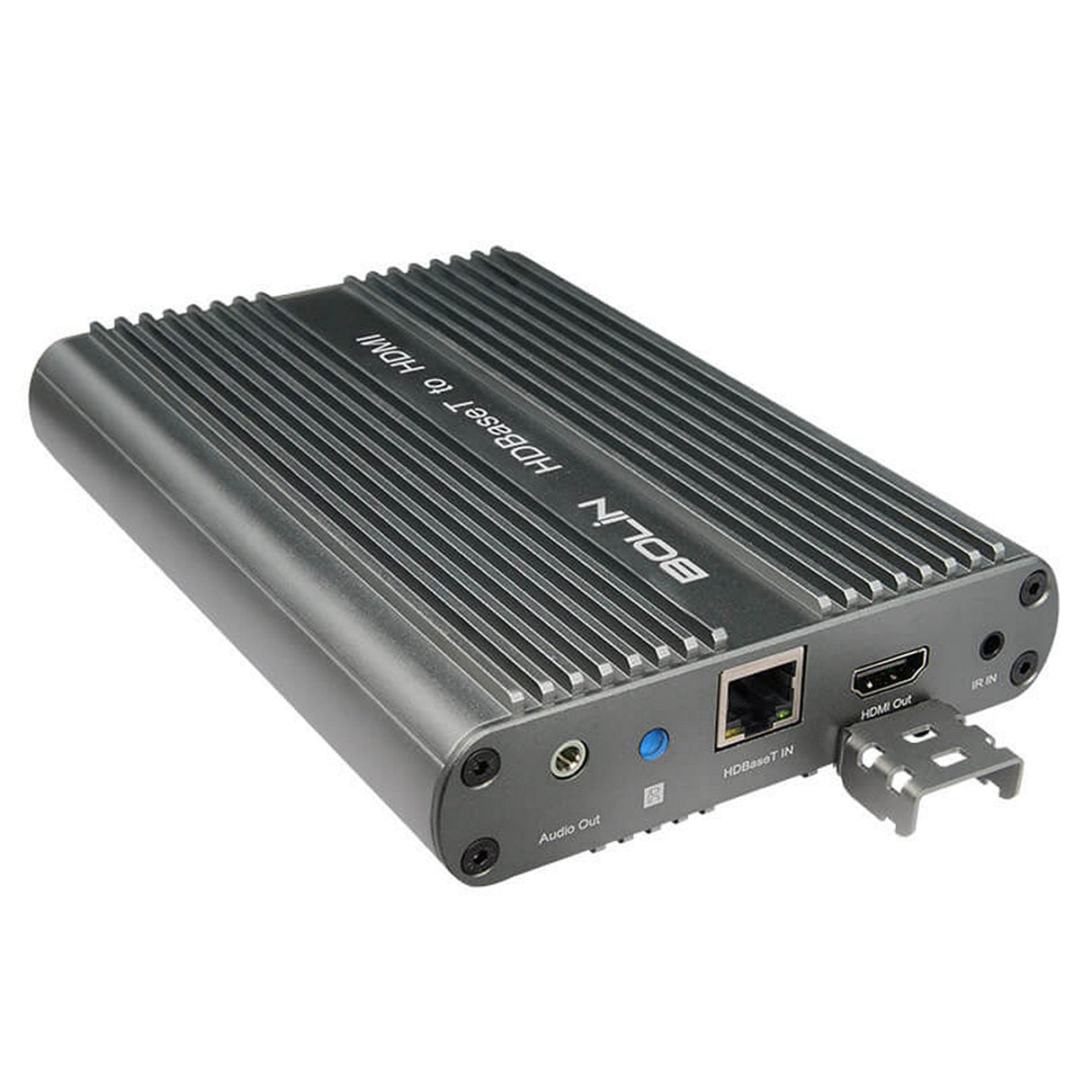

Bolin 4K HDBaseT Receiver
The Bolin 4K HDBaseT Receiver (BL-BR4K-1) is a professional-grade connectivity solution designed specifically for Bolin's 1/7/8/9 Series PTZ cameras with built-in HDBaseT technology. This versatile receiver enables the transmission of multiple signals over a single CAT6 cable, including 4K video, camera power (PoH), control signals, audio, and IP pass-through, for distances up to 100 meters (328 feet). By consolidating multiple connections into one cable, the HDBaseT Receiver significantly simplifies installation, reduces cable clutter, and enhances system reliability in broadcast studios, conference rooms, houses of worship, and educational environments, making it the ideal companion for professional video production setups.
Compatible with all standard HDBaseT devices and engineered for maximum flexibility, the receiver supports resolutions up to 4K/30, 1080p60, and 1080i59.94, ensuring crystal-clear image quality across various video formats. The included power supply (DC54V, 2.77A) provides up to 97W of power to connected cameras via Power over HDBaseT (PoH), eliminating the need for separate power sources at the camera location. With comprehensive control support for IR, RS-232, and RS-422/485 protocols, convenient RJ45 ports with included phoenix connection adapters, and easy-to-install mounting options including wall mount and desktop configurations, this reliable HDBaseT receiver delivers exceptional performance while minimizing setup complexity for professional AV installations.
Key Features
- Single-Cable Solution: Transmits 4K/FHD HDMI video, camera power (PoH), control signals (RS-232/RS-422/IR), audio, and IP pass-through over one CAT6 cable up to 100 meters (328 feet)
- Universal Compatibility: Designed for Bolin's 1/7/8/9 Series PTZ cameras with built-in HDBaseT and compatible with all standard HDBaseT devices in the market
- High-Resolution Support: Handles resolutions up to 4K/30, 1080p60, and 1080i59.94 for exceptional image quality across various video formats
- Power over HDBaseT (PoH): Provides power to connected cameras (up to 97W) via IEEE802.3bt standard, eliminating the need for separate power sources at the camera location
- Comprehensive Control Options: Supports IR remote control, RS-232, and RS-422/485 protocols for flexible camera operation from remote locations
- IP Pass-Through Capability: Enables IP control and IP streaming pass-through from compatible cameras for enhanced network integration
- Low Heat Generation: Designed for reliable, continuous operation with minimal thermal output for enhanced durability
- Flexible Installation: Includes desktop pads, wall mounts, and optional DIN-rail mounting accessories for versatile setup options
Technical Specifications
- Model Number: BL-BR4K-1
- Video Output: HDMI 1.4 (4K)
- Supported Resolutions: Up to 4K/30, 1080p60, 1080i59.94
- Transmission Distance: 80-100 meters (262-328 feet) via CAT6 cable
- Control Support: IR Control, RS-232, RS-422/485
- Power Input: DC54V, 2.77A
- Power Output to Camera: IEEE802.3bt, up to 97W
- Connectivity: HDMI out, HDBaseT RJ45, dual RJ45 ports for control
Package Contents
- 1 x HDBaseT Receiver (BL-BR4K-1)
- 1 x Power Supply (54V)
- 1 x Power Cord
- 2 x Mounting Brackets
- 4 x Mounting Screws
- 1 x VCCCC45RS (RJ45 to Phoenix) Cable
- 1 x Y-Cable (RJ45 to RS-232) Cable
