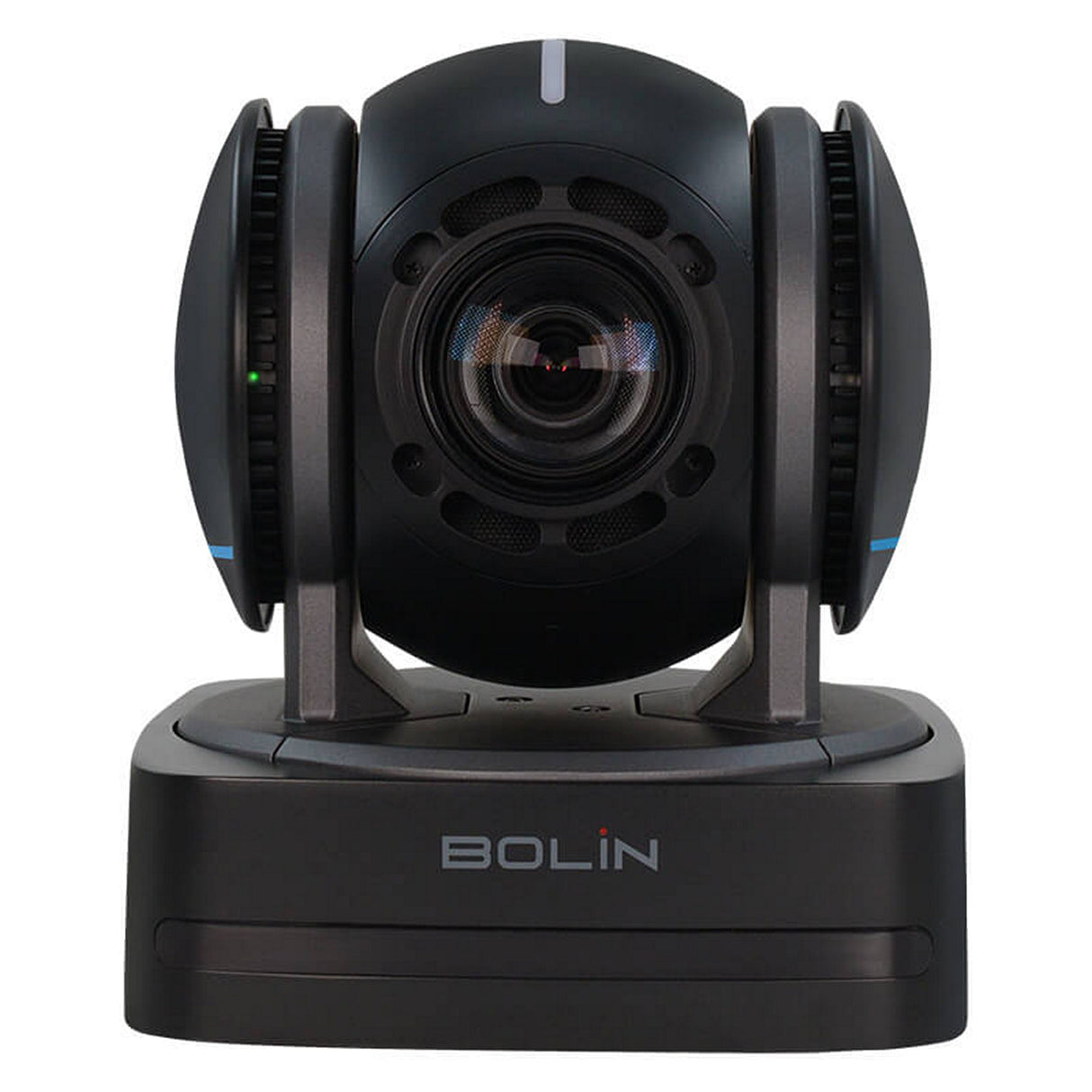

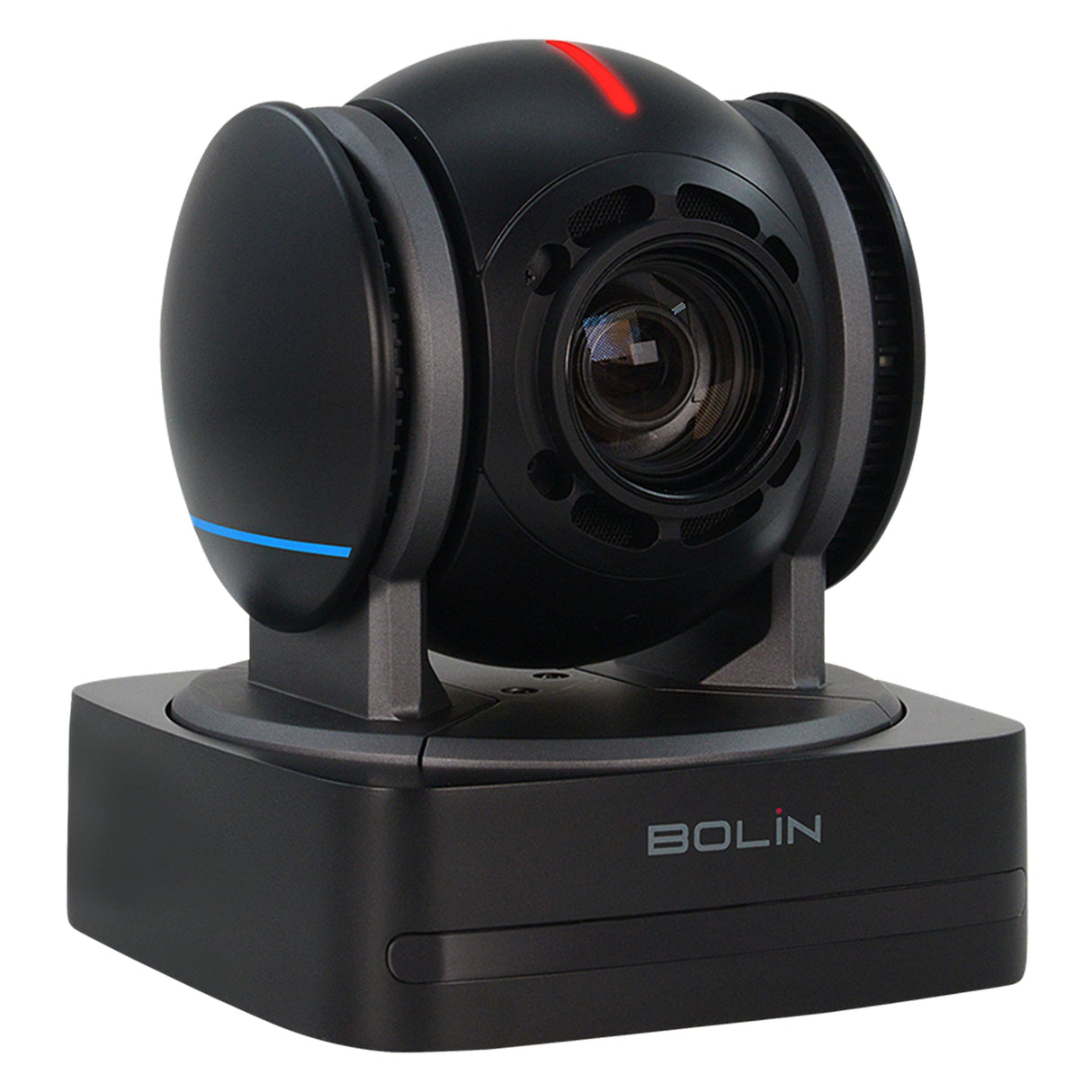

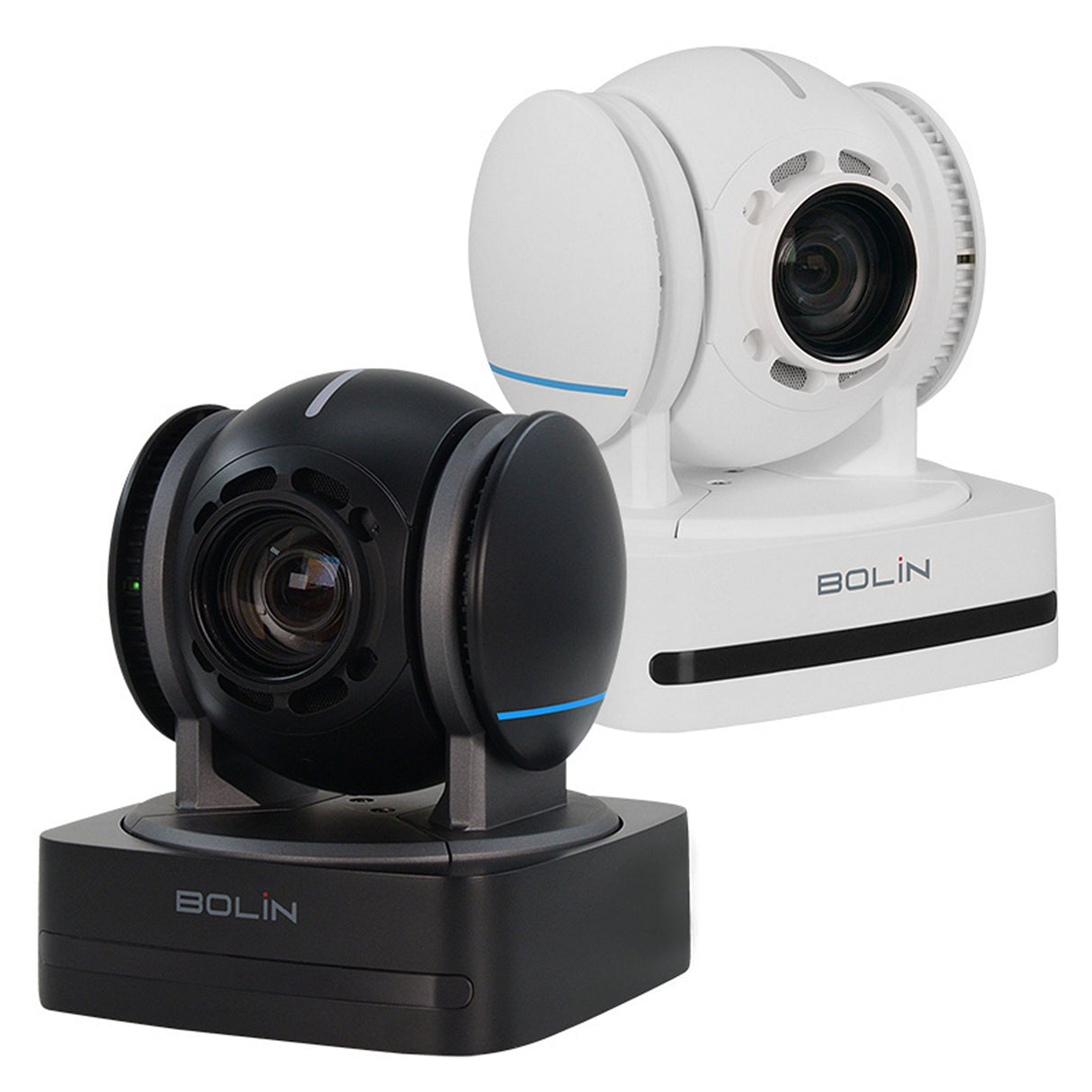

Bolin B2-220 Full HD ProAV PTZ Camera
The Bolin B2-220 Full HD PTZ Camera delivers professional-grade video quality in a compact, budget-friendly design perfect for lecture halls, event spaces, and houses of worship. Part of Bolin's Blue Line platform, this versatile camera combines a high-quality Sony 2.13MP sensor with powerful 20X optical zoom capability, capturing crisp 1080p60 imagery with exceptional detail across a 55.8° horizontal field of view. The B2-220's quiet, precise pan/tilt mechanism offers smooth movement control with ±170° horizontal and +90° to -30° vertical rotation ranges, ensuring optimal subject framing in mid-sized venues without disturbing ongoing presentations or performances.
Engineered for seamless integration into professional AV environments, the B2-220 supports multiple simultaneous outputs including 3G-SDI, HDMI, USB-C, and IP streaming, making it ideal for diverse applications from live production and broadcasting to video conferencing and content recording. The camera's innovative AI-powered face analytical engine provides intelligent focus and exposure adjustment, delivering exceptional image quality even in challenging lighting conditions. Available in both black and white variants to complement any interior design, the B2-220 combines professional performance, versatile connectivity, and intuitive operation at a price point that makes high-quality video capture accessible for organizations of all sizes.
Key Features
- High-Quality Full HD Imaging: Sony 1/2.8" CMOS sensor delivers superior 1080p60 resolution with excellent low-light performance and vivid color reproduction
- Powerful 20X Optical Zoom: Premium lens with additional 16X digital zoom provides flexible framing from wide-angle room coverage to detailed close-ups, perfect for capturing subjects at greater distances
- Multi-Output Connectivity: True dual output with 3G-SDI, HDMI, USB-C, and IP streaming capabilities enables flexible integration with existing AV systems, computers, and network infrastructure
- AI-Powered Smart Focus: Advanced face detection and analytical engine ensure precise focus and exposure even in complex lighting environments
- Smooth, Silent PTZ Operation: Quiet, high-precision motor control with adaptive variable speed provides distraction-free camera movement during live events
- Professional Control Options: Compatible with VISCA, Pelco P/D protocols via RS-232/RS-422, VISCA-over-IP, and ONVIF for integration with existing controllers
- Embedded Audio Support: Built-in 3.5mm mic/line input for integrated audio capture, with embedding across SDI, HDMI, USB and IP streaming outputs
- Color Matrix Fine-Tuning: Comprehensive image parameter controls with built-in color matrix adjustment for precise image customization and color matching across multi-camera productions
Technical Specifications
- Image Sensor: 1/2.8" Sony CMOS with 2.13 Megapixels
- Video Resolution: 1080p60/50/30/25, 720p60/50/30/25
- Zoom: 20X optical zoom, 16X digital zoom
- Horizontal Field of View: 55.8° (wide) to approx. 3.2° (tele)
- Pan/Tilt Range: Pan: ±170° (0.05-100°/s); Tilt: +90° to -30° (0.05-50°/s)
- Presets: 255 positions (via controller), 6 positions (via remote)
- Minimum Object Distance: 10mm (wide end)
- Power Requirements: 12VDC, 1A or PoE (Power over Ethernet)
Package Contents
- Bolin B2-220 Full HD PTZ Camera (Black or White)
- IR Remote Controller
- 12VDC Power Adapter
- Power Cable
- Mounting Screw Set
- RJ-45 to RS-232 Extension Cable
- RJ-45 to RS-422 Extension Cable
