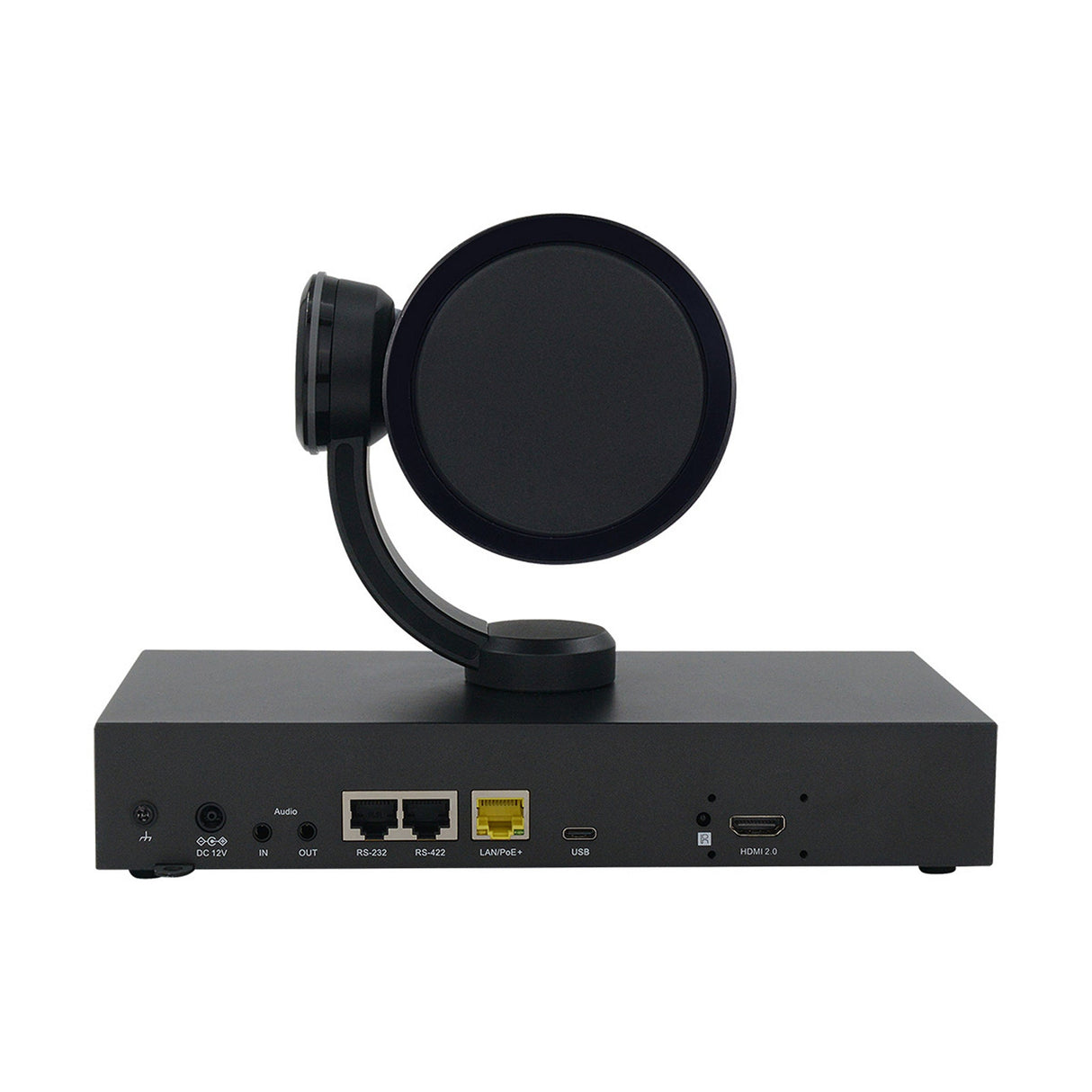

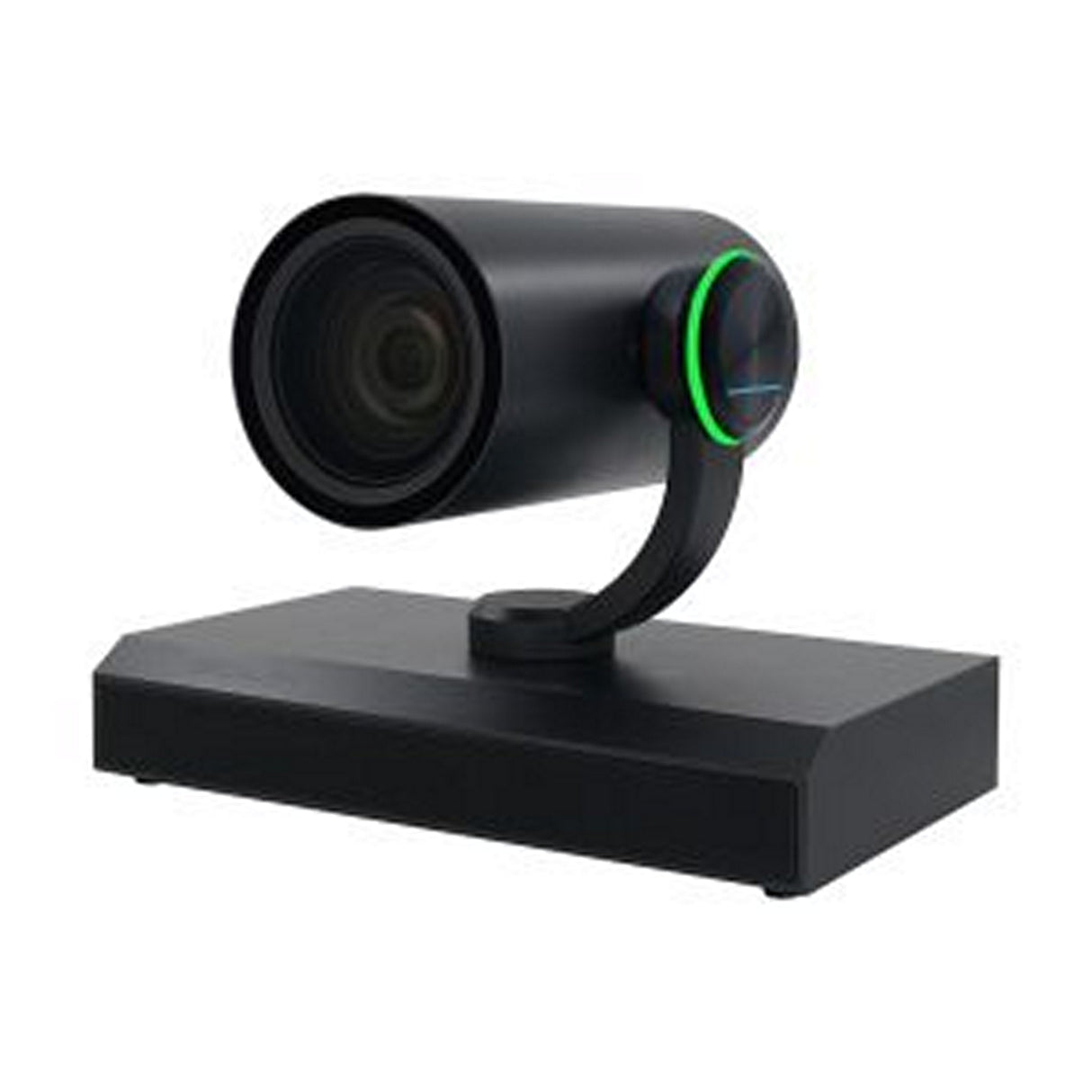

Bolin B6-420 4K60 Conferencing PTZ Camera
The Bolin B6-420 4K60 Conferencing PTZ Camera delivers exceptional Ultra HD video quality in an elegant, robust design ideal for corporate environments, educational institutions, and houses of worship. Part of Bolin's Blue Line platform, this versatile camera combines a premium Sony 8.29MP sensor with powerful 20X optical zoom capability, capturing stunning 4K60 footage with remarkable clarity across a wide 78.59° field of view. The B6-420's quiet, precise pan/tilt mechanism offers fluid movement control with ±170° horizontal and ±90° vertical rotation ranges, ensuring optimal subject framing without disrupting ongoing meetings or presentations.
Engineered for seamless integration into modern AV systems, the B6-420 supports multiple simultaneous outputs including HDMI 2.0, USB-C 3.0, and IP streaming, making it perfect for diverse applications from videoconferencing and lecture capture to live streaming and content production. The camera's innovative AI-powered face analytical engine provides intelligent focus and exposure adjustment, delivering exceptional image quality even in challenging lighting conditions. With professional control options, embedded audio support, and PoE capability for simplified installation, the B6-420 combines cutting-edge technology and user-friendly operation at a price point that makes Ultra HD video capture accessible for organizations of all sizes.
Key Features
- Ultra HD 4K60 Imaging: Sony 1/2.8" 8.29MP CMOS sensor delivers superior 3840 x 2160 resolution at 60fps with exceptional detail and vivid color reproduction
- Powerful 20X Optical Zoom: Premium lens with additional 16X digital zoom provides flexible framing from wide-angle room coverage (78.59° FOV) to detailed close-ups
- Multi-Output Connectivity: Simultaneous HDMI 2.0, USB-C 3.0, and IP streaming capabilities enable flexible integration with existing AV systems, computers, and network infrastructure
- AI-Powered Smart Focus: Advanced face detection and analytical engine ensure precise focus and exposure even in complex lighting environments
- Smooth, Silent PTZ Operation: Quiet, high-precision motor control with adaptive variable speed provides distraction-free camera movement during live events
- Professional Control Options: Compatible with VISCA, Pelco P/D protocols via RS-232/RS-422, VISCA-over-IP, and ONVIF for integration with existing controllers
- Embedded Audio Support: Built-in 3.5mm mic/line input and output for integrated audio capture, with embedding across all video outputs
- Edge Storage Capability: MicroSD card slot for local recording, providing backup and standalone operation options
Technical Specifications
- Image Sensor: 1/2.8" Sony CMOS with 8.29 Megapixels
- Video Resolution: 4K60 (3840 x 2160 at 60fps), 1080p60/50/30/25
- Zoom Range: 20X optical zoom, 16X digital zoom
- Field of View: 78.59° (wide) to approx. 4.1° (tele)
- Pan/Tilt Range: Pan: ±170° (0.05-100°/s); Tilt: ±90° (0.05-50°/s)
- Minimum Object Distance: 10mm (wide end)
- Operating Temperature: -10°C to 50°C (14°F to 122°F)
- Power Requirements: 12VDC, 1A or PoE (Power over Ethernet)
Package Contents
- Bolin B6-420 4K60 Conferencing PTZ Camera
- IR Remote Controller
- 12VDC Power Adapter
- Power Cable
- Mounting Screw Set
- RJ-45 to RS-232 Extension Cable
- RJ-45 to RS-422 Extension Cable
