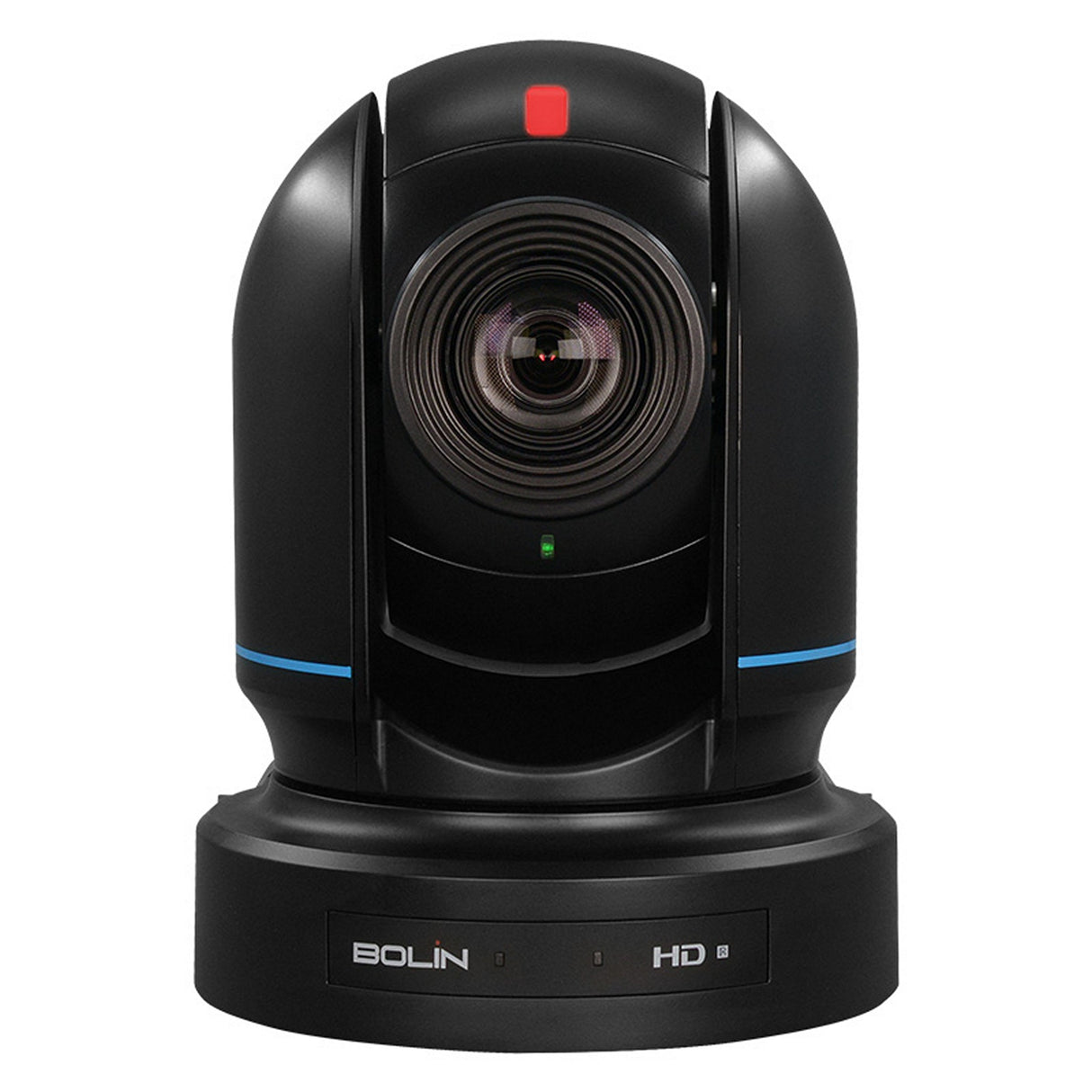

Bolin B7-220 Full HD ProAV PTZ Camera
The Bolin B7-220 Full HD ProAV PTZ Camera delivers professional broadcast-quality video in a versatile, elegant design ideal for studio production, live events, houses of worship, and corporate environments. Part of Bolin's Blue Line platform, this premium camera combines a high-quality Sony 2.13MP sensor with powerful 20X optical zoom capability, capturing crisp 1080p60 footage with remarkable detail across a 55.8° field of view. The B7-220's quiet, precise pan/tilt mechanism offers fluid movement control with ±170° horizontal and ±90° vertical rotation ranges, ensuring optimal subject framing without disrupting ongoing productions.
Engineered for seamless integration into professional workflows, the B7-220 supports multiple simultaneous outputs including 3G-SDI, HDMI, USB-C, and IP streaming, making it perfect for diverse applications from live broadcasting and recording to video conferencing and content production. The camera's innovative AI-powered face analytical engine provides intelligent focus and exposure adjustment, delivering exceptional image quality even in challenging lighting conditions. Available in both black and white variations to complement any studio aesthetic, the B7-220 combines professional performance, versatile connectivity, and precise control options at a price point that makes high-quality video capture accessible for organizations of all sizes.
Key Features
- Professional Full HD Imaging: Sony 1/2.8" CMOS sensor delivers superior 1080p60 resolution with excellent low-light performance and vivid color reproduction
- Powerful 20X Optical Zoom: Premium lens with additional 16X digital zoom provides flexible framing from wide-angle coverage (55.8° FOV) to detailed close-ups

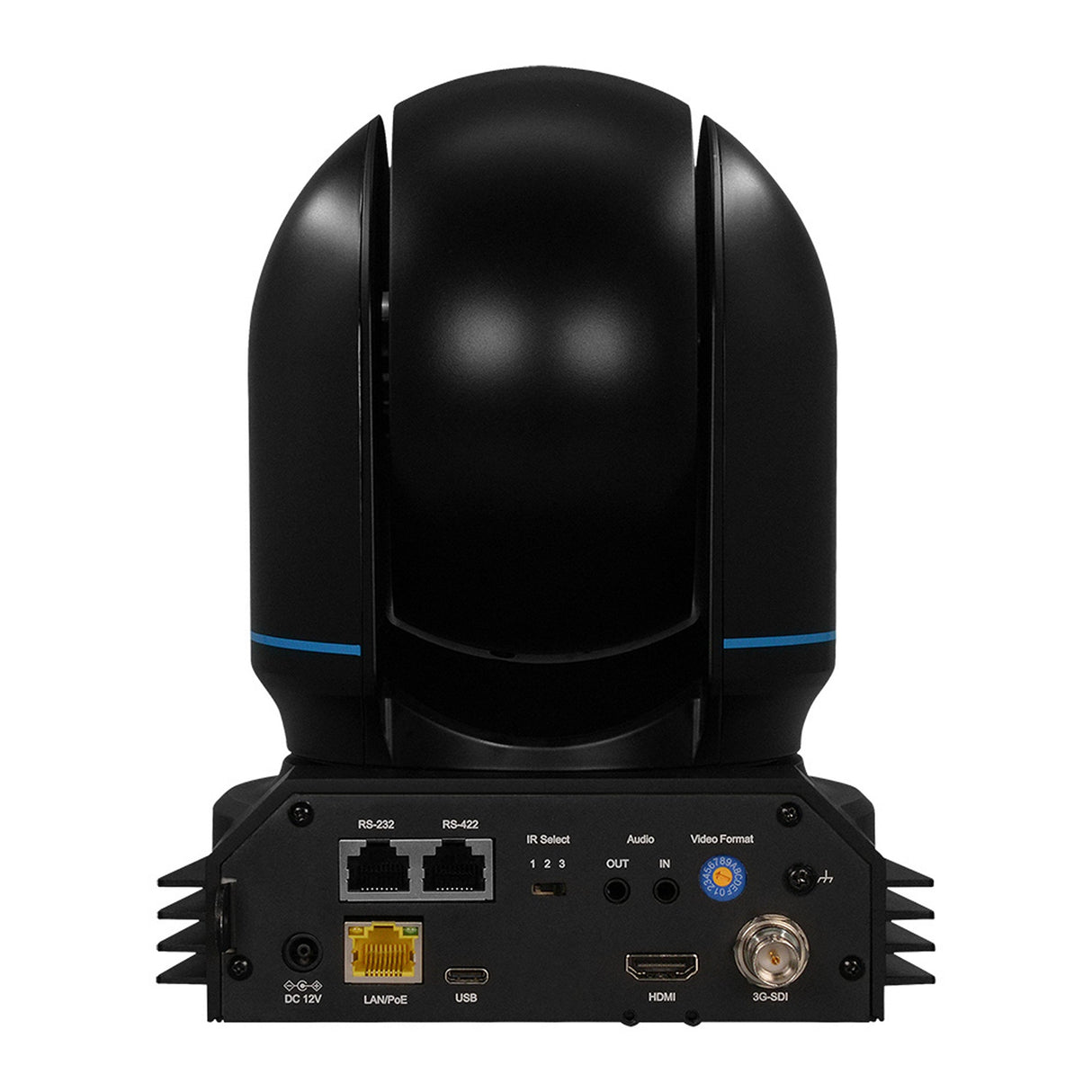

- Multi-Output Connectivity: True simultaneous output via 3G-SDI, HDMI, USB-C, and IP streaming enables flexible integration with existing production systems
- AI-Powered Smart Focus: Advanced face detection and analytical engine ensure precise focus and exposure even in complex lighting environments
- Smooth, Silent PTZ Operation: Quiet, high-precision motor control with adaptive variable speed provides distraction-free camera movement during live events
- Professional Control Options: Compatible with VISCA, Pelco P/D protocols via RS-232/RS-422, VISCA-over-IP, and ONVIF for integration with existing controllers
- Color Matrix Fine-Tuning: Intuitive WebUI allows easy RGB color adjustments for precise image customization and color matching across multi-camera setups
- Edge Storage Capability: MicroSD card slot for local recording, providing backup options and standalone operation capability
Technical Specifications
- Image Sensor: 1/2.8" Sony CMOS with 2.13 Megapixels
- Video Resolution: 1080p60/50/30/25, 1080i59.94/50
- Zoom Range: 20X optical zoom, 16X digital zoom
- Horizontal Field of View: 55.8° (wide) to approx. 3.0° (tele)
- Pan/Tilt Range: Pan: ±170° (0.05-100°/s); Tilt: ±90° (0.05-50°/s)
- Presets: 255 positions (via controller), 6 positions (via remote)
- Audio Support: 3.5mm Line-in/Mic-in and Line-out
- Power Requirements: 12VDC, 1A or PoE+ (Power over Ethernet)
Package Contents

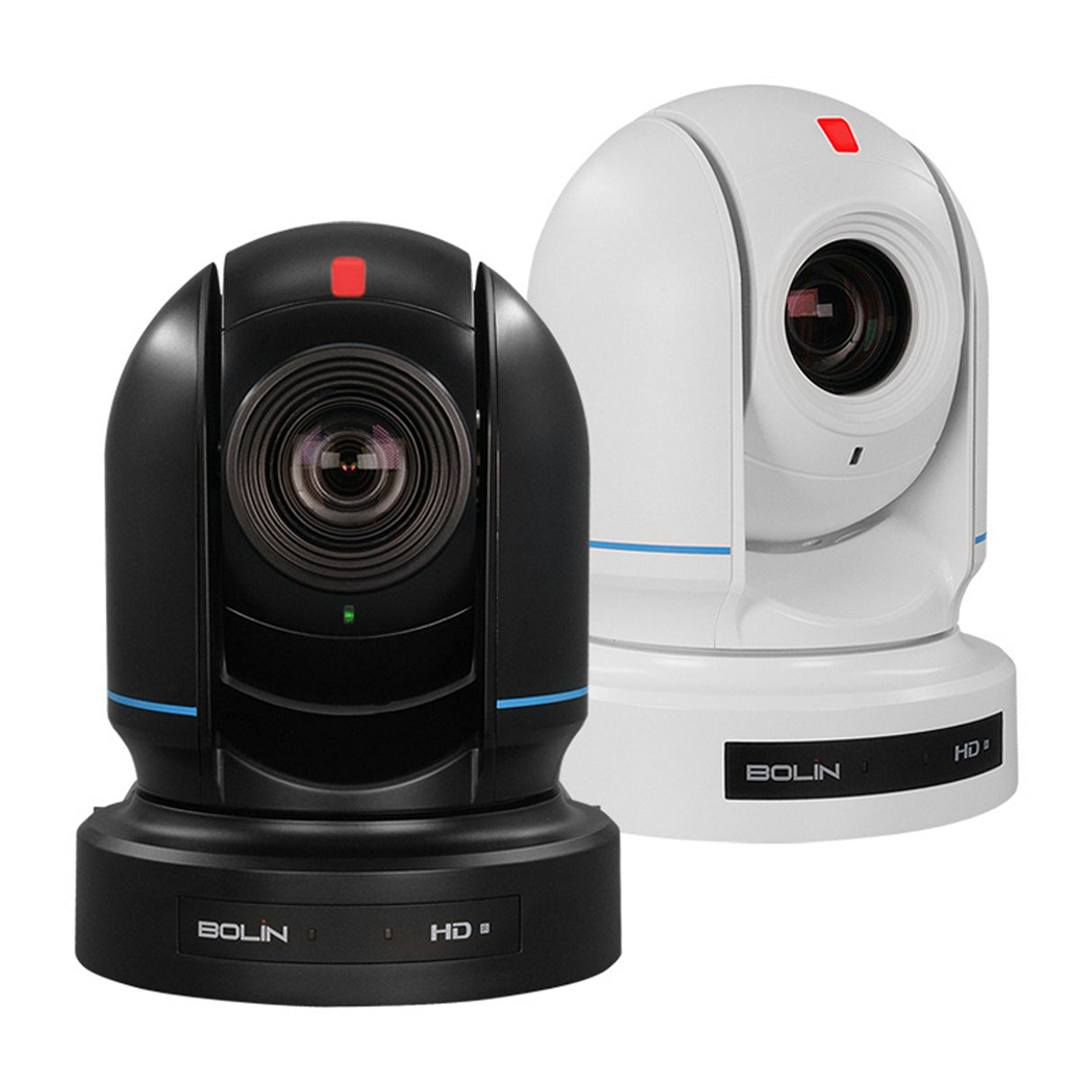

- Bolin B7-220 Full HD ProAV PTZ Camera (Black or White)
- IR Remote Controller
- 12VDC Power Adapter
- Power Cable
- Mounting Screw Set
- RJ-45 to RS-232 Extension Cable
- RJ-45 to RS-422 Extension Cable
