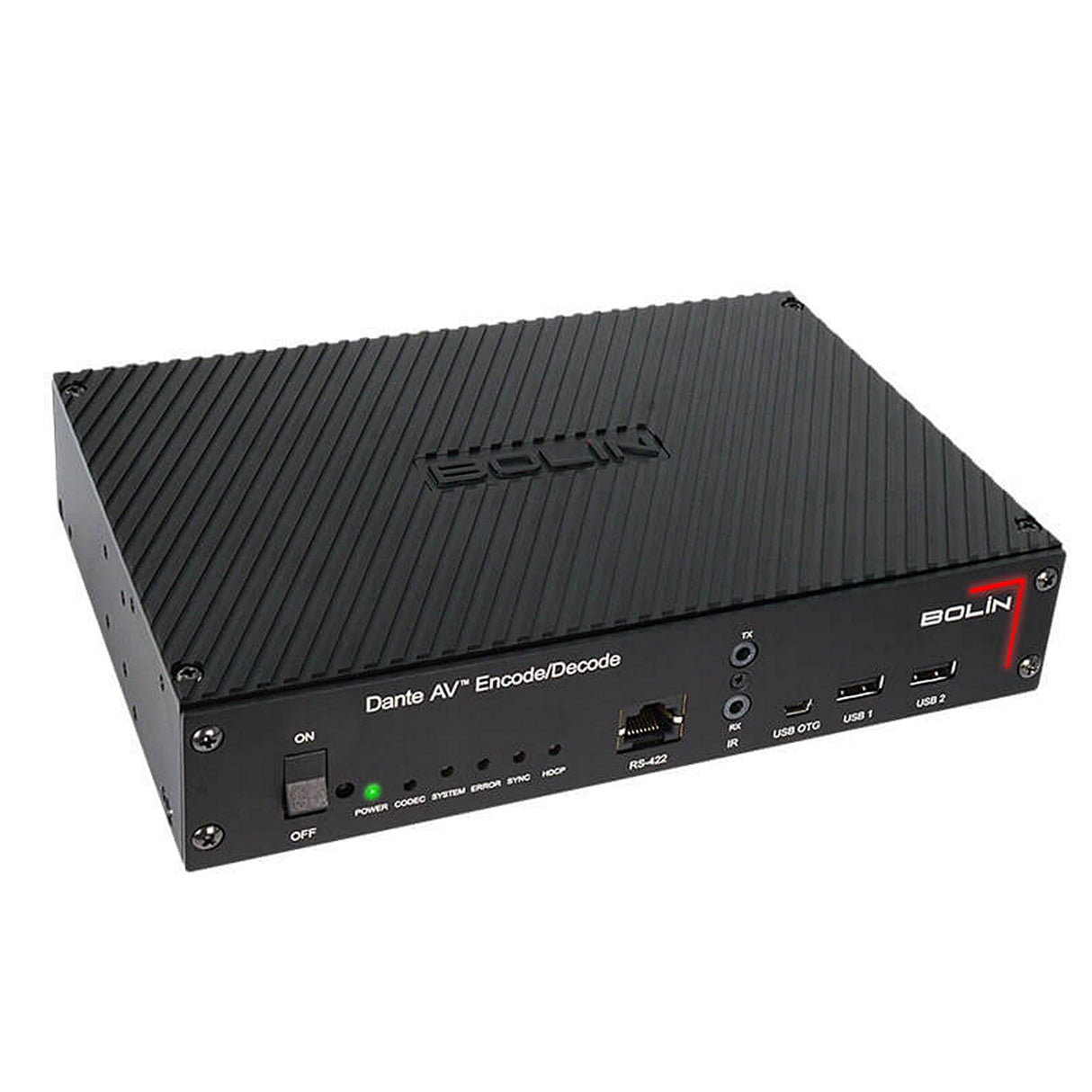

Bolin Technology D20S 12G-SDI DanteAV Encoder/Decoder

Bolin Technology D20S 12G-SDI DanteAV Encoder/Decoder

The Bolin D20S(12G-SDI) decoder is part of Bolin DanteAV camera system. Over standard Gigabit network, a single-channel networked AV decoder outputs baseband video HDMI 2.0 and/or 12G-SDI, which not only works with Bolin DanteAV PTZ camera but also works with standard DanteAV video device within Dante eco system.

It transports up to UHD/4K60 4:4:4 video output with ultra-low latency and lossless quality. It'supports HDCP, plus IP PTZ camera control, embedded audio and control pass-through.

As part of Dante Audio over IP eco family, using standard Gigabit Ethernet network switches and CAT5e UTP wiring, D Series decoder delivers a high-performance virtual video matrix routing solution for presentation of multimedia, and live camera images, Dante 4k video content application such as demanding conference room and classroom applications.

Unicast and Multicast for Video Display Routing
Paired with Dante AV decoder, it receives the signal from a DanteAV PTZ camera or an encoder and feeds it to a display device via the HDMI and/or 12G-SDI output. Using familiar Dante Controller software, the decoder can quickly and easily switch between multiple DanteAV endpoints including cameras or encoders on the network, with no need for breakouts or matrix switches to unicast or multicast display the video on any number of screens and video router system to use.

Implementation of HDCP 2.2 Encryption
Adheres to the latest HDCP 2.2 (HDCP 2.3 for network) specification for High-bandwidth Digital Content Protection. Allows protected content streams to pass between authenticated devices.

Dante Controller Supported
Full setup and control and monitoring of the device is enabled through Dante Controller that delivers standard Dante features such as automatic device discovery and system configuration, making network setup a simple plug and play experience.

Always Up to Date
Firmware updates, upgrade via Bolin Dante AV software IP interface to keep the decoder features and performance up to date.

Audio Formats, Dante Audio over IP
The D20 Series Dante AV Transceiver supports Dante compatible networked audio streams from encoders and audio interfaces. The received Dante audio streaming can be combined with the video and then output via the HDMI output.

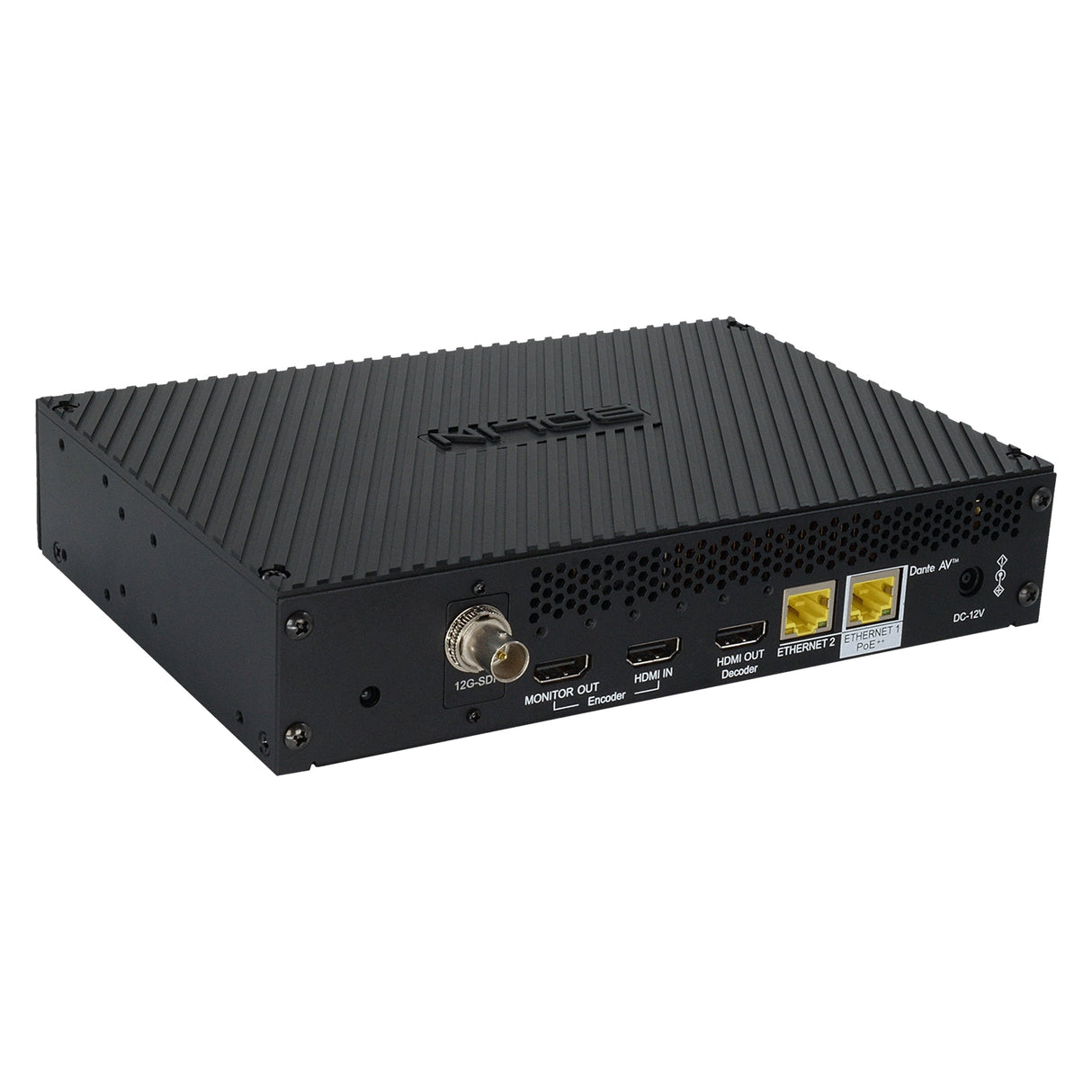

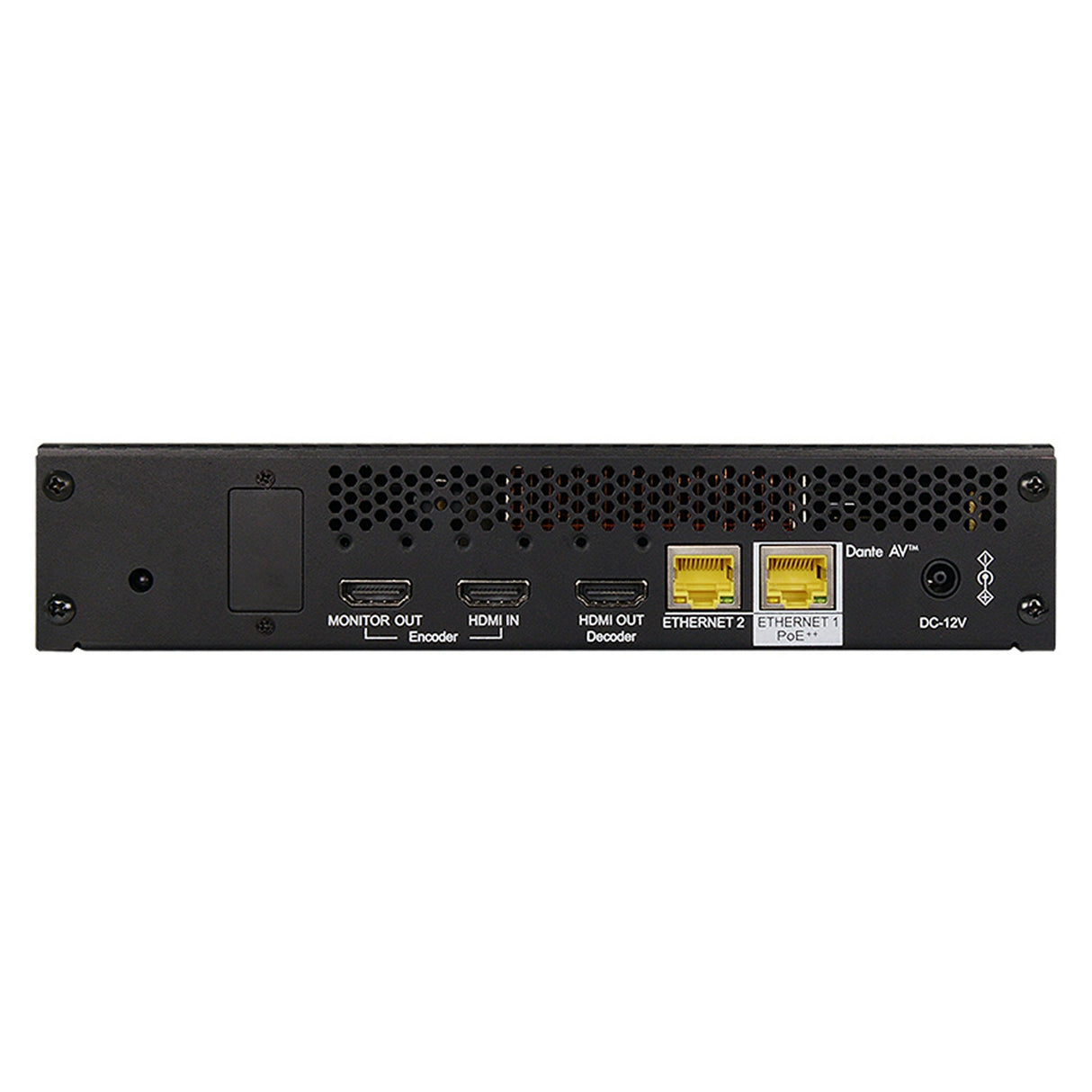

Two Ethernet Ports and POE
The D20 Series Dante AV Transceiver includes two RJ-45 1000BASE-T ports can be used to transport video over a Gigabit Ethernet network. Ports 1 for Dante network primary connection and Port 2 can be used to daisy-chain other endpoints. Port 1 is also capable of receiving power via POE++.

Key Features

• Can be configured to operate as an encoder or a decoder via firmware upgrade
• Ultra-low latency real-time video performance over IP network
• 4K60 4:4:4 video over standard Gigabit Ethernet
• Use as a decoder - provides HDMI 2.0 and/or 12G-SDI output
• Tunable audio delay to facilitate lip-sync control
• Supports unicast and multicast for 8 audio flow and 1 video flow
• Full support of Dante audio and video protocols
• Supported by Dante Controller
• Fully time-aligned and separately routable audio and video streams
• Visually perfect video using network efficient JPEG2000 codec
• Easy control of PTZ camera via Visca Over IP and serial/IR over IP
• Fully validated implementation of HDCP 2.2 (HDCP 2.3 network) encryption
• EDID support
• Works with installed 1Gbps network - no need to replace network infrastructure.
• Compact, surface/rack-mountable design

Technical Specifications

Codec
Device
Encoder/Decoder
Video Codec
JPEG2000
Video Resolution
Up to 4096x2160p60
Bit Rates
200 to 800 Mbps
Copy Protection HDCP
Yes
ULL-Ultra Low Latency
Yes
Video
Format/Eco-System
Dante Video over IP
Encoder Input
HDMI 2.0
Encoder Monitor Output
HDMI 2.0
Decoder Output
HDMI 2.0+12G-SDI
HDMI Resolution
4096x2160p, 3840x2160p, 1920x1080p, 1920x1200, 1600x1200, 1280x720p, 1280x1024, 1024x768, 800x600, 720x576p, 720x480p, 640x480
HDMI Frame Rate
23.98, 24, 25, 29.97, 30, 50, 59.94, 60
HDMI Color Space
RGB, YCbCr
HDMI Bit Width
8-bit, 10-bit, 12-bit
HDMI Color Sampling
4:4:4, 4:2:2, 4:2:0
HDMI EDID
Yes
SDI
12G-SDI
SDI Resolution
4096x2160p, 3840x2160p, 1920x1080p, 1920x1200, 1600x1200, 1280x720p, 1280x1024, 1024x768, 800x600, 720x576p, 720x480p, 640x480
SDI Frame Rate
23.98, 24, 25, 29.97, 30, 50, 59.94, 60
SDI Color Space
YCbCr
SDI Bit Width
8-bit, 10-bit, 12-bit
SDI Color Sampling
4:2:2, 4:2:0
Video Standard
SMPTE 292(1.5Gb/s), SMPTE 424, SMPTE 425-A(3Gb/s), SMPTE 2081, SMPTE 2082 With SMPTE352 SDI Metadata Supported
Audio
Audio Format
Dante Audio over IP
Encoder Input
Up to 8 channels to Dante
Decoder Output
2 channels from Dante
Bit Depth
24, 16 and 32 bits
HDMI Audio Embedded
Yes
SDI Audio Embedded
Yes
Network
Ethernet
Standard 1Gbps Ethernet
Ethernet Port
2
Video Flow
Yes
Audio Flow
15
Control
Serial Control
RS422
PTZ Camera Control
Yes
Control Protocol
VISCA, VISCA Over IP
USB
2
Mouse & Keyboard
Yes
IR TX/RX
Yes
PTZ IR Receiver
Yes
General
Firmware Upgrade Via
IP
Power Input
12VDC, POE++(IEEE802.3bt, Type 3, class 6 compliant)
Bolin POE Injector Recommended
Yes
Mounting Orientation
Ceiling, Wall, Base, Rack (Single/Dual), Surface mount
Operating Temperature
-10 to +40 (Degrees C)
Body Color
Black
Item Includes
1x D20S Transceiver
1x B-BM10 (Base Mount)
1x B-SM10 (Surface Mount)
