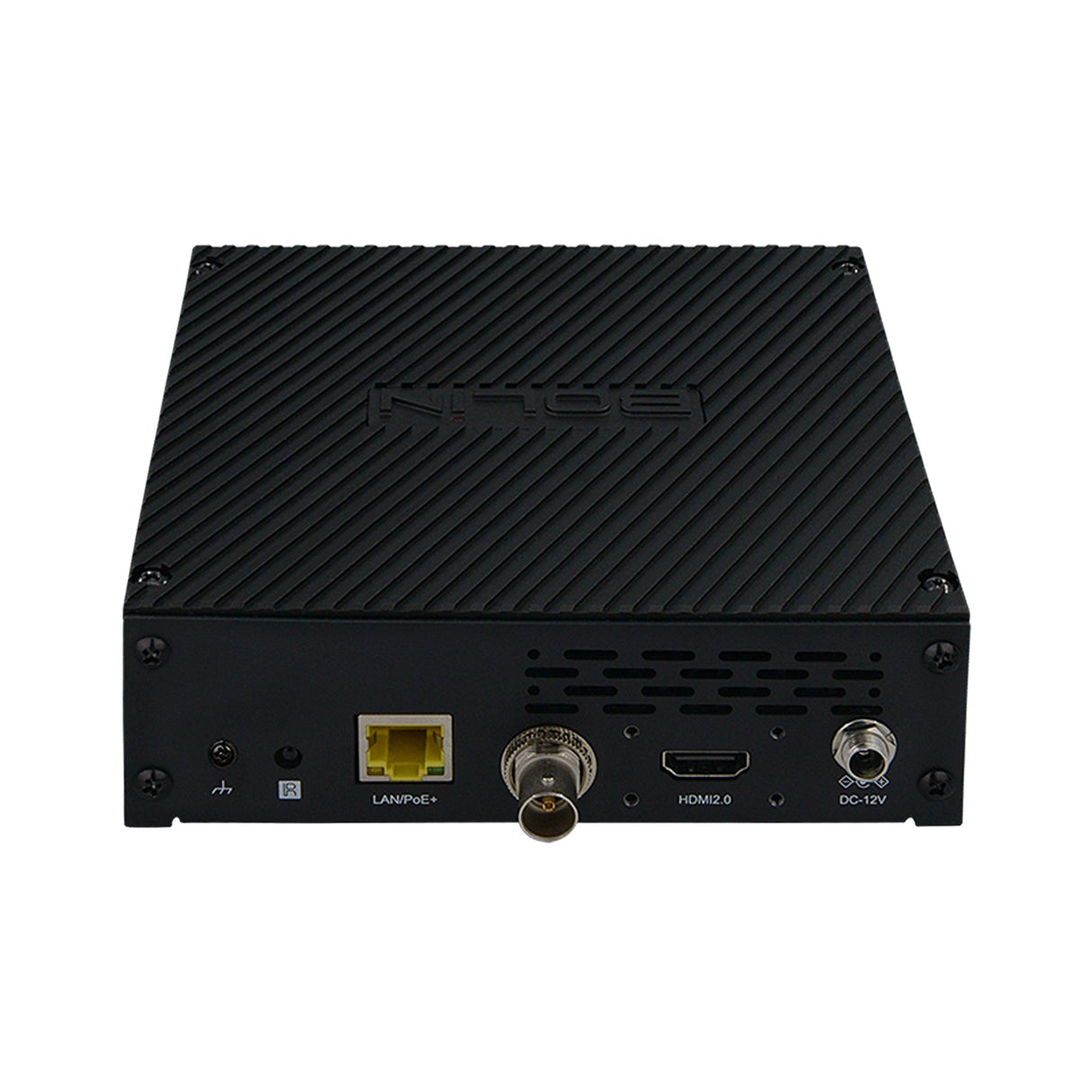

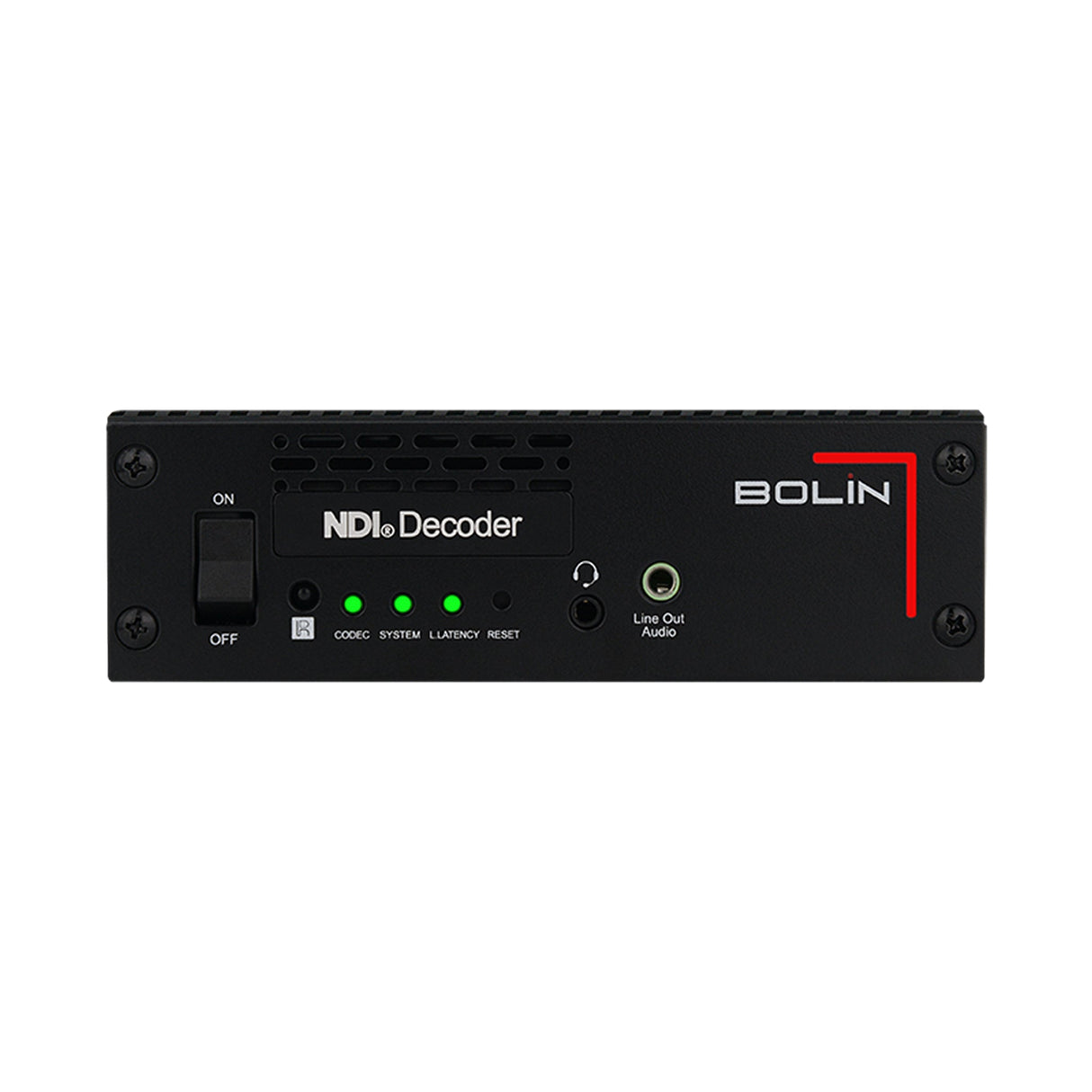

Bolin EG40N 4K60 High Bandwidth NDI Decoder
The Bolin EG40N is a powerful hardware FPGA-based decoder designed for professional broadcast and AV environments that require seamless integration of NDI video streams into existing workflows. This compact yet robust device efficiently converts NDI High Bandwidth and NDI HX3 video flows from a standard 1GB network into pristine 4K60 (3840 x 2160) video output through both HDMI 2.0 and 12G-SDI simultaneously. Compatible with all certified NDI-enabled video sources, the EG40N preserves embedded audio and maintains exceptional image quality while delivering the ultra-low latency performance demanded by live production environments.
Engineered for maximum versatility, the EG40N is NDI 6-ready and supports the latest advancements in NDI technology, including enhanced WAN connectivity that eliminates geographical limitations for remote productions. Its refined FPGA architecture ensures minimal processing delay while maintaining superior image fidelity, making it the ideal solution for applications ranging from broadcast control rooms and live event production to digital signage and professional monitoring setups. With NDAA compliance certification and flexible mounting options including rackmount kits for single, dual, or triple unit installations, the EG40N delivers enterprise-grade reliability in a compact, integration-friendly form factor.
Key Features
- NDI 6 Compatibility: Supports the latest NDI technology with expanded WAN connectivity for remote production workflows and enhanced capabilities across geographical locations
- Dual Output Flexibility: Simultaneous HDMI 2.0 and 12G-SDI outputs supporting up to 4K60 (3840 x 2160) video with embedded audio for versatile integration options
- Low Latency Performance: Hardware FPGA-based processing delivers exceptional image quality with minimal processing delay for real-time applications
- Multi-Protocol Support: Decodes both NDI High Bandwidth and NDI HX3 video streams, offering compatibility with a wide range of NDI sources
- Embedded Audio Processing: Preserves and outputs embedded audio from NDI streams through both HDMI and SDI interfaces
- Flexible Mounting Options: Compatible with single (B-RM20), dual (B-RM22), and triple (B-RM23) rack mounting kits for 19" standard racks, plus wall mounting capability
- Compact Design: Space-efficient form factor allows for versatile installation options in equipment rooms, control centers, and mobile production environments
- NDAA Compliance: Certified compliance with Section 889 of the National Defense Authorization Act for secure deployment in government and sensitive installations
Technical Specifications
- Video Input: NDI High Bandwidth and NDI HX3 via standard 1GB Ethernet
- Video Output: HDMI 2.0 and 12G-SDI simultaneously, up to 4K60 (3840 x 2160)
- Audio Support: 2-channel embedded audio from NDI streams
- Network Interface: 1000BASE-T Gigabit Ethernet (RJ45)
- Power Requirements: 12V DC, 2A (power adapter included)
- Dimensions: Compact form factor suitable for 1U rack mounting solutions
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Cooling: Passive cooling design for silent operation
Package Contents
- Bolin EG40N 4K60 High Bandwidth NDI Decoder
- 12V DC 2A Power Adapter
- Quick Start Guide
- User Manual
