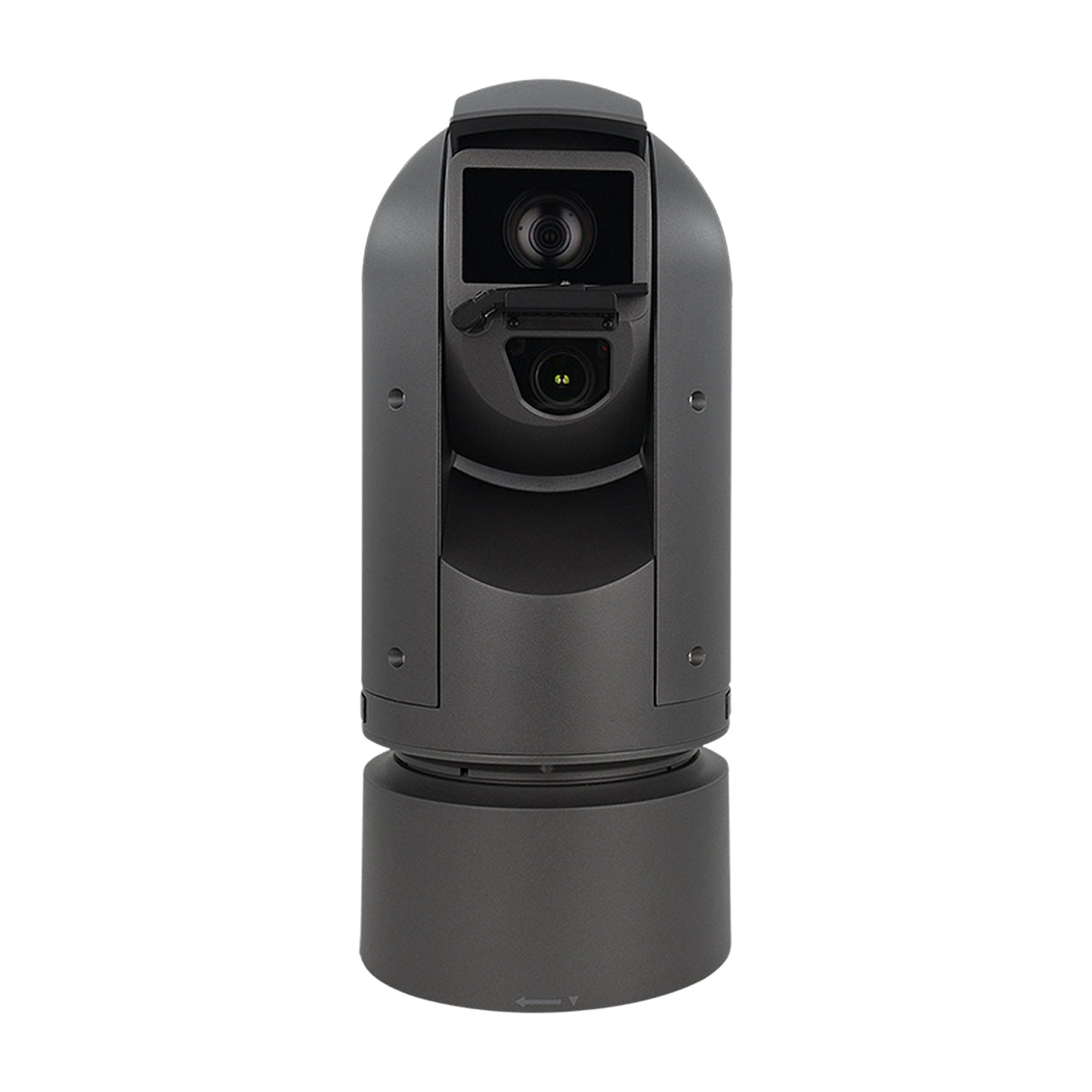

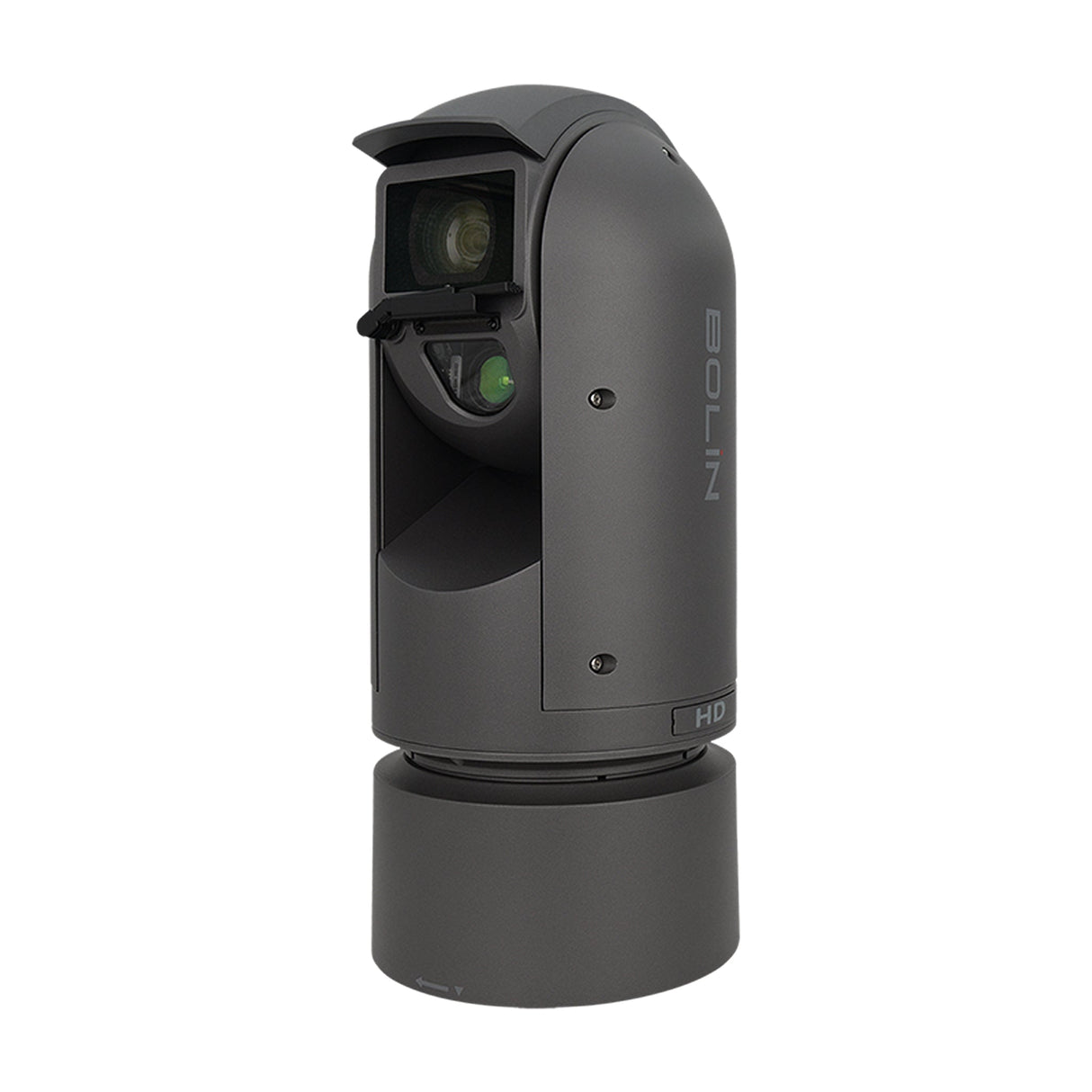

Bolin Technology EX1030H SDI IP Outdoor PTZ Camera

The Bolin EX1030H is a professional-grade outdoor PTZ camera engineered to deliver exceptional performance in challenging environments. Featuring Sony's advanced 1/2.8-type Full HD CMOS sensor with extraordinary low-light sensitivity (minimum illumination of 0.009 lux), this camera captures stunning Full HD video with remarkable clarity and color accuracy even in dim lighting conditions. Its precision-engineered 30X optical zoom lens provides incredible range for capturing detailed footage from long distances, while the camera's unique upright mounting capability and 360° horizontal continuous rotation with 180° vertical rotation offers unparalleled flexibility for comprehensive scene coverage, making it ideal for broadcast productions, live events, traffic monitoring, and security applications.

Built to withstand extreme environmental conditions, the EX1030H features a rugged IP67-rated weatherproof housing that ensures reliable operation in rain, snow, dust, and temperature extremes from -40°C to +60°C. The camera's advanced image processing capabilities include Wide-D mode for handling challenging lighting scenarios with wide dynamic range, Super Image Stabilization technology for minimizing vibrations, and Sony's proprietary AF algorithm that enables simultaneous zoom and focus even in difficult environments. With versatile connectivity options including 3G-SDI and IP streaming outputs supporting up to 1080p60 resolution, FreeD protocol support for virtual production integration, and comprehensive control protocols (VISCA, VISCA-over-IP, Pelco P/D, ONVIF), the EX1030H provides broadcast professionals with a robust, feature-rich camera solution capable of delivering professional-grade video in even the most demanding outdoor environments.

Key Features

• Superior Low-Light Performance: Sony 1/2.8-type CMOS sensor with 0.009 lux minimum illumination captures clear, detailed images even in challenging lighting environments
• Professional 30X Optical Zoom: High-quality lens with 30X optical zoom provides exceptional range for capturing distant subjects with clarity
• 360° Continuous Rotation: Unique upright mounting capability with 360° horizontal continuous rotation and 180° vertical rotation with auto-flip offers comprehensive coverage from any mounting position
• IP67 Weatherproof Design: Rugged construction ensures reliable operation in extreme weather conditions from -40°C to +60°C, including protection against dust and water immersion
• Dual Output Capability: Simultaneous 3G-SDI and IP streaming outputs provide flexible integration options for both traditional broadcast and network-based workflows
• Advanced Image Processing: Wide-D mode, Super Image Stabilization, and intelligent AF algorithms deliver exceptional image quality in challenging conditions
• FreeD Protocol Support: Enables integration with virtual production systems for immersive AR/VR applications and automated tracking capabilities
• Comprehensive Control Options: Multiple control protocols including VISCA, VISCA-over-IP, Pelco P/D, and ONVIF ensure compatibility with various control systems

Technical Specifications

• Image Sensor: 1/2.8" Sony Exmor R CMOS with Full HD resolution
• Video Resolution: Up to 1080p60/59.94 (SDI), 1080p60 (IP)
• Optical Zoom: 30X
• Minimum Illumination: 0.009 lux (color)
• Pan/Tilt Range: Pan 360° (continuous), Tilt 180° with auto-flip
• Weatherproofing: IP67-rated housing
• Operating Temperature: -40°C to +60°C
• Video Outputs: 3G-SDI, IP streaming (H.264/H.265)

Package Contents

• Bolin EX1030H SDI IP Outdoor PTZ Camera
• Power Adapter
• Mounting Hardware
• Installation Manual
