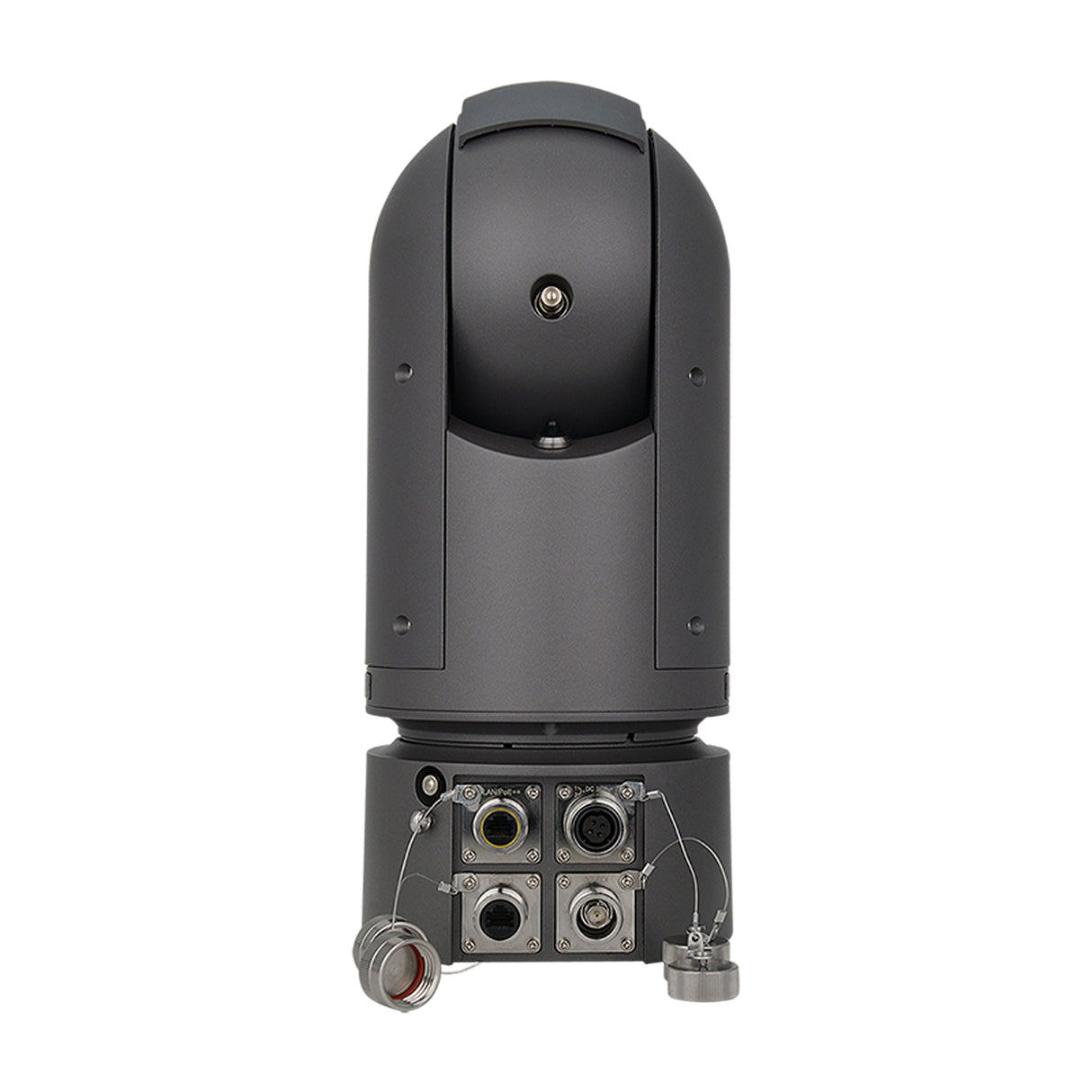

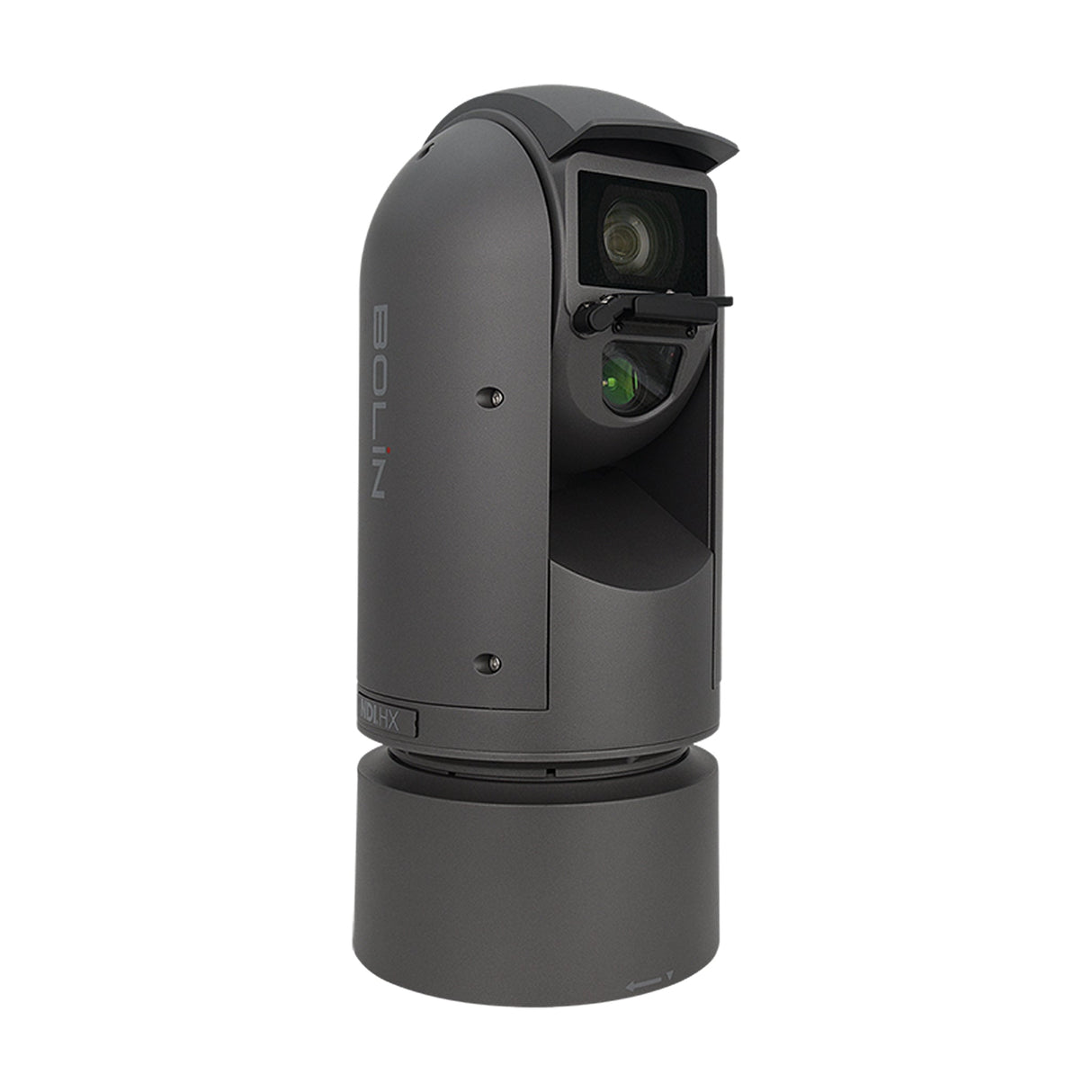

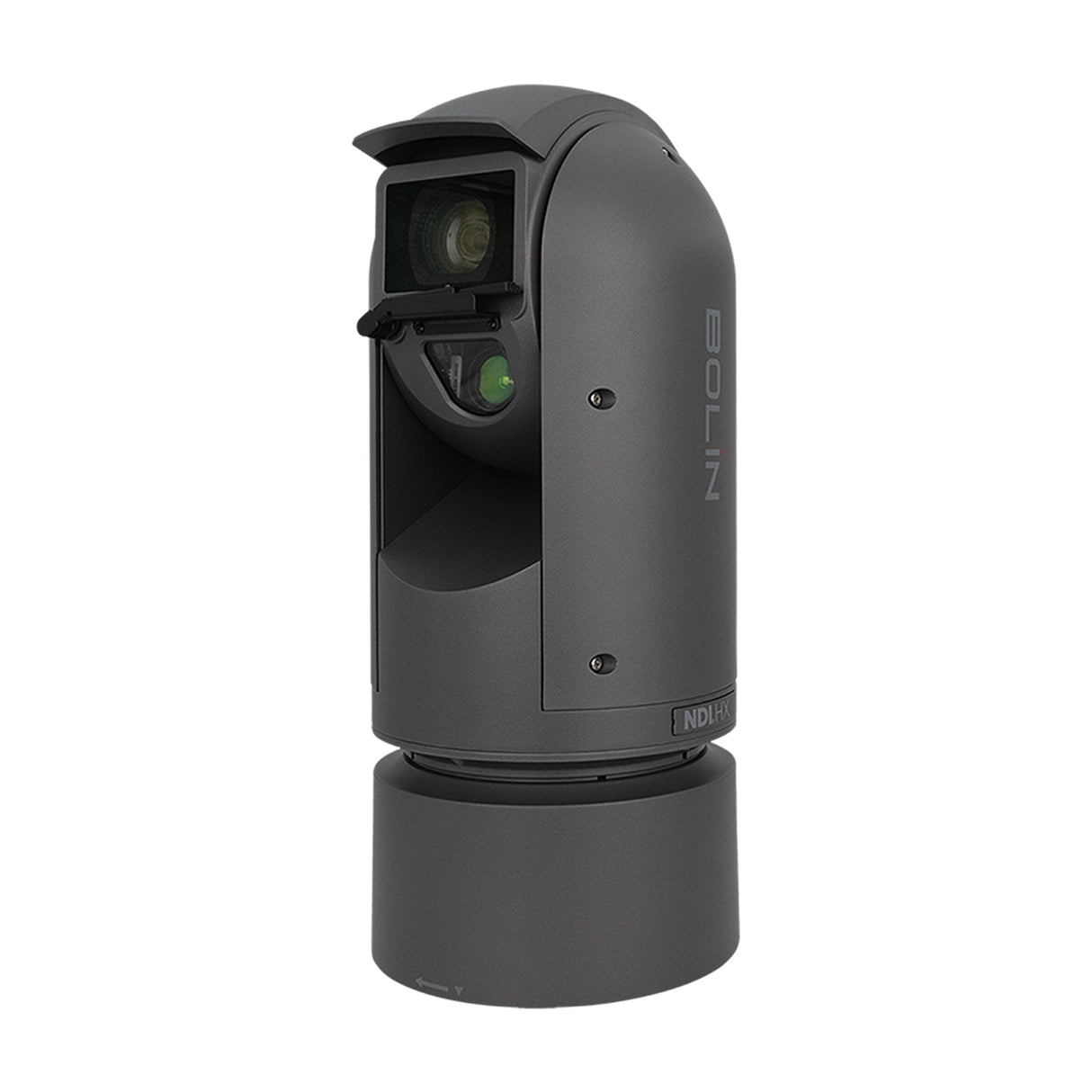

Bolin EX1030NX Outdoor NDI HX3 PTZ Camera
The Bolin EX1030NX Outdoor NDI HX3 PTZ Camera delivers professional broadcast-quality Full HD video in the most challenging environments, combining advanced imaging technology with rugged durability. Equipped with Sony's 1/2.8-type Exmor R™ sensor and a powerful 30X optical zoom, this versatile camera captures crisp, detailed imagery with exceptional low-light performance down to 0.009 lux, ensuring vivid color reproduction and clear visibility even in difficult lighting conditions. The IP67-rated weatherproof housing with integrated heater, defroster, and corrosion-resistant treatment guarantees reliable operation in extreme weather, from harsh sunlight to heavy rain, snow, and salt spray environments.
Engineered for seamless integration into modern broadcast workflows, the EX1030NX supports NDI HX3 technology with NDI 6 compatibility, providing efficient high-quality video transmission over standard networks with reduced bandwidth requirements. Its unique 360° horizontal continuous rotation and 210° vertical rotation with auto-flip capability delivers unprecedented freedom for capturing aerial and panoramic views when mounted upright. With comprehensive connectivity options including 3G-SDI and IP simultaneous outputs, Zero Deviation Positioning (ZDP) technology for precise movement control, and NDAA compliance certification, this camera stands as the ultimate solution for outdoor broadcasting, live events, sports coverage, and professional AV applications requiring exceptional reliability and performance.
Key Features
- NDI HX3 Integration: Certified NDI HX3 technology with NDI 6 compatibility for efficient, high-quality video streaming over standard networks with minimal bandwidth requirements
- Superior Optical System: Premium 30X optical zoom with 12X digital zoom extension, providing exceptional detail and clarity from wide-angle to telephoto shots
- 360° Continuous Rotation: Unique full 360° horizontal rotation and 210° vertical rotation with auto-flip capability, delivering unparalleled viewing flexibility when mounted upright
- All-Weather Durability: IP67-rated housing with integrated heater, defroster, and corrosion-resistant treatment for reliable operation in extreme environmental conditions
- Exceptional Low-Light Performance: Sony's 1/2.8-type Exmor R sensor delivers outstanding image quality with minimum illumination of just 0.009 lux
- True Dual-Output Capability: Simultaneous 3G-SDI (up to 1080p60/1080i59.94) and IP video streaming (up to 1080p60) for flexible workflow integration
- Zero Deviation Positioning: Precision movement technology ensures high accuracy in preset programming with smooth variable speed operation
- NDAA Compliant: Certified compliance with Section 889 of the National Defense Authorization Act for secure deployment in government and sensitive installations
Technical Specifications
- Image Sensor: 1/2.8" Sony Exmor R CMOS with Full HD resolution
- Optical Zoom: 30X with additional 12X digital zoom capability
- Horizontal Field of View: 64° (wide) to 2.3° (tele)
- Video Output: 3G-SDI (up to 1080p60/1080i59.94) and IP streaming (up to 1080p60)
- Minimum Illumination: 0.009 lux for exceptional low-light performance
- Dynamic Range: 120dB true WDR (Wide Dynamic Range)
- Pan/Tilt Range: 360° continuous horizontal rotation, 210° vertical rotation
- IP Rating: IP67 weather-resistant housing
Package Contents
- Bolin EX1030NX Outdoor NDI HX3 PTZ Camera
- Power Supply Adapter
- IR Remote Control
- Breakout Cable for Audio and Video Connections
- RJ45 to Phoenix Terminal Adapter
- Mounting Hardware
- Quick Start Guide and Documentation
