Bolin Technology EXU230H Low Light Professional Outdoor PTZ Camera

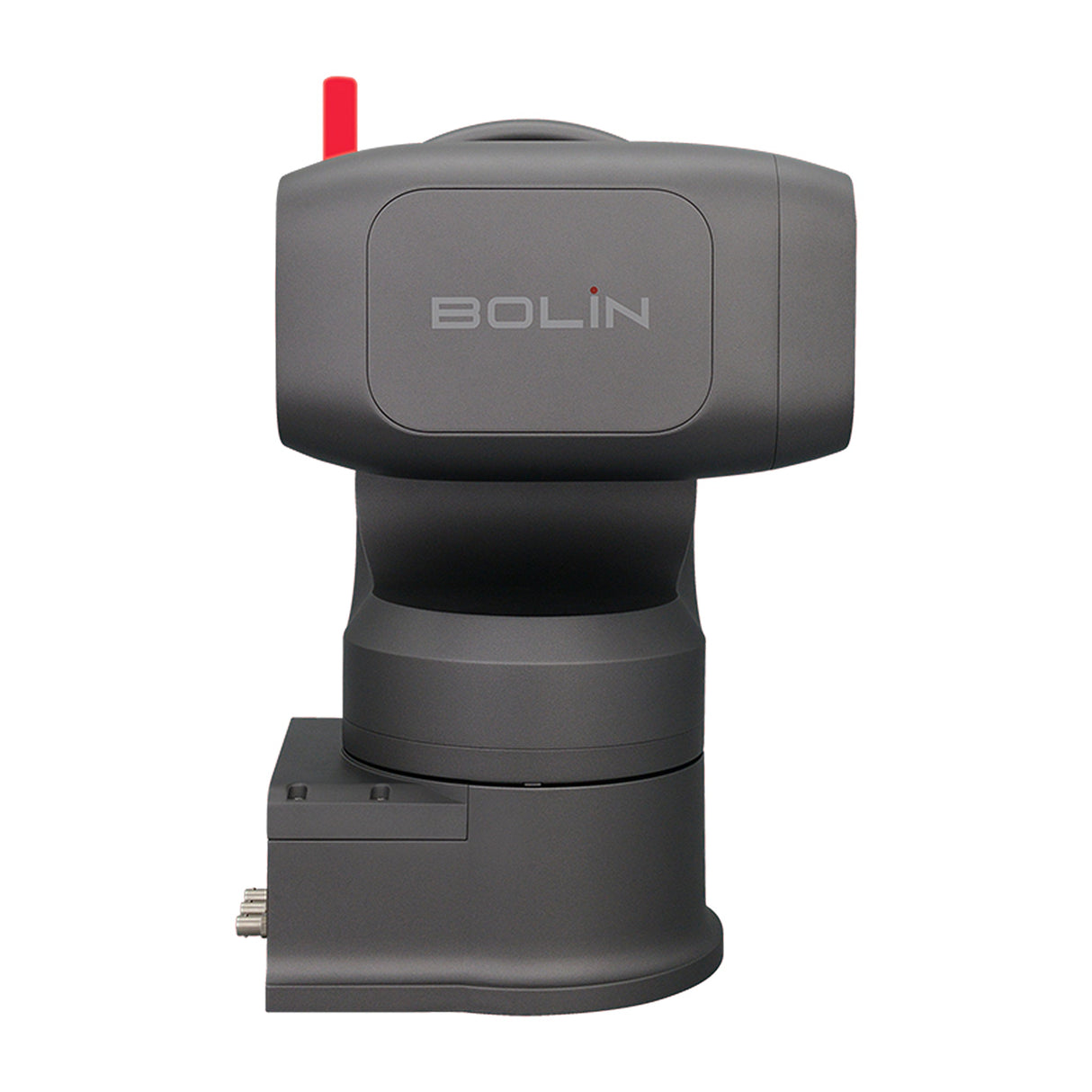

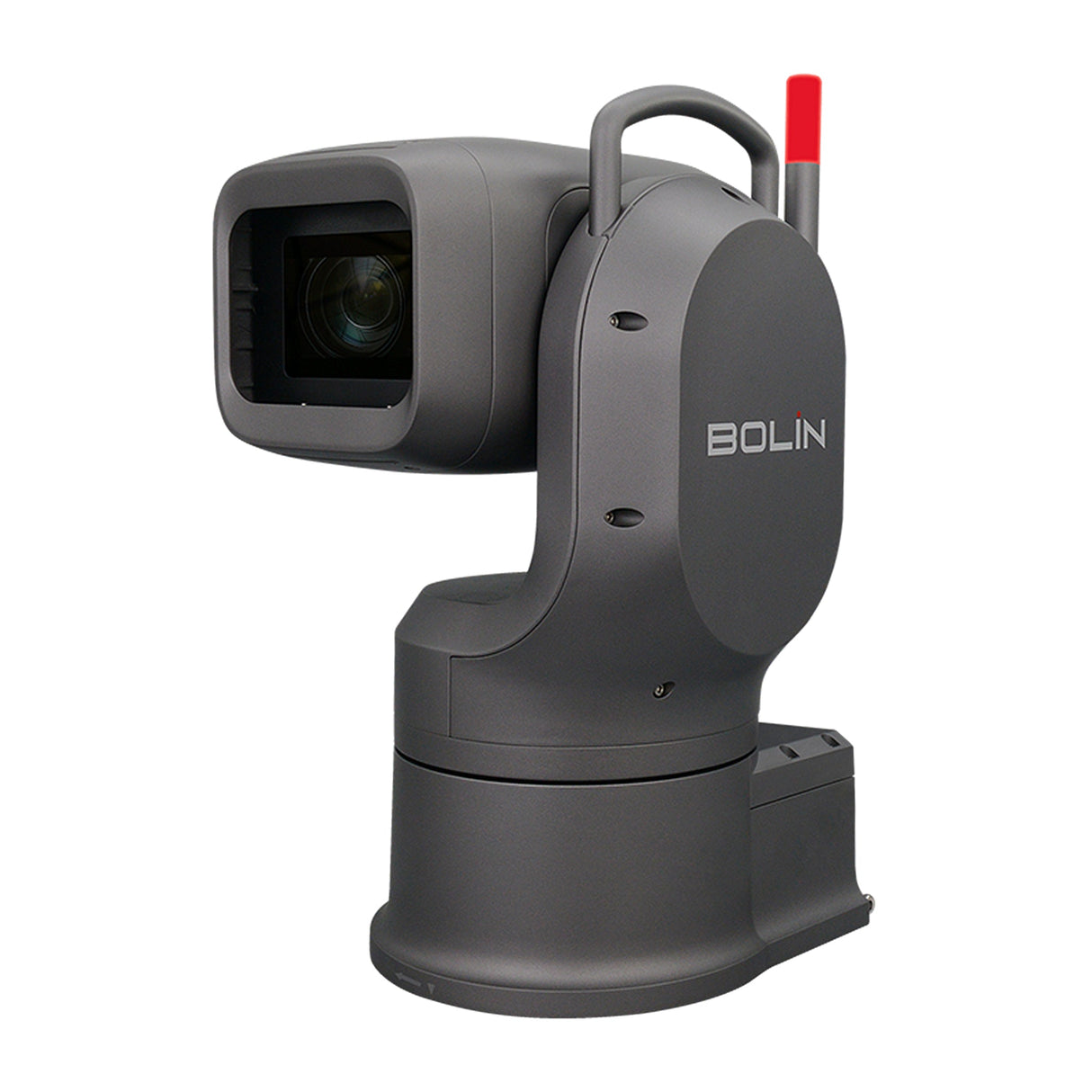

The Bolin EXU230H is a professional-grade outdoor PTZ camera engineered for exceptional performance in challenging environments and low-light conditions. Powered by Sony's advanced image technology, including an 8M ultra-high resolution lens, 1/1.8" STARVIS II sensor, and specialized ISP, this rugged camera delivers stunning Full HD 1080p60 video with remarkable clarity and color accuracy even in minimal lighting. Its precision-engineered 30X optical zoom with 12X digital extension provides incredible flexibility for capturing both wide-angle scenes and detailed close-ups from a distance, making it ideal for outdoor broadcast, sports coverage, event production, surveillance, and traffic monitoring applications.

Built to withstand the harshest outdoor conditions, the EXU230H features a robust weatherproof construction that ensures reliable operation in rain, snow, dust, and extreme temperatures. The camera's advanced features include Super Image Stabilization for steady footage in windy conditions, Sony's proprietary AF algorithm for simultaneous zoom and focus capability, and versatile control options with 255 preset positions at 0.03° accuracy. With comprehensive connectivity including 3G-SDI, HDMI, and IP streaming with FAST HEVC encoding, plus FreeD protocol support for virtual production integration, the EXU230H seamlessly fits into professional broadcast and AV workflows while delivering the performance and durability needed for demanding outdoor applications.

Key Features

• Superior Low Light Performance: 1/1.8" Sony STARVIS II sensor combined with advanced image processing delivers exceptional video quality even in challenging lighting conditions
• Professional 30X Optical Zoom: High-resolution lens with 30X optical zoom and additional 12X digital zoom provides extraordinary range for capturing distant subjects with clarity
• Rugged Weatherproof Design: Durable outdoor construction engineered to withstand harsh environmental conditions including rain, dust, and temperature extremes
• Advanced Image Stabilization: Super image stabilizer technology ensures smooth, steady footage even in windy conditions or at maximum zoom

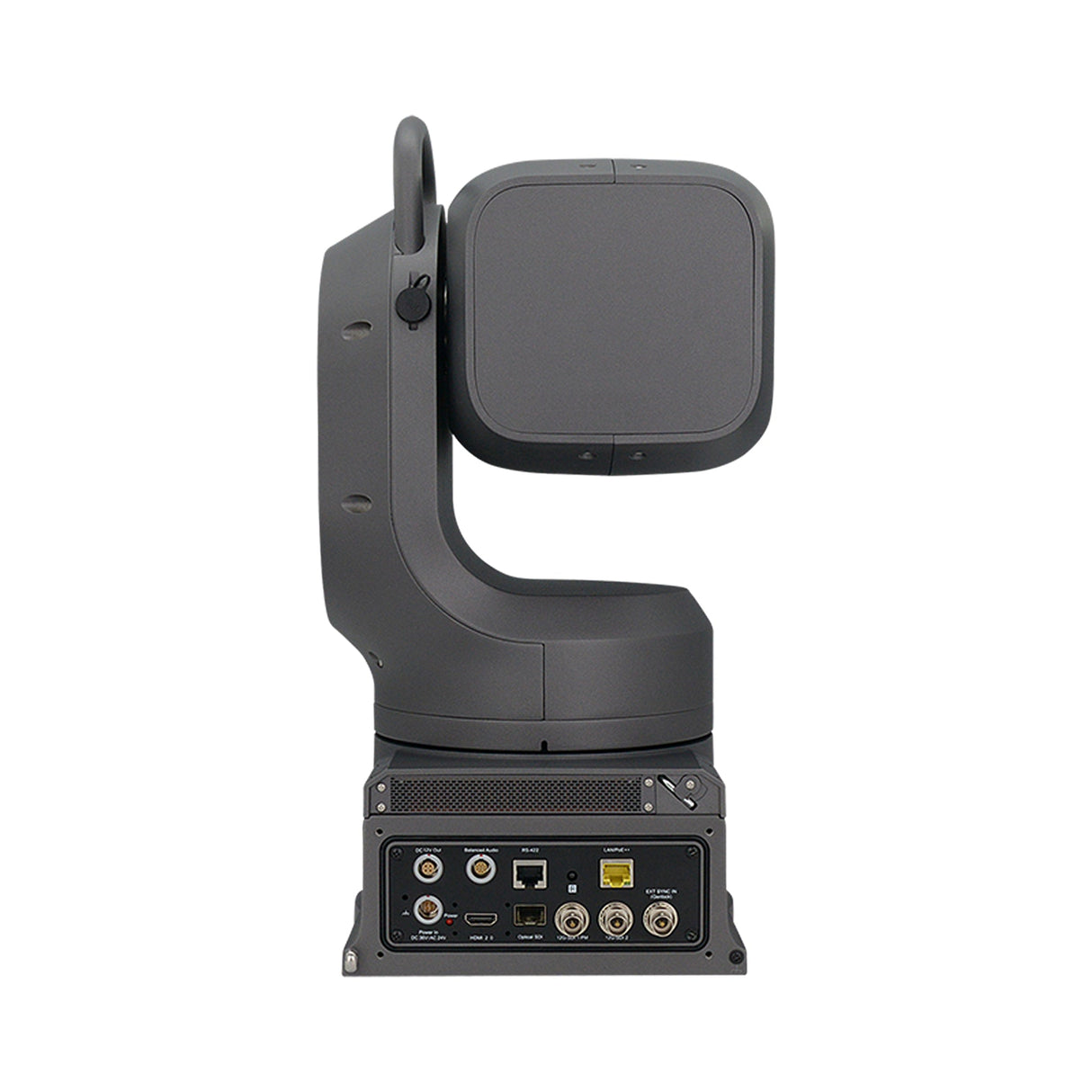

• Versatile Video Outputs: Multiple simultaneous outputs including 3G-SDI, HDMI, and IP streaming for flexible integration into any production workflow
• FAST HEVC Encoding: Efficient streaming with high-quality, low-bandwidth HEVC compression for optimal network transmission
• Precise PTZ Controls: Smooth, proportional pan/tilt movement with 255 presets, trace memory, and accurate positioning for professional camera operation
• FreeD Protocol Support: Enables integration with virtual/augmented reality systems for immersive video productions and automated tracking

Technical Specifications

• Image Sensor: 1/1.8" Sony STARVIS II CMOS with 4M effective pixels
• Video Resolution: Full HD 1080p60
• Optical Zoom: 30X with additional 12X digital zoom
• Pan/Tilt Range: Pan 340° (-170° to +170°), Tilt 210° (-90° to +120°)
• Pan/Tilt Speed: 0.01° to 60°/s (fully proportional)
• Preset Positions: 255 with 0.03° accuracy
• Control Protocols: VISCA, VISCA-over-IP, Pelco P/D, ONVIF
• Operating Temperature: Designed for extreme outdoor weather conditions

Package Contents

• Bolin EXU230H Outdoor PTZ Camera
• IR Remote Controller
• Drop-prevention Wire
• Drop-prevention Wire Mounting Screw
• Cable Cover
• Seal Rings (12)
• Quick Install Panel Bolts (4)
