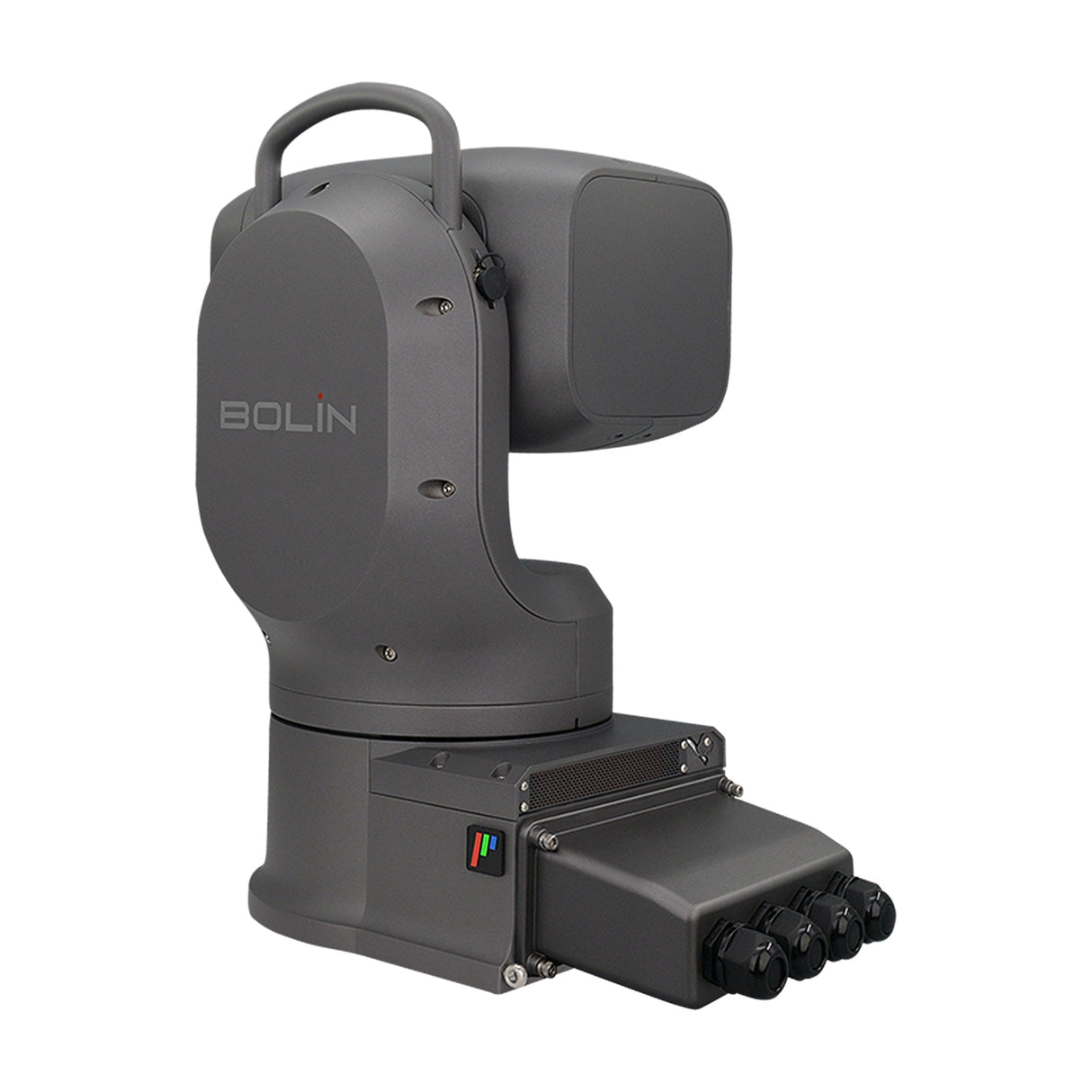

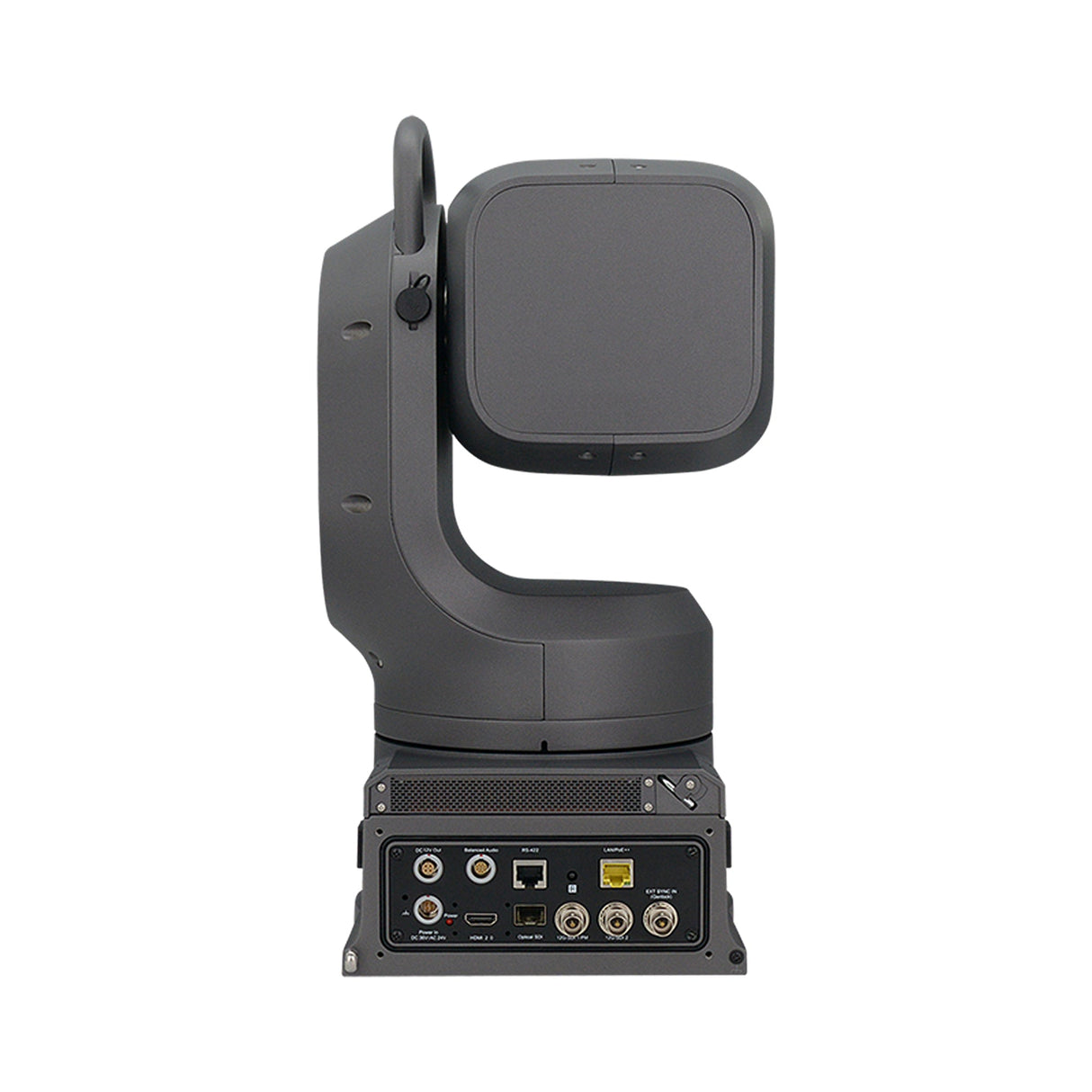

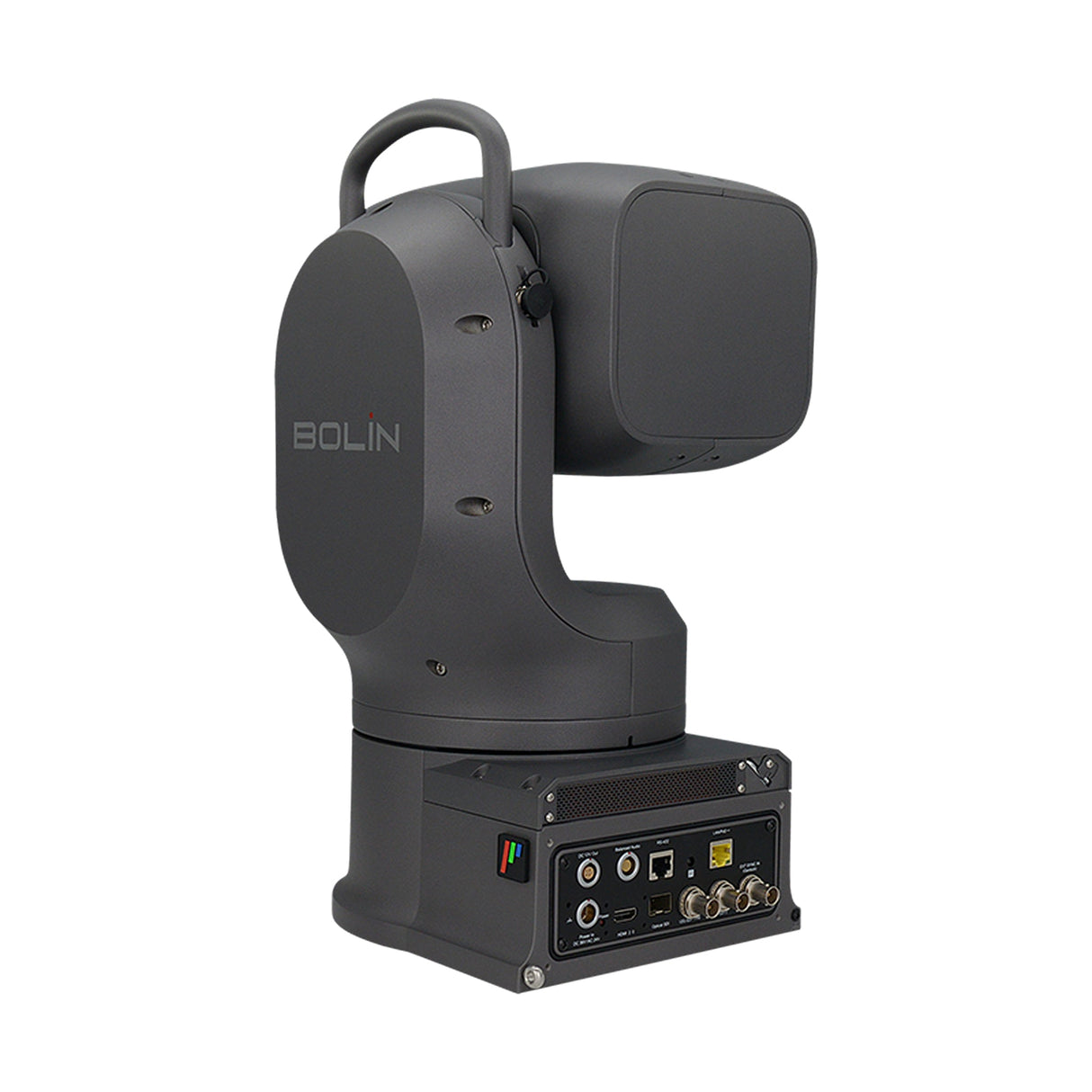

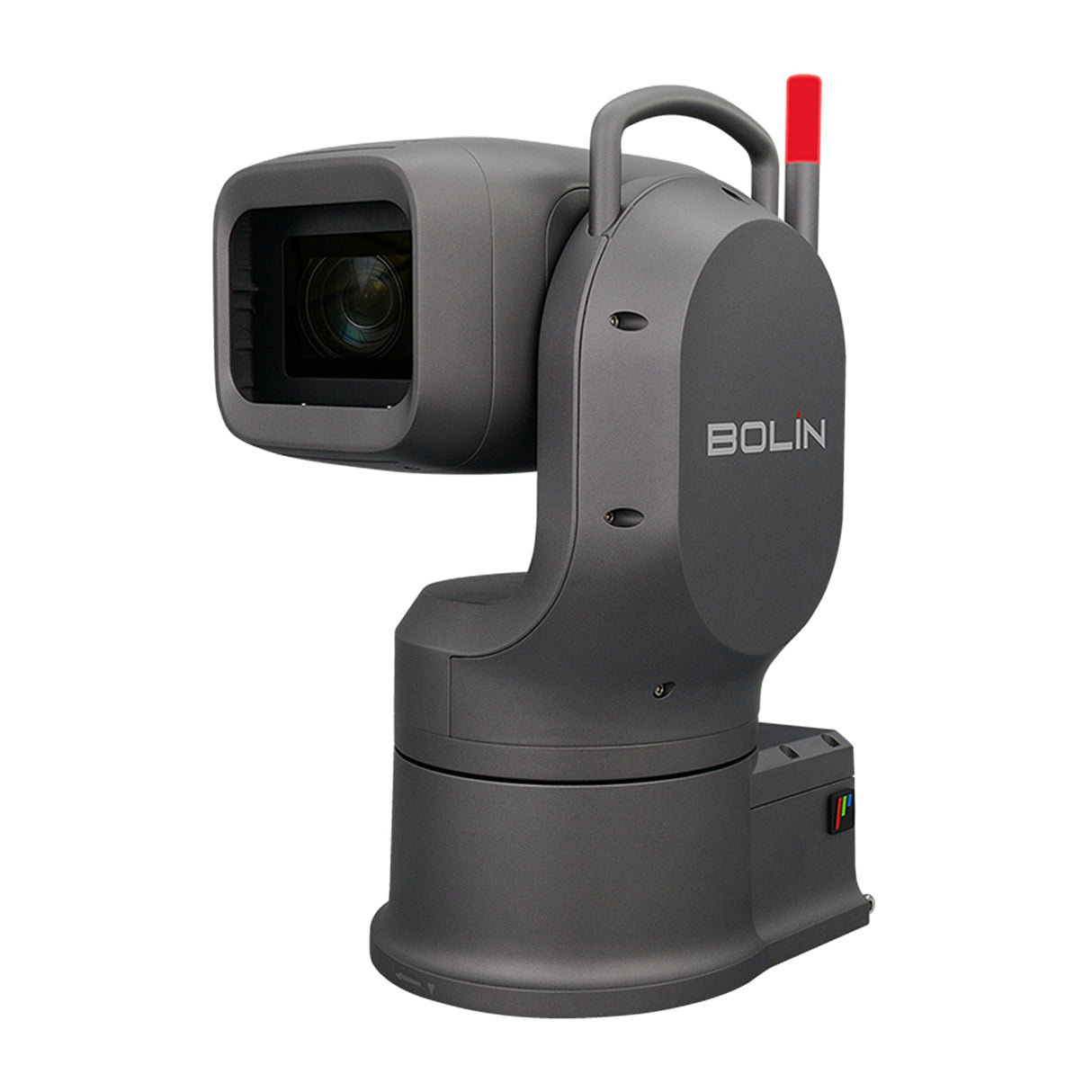

Bolin Technology EXU248F Outdoor Long Range Professional PTZ Camera

The Bolin EXU248F is a professional-grade outdoor PTZ camera engineered for exceptional long-range performance in demanding environments. Featuring an industry-leading 48X optical zoom in Full HD mode (18X in 4K), this powerful camera delivers crystal-clear detailed imaging from extreme distances, making it the ultimate solution for sports stadiums, observation towers, outdoor event coverage, and weather monitoring applications. The premium Sony image block with a large 1.0-inch 4K sensor and built-in ND filters excels in varying light conditions, providing true-to-life colors, exceptional detail, and improved dynamic range even in challenging lighting environments, ensuring broadcast-quality video for professional productions.

Built to withstand the harshest outdoor conditions, the EXU248F features an IP67-rated weatherproof housing that provides complete protection against dust, water, and extreme temperatures, ensuring reliable operation in rain, snow, and direct sunlight. Its comprehensive connectivity options include dual 6G-SDI, HDMI 2.0, SFP optical expansion, and FPGA-powered FAST HEVC IP streaming for efficient network transmission with minimal bandwidth. Advanced production features include FreeD protocol support for virtual/augmented reality integration, Genlock for frame-accurate multi-camera synchronization, and precise PTZ movement with 255 preset positions. Whether deployed for sports coverage, traffic monitoring, or remote surveillance, the EXU248F delivers unmatched zoom capability, exceptional image quality, and rugged reliability for mission-critical outdoor applications.

Key Features

• Industry-Leading 48X Zoom: Powerful Zeiss Vario-Sonnar T lens with F2.8 aperture and 48X optical zoom in Full HD (18X in 4K) delivers exceptional detail from extreme distances
• 1-Inch 4K Sony Sensor: Premium large format Sony Exmor R CMOS sensor with 14.4MP resolution provides superior image quality with enhanced low-light performance
• IP67 Weatherproof Design: Rugged, fully-sealed construction protects against dust, water, and extreme temperatures for reliable operation in harsh outdoor conditions
• Comprehensive Video Outputs: Multiple simultaneous connections including dual 6G-SDI, HDMI 2.0, SFP Optical SDI, and IP streaming for flexible integration into any workflow
• FAST HEVC Encoding: FPGA-powered hardware encoding delivers high-quality, low-latency, low-bandwidth IP streaming at only 50Mbps for efficient network transmission
• FreeD Protocol Support: Enables seamless integration with virtual production systems for immersive AR/VR applications and automated tracking capabilities
• Professional Audio Integration: XLR broadcast audio input and embedded audio support ensure high-quality sound capture and transmission
• Precise PTZ Controls: Smooth, accurate movement with 340° pan range, 205° tilt range, and 255 preset positions at 0.1° accuracy

Technical Specifications

• Image Sensor: 1-inch Sony Exmor R CMOS with 14.4MP effective pixels
• Video Resolution: Up to 4K30 (3840×2160) and 1080p60
• Optical Zoom: 48X in Full HD, 18X in 4K
• Viewing Angle: 64.6° horizontal (wide end)
• Pan/Tilt Range: Pan 340° (-170° to +170°), Tilt 205° (-35° to +170°)
• Pan/Tilt Speed: 0.08° to 60°/s (fully proportional)
• Weatherproofing: IP67-rated housing
• Control Protocols: VISCA, VISCA-over-IP, Pelco P/D, ONVIF, FreeD

Package Contents

• Bolin EXU248F Outdoor PTZ Camera
• IR Remote Controller
• Drop-prevention Wire
• Drop-prevention Wire Mounting Screw
• Cable Cover
• Seal Rings (12)
• Quick Install Panel Bolts (4)
