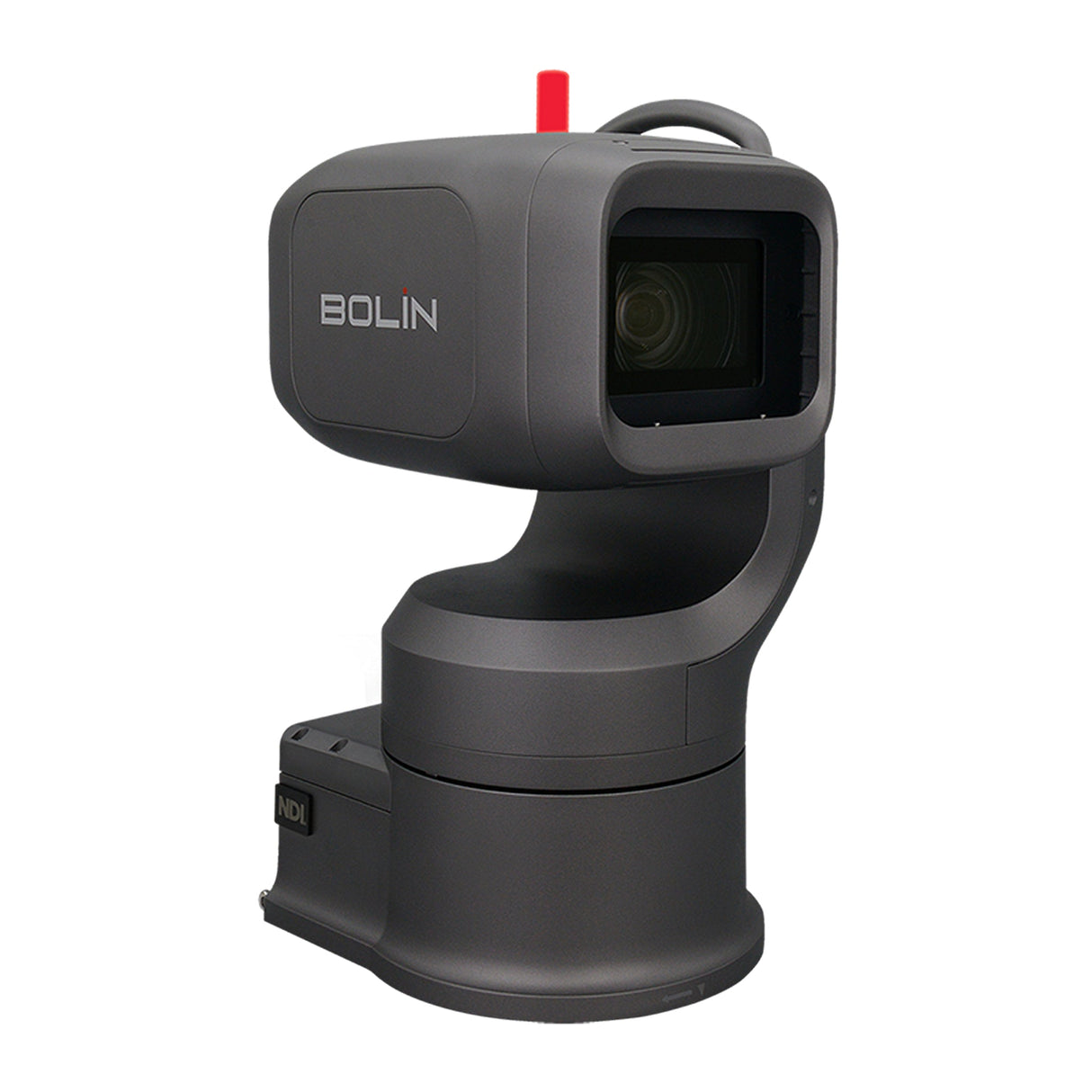

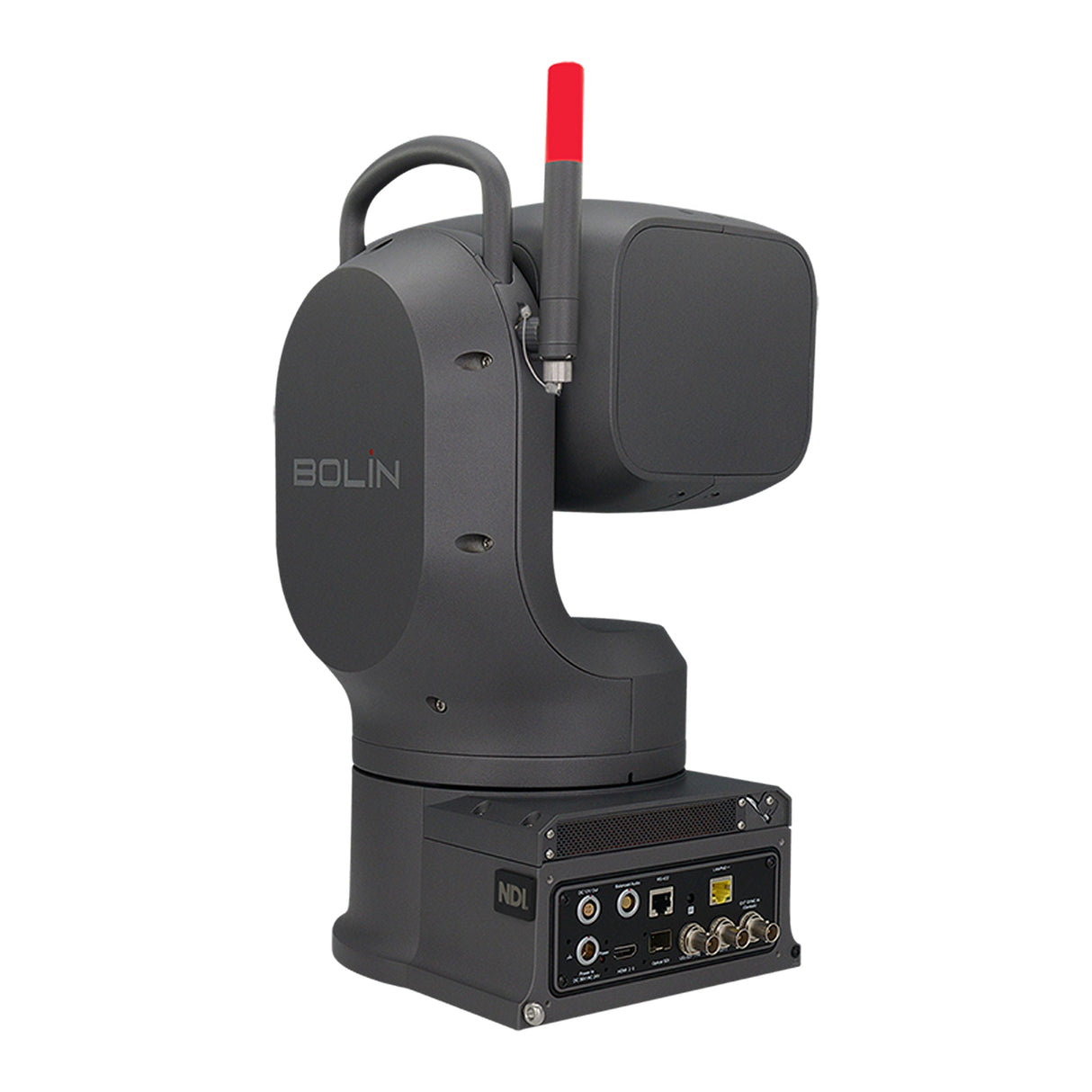

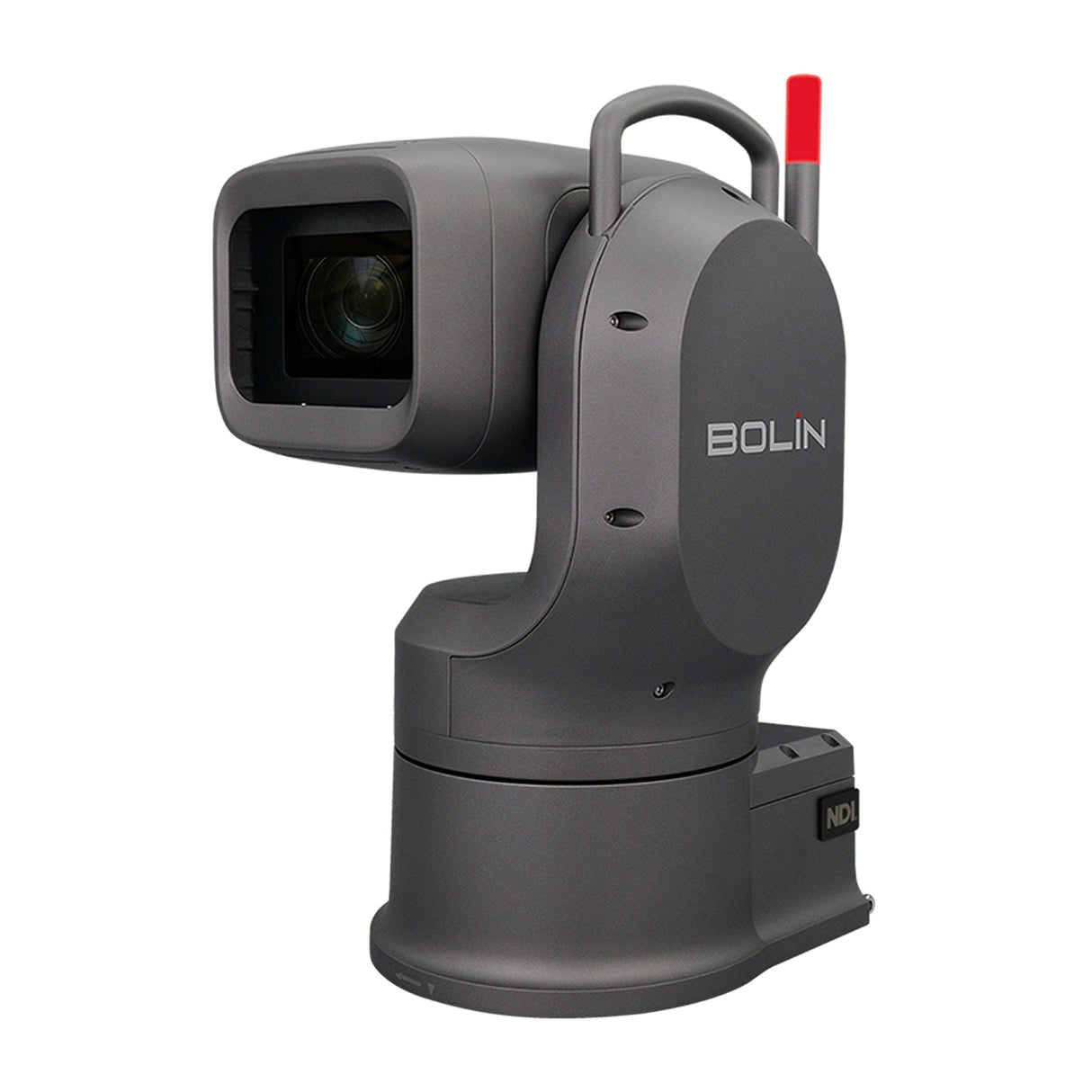

Bolin Technology EXU248N Long Range Outdoor NDI PTZ Camera - Black

Bolin EXU248N Long Range Outdoor NDI PTZ Camera

The Bolin EXU248N Long Range Outdoor NDI PTZ Camera delivers exceptional video quality with unmatched zoom capabilities in even the most challenging environments. Built around a premium Sony image block featuring a 1-inch 4K sensor with built-in ND filters, this professional camera provides an industry-leading 48x optical zoom in Full HD resolution, making it the definitive solution for capturing detailed footage from extreme distances. Engineered specifically for demanding outdoor applications including sports stadiums, observation towers, weather monitoring, and large-scale event coverage, the EXU248N excels in low-light conditions while ensuring true-to-life colors and remarkable detail. The IP67-rated weatherproof housing offers complete protection against dust, water, and extreme temperatures, guaranteeing reliable 24/7 operation in rain, snow, or direct sunlight.

Designed for seamless integration into next-generation production workflows, the EXU248N features revolutionary NDI Embedded Bridge technology that enables global collaboration through encrypted NDI stream transmission over WAN networks from any location worldwide. With comprehensive connectivity including NDI High Bandwidth (NDI 6-ready), NDI HX3, dual 6G-SDI, HDMI 2.0, SFP Optical SDI, and various IP streaming protocols, this versatile camera delivers unparalleled flexibility for both baseband and AV-over-IP environments. Professional broadcast features such as FreeD protocol support for virtual production, Genlock synchronization, XLR balanced audio I/O, and precise PTZ control make the EXU248N a complete solution for demanding production teams. Available in both black and white color variations, this rugged camera combines exceptional image quality, extreme zoom range, and broadcast-grade durability to ensure confident capture of every critical moment, regardless of distance or environmental conditions.

Key Features

• Exceptional Long-Range Imaging: Powerful 48x optical zoom with F2.8 maximum aperture provides unmatched detail capture at extreme distances, ideal for sports stadiums, observation towers, and large-scale outdoor events
• Premium 1-inch 4K Sony Sensor: Large format 1-inch Exmor R CMOS sensor (14.4MP) with built-in ND filters delivers superior low-light performance, true-to-life colors, and exceptional detail even in challenging lighting conditions
• Rugged IP67 Weatherproof Design: Fully protected against dust ingress and capable of withstanding water immersion up to 1 meter, ensuring reliable 24/7 operation in extreme outdoor environments including rain, snow, and direct sunlight
• NDI Embedded Bridge Technology: Revolutionary capability enabling global remote production by sending and receiving encrypted NDI streams over WAN from any location worldwide with plug-and-play simplicity
• Comprehensive Connectivity: Multiple simultaneous outputs including NDI High Bandwidth (NDI 6-ready), NDI HX3, dual 6G-SDI, HDMI 2.0, SFP Optical SDI, and various IP streaming protocols for maximum production flexibility
• FreeD Protocol Support: Integrated technology for virtual production workflows, providing precise camera tracking data for AR/VR graphics systems, ideal for weather reporting, sports analytics, and immersive broadcasts
• Professional Broadcast Features: Genlock synchronization for multi-camera setups, XLR balanced audio inputs/outputs, optical image stabilization, and Color Matrix adjustments for broadcast-grade production quality
• Precision PTZ Control: Smooth and accurate pan/tilt mechanism with variable speed control from 0.08° to 60°/s, 255 preset positions, and 0.1° accuracy for capturing dynamic action with professional precision

Technical Specifications

• Image Sensor: 1-inch Exmor R CMOS sensor (14.4MP)
• Resolution: 4K30 (3840x2160) in UHD mode; Full HD up to 1080p60
• Optical Zoom: 48X in Full HD mode with 64.6° horizontal field of view
• Pan/Tilt Range: Pan: 340° (-170° to +170°), Tilt: 205° (-35° to +170°)
• Video Outputs: Dual 6G-SDI, HDMI 2.0, SFP Optical SDI, IP (NDI High Bandwidth, NDI HX3, RTSP, RTMP, RTMPS, SRT)
• Audio Interfaces: XLR balanced audio inputs/outputs
• Weatherproof Rating: IP67 dust and water protection
• Color Options: Available in Dark Gray or White

Package Contents

• Bolin EXU248N Long Range Outdoor NDI PTZ Camera
• Power Adapter
• IR Remote Control
• Tally Light Attachment
• Camera Cover
• Cable Cover
• Mounting Screw Set
• User Manual
