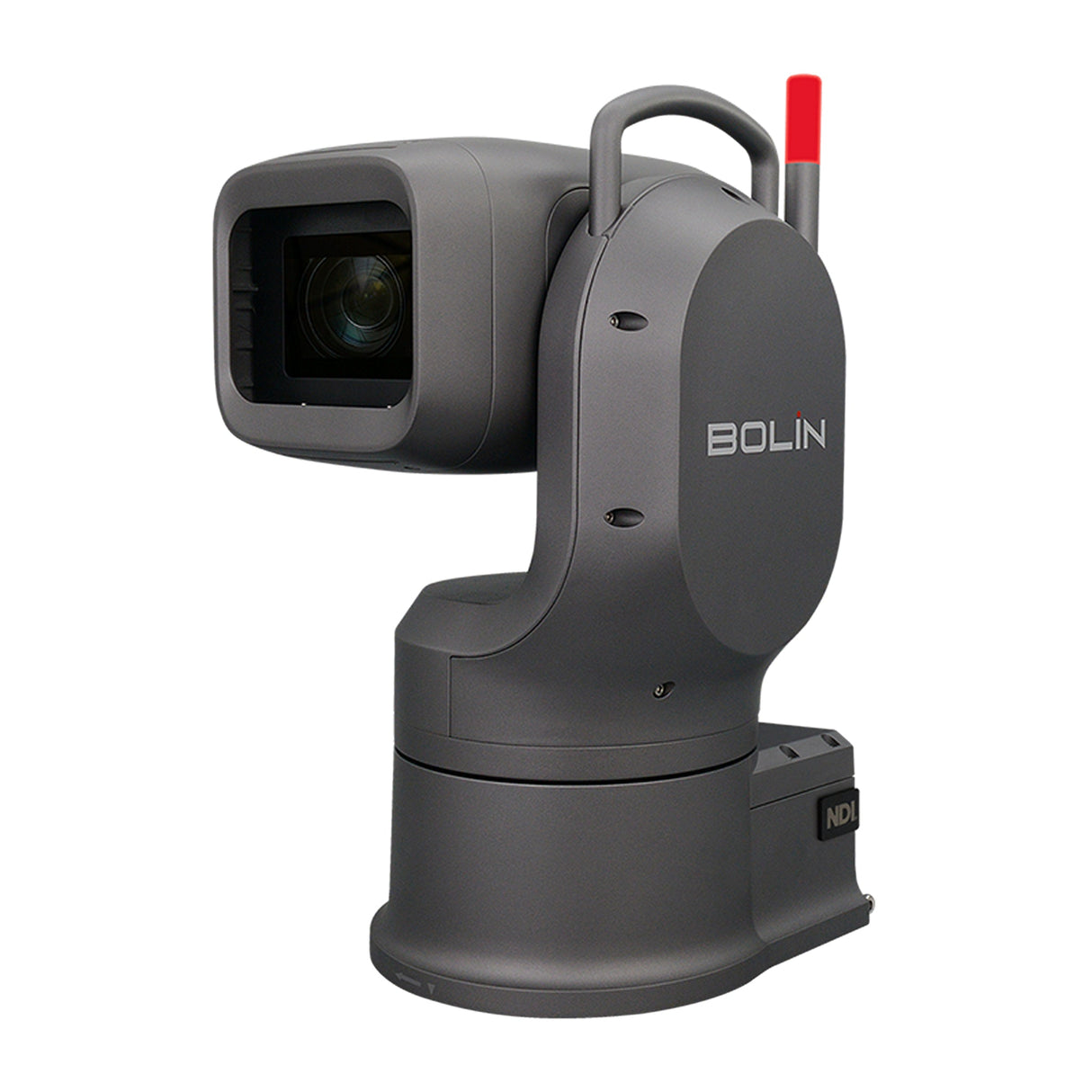

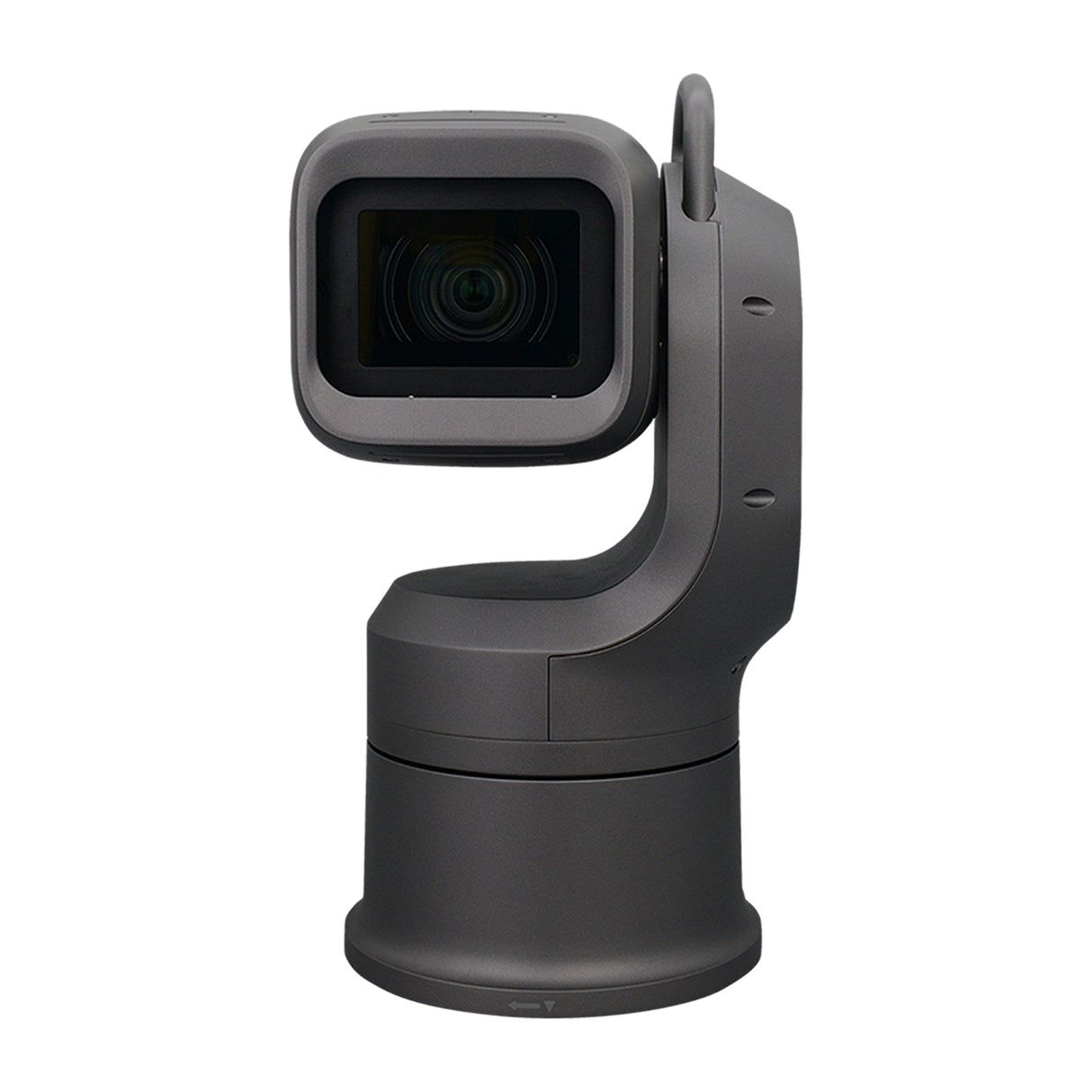

Bolin EXU420N-FREED Outdoor 4K60 NDI PTZ Camera
The Bolin EXU420N-FREED Outdoor NDI PTZ Camera represents the pinnacle of broadcast-quality video capture technology, delivering exceptional 4K60 imagery with the versatility needed for professional remote production. Equipped with a premium Sony IMX715 image sensor and 20X optical zoom lens, this rugged IP67-rated camera excels in challenging outdoor environments while providing pristine UHD video through multiple output options including NDI High Bandwidth, 12G-SDI, HDMI 2.0, and SFP Optical SDI connections.
Engineered for next-generation workflows, the EXU420N-FREED features NDI 6 compatibility, NDI Embedded Bridge support for multi-location video transmission, and FreeD protocol integration for AR/VR applications. With its image stabilization technology, professional XLR audio connectivity, and versatile power options including PoE++, this camera delivers uncompromising performance for live events, sports broadcasting, and virtual production environments, ensuring smooth, stable, and high-quality results no matter the conditions.
Key Features
- NDI Integration: Certified NDI High Bandwidth (NDI 6-ready) with embedded bridge support for seamless remote production across multiple locations
- FreeD Protocol Support: Enables real-time tracking for AR/VR applications, enhancing virtual productions and interactive live experiences
- Premium 4K60 Image Quality: Sony IMX715 sensor with 8.29MP image capture and 20X optical zoom delivers exceptional UHD imagery at 60fps

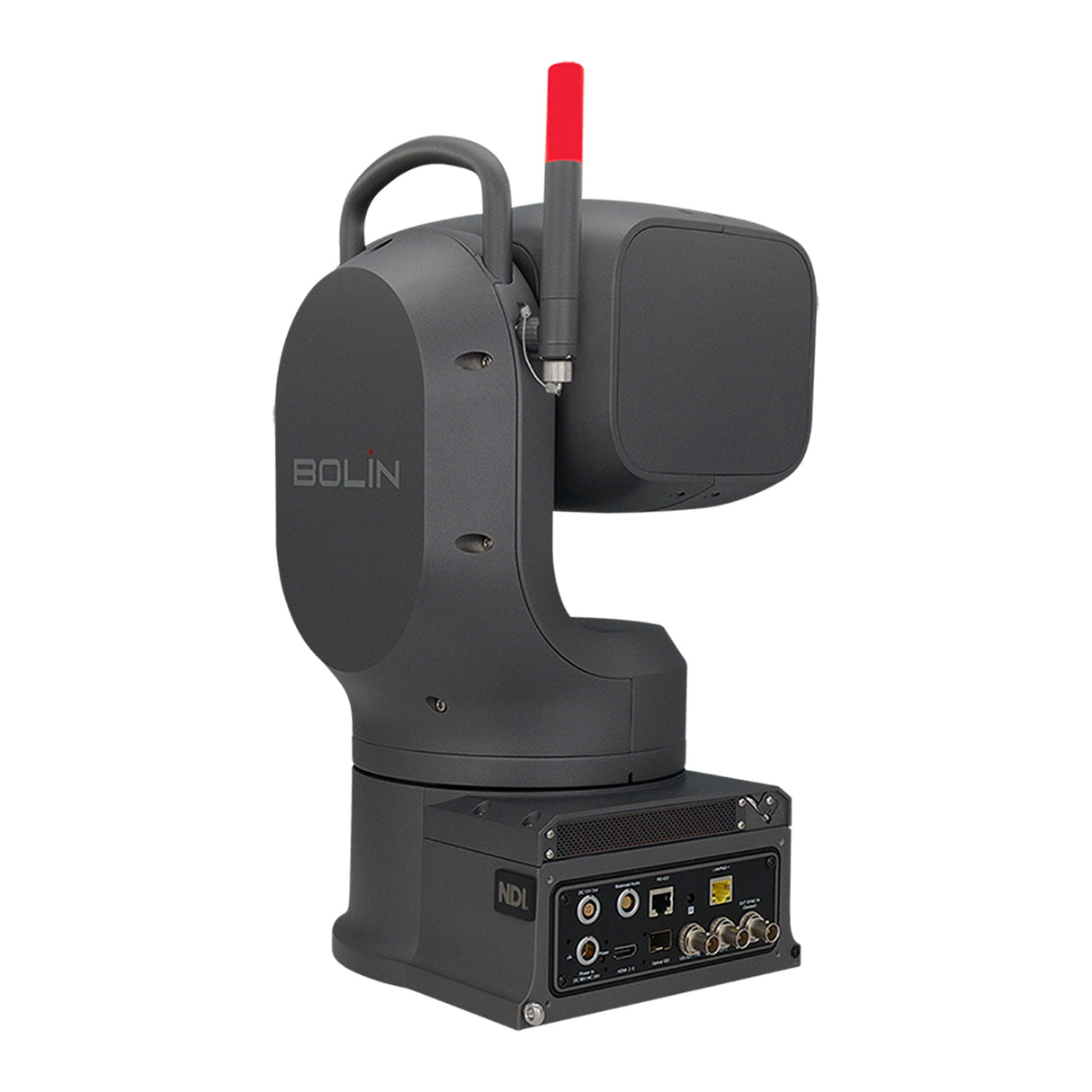

- Comprehensive Connectivity: Dual 12G-SDI, HDMI 2.0, SFP Optical SDI, and versatile IP streaming options (RTSP, RTMP, RTMPS, SRT)
- Professional Audio Integration: Balanced XLR audio inputs/outputs ensure broadcast-quality sound alongside professional visuals
- All-Weather Durability: IP67-rated nitrogen-filled housing with integrated rain wiper, heater, and defroster for reliable operation in harsh environments
- Flexible Control Options: Compatible with VISCA, VISCA-over-IP, PELCO P/D, and ONVIF protocols for seamless integration into existing systems
- Available in Two Colors: Choose between sleek black or classic white to match your installation environment
Technical Specifications
- Image Sensor: 1/2.8" Sony IMX715 CMOS with 8.29MP resolution
- Optical Zoom: 20X with additional 16X digital zoom capability
- Horizontal Field of View: 78.6° wide-angle view
- Video Output Resolution: Up to 2160p60 (4K60) via IP, 12G-SDI, and HDMI 2.0
- Video Formats: H.264, H.265, MJPEG for IP streaming
- IP Rating: IP67-rated weather-resistant housing
- Protective Features: Integrated rain wiper, heater, defroster, and corrosion-resistant treatment
- Power Options: 36VDC/24VAC, POE++ (Power over Ethernet)
Package Contents
- Bolin EXU420N-FREED Outdoor 4K60 NDI PTZ Camera
- IR Remote Control
- Power Adapter
- Mounting Hardware
- Documentation
