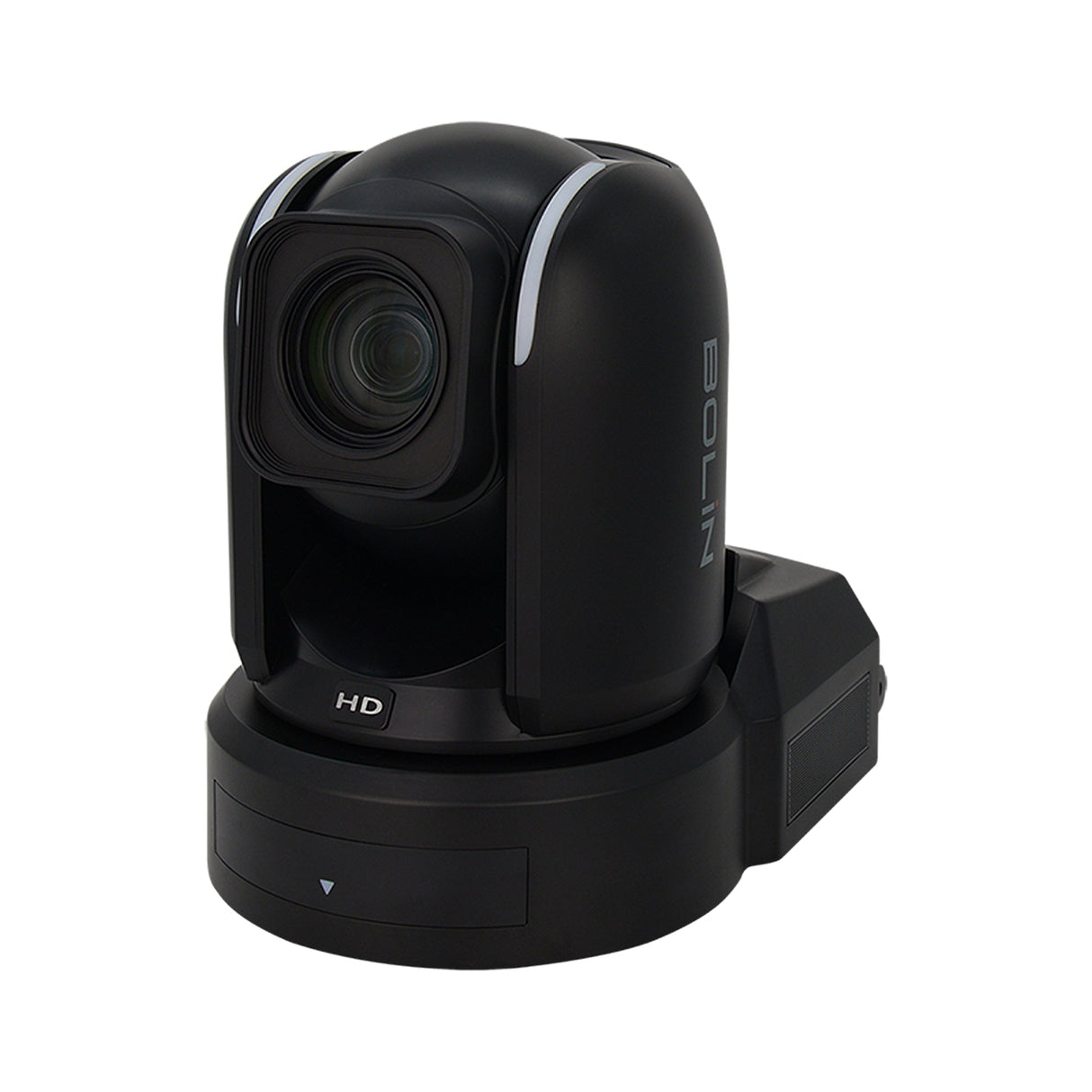

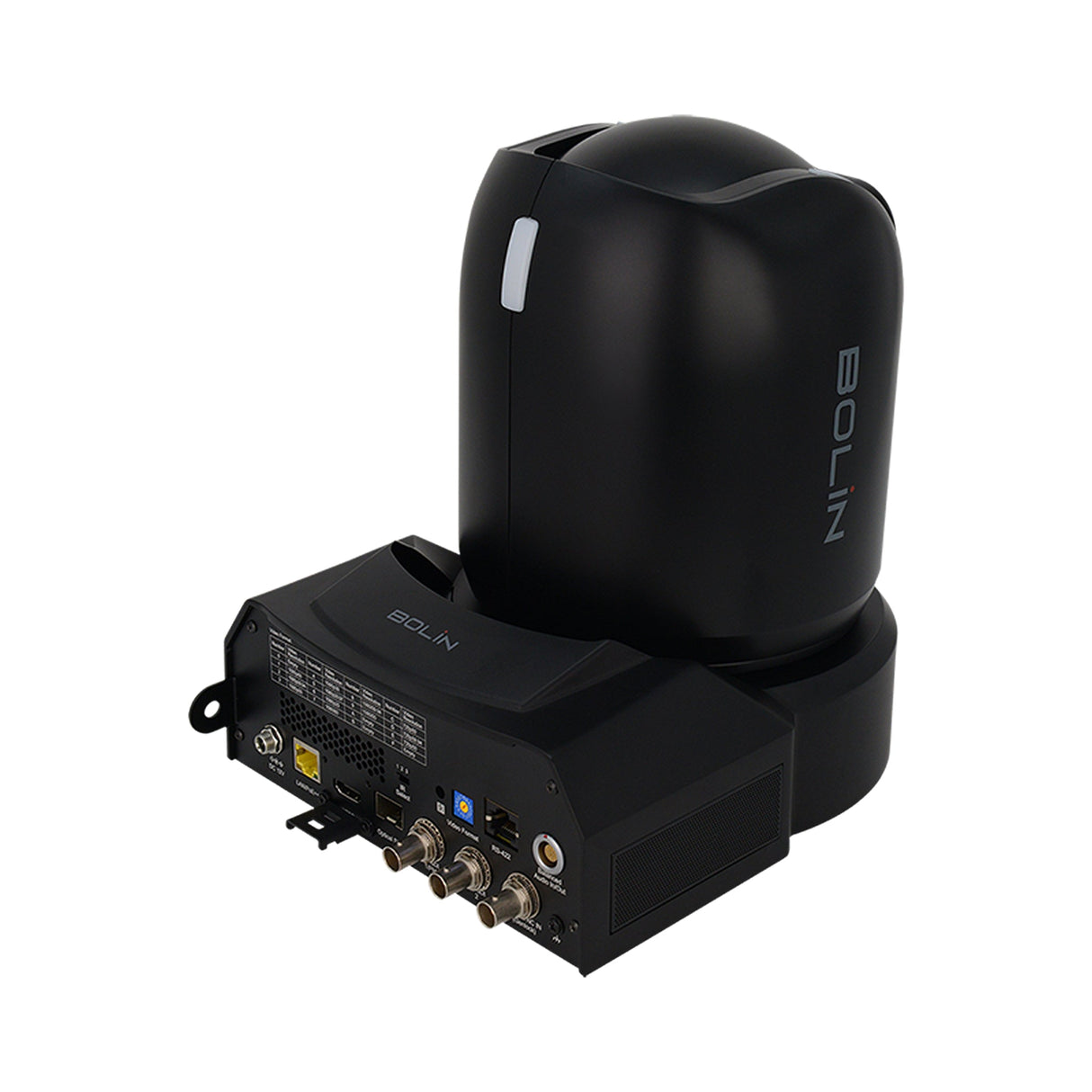

Bolin Technology R9-230H FHD Low Light Performance PTZ Camera

The Bolin R9-230H FHD PTZ camera delivers exceptional broadcast-quality video in challenging lighting conditions, powered by Sony's advanced image technology. Featuring a large 1/1.8" CMOS sensor with 4.17MP image capture, 8M ultra-high resolution lens, and specialized ISP, this camera produces stunning Full HD video with remarkable clarity and color accuracy even in low-light environments. Designed specifically for professional broadcast, live production, and AV applications, the R9-230H ensures your content maintains exceptional quality regardless of lighting challenges.

With versatile connectivity options including dual 3G-SDI, HDMI, Optical SDI, and IP streaming capabilities (RTSP, RTMP, SRT, ONVIF), the R9-230H seamlessly integrates into both traditional baseband and modern AV-over-IP workflows. The camera's precision 30x optical zoom with additional 12x digital zoom, combined with Super Image Stabilization Plus technology, delivers rock-solid footage in high-motion environments like sports venues, concerts, and nightclubs. Professional features including Genlock support, XLR broadcast audio inputs, and FreeD protocol compatibility make this camera the perfect choice for demanding production environments requiring frame-accurate synchronization and premium image quality.

Key Features

• Superior Low-Light Performance: Sony image block with 1/1.8" CMOS sensor, 4.17MP resolution, and advanced processing captures clear, detailed images even in challenging lighting conditions
• Professional-Grade Zoom: 30x optical zoom plus 12x digital zoom with a wide 58.1° angle of view delivers exceptional detail from any distance
• Super Image Stabilization Plus: Advanced stabilization technology ensures smooth, steady footage even in high-motion environments or when fully zoomed
• Versatile Video Outputs: Multiple simultaneous outputs including dual 3G-SDI, HDMI 1.4, SFP Optical SDI, and IP streaming for flexible integration into any workflow
• Advanced IP Streaming: Support for RTSP, RTMP, RTMPS, SRT protocols with HEVC compression for high-quality, low-bandwidth streaming
• Broadcast-Ready Features: Genlock support for multi-camera synchronization, embedded audio, XLR broadcast audio inputs, and on-screen character generator
• FreeD Protocol Support: Enables integration with virtual production systems for immersive 3D video content and automated camera tracking
• Comprehensive Control Options: Serial/IP control with support for VISCA, Pelco-P/D, ONVIF, and VISCA-over-IP protocols

Technical Specifications

• Image Sensor: 1/1.8" CMOS sensor with 4.17MP effective pixels
• Video Resolution: Full HD up to 1080p60
• Zoom: 30x optical zoom, 12x digital zoom
• Angle of View: 58.1° (wide end)
• Minimum Illumination: 0.009 lux (ICR-Off), 0.00008 lux (ICR-On)
• Pan/Tilt Range: Pan 340° (-170° to +170°), Tilt 120° (-30° to +90°)
• Focus System: Auto/Manual/One Push with Spot Focus capability
• Presets: 255 positions with adjustable speed

Package Contents

• Bolin Technology R9-230H Indoor Full HD PTZ Camera (Black)
• Power Adapter
• Power Cable
• IR Remote Control
• RJ45 to RS-422 Extension Cable
• Mounting Screw Set
• Dust Cover
• Safety Cable
• Lens Cap
• Limited 2-Year Manufacturer Warranty
