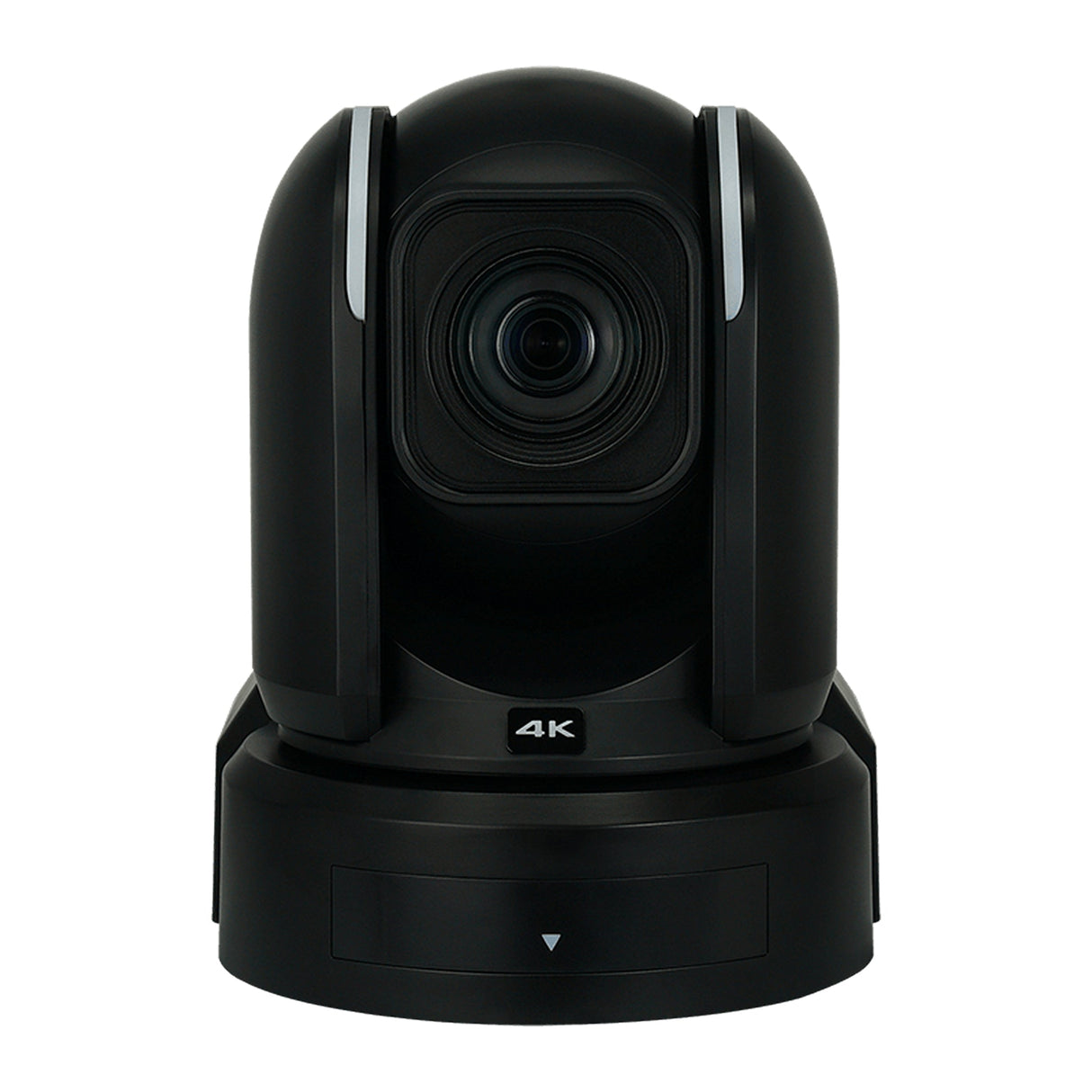

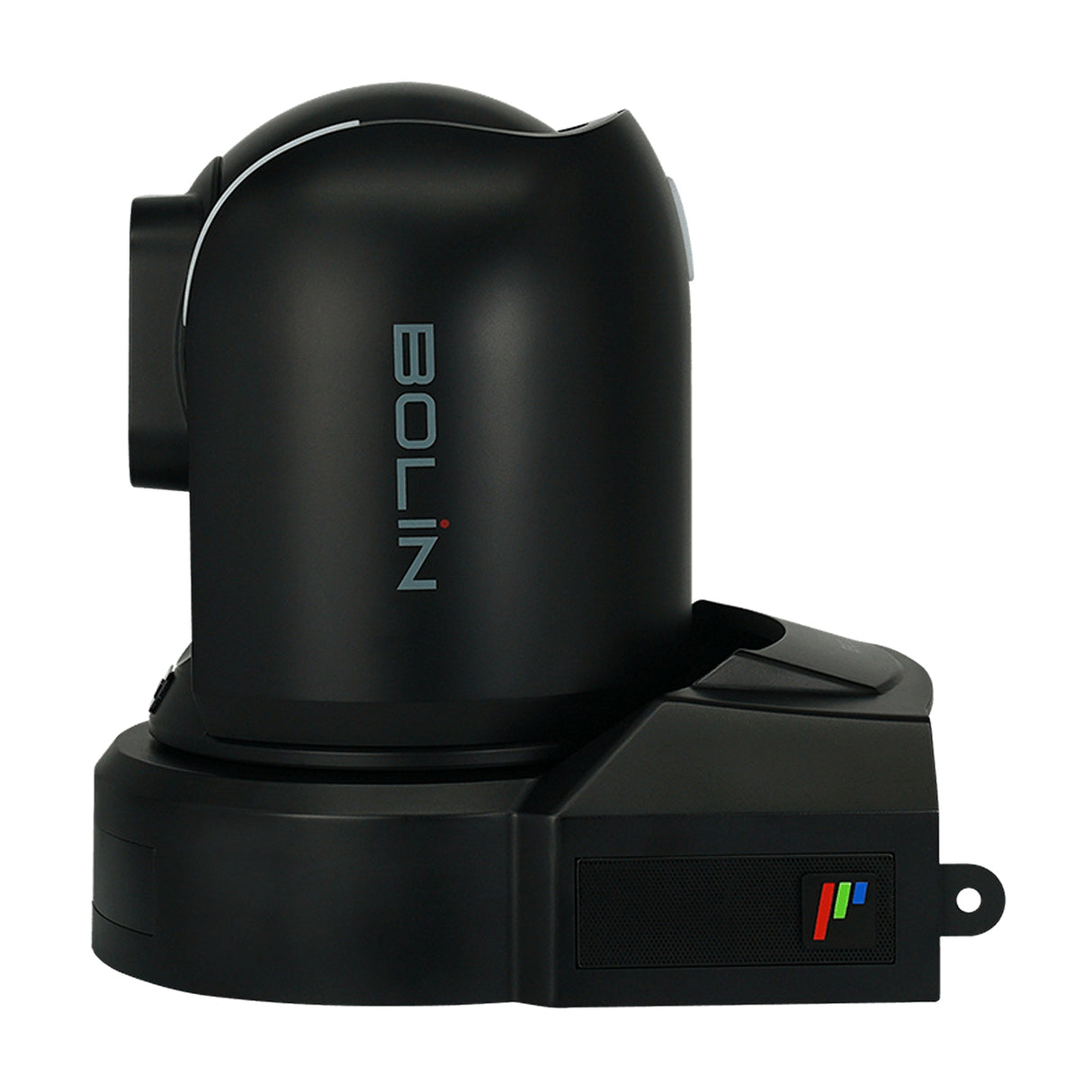

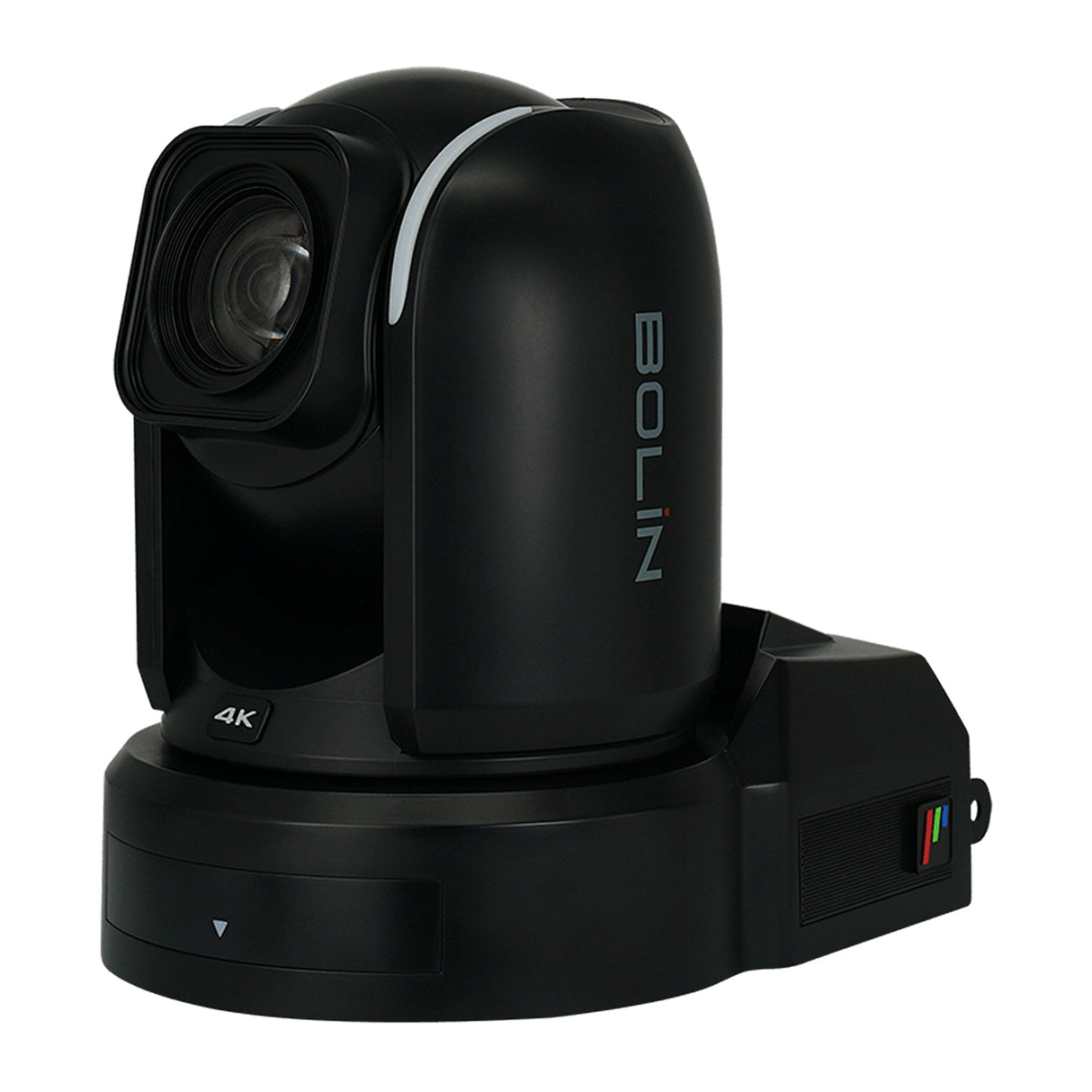

Bolin Technology R9-418F 1 Inch 4K PTZ Camera - Black

The Bolin R9-418F 1 Inch 4K PTZ camera delivers broadcast-grade imagery with remarkable clarity and depth for professional video productions. Powered by a Sony 1-inch CMOS sensor, this premium camera captures stunning 4K30 video with exceptional detail and color accuracy, even in challenging low-light environments. The precision-engineered 18x optical zoom (expandable to 24x zoom at Full HD) combined with built-in ND filters provides unmatched versatility for capturing everything from wide venue shots to detailed close-ups with cinematic quality that's perfect for broadcast studios, live events, theaters, houses of worship, and corporate productions.

Designed for seamless integration into professional workflows, the R9-418F features multiple simultaneous outputs including dual 6G-SDI, HDMI 2.0, optical SDI via SFP+ slot, and IP streaming with FPGA hardware FAST HEVC encoding for high-quality, low-latency transmission. Advanced production capabilities include FreeD protocol support for virtual/augmented reality integration, Genlock for multi-camera synchronization, XLR broadcast audio inputs, and precise 255-position PTZ movement with 0.03° accuracy. Available in both black and white finishes, this camera combines cinematic image quality with broadcast reliability, making it the ideal solution for productions that demand exceptional visual performance and operational flexibility.

Key Features

• 1-Inch Sony CMOS Sensor: Captures stunning 4K imagery with exceptional low-light performance, delivering true-to-life colors and remarkable detail in any environment
• Professional 18X Optical Zoom: F2.8 bright aperture with 18X zoom range at 4K30 or extended 24X zoom range at 1080p60, providing precision framing from wide shots to detailed close-ups
• FPGA Hardware FAST HEVC Codec: Delivers high-quality, low-latency, and low-bandwidth IP streaming, supporting multiple simultaneous RTSP, RTMP, SRT, ONVIF, and MPEG-TS streams

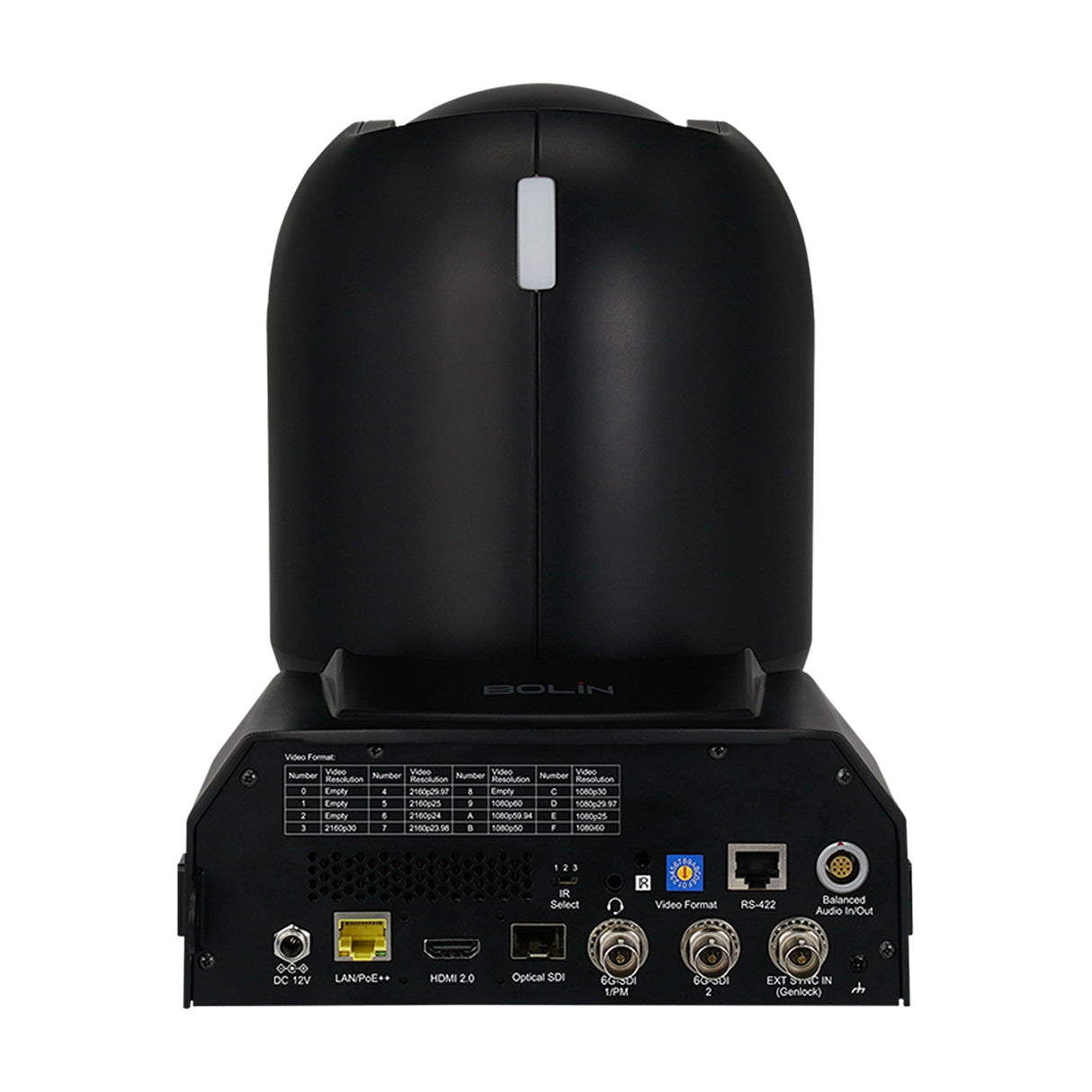

• Comprehensive Video Outputs: Multiple simultaneous outputs including dual 6G-SDI, HDMI 2.0, SFP Optical SDI, and IP streaming for seamless integration into any production workflow
• FreeD Protocol Support: Enables integration with virtual/augmented reality systems for immersive video productions and automated camera tracking applications
• Advanced Image Controls: Comprehensive settings including Black Level, Color Matrix, built-in ND filters, and 23.98p/24p mode support for cinematic video production
• Precise PTZ Movement: 340° pan range and 120° tilt range with fully proportional speed control and 255 preset positions at 0.03° accuracy for smooth, precise camera movement
• True Dual-Output Technology: Supports independent resolution settings for baseband (SDI/HDMI) and IP outputs, allowing simultaneous delivery of different format streams

Technical Specifications

• Image Sensor: 1-inch Exmor R CMOS with 14.4MP effective pixels
• Video Resolution: 4K30 (3840×2160), 1080p60/59.94/50/30/29.97/25/24/23.98
• Optical Zoom: 18X at 4K30, 24X at Full HD
• Angle of View: 64.6° (wide end)
• Pan/Tilt Range: Pan 340° (-170° to +170°), Tilt 120° (-30° to +90°)
• Minimum Illumination: Low-light optimized with Sony image block technology
• Control Protocols: VISCA, VISCA-over-IP, Pelco P/D, ONVIF IP
• Dimensions: 11.8" × 11.8" × 19.7" (30cm × 30cm × 50cm)

Package Contents

• Bolin Technology R9-418F Indoor 4K PTZ Camera (Available in Black or White)
• Power Adapter
• Power Cable
• IR Remote Control
• RJ45 to RS-422 Extension Cable
• Mounting Screw Set
• Dust Cover
• Safety Cable
• Lens Cap
• Limited 2-Year Manufacturer Warranty
