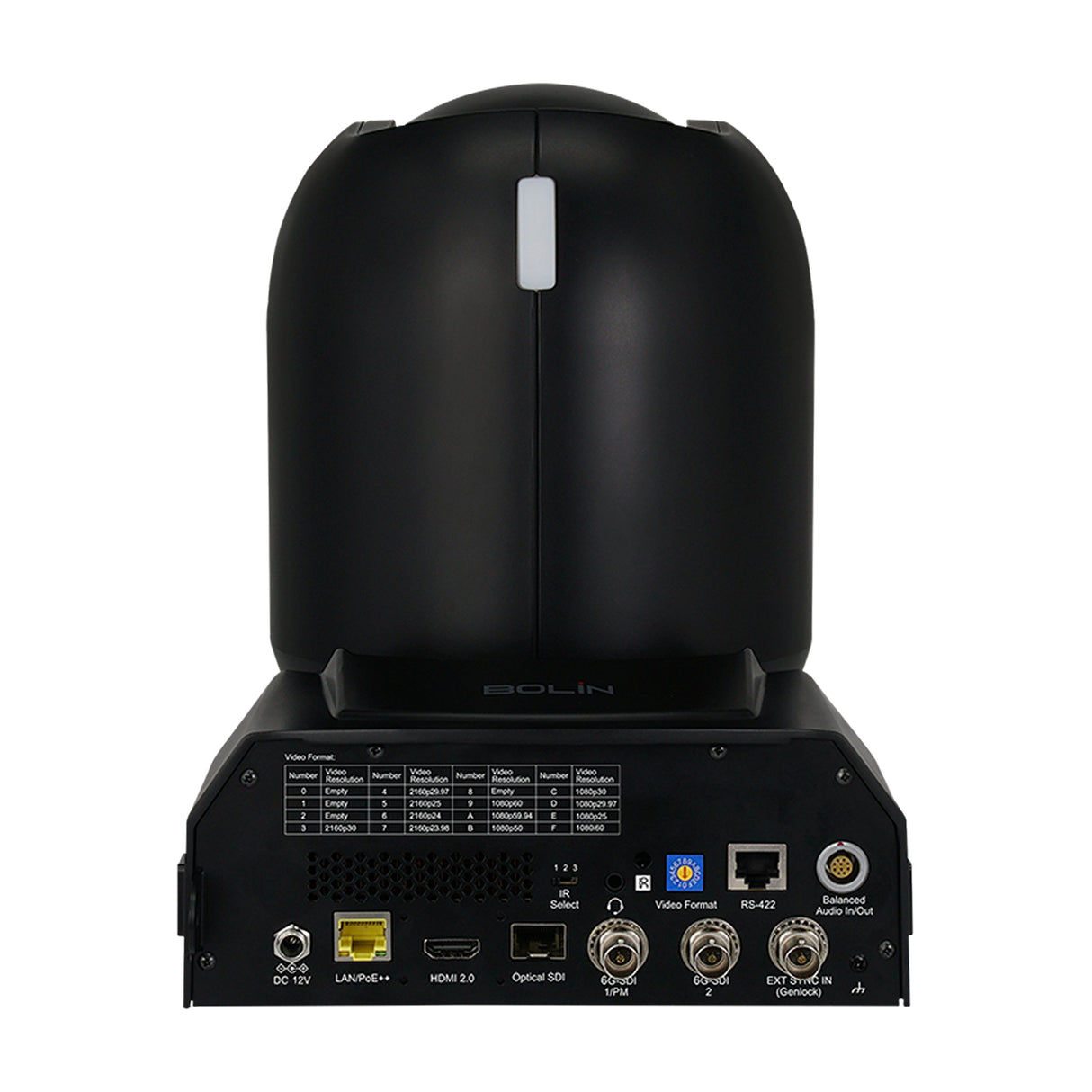

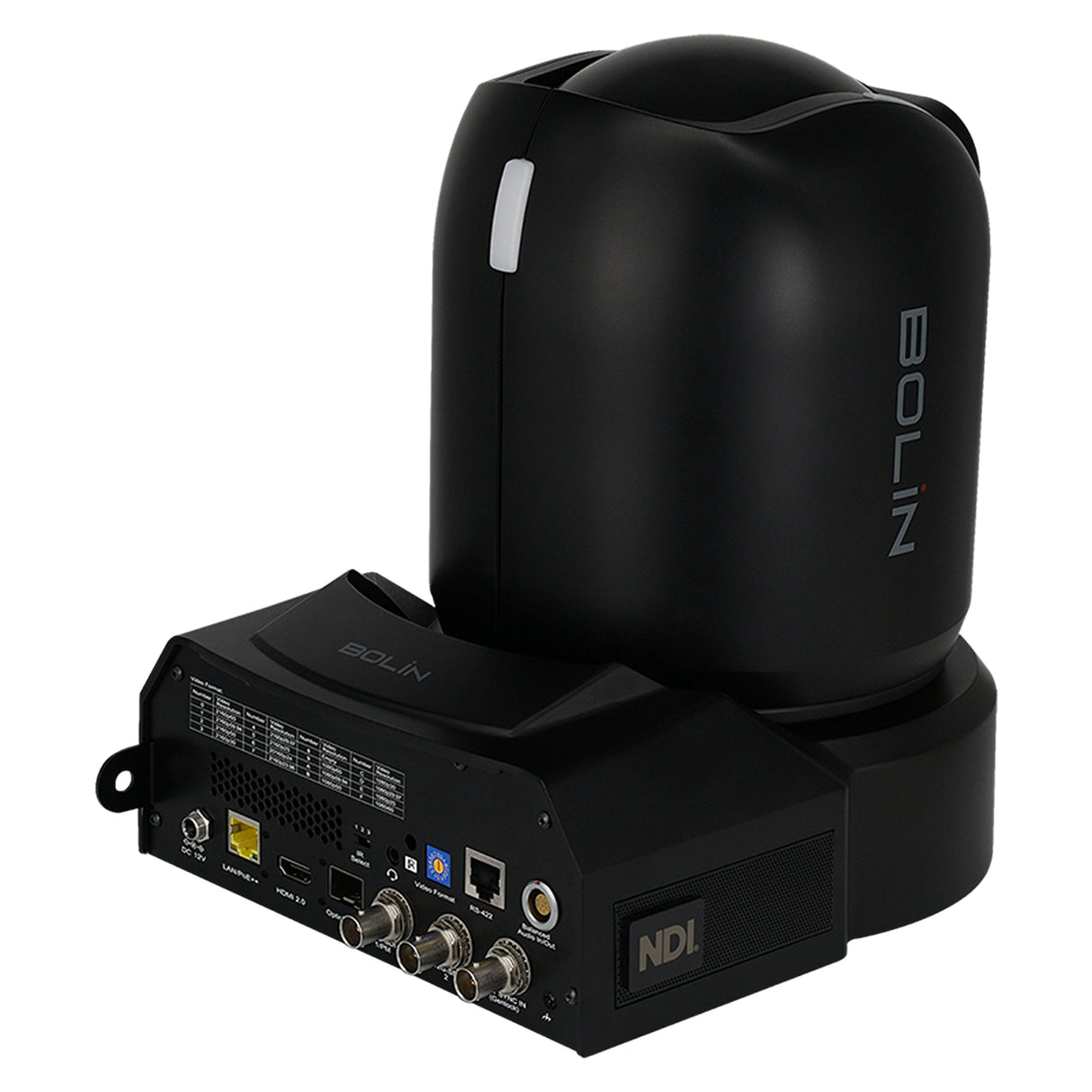

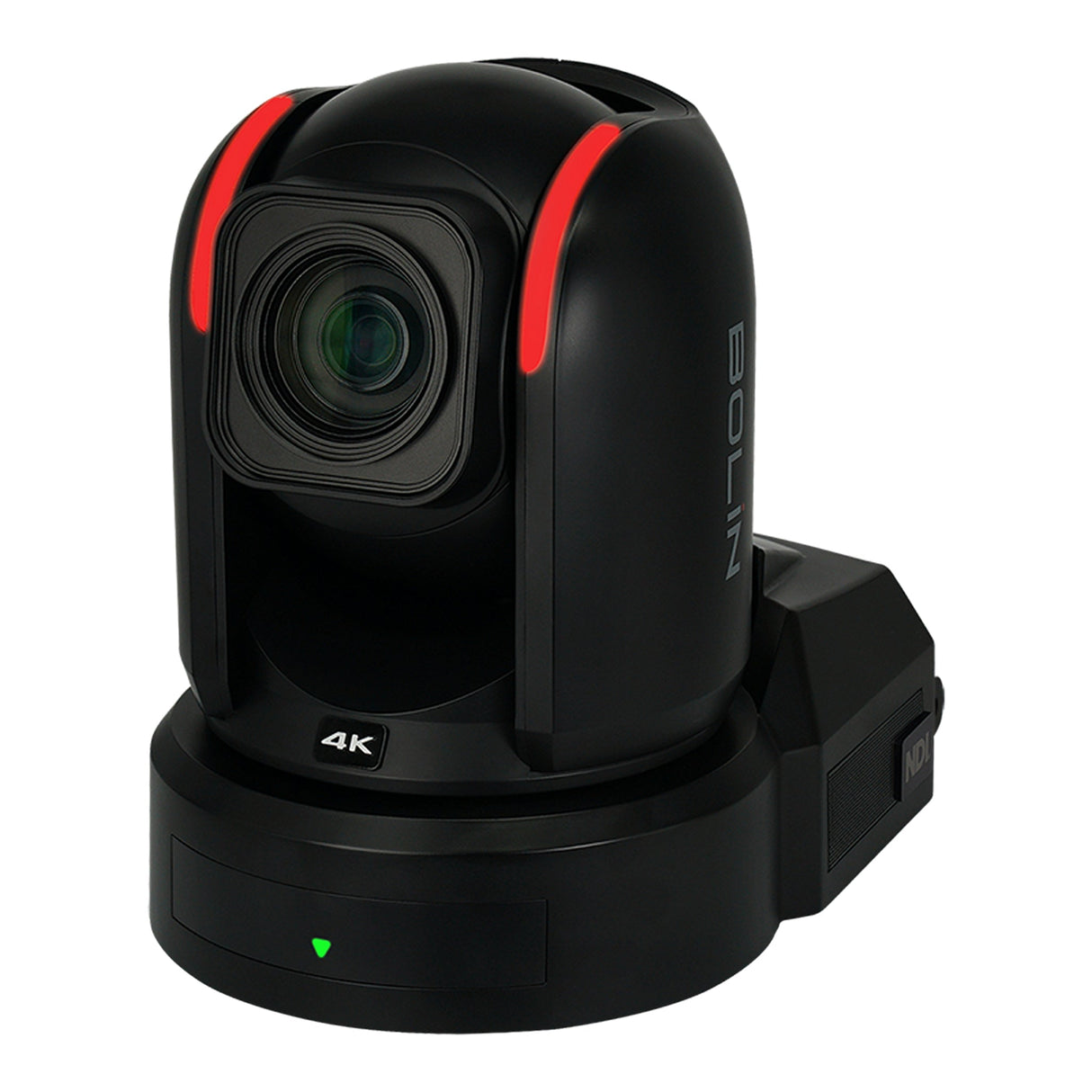

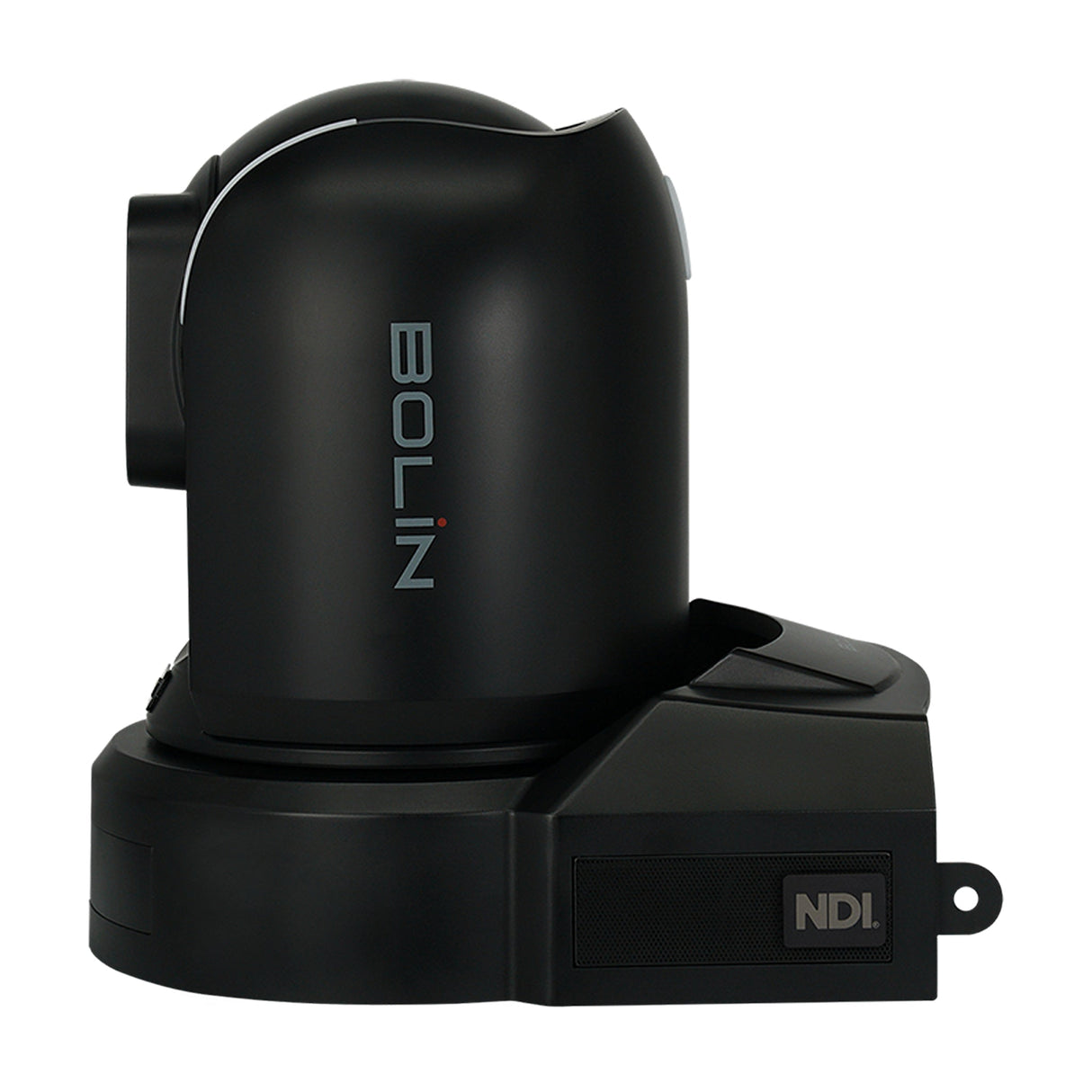

Bolin Technology R9-418N 1-Inch 4K High Bandwidth NDI PTZ Camera - Black

Bolin R9-418N 1-inch 4K High Bandwidth NDI PTZ Camera

The Bolin R9-418N 4K NDI PTZ Camera delivers exceptional broadcast-grade image quality through its premium 1-inch Sony Exmor R CMOS sensor, providing stunning clarity, depth, and remarkable low-light performance. Designed for professional broadcast, live production, and demanding AV applications, this powerhouse camera features an 18x optical zoom at 4K30 (expanding to 24x at Full HD) with built-in ND filters, making it perfect for studios, theaters, houses of worship, and corporate environments where precision imaging is essential. The R9-418N excels in challenging lighting conditions, ensuring true-to-life colors and exceptional detail capture while maintaining a constant F2.8 aperture throughout its zoom range for consistent exposure and superior image quality.

Engineered to seamlessly integrate with modern production workflows, the R9-418N offers revolutionary NDI Embedded Bridge technology that enables global collaboration by transmitting and receiving encrypted NDI streams over WAN networks from any location worldwide. With multiple simultaneous outputs—including Certified NDI High Bandwidth (NDI 6 ready), NDI HX3, dual 6G-SDI, HDMI 2.0, Optical SDI, and various IP streaming protocols—this camera provides unmatched flexibility for both AV-over-IP and baseband video workflows. Advanced professional features such as FreeD protocol support for virtual production, Genlock synchronization for multi-camera setups, XLR broadcast audio connectivity, and 255 steps of precise PTZ movement cement the R9-418N as the definitive choice for production teams demanding broadcast-level performance with exceptional integration capabilities. Available in both black and white color variations to match any installation environment.

Key Features

• Premium 1-inch Sony 4K Sensor: Large Exmor R CMOS sensor (14.4MP) delivering exceptional image quality with superior low-light performance, reduced noise, and enhanced detail capture even in challenging environments
• Professional 18X Optical Zoom: High-quality F2.8 constant aperture lens with 18x zoom at 4K30 and expanded 24x zoom capability at Full HD, allowing everything from wide-angle coverage to detailed close-ups with pristine clarity
• NDI Embedded Bridge: Revolutionary technology enabling global remote production by sending and receiving encrypted NDI streams over WAN from any location worldwide with no complex setup required
• Comprehensive Connectivity: Multiple simultaneous outputs including NDI High Bandwidth (NDI 6 ready), NDI HX3, dual 6G-SDI, HDMI 2.0, SFP Optical SDI, XLR audio I/O, and various IP streaming protocols for maximum production flexibility
• Professional Broadcast Features: Genlock for frame-accurate synchronization, FreeD protocol support for virtual production, built-in ND filters, optical image stabilization, and true dual-output capabilities for demanding production workflows
• Cinematic Video Capabilities: Support for 23.98p/24p cinematic frame rates alongside standard broadcast formats, with constant F2.8 aperture throughout the zoom range for film-like depth and consistent exposure
• Versatile Control Options: Comprehensive control via NDI, serial RS232/422/485, and IP with support for VISCA, VISCA Over IP, PELCO P/D, and ONVIF protocols for seamless integration into existing production ecosystems
• NDAA Compliant: Certified compliance with Section 889 of the National Defense Authorization Act for government and security-sensitive installations

Technical Specifications

• Image Sensor: 1-inch Exmor R CMOS sensor (14.4MP)
• Resolution: 4K (3840x2160) at 30/29.97/25/24/23.98 fps; Full HD up to 60 fps
• Optical Zoom: 18X at 4K, 24X at Full HD with 64.6° horizontal field of view
• Video Outputs: Dual 6G-SDI, HDMI 2.0, SFP Optical SDI, IP (NDI High Bandwidth, NDI HX3, RTSP, RTMP, RTMPS, SRT)
• Audio Interfaces: XLR balanced audio inputs/outputs, 3.5mm audio input/output
• Control Interfaces: RJ45 for serial control, Ethernet for IP/NDI Control, Genlock
• Network Features: NDI High Bandwidth, NDI HX3, NDI 6 ready, NDI Embedded Bridge
• Color Options: Available in Black or White

Package Contents

• Bolin R9-418N 1-inch 4K High Bandwidth NDI PTZ Camera
• IR Remote Control
• Power Adapter
• Power Cable
• RJ45 to RS-422 Extension Cable
• Mounting Screw Set
• Safety Cable
• Dust Cover
• Lens Cap
• User Manual
