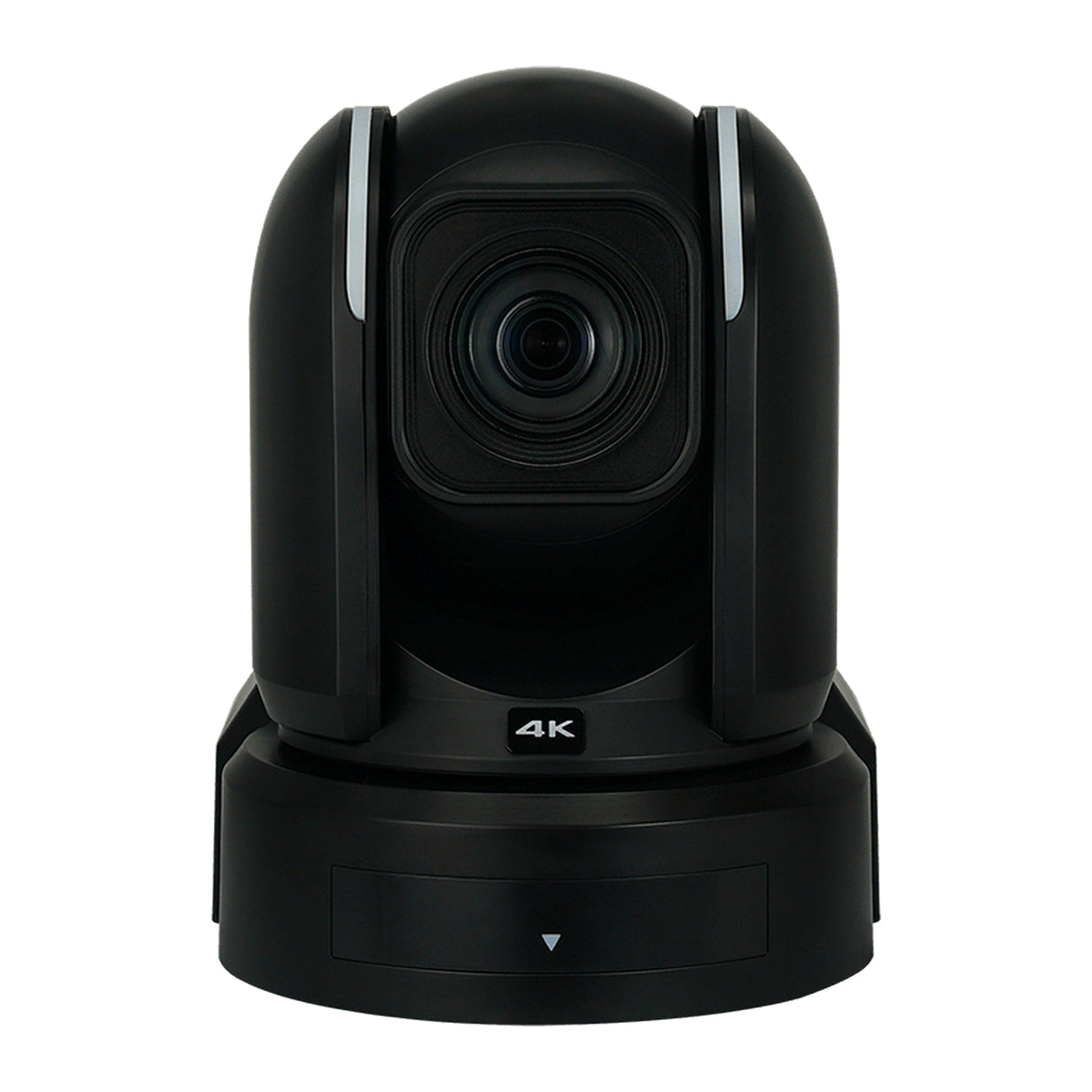

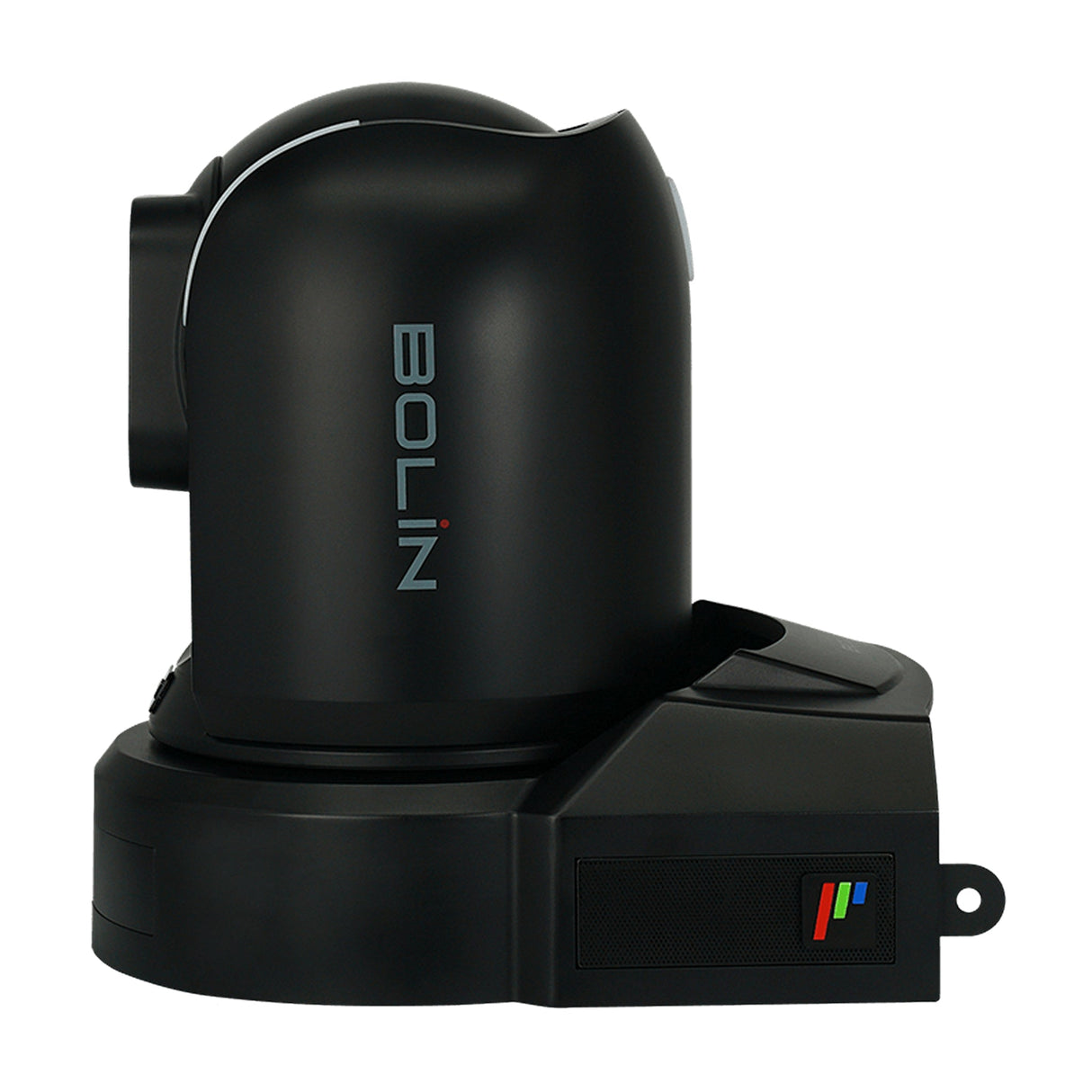

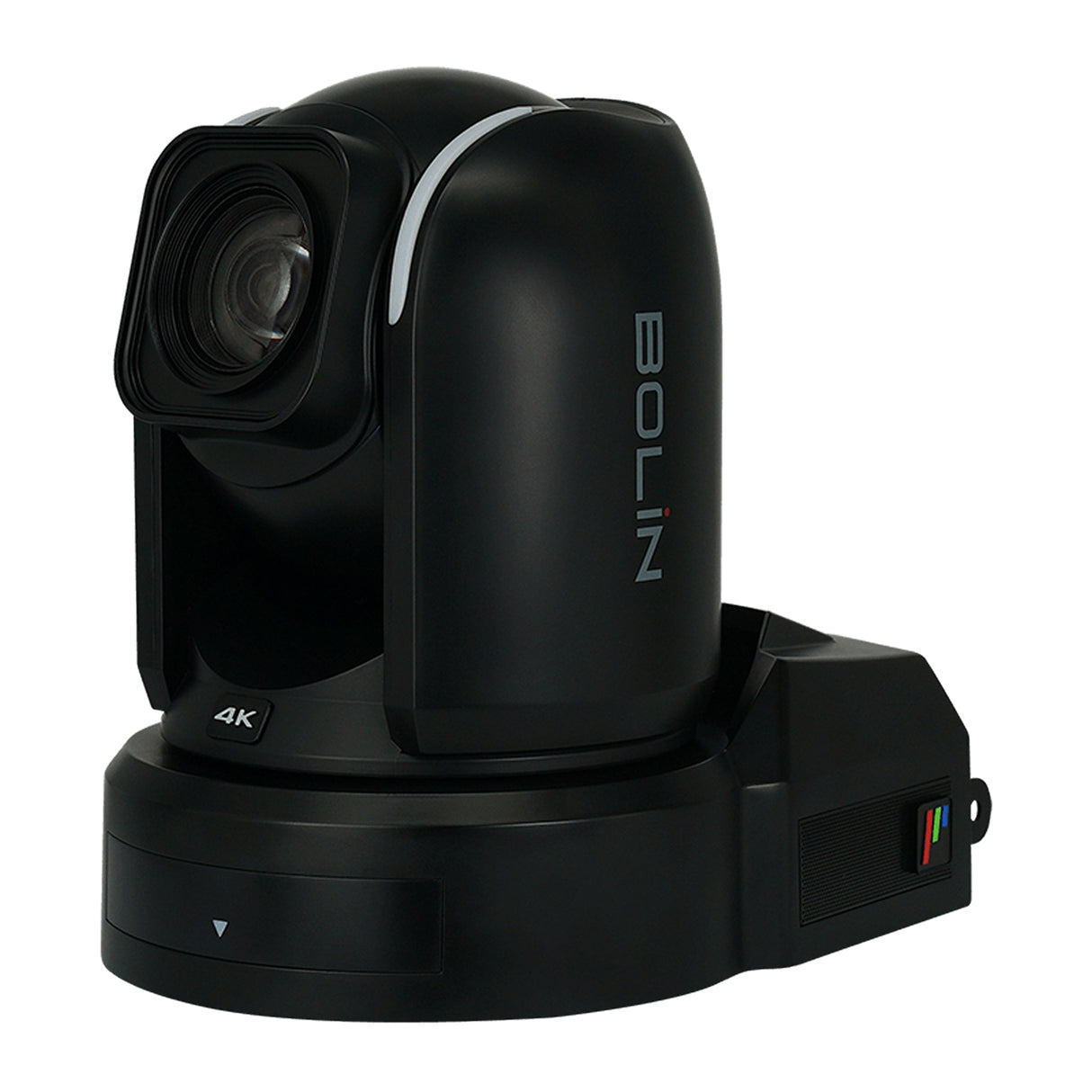

Bolin Technology R9-420F 4K60 Professional PTZ Camera

The Bolin R9-420F is a broadcast-grade 4K60 PTZ camera engineered for professional video production environments demanding exceptional image quality and smooth motion capture. Powered by a 1/2.8" Sony Starvis sensor with 8.29MP resolution, this camera delivers stunningly crisp UHD video at a fluid 60 frames per second, making it ideal for capturing dynamic live events, sports broadcasts, and fast-moving subjects with remarkable clarity. Its precision-engineered 20X optical zoom lens with additional 16X digital zoom capability provides incredible versatility, allowing operators to capture wide venue shots and detailed close-ups with equal brilliance while maintaining consistent image quality throughout the zoom range.

Designed for seamless integration into professional workflows, the R9-420F features comprehensive connectivity options including dual 12G-SDI outputs, HDMI 2.0, SFP+ optical expansion, and FPGA-powered FAST HEVC IP streaming for high-quality, low-bandwidth transmission. Advanced production features include FreeD protocol support for virtual/augmented reality integration, precise 255-position PTZ movement with 0.03° accuracy, and True Dual-Output technology that allows independent resolution settings for baseband and IP outputs. With its robust construction, flexible mounting options, and professional control protocols (VISCA, VISCA-over-IP, Pelco P/D, ONVIF), the R9-420F excels in broadcast studios, entertainment venues, sports facilities, and corporate environments where reliability and image quality are paramount.

Key Features

• 4K60 Ultra HD Video: Capture fluid, detailed 2160p60 footage with exceptional clarity and smoothness, perfect for sports, live events, and dynamic productions
• Professional 20X Optical Zoom: Precision lens with wide 78.6° angle of view and additional 16X digital zoom provides incredible framing flexibility from wide establishing shots to detailed close-ups
• Sony Starvis Image Sensor: 1/2.8" CMOS sensor with 8.29MP resolution delivers outstanding image quality with enhanced low-light performance and color accuracy
• FPGA FAST HEVC Encoding: Hardware-accelerated video processing delivers high-quality, ultra-low latency, low-bandwidth IP streaming for efficient network transmission

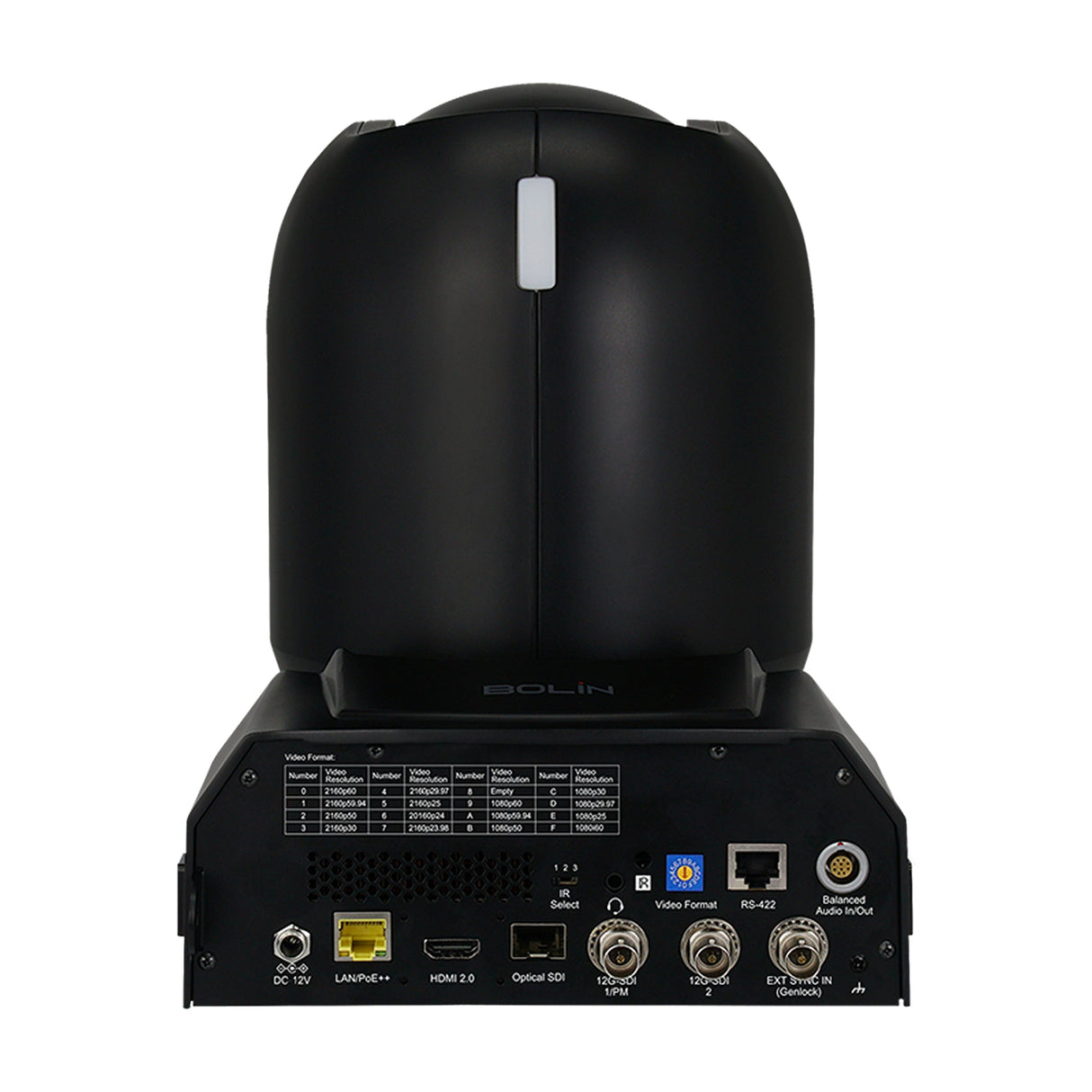

• Comprehensive Connectivity: Multiple simultaneous outputs including dual 12G-SDI, HDMI 2.0, SFP Optical SDI expansion, and IP streaming support (RTSP, RTMP, RTMPS, SRT, ONVIF)
• FreeD Protocol Support: Enables seamless integration with virtual production systems for immersive AR/VR applications and automated tracking in broadcast environments
• Precise PTZ Movement: Wide 340° pan range (-170° to +170°) and 210° tilt range (-90° to +120°) with fully proportional speed control and 255 preset positions
• Professional Audio Integration: Embedded audio support with LEMO-type audio port for professional audio workflows and clean sound capture

Technical Specifications

• Image Sensor: 1/2.8" Sony Starvis CMOS with 8.29MP resolution
• Video Resolution: Up to 4K60 (3840×2160 at 60fps)
• Optical Zoom: 20X with 16X additional digital zoom
• Angle of View: 78.6° (wide end)
• Pan/Tilt Range: Pan 340° (-170° to +170°), Tilt 210° (-90° to +120°)
• Preset Positions: 255 positions with 0.03° accuracy
• Control Protocols: VISCA, VISCA-over-IP, Pelco P/D, ONVIF, IR Remote, FreeD
• Dimensions: 11.8" × 11.8" × 19.7" (30cm × 30cm × 50cm)

Package Contents

• Bolin Technology R9-420F Indoor 4K60 PTZ Camera
• Power Adapter
• Power Cable
• IR Remote Control
• RJ45 to RS-422 Extension Cable
• Mounting Screw Set
• Dust Cover
• Safety Cable
• Lens Cap
• Limited 2-Year Manufacturer Warranty
