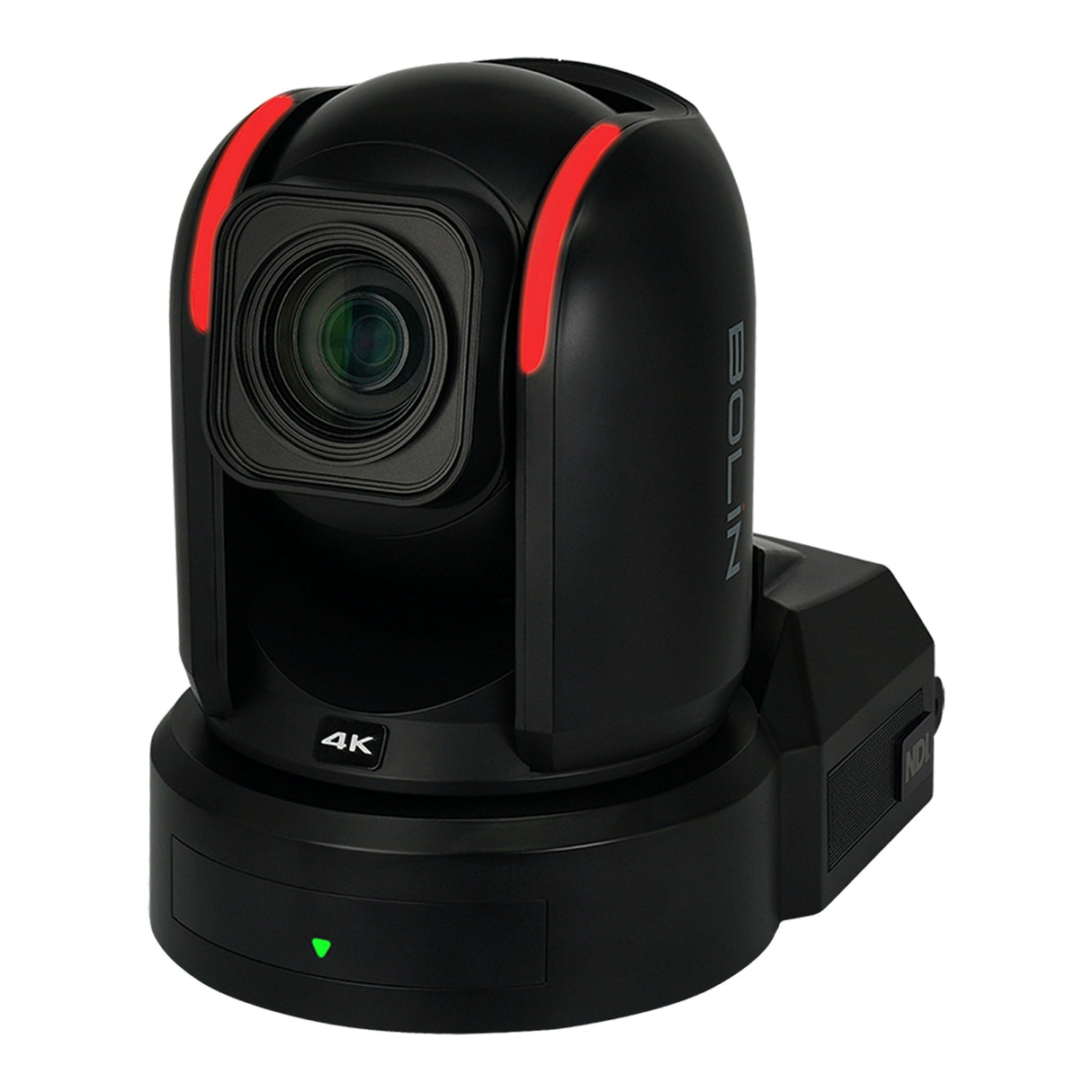

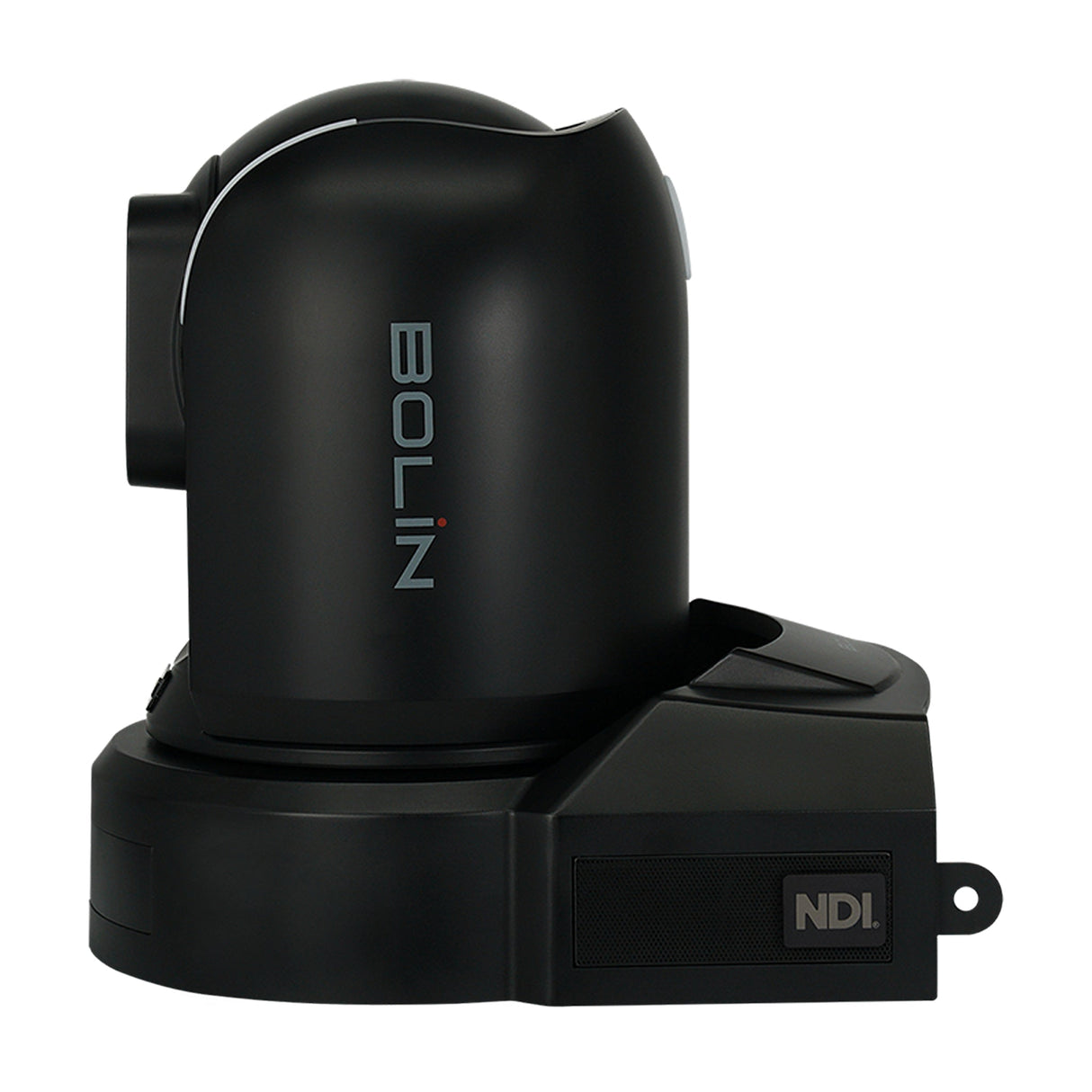

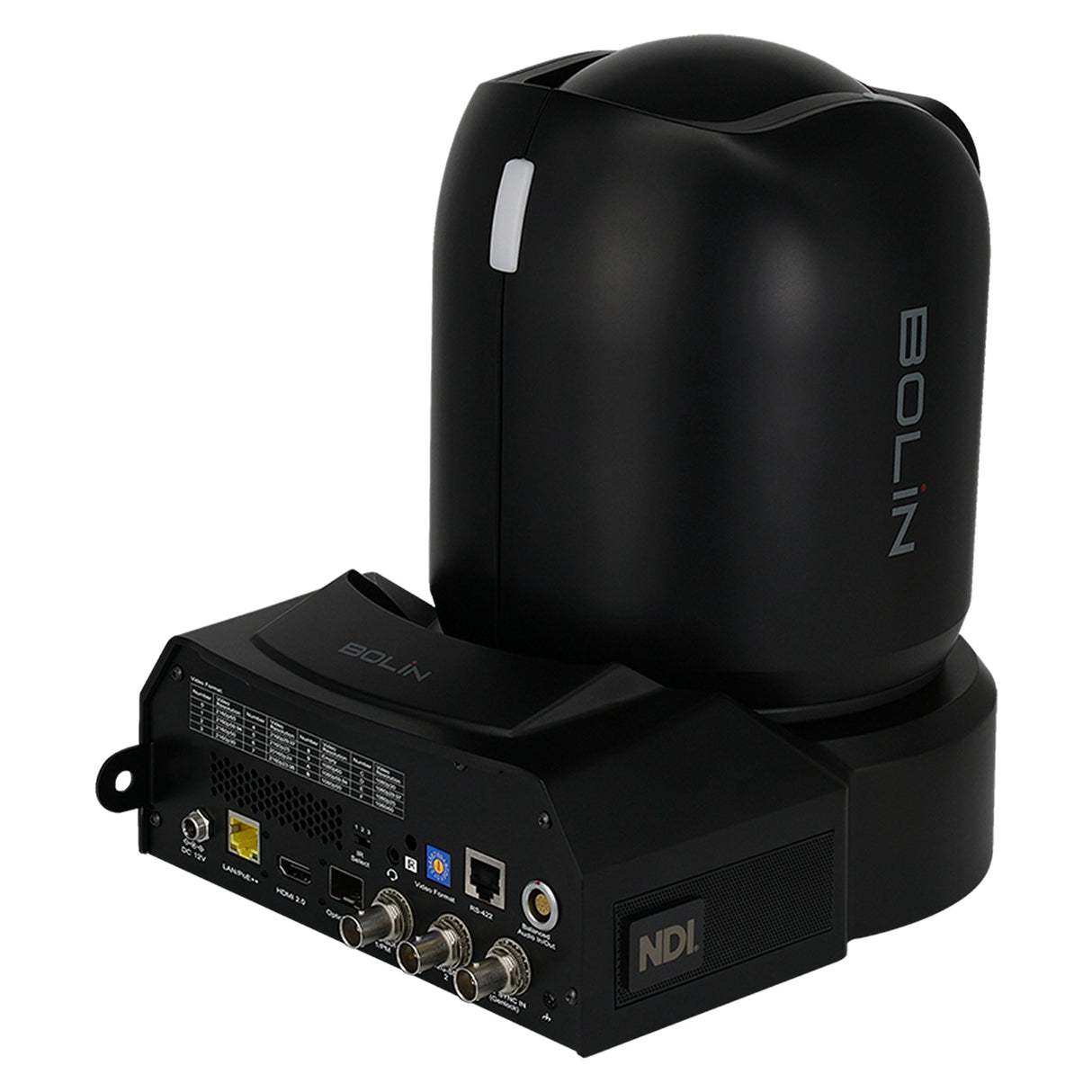

Bolin Technology R9-420N 4K60 FreeD NDI PTZ Camera - Black

Bolin R9-420N 4K60 FreeD NDI PTZ Camera

The Bolin R9-420N 4K60 NDI PTZ Camera delivers exceptional broadcast-grade video quality at true 4K resolution with fluid 60fps motion, making it perfect for live events, sports broadcasting, corporate productions, and studio environments. Built around a high-performance Sony image sensor with a professional 20x optical zoom, this camera ensures remarkable clarity and detail across both wide-angle and telephoto shots while maintaining precise color accuracy and impressive low-light performance. Designed for maximum versatility, the R9-420N features comprehensive connectivity options including certified NDI High Bandwidth, NDI HX3, dual 12G-SDI, HDMI 2.0, Optical SDI, and various IP streaming protocols, allowing seamless integration into both traditional baseband and next-generation AV-over-IP workflows.

Engineered for next-generation production capabilities, the R9-420N includes groundbreaking NDI Embedded Bridge technology that revolutionizes remote production by enabling encrypted NDI stream transmission over WAN from any global location with minimal setup—ideal for distributed productions and remote event coverage. The integrated FreeD protocol support allows real-time tracking data to be fed directly to AR/VR graphics systems, making the R9-420N an essential tool for virtual studios, sports analytics, and interactive productions. With professional features like 255 steps of precise PTZ movement, built-in image stabilization, Genlock synchronization, and XLR balanced audio inputs/outputs, the R9-420N delivers uncompromising production flexibility in a robust, reliable package available in both black and white color variations to match any installation environment.

Key Features

• True 4K60 Ultra HD Performance: Capture incredibly smooth, high-resolution video at 60 frames per second, ensuring exceptional clarity for fast-action events, sports broadcasting, and professional studio productions
• Professional 20X Optical Zoom: High-quality Sony image sensor with 20x zoom capability maintains exceptional clarity from wide-angle shots to detailed close-ups, providing versatile framing options for any production scenario
• NDI Embedded Bridge: Revolutionary technology enabling global remote production by encrypting NDI streams over WAN from any location worldwide with plug-and-play simplicity—perfect for distributed productions, remote broadcasts, and multi-venue events
• FreeD Protocol Support: Integrated technology allowing real-time camera tracking data to feed directly into AR/VR graphics systems, enabling advanced virtual set productions, automated tracking, and interactive broadcast environments
• Comprehensive Connectivity: Multiple simultaneous outputs including NDI High Bandwidth, NDI HX3, dual 12G-SDI, HDMI 2.0, SFP Optical SDI, XLR broadcast audio I/O, and various IP streaming protocols for maximum production flexibility
• Precision PTZ Control: 255 steps of accurate PTZ movement with proportional speed from 0.05° to 70°/s pan and 0.05° to 60°/s tilt, providing silky-smooth camera motion for professional tracking and framing
• Professional Broadcast Features: Built-in Genlock for frame-accurate synchronization in multi-camera setups, Color Matrix for precise color grading, and XLR balanced audio connectivity for professional sound integration
• NDAA Compliant: Certified compliance with Section 889 of the National Defense Authorization Act, making it suitable for government, security, and sensitive installation environments

Technical Specifications

• Image Sensor: Sony 1/2.8" 4K image sensor
• Resolution: True 4K60 (3840x2160 at 60fps)
• Optical Zoom: 20X with 79° horizontal field of view
• Video Outputs: Dual 12G-SDI, HDMI 2.0, SFP Optical SDI, IP (NDI High Bandwidth, NDI HX3, RTSP, RTMP, RTMPS, SRT)
• Pan/Tilt Range: Pan: 340° (-170° to +170°), Tilt: 120° (-30° to +90°)
• Preset Positions: 255 positions with adjustable speed and 0.1° accuracy
• Audio Interfaces: XLR balanced audio inputs/outputs
• Control Interfaces: Serial RS232/422/485, IP, NDI Control, VISCA, VISCA Over IP, PELCO P/D, ONVIF

Package Contents

• Bolin R9-420N 4K60 FreeD NDI PTZ Camera
• IR Remote Control
• Power Adapter
• Power Cable
• RJ45 Control Cable
• Mounting Screw Set
• Safety Cable
• Dust Cover
• Lens Cap
• User Manual
