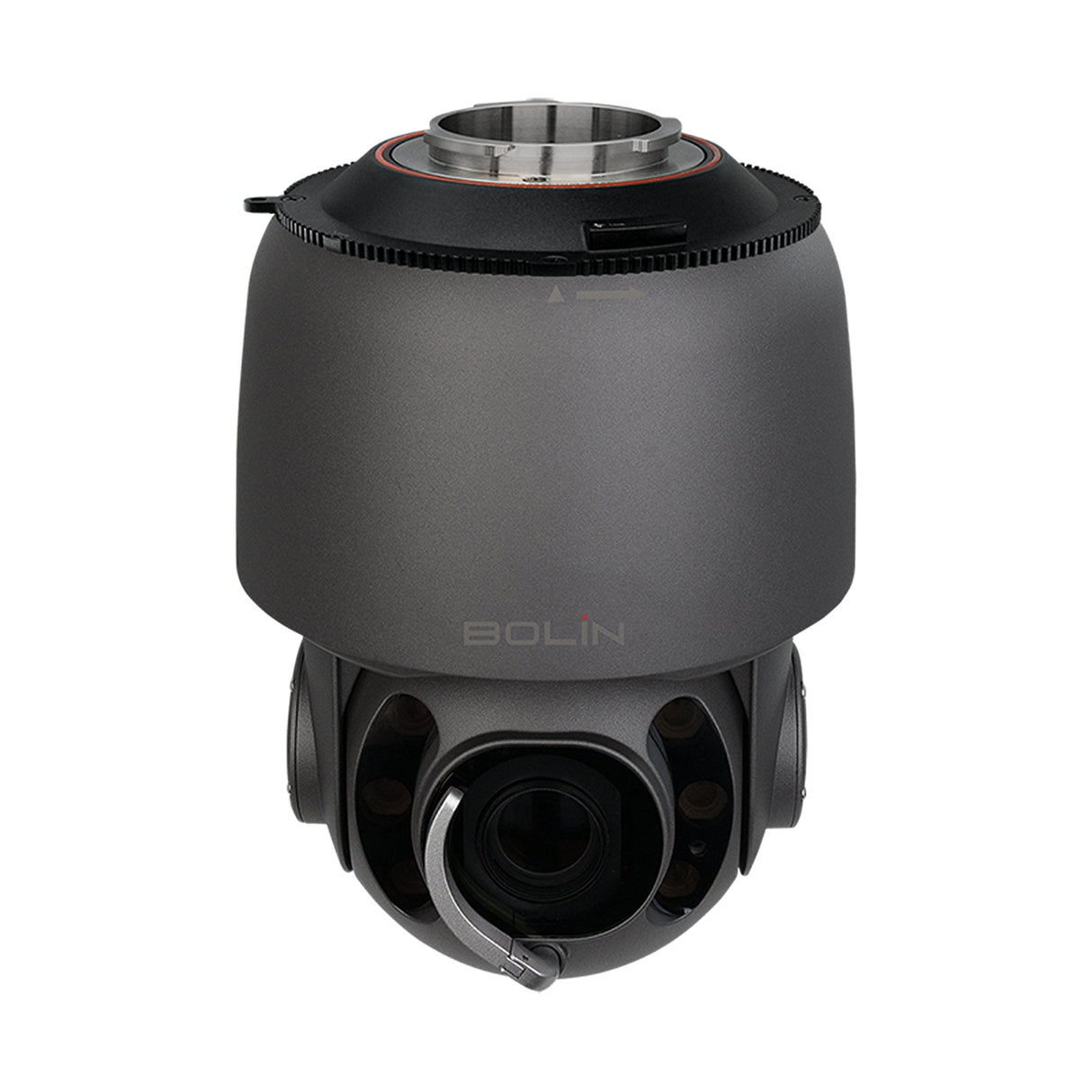

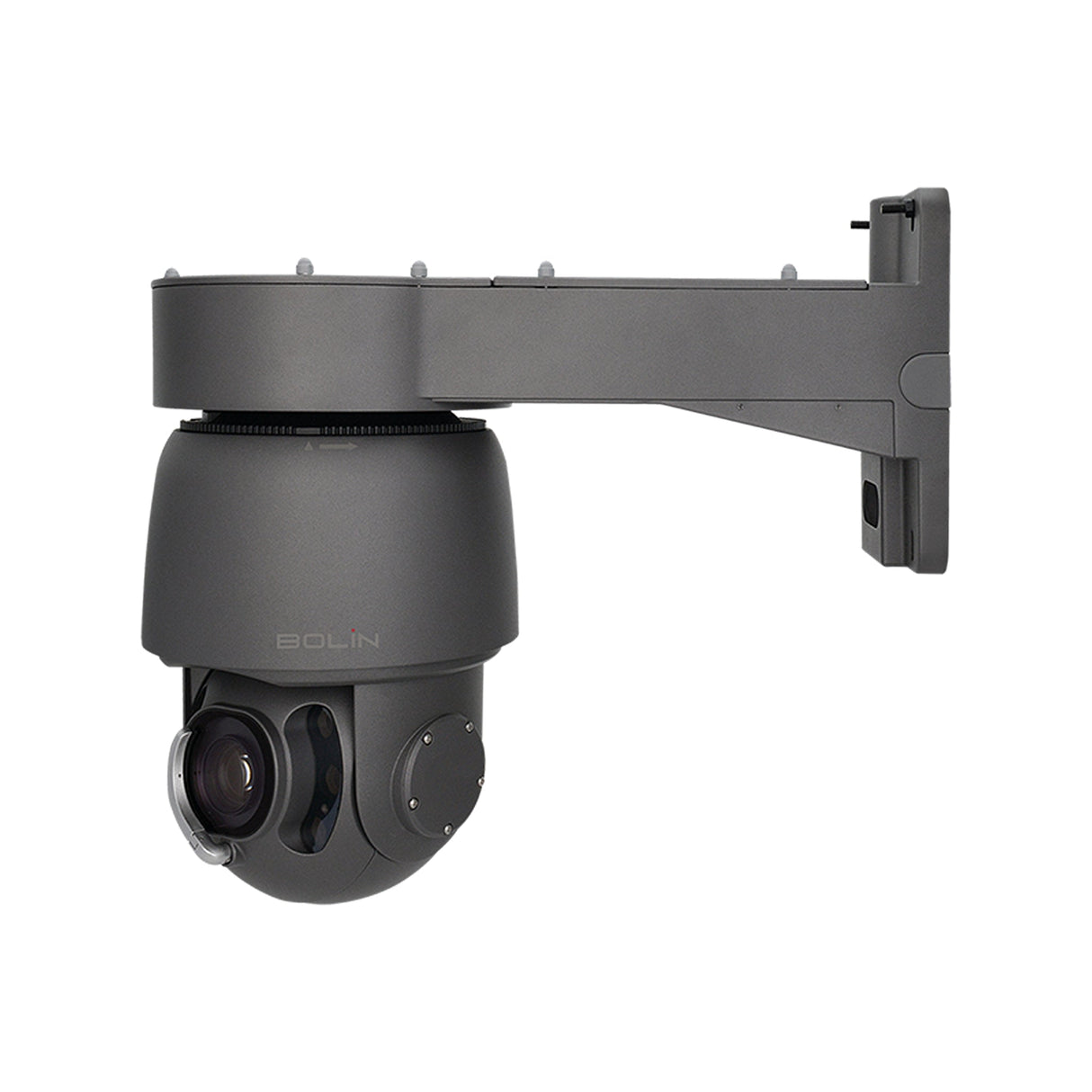

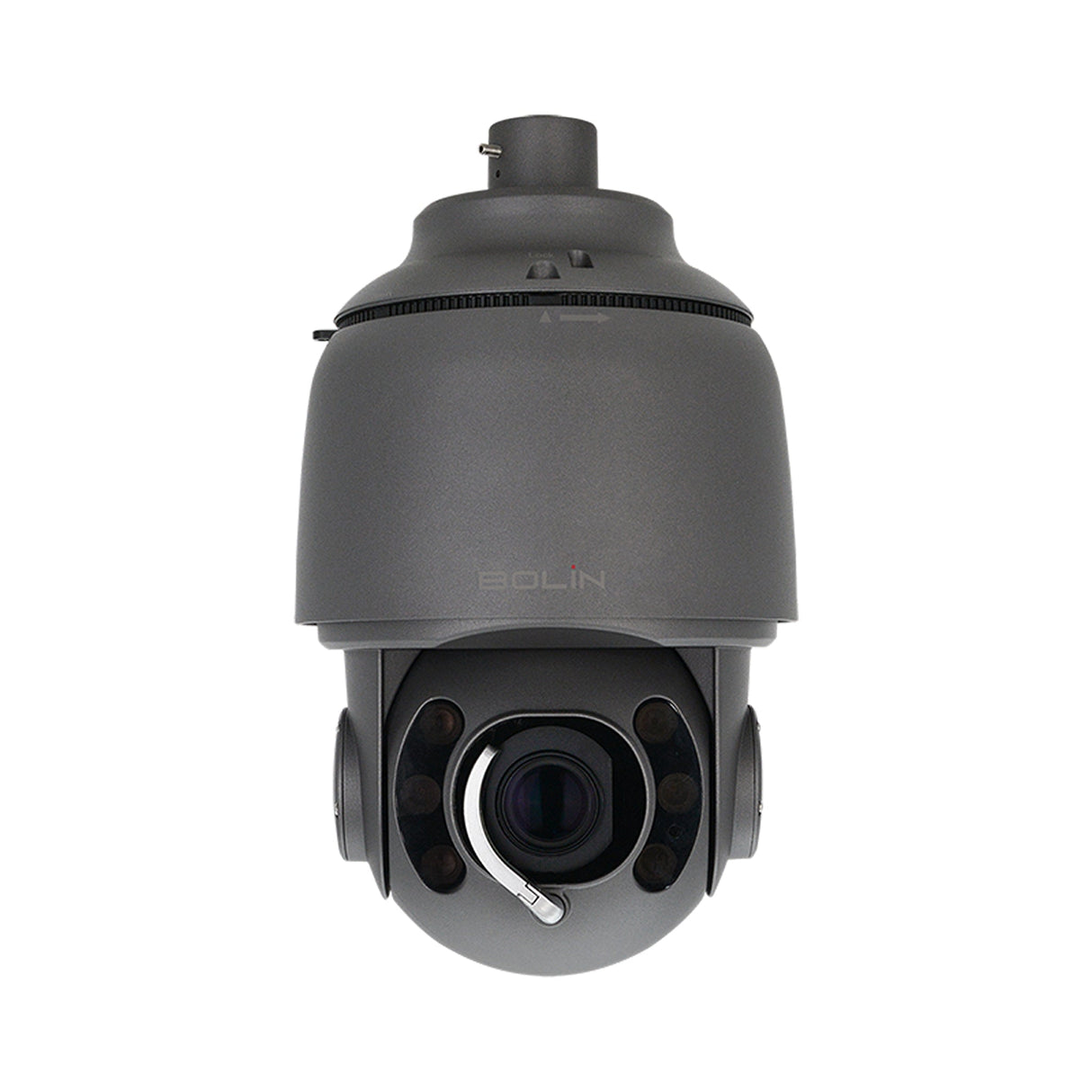

Bolin Technology SD530H SDI IP Outdoor PTZ Camera

The Bolin SD530H is a professional-grade outdoor PTZ camera engineered for demanding broadcast and live production environments. Featuring Sony's advanced 1/2.8-type Full HD CMOS sensor with exceptional low-light performance (minimum illumination of 0.009 lux), this camera delivers stunning broadcast-quality Full HD video with remarkable clarity and color accuracy even in challenging lighting conditions. Its precision-engineered 30X optical zoom lens with additional 12X digital zoom provides incredible range and detail for capturing distant subjects with crystal clarity, making it ideal for sports coverage, outdoor events, traffic monitoring, and remote production applications where exceptional image quality and zoom capability are essential.

Built to withstand the harshest environmental conditions, the SD530H features an IP67-rated weatherproof housing with integrated rain wiper and heater that ensures reliable operation in rain, snow, dust, and extreme temperatures ranging from -40°C to +60°C. The camera's Super Image Stabilization Plus technology minimizes vibrations and motion blur, delivering steady, professional-quality footage even in high-vibration settings or when fully zoomed. With versatile connectivity options including 3G-SDI and IP streaming outputs, FreeD protocol support for virtual production integration, and advanced PTZ controls featuring 360° continuous panning and high-speed movement (up to 135°/s), the SD530H provides broadcast professionals with a rugged, feature-rich camera solution capable of capturing every moment with exceptional quality and precision regardless of environmental challenges.

Key Features

• Superior Low-Light Performance: Sony 1/2.8-type CMOS sensor with 0.009 lux minimum illumination captures clear, detailed images even in challenging lighting environments
• Professional 30X Optical Zoom: High-quality lens with 30X optical zoom and additional 12X digital zoom provides exceptional range for capturing distant subjects with clarity
• IP67 Weatherproof Design: Rugged construction with integrated rain wiper and heater ensures reliable operation in extreme weather conditions from -40°C to +60°C
• Super Image Stabilization Plus: Advanced stabilization technology minimizes vibrations and motion blur for steady, professional footage in dynamic environments
• Dual Output Capability: Simultaneous 3G-SDI and IP streaming outputs provide flexible integration options for both traditional broadcast and network-based workflows
• High-Speed PTZ Movement: Precise 360° continuous panning and 105° tilting with variable speeds up to 135°/s for smooth, responsive camera control
• FreeD Protocol Support: Enables integration with virtual production systems for immersive AR/VR applications and automated tracking capabilities
• Zero Deviation Positioning: Maintains precise preset accuracy over time, ensuring consistent framing and reliable camera movements for critical productions

Technical Specifications

• Image Sensor: 1/2.8" Sony CMOS with Full HD resolution
• Video Resolution: Up to 1080p60 (SDI), 1080p30 (IP)
• Optical Zoom: 30X with 12X additional digital zoom
• Minimum Illumination: 0.009 lux (color)
• Pan/Tilt Range: Pan 360° (continuous), Tilt 105° (-90° to +15°)
• Pan/Tilt Speed: 0.05° to 135°/s (fully proportional)
• Weatherproofing: IP67-rated housing
• Operating Temperature: -40°C to +60°C

Package Contents

• Bolin SD530H SDI IP Outdoor PTZ Camera
• Power Adapter
• Mounting Hardware
• Rain Wiper
• Installation Manual
