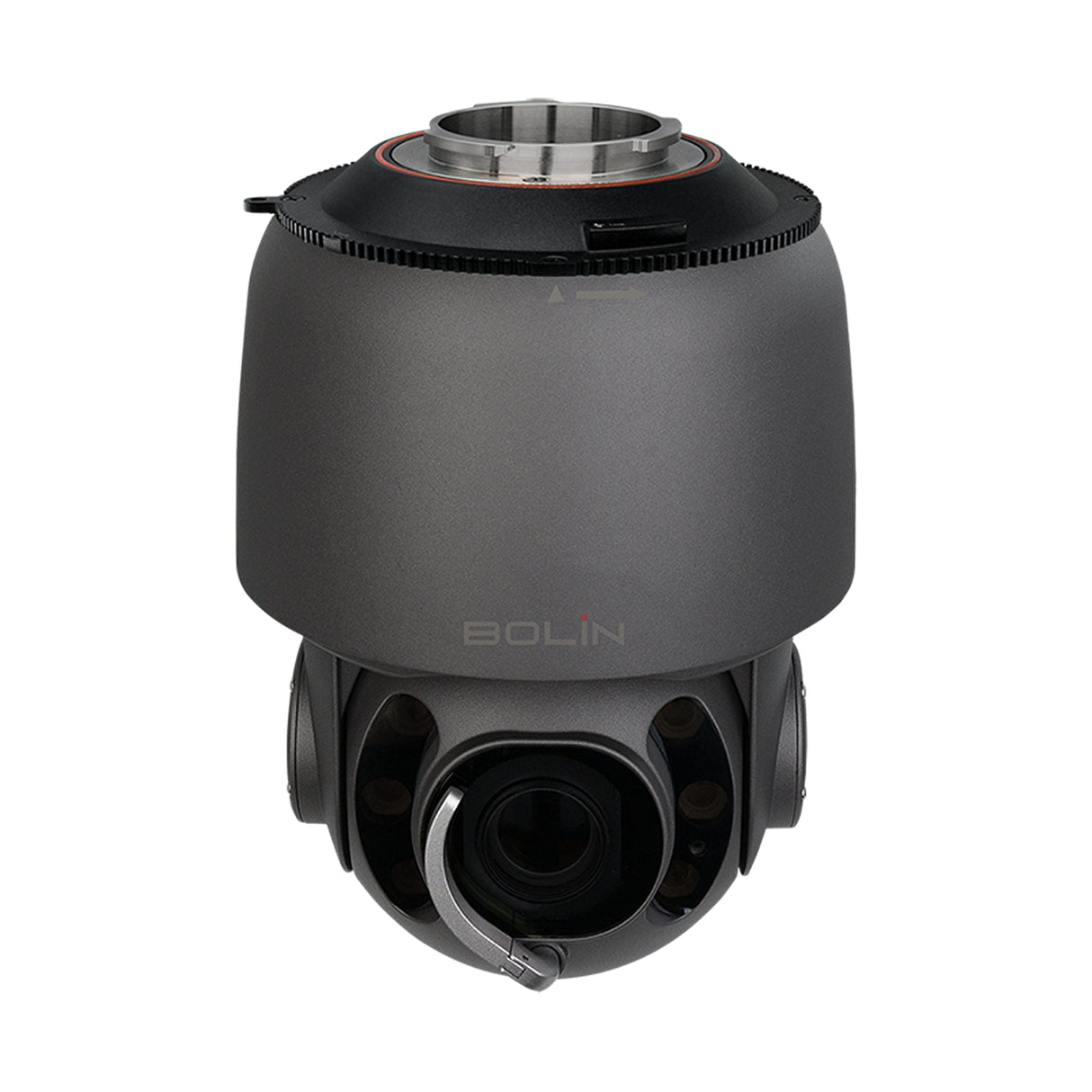

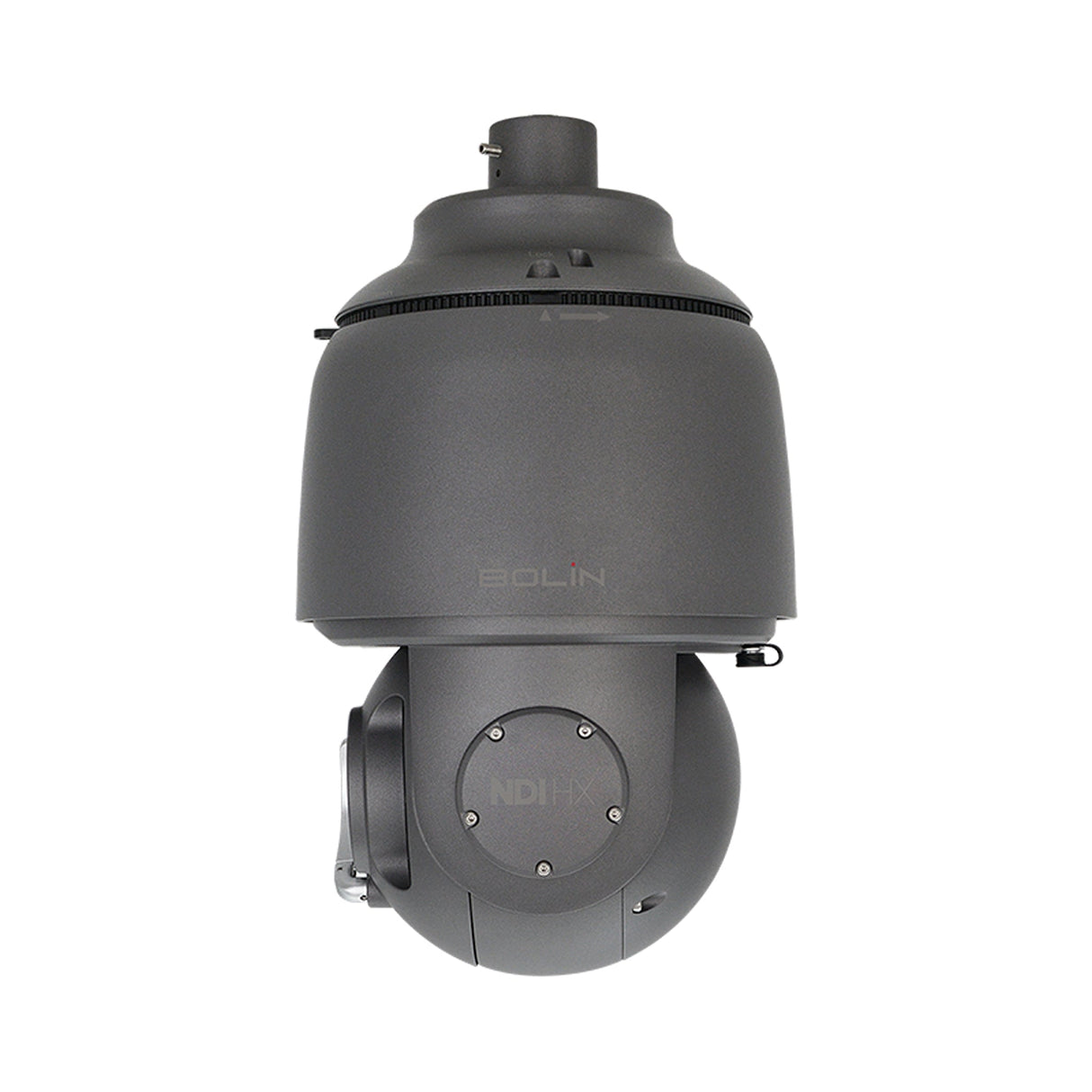

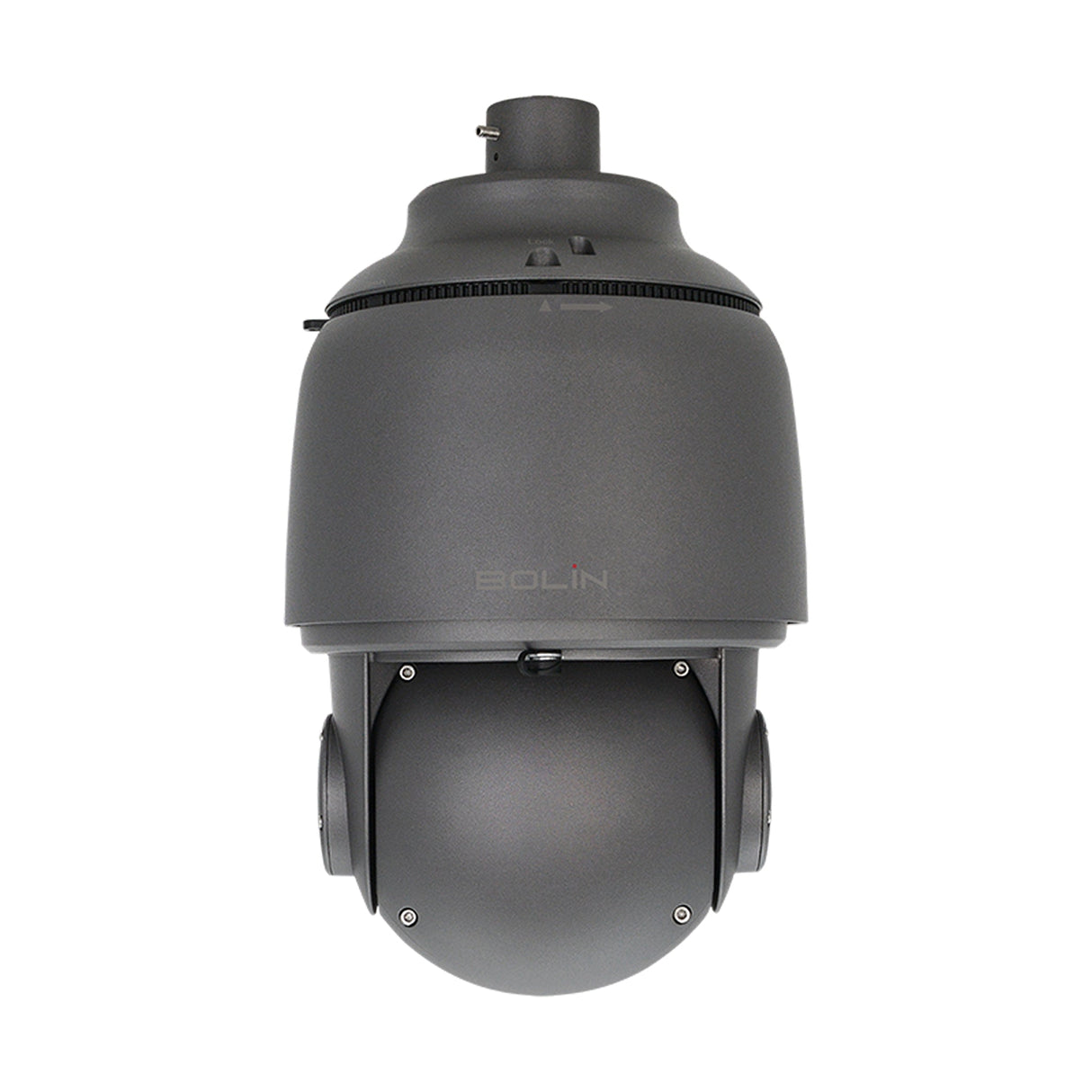

Bolin SD530NX Outdoor NDI HX3 PTZ Camera
The Bolin SD530NX Outdoor NDI HX3 PTZ Camera represents the pinnacle of professional broadcast technology, delivering exceptional Full HD video quality in even the most challenging environments. Equipped with Sony's advanced 1/2.8-inch CMOS sensor and powerful 30X optical zoom, this rugged IP67-rated camera excels in low-light conditions with a minimum illumination of just 0.009 lux, ensuring crystal-clear imagery for outdoor broadcasts, live events, and remote production scenarios regardless of lighting challenges.
Engineered for versatility, the SD530NX features NDI HX3 technology with NDI 6 compatibility, providing efficient high-quality video transmission over standard networks while maintaining low latency. The camera's superior image stabilization system, advanced autofocus algorithm, and comprehensive connectivity options including 3G-SDI and IP streaming make it the ideal solution for broadcasters, content creators, and AV professionals demanding reliable performance, precise control, and exceptional image quality in outdoor settings.
Key Features
- NDI HX3 Integration: Certified NDI HX3 technology with NDI 6 readiness for efficient, high-quality video streaming over standard networks with minimal bandwidth requirements
- Professional Optical System: Premium 30X optical zoom with Sony's proprietary AF algorithm for simultaneous zoom and focus capabilities in difficult lighting conditions
- Superior Low-Light Performance: Equipped with Sony's 1/2.8-type Exmor R sensor delivering exceptional image quality with minimum illumination of 0.009 lux
- Advanced Image Stabilization: Built-in image stabilizer minimizes vibrations and maintains steady footage in windy conditions and during rapid camera movements
- Comprehensive Connectivity: Dual video output with 3G-SDI and NDI IP streaming capabilities for maximum workflow flexibility and integration
- All-Weather Durability: IP67-rated housing with integrated heater, defroster, and corrosion-resistant treatment for operation in extreme environmental conditions
- Precise Movement Control: Zero Deviation Positioning (ZDP) technology ensures high precision and accuracy in preset programming with smooth variable speed operation
- NDAA Compliant: Certified compliance with Section 889 of the National Defense Authorization Act for secure deployment in government and sensitive installations
Technical Specifications
- Image Sensor: 1/2.8" Sony CMOS with 2MP resolution
- Optical Zoom: 30X with additional 12X digital zoom capability
- Horizontal Field of View: 63.7° to 2.3° (wide to tele)
- Video Output Resolution: Up to 1080p60 via 3G-SDI and IP streaming
- Minimum Illumination: 0.009 lux for exceptional low-light performance
- Dynamic Range: 120dB true WDR (Wide Dynamic Range)
- IP Rating: IP67 weather-resistant housing
- Operating Temperature: -40°C to +60°C with built-in heater and blower
Package Contents
- Bolin SD530NX Outdoor NDI HX3 PTZ Camera
- IR Remote Control
- Power Adapter
- Mounting Hardware
- RJ45 to Phoenix Terminal Adapter
- User Manual and Quick Start Guide
