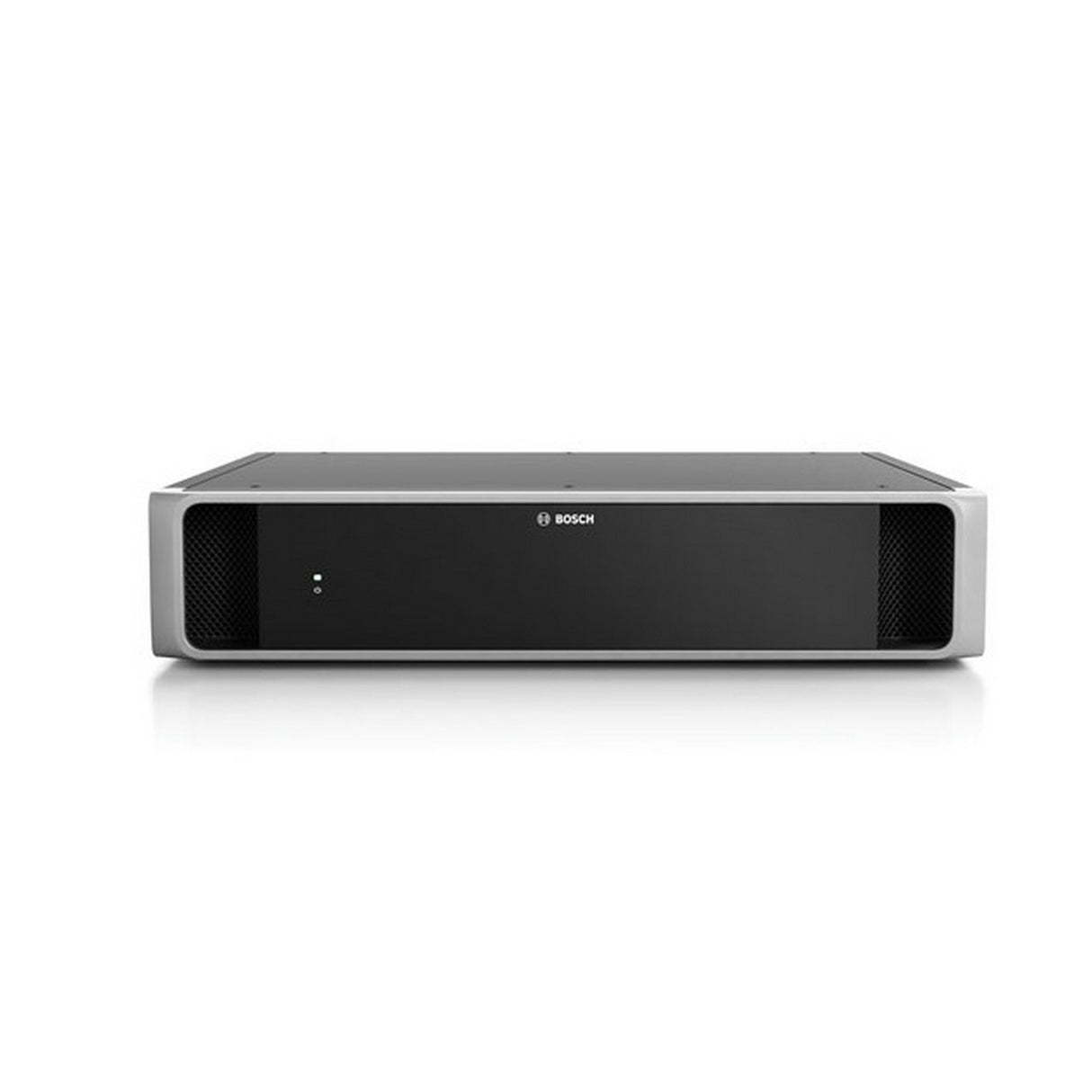

Bosch DCNM-APS2 Audio Processor and Powering Switch
DICENTIS Audio Powering Switch - second generation (for DICENTIS Conference System, including DICENTIS multimedia)
Key Features
- Zero network configuration
- Fully compatible to the Ethernet (IEEE802.3) and OMNEO standard
- Supports loop?through connection with cable redundancy
- Acoustic feedback suppression, echo cancellation and equalizer
- Standby mode to be environment friendly
Technical Specifications
Supply voltage
100240 Vac 5060 Hz
Power consumption
530 W
System supply
48 Vdc
Total power supply
3x 144 W + 15 W
Frequency response
30 Hz - 20 kHz
THD at nominal level
< 0.1 %
Dynamic range
> 95 dB
Signal-to-noise ratio
> 95 dB
XLR nominal input
-18 dBV (+6 dB / -18 dB)
XLR maximum input
+18 dBV
Cinch nominal input
-30 dBV (+6 dB / -18 dB
Cinch maximum input
+6 dBV
XLR nominal output
-18 dBV (+8 / -24 dB)
XLR maximum output
+20 dBV
Cinch nominal output
-30 dBV (+8 / -24 dB)
Cinch maximum output
+8 dBV
Mounting
Tabletop or mounted in a 19” rack
Dimensions (H x W x D)
for tabletop use, with feet
92 x 440 x 400 mm(3.6 x 17.3 x 15.7 in)
for 19” rack use, with brackets
88 x 483 x 400 mm(3.5 x 19 x 15.7 in)
in front of brackets
40 mm (1.6 in)
behind brackets
360 mm (14.2 in)
Weight
7.62 kg (16.79 lbs)
Color
Traffic black RAL 9017Pearl light grey RAL 9022
Operating temperature
0 C to +45 C(-32 F to +113 F)
Storage and transport temperature
-20 C to +70 C(-4 F to +158 F)
Relative humidity
< 96 %, > 5 %
