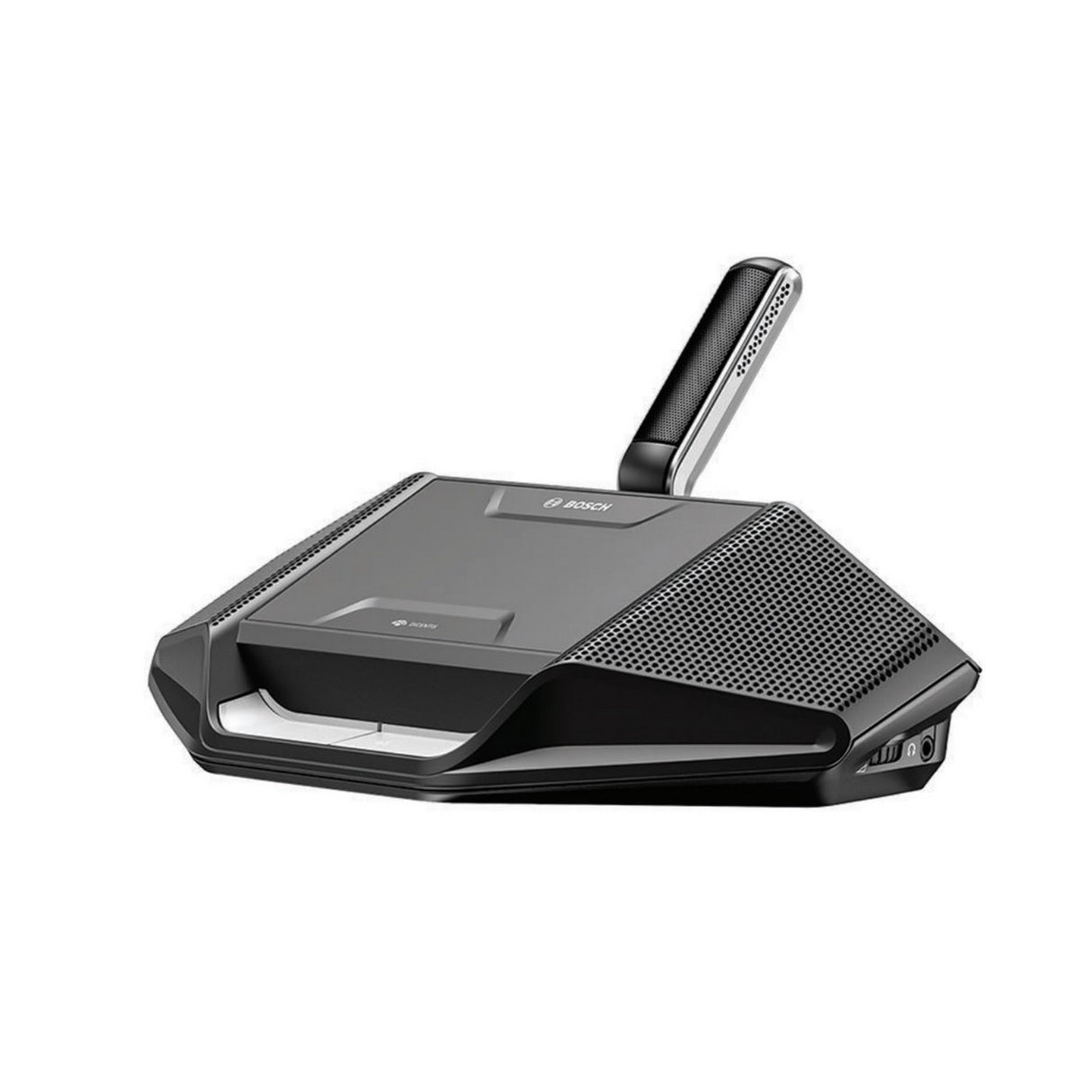

Bosch DCNM-D Dual Use Speakerphone Discussion Device

DICENTIS incorporates several standardized technologies that have been combined to create an open platform. Complete system solutions can be created by simply integrating compatible products. This makes DICENTIS extremely scalable, enabling it to evolve with the growing needs of meeting and conference facilities. At its heart, the DICENTIS Conference System makes use of the unique IP based OMNEO media networking architecture, developed by Bosch.

Key Features

• Single?use and chairperson can be configured via the PC configuration software application
• Audio mute button
• Supports star and loop-through connection
• Crystal?clear sound due to a very high signal?to?noise ratio
• The loudspeaker and microphone can be active at the same time to facilitate a face?to?face meeting experience

Technical Specifications

Electrical
Supply voltage
48 VDC
Power consumption
3.1 W
Frequency response
100 Hz to 20 kHz (-3 dB at nominal level)
THD at nominal level
< 0.1 %
Dynamic range
> 90 dB
Signaltonoise ratio
> 90 dB
Audio inputs
Nominal microphone input
80 dB SPL according IEC60914
Maximum microphone input
110 dB SPL according IEC60914
Audio outputs
Loudspeaker nominal output
72 dB SPL at 0.5 m
Loudspeaker maximum output
87 dB SPL
Headphone nominal output
0 dBV
Headphone maximum output
3 dBV
Mechanical
Mounting
Tabletop
Dimensions (H x W x D) without microphone
72 x 259 x 139 mm (2.8 x 10.2 x 5.5 in)
Color (top and base)
Traffic black (RAL 9017)
Weight
Approx. 955 g (2.1 lb)
