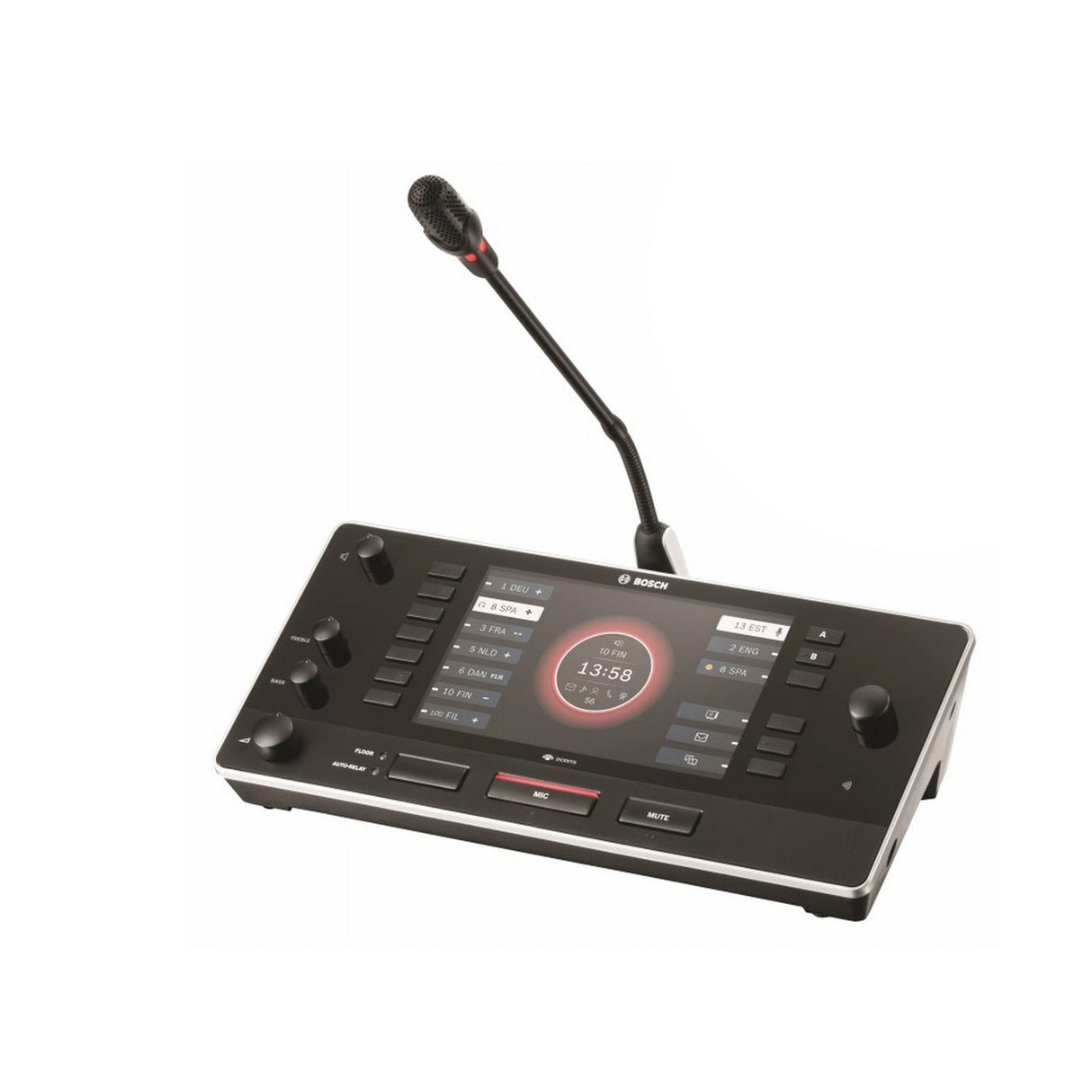

Bosch DCNM-IDESK DICENTIS Single User Interpreter Desk Speakerphone
Bosch DCNM-IDESK DICENTIS Single User Interpreter Desk Speakerphone
Bosch DCNM-IDESK DICENTIS Single User Interpreter Desk Speakerphone
The DCNM-IDESK is a single-user interpreter desk with a simplified, intuitive and ergonomic design. Clear positioning of the controls allows intuitive operation without mistakes. The DICENTIS Interpreter desk provides only relevant information, a single glance is sufficient for the entire interpreting process. It fully complies with ISO 20109.
Key Features
- Up to ten desks per booth
- Hot plug and play
- Automatic external headset microphone selection
- Hearing protection for predefined headphones and headsets
- Tactile feedback for all controls
- Audible feedback and pimples for visually impaired users
Technical Specifications
Electrical
Power supply
48 VDC
IEEE802.3at class 4, PoE+
Power consumption
15 W
Audio inputs
Nominal microphone input
85 dB SPL
Maximum microphone input
115 dB SPL
Nominal headset microphone input
-38 dBV
Maximum headset microphone input
-8 dBV
Audio outputs
Loudspeaker nominal output
72 dB SPL
Headphone nominal output
-3 dBV
Headphone maximum output
0 dBV
Headphone load impedance (for each earpiece)
> 32 ohm < 1 k ohm
Headphone output power (for both earpieces)
65 mW
Screen size
7 inch
Screen type
TFT
Screen resolution
800 x 480p
Mounting
Tabletop
Dimensions (H x W x D)
104 x 326 x 168 mm (4.09 x 12.83 x 6.61 in)
Slope
30 degrees
Weight
1,500 gr (3.31 lb)
Color
Traffic black (RAL 9017)
Silver (RAL 9022)
