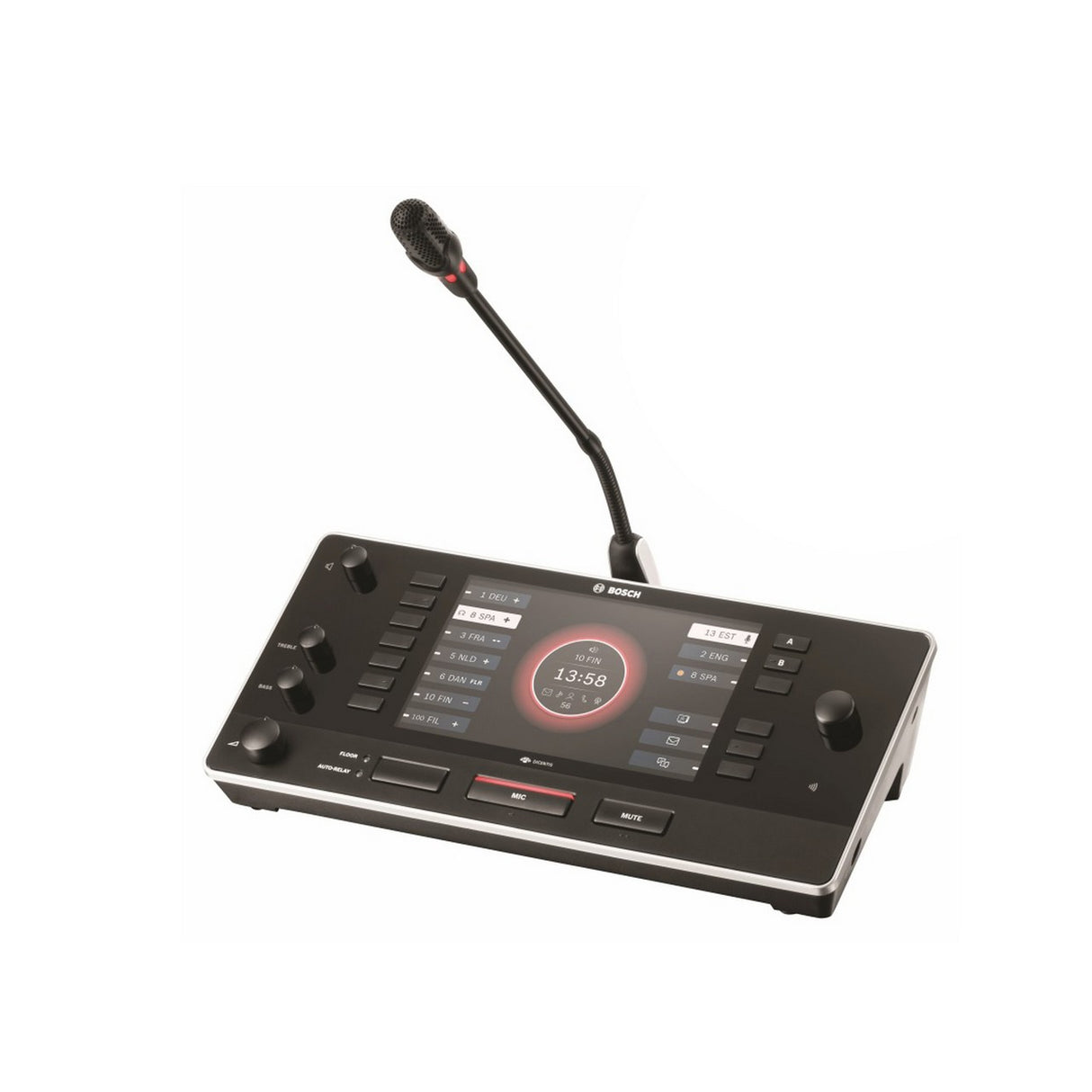

Bosch DCNM-IDESKVID DICENTIS Single User Interpreter Desk Speakerphone with Video Output

The DCNM-IDESKVID is an interpreter desk with a simplified, intuitive and ergonomic design and an HDMI video output to connect a 3rd party video screen. Clear positioning of the controls allows operation without mistakes. The interpreter desk provides only relevant information, a single glance is sufficient for the entire interpreting process. It fully complies with ISO 20109.

Key Features

• Up to ten desks per booth
• Hot plug and play
• Automatic external headset microphone selection
• Hearing protection for predefined headphones and headsets
• Tactile feedback for all controls
• Audible feedback and pimples for visually impaired users
• High contrast 7 inch display
• Loudspeaker rotary volume control
• Floor / auto-relay selection button and LED indicators
• Microphone button with red on-air and green “booth not in use” LED indicators
• Mute button
• Red on-air LED at the rear

Technical Specifications

Electrical
Power supply
48 VDC IEEE802.3at class 4, PoE+
Power consumption
18 W
Audio inputs
Nominal microphone input
85 dB SPL
Maximum microphone input
115 dB SPL
Nominal headset microphone input
-38 dBV
Maximum headset microphone input
-8 dBV
Audio outputs
Loudspeaker nominal output
72 dB SPL
Headphone nominal output
-3 dBV
Headphone maximum output
0 dBV
Headphone load impedance (for each earpiece)
> 32 ohm < 1 k ohm
Headphone output power (for both earpieces)
65 mW
Video outputs
HDMI resolutions
1920 x 1080p
1280 x 720p
HDMI version
1.4
Screen size
7 inch
Screen type
TFT
Screen resolution
800 x 480p
Mounting
Tabletop
Dimensions (H x W x D)
104 x 326 x 168 mm (4.09 x 12.83 x 6.61 in)
Slope
30 degrees
Weight
1,540 gr (3.40 lb)
