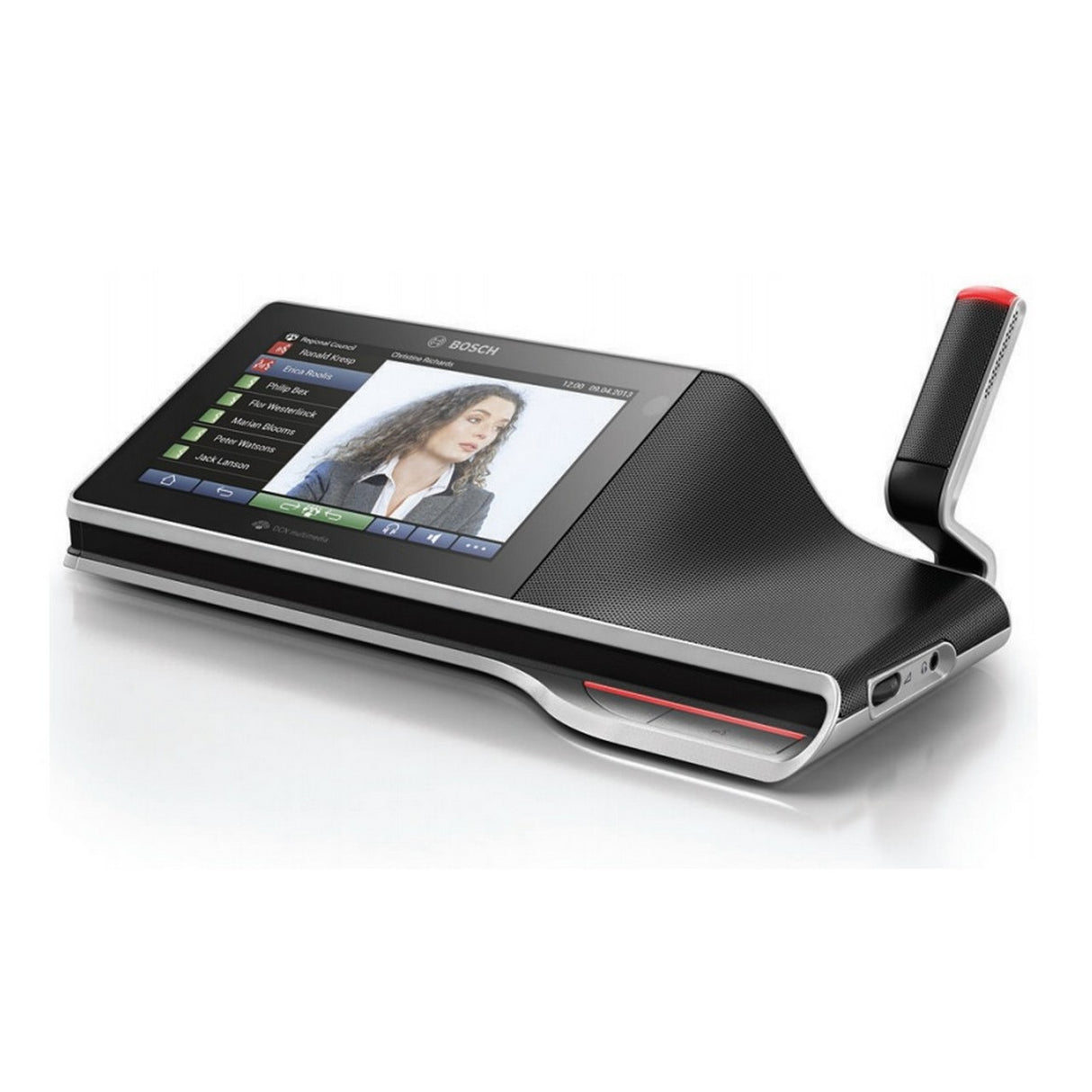

Bosch DCNM-MMD2 DICENTIS Multimedia NFC Two Way Speaker Device

The DICENTIS Multimedia device is essential for local and regional councils and is ideal when multimedia content is required. It is easily plugged into, or removed from, the DICENTIS Conference System using the system network cabling. The connectors are at the bottom of the device, ensuring a neat and clean system installation. Devices can be free?standing or fixed to the table with mounting screws.

Key Features

• Multimedia conference device with capacitive touch screen and built?in Near Field Communication (NFC) contactless tag reader
• Microphone and cable to be ordered separately
• Built?in 3M pixel camera for future use
• Built?in two?way loudspeaker
• Microphone on/off button or request?to?speak button
• Microphone mute or chairperson priority button
• Two?way speaker system

Technical Specifications

Screen size
7 inch, 1024 x 600 pixels
Screen type
Capacitive multi touch
Operating system
Android 4.03
Supported contactless NFC tag
According to: ISO/IEC14443 Type A (from 106 kbps to 848 kbps. MIFARE 106kbps).
Electrical
Supply voltage
48 Vdc IEEE 802.3 at Type 2
Power consumption
12 W
Frequency response
100 Hz - 20 kHz (-3 dB at nominal level)
THD at nominal level
< 0.05 %
Dynamic range
96 dB (14110 dBSPL)
Signal-to-noise ratio
66 dB with respect to nominal level headroom 30 dB
Audio inputs
Nominal microphone input
80 dB according IEC60914
Maximum microphone input
110 dB according IEC60914
External microphone nominal input
-38 dBV
External microphone maximum input
-25 dBV
Audio outputs
Loudspeaker nominal output
72 dB SPL @ 0.5 m
Loudspeaker maximum output
90 dB SPL
Headphone nominal output
-9 dBV
Headphone maximum output
-6 dBV
Mechanical
Mounting
Tabletop
Dimensions (H x W x D)
75 x 312 x 175 mm (2.95 X 12.28 x 6.89 in)
Weight
1.85 kg (4.078 lb)
Color
Traffic black RAL 9017
Pearl light grey RAL 9022
