Condition: New

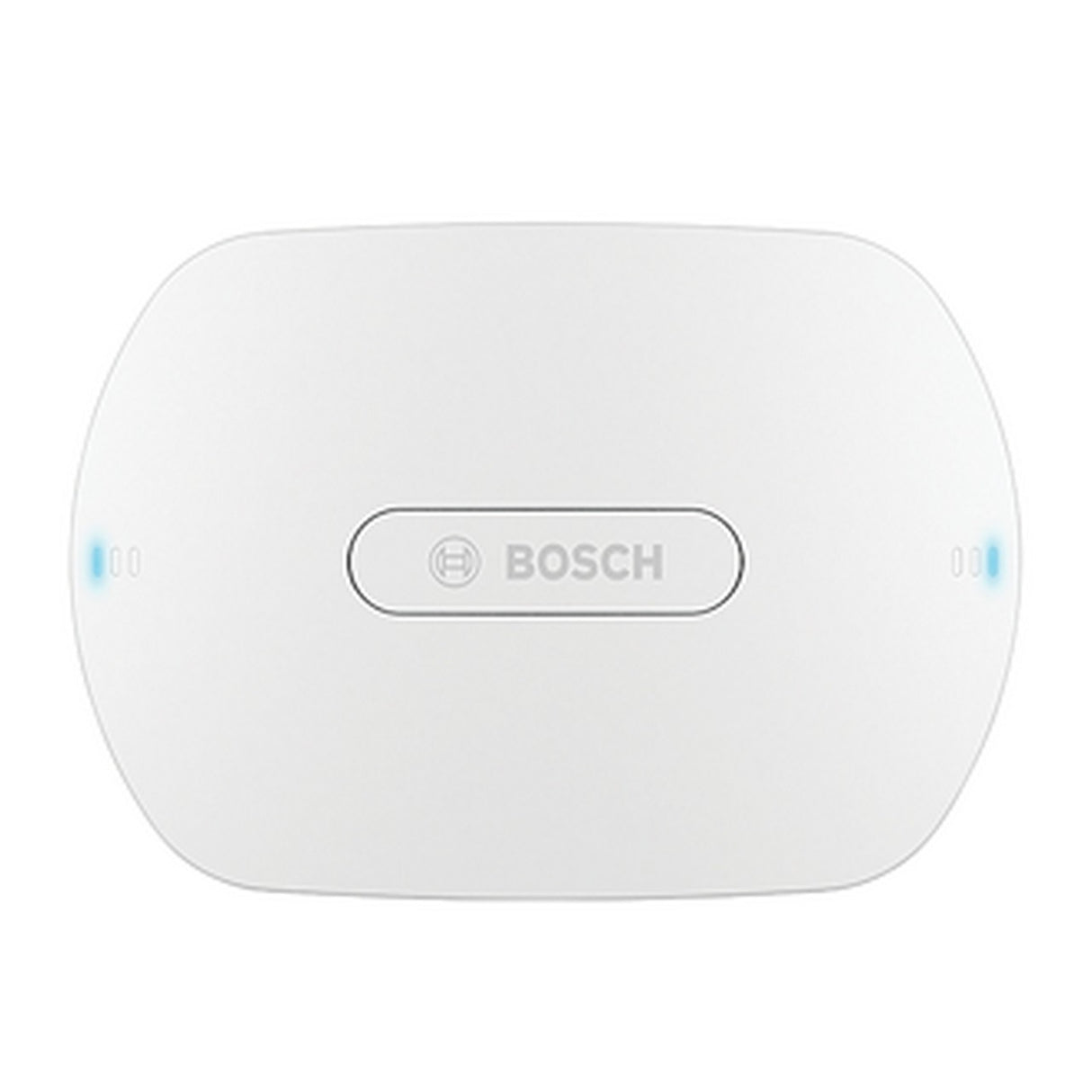

Bosch DCNM-WAP Wireless Access Point
Wireless access point
Key Features
- Stand alone usage, no central control unit needed
- Based on standard WiFi according IEEE 802.11n
- WPA2 encryption for secure communication
- Seamless frequency switching in the 2.4 GHz and 5 GHz band
- Powering via power supply adapter, Power over Ethernet (POE) or DICENTIS multimedia System Network Cable
Technical Specifications
Supply voltage (PSU)
100-240 Vac 50-60 Hz in48 Vdc out
PoE
802.3af, 802.3at - type 1 mode A (endspan), mode B (midspan)
DCNM system supply
48 Vdc
Power consumption
10 W
Frequency response
80 Hz - 20 kHz
THD at nominal level
<0.1 %
Dynamic range
>98 dBA
Signal-to-noise ratio
>96 dBA
Ethernet
1000Base-T IEEE 802.3ab
Jack nominal
-18 dBV
Jack maximum
+18 dBV
Jack nominal
-18 dBV
Jack maximum
+20 dBV
WIFI standard
IEEE 802.11n
Frequency Range
2.4 GHz and 5 GHz (ISM license free)
Mounting
Ceiling, Wall or Tripod floor stand (using included bracket)
Dimensions (H x W x D) with bracket
285 x 202 x 65 mm(11.2 x 8.0 x 2.6 in)
Weight: with bracket without bracket
958 g (2.11 lb)725 g (1.60 lb)
Color
Light grey (RAL 000 7500)
Operating temperature
5 deg C to +45 deg C(41 deg F to +113 deg F)
Storage and transport temperature
-20 deg C to +70 deg C(-4 deg F to +158 deg F)
Relative humidity
< 95 %, > 5 %
