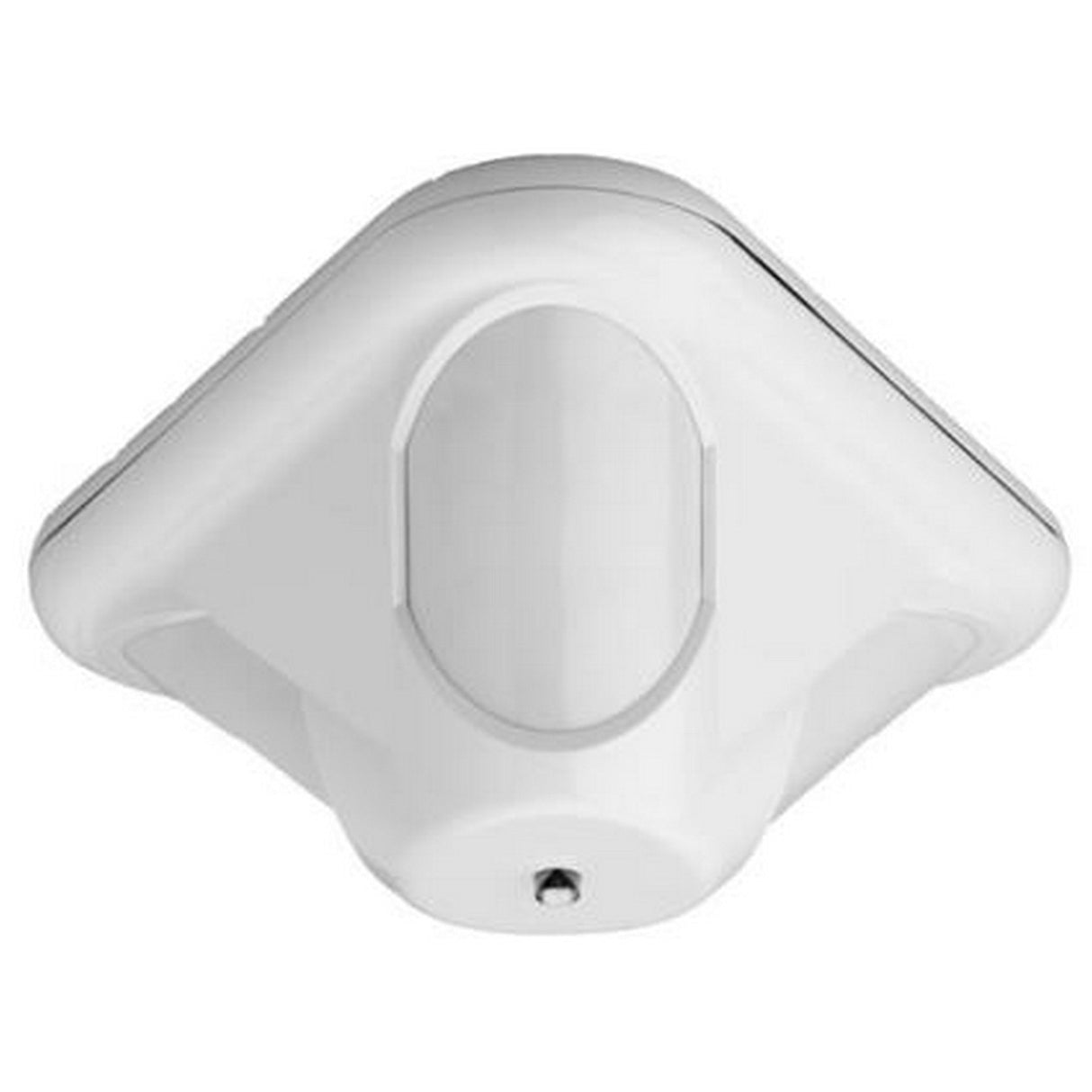

Bosch DS9370 Panoramic TriTech 360-Degrees Motion Sensor Ceiling Mount, White

The DS9370 Series TriTech PIR/Microwave Doppler Radar Motion Detector is engineered to provide top-tier performance with a robust design that ensures superior detection and minimal false alarms. Utilizing a combination of passive infrared (PIR) and microwave Doppler radar technologies, the DS9370 Series delivers highly accurate detection. Each model is panoramic, providing comprehensive coverage for a variety of applications. The sensor’s advanced processing algorithms and patented technologies make it an ideal choice for demanding environments where both high performance and reliability are critical.

These detectors are versatile and can be mounted at heights up to 6.1 meters (20 feet), ensuring that they can be used in various locations and still maintain optimal detection capabilities. With three independent PIR sections, the DS9370 models allow for full adjustability to customize coverage and provide complete protection across different mounting heights. The result is a motion detection system that offers maximum flexibility, without compromising on reliability or accuracy.

The advanced signal processing technology used in the DS9370 ensures that an alarm condition is only triggered when both the infrared and microwave fields are activated simultaneously, reducing the chances of false alarms while maintaining excellent detection rates. The combination of the microwave and PIR sensors, along with the adaptive processing techniques, makes the DS9370 an ideal choice for areas that are prone to environmental disturbances or interference. The system intelligently adjusts itself to background noise, further enhancing its performance.

Additionally, the DS9370 series comes with a variety of test features, including a high-efficiency LED and light-pipe system that allows for easy walk testing from any angle and at any mounting height. This makes installation and maintenance straightforward and efficient, ensuring that your motion detection system is always functioning optimally. With the added benefits of alarm memory and remote LED walk-test control, the DS9370 ensures seamless operation and monitoring at all times.

Key Features

• Fully adjustable optics for coverage integrity and customization
• Hinged chassis and base plate for easy installation
• High-efficiency LED and light-pipe system for easy walk testing
• First Step processing (FSP) for virtually instant human target detection
• 10.525 GHz compatible, available in white

Technical Specifications

Alarm relay contact type: NC/NO
Current consumption: 19 - 39 mA
Detection angle: 360 °
Detection radius: 21 m
Installation height: 3 - 7.60 m
Operating temperature: -40 - 49 °C
Tamper relay contact type: NC
Transmission frequency: 10.5250 GHz
Wireless transmission frequency: 10.525 GHz
