Bosch LB2-UC15-L1 15 Watt Premium Sound Cabinet Loudspeaker White Single Unit

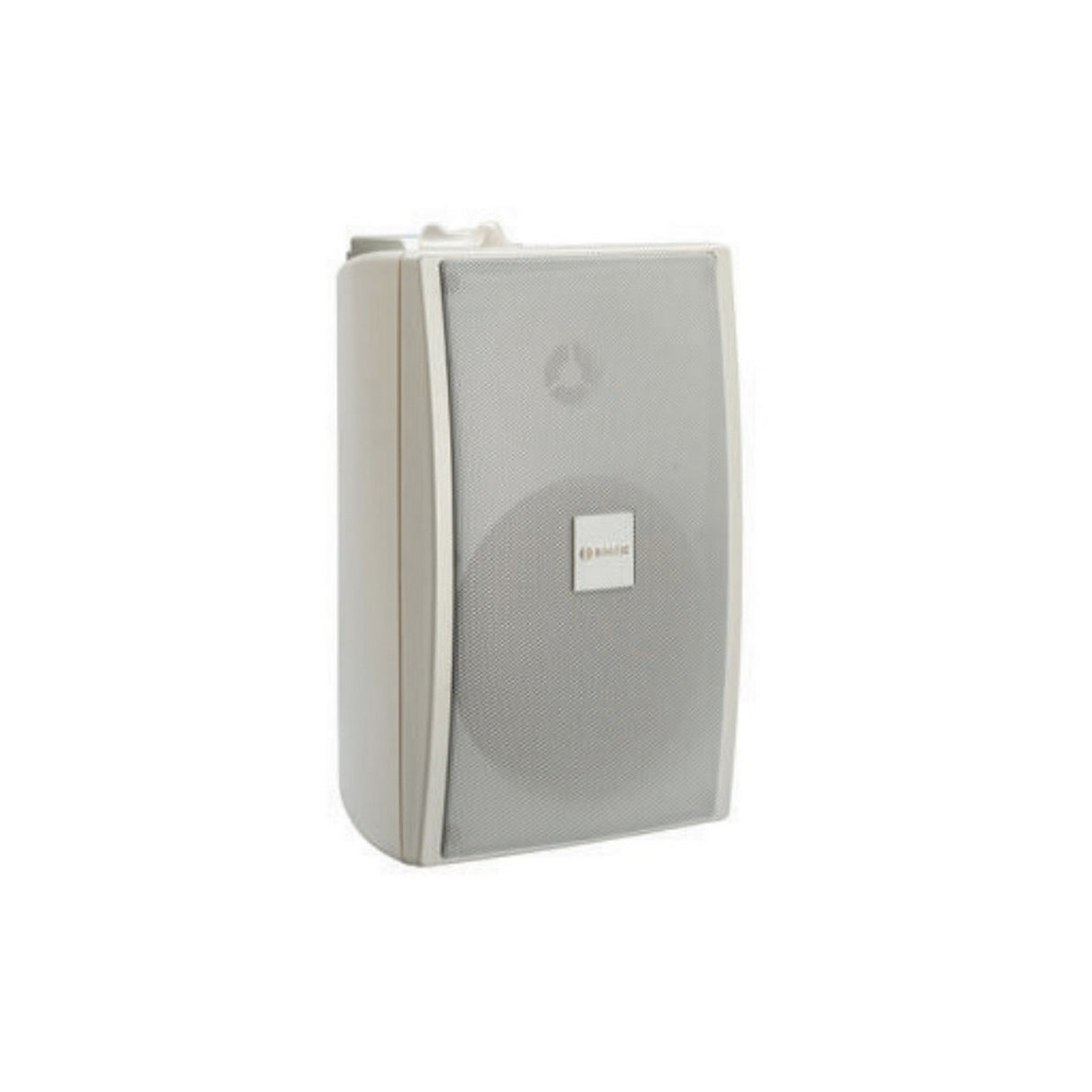

The LB2-UCxx-x1Premium-sound cabinet loudspeakers are intended for clear reproduction of speech, foreground and background music to be used in general indoor and outdoor applications. The Premium-sound cabinet loudspeaker range consists of a 15 W and 30 W model, available in a light or dark color. The loudspeakers have selectable 8 ohm, 70 V and 100 V inputs. The ABS cabinets are fitted with aluminum front-grilles and standard supplied with aluminum bracket. Typical applications are: theme bars, music restaurants, theme parks, retail outlets, audio visual, boardrooms and offices, exhibition areas, showrooms, fitness centre's and presentation environments.
Key Features
- High-fidelity music and speech reproduction
- Selectable 8 ohm, 70 V and 100 V inputs
- Compact yet robust ABS enclosure
- Supplied with adjustable mounting bracket
- Water and dust protected IP65
Technical Specifications
Electrical
Maximum power
22.5 W
Rated power (PHC)
15 W
Power tapping
15/7.5/3.75/1.9 W
Sound pressure level at rated power / 1 W (1 kHz, 1 m)
99/87 dB (SPL)
Effective frequency range (-10 dB)
95 Hz to 20 kHz
Rated input voltage
11/70/100 V
Rated impedance
8/326/667 ohm
Transducers
101.6 mm (4") woofer, 13 mm (0.51 ") dome tweeter
Connection
2 m (78.8 in.) two-wire cable
Mechanical
Dimensions (HxWxD)
205x136x117 mm
8.07x5.35x4.60 in
Weight
Approx. 1.9 kg
(4.18 lb)
Color
White
Environmental
Operating temperature
-25 degrees C to +55 degrees C (-13 degrees F to +131 degrees F)
Storage and transport temperature
-40 degrees C to +70 degrees C (-40 degrees F to +158 degrees F)
Relative humidity
<95%
