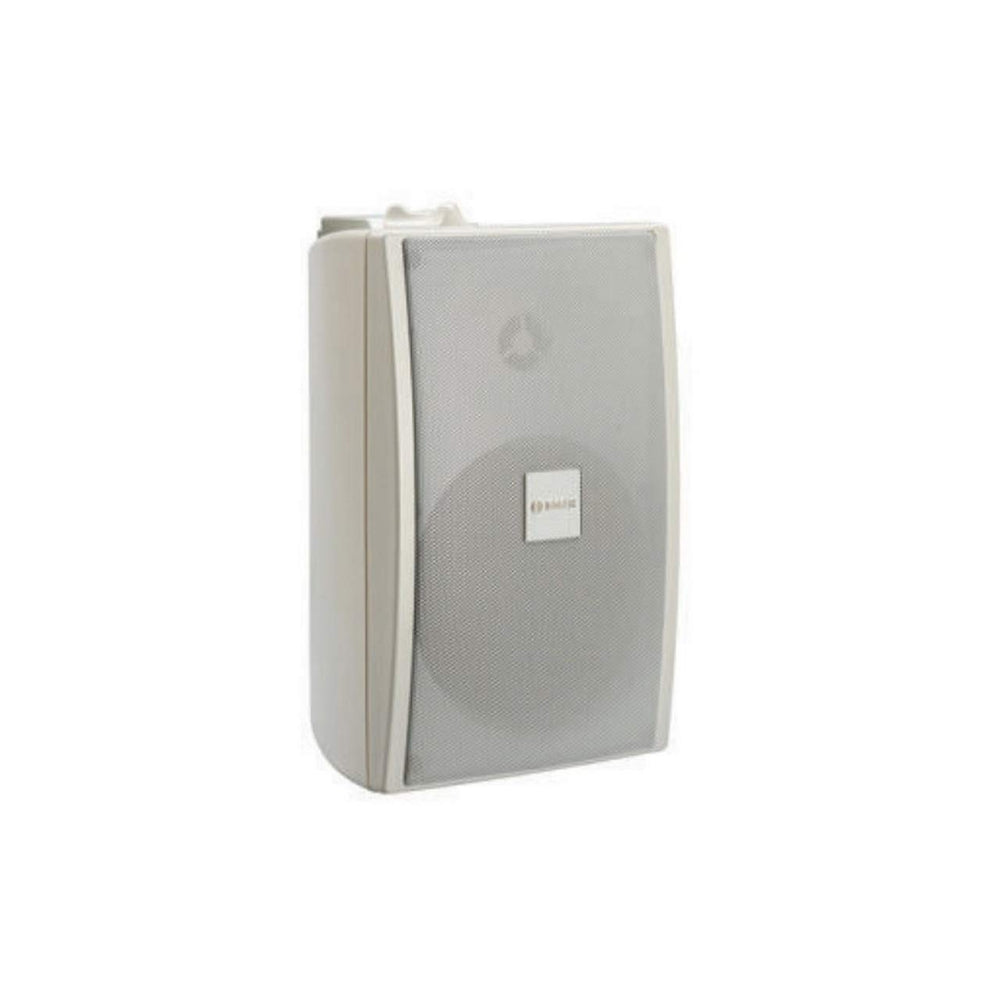

Bosch LB2-UC30-L1 30 Watt Premium Sound Cabinet Loudspeaker White Single Unit

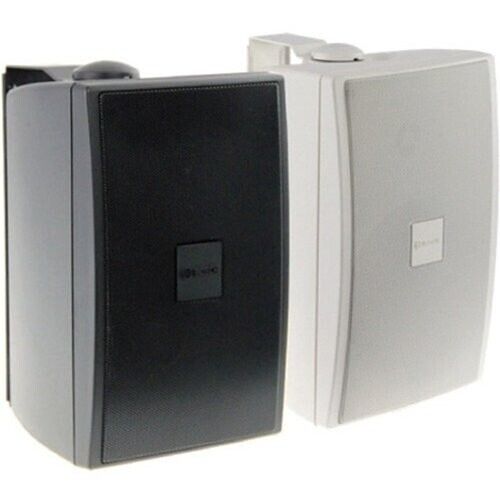

The LB2-UCxx-x1Premium-sound cabinet loudspeakers are intended for clear reproduction of speech, foreground and background music to be used in general indoor and outdoor applications. The Premium-sound cabinet loudspeaker range consists of a 15 W and 30 W model, available in a light or dark color. The loudspeakers have selectable 8 ohm, 70 V and 100 V inputs. The ABS cabinets are fitted with aluminum front-grilles and standard supplied with aluminum bracket. Typical applications are: theme bars, music restaurants, theme parks, retail outlets, audio visual, boardrooms and offices, exhibition areas, showrooms, fitness centre's and presentation environments.

Key Features

• High-fidelity music and speech reproduction
• Selectable 8 ohm, 70 V and 100 V inputs
• Compact yet robust ABS enclosure
• Supplied with adjustable mounting bracket
• Water and dust protected IP65

Technical Specifications

Electrical
Maximum power
45 W
Rated power (PHC)
30 W
Power tapping
30/15/7.5/3.75 W
Sound pressure level at rated power / 1 W (1 kHz, 1 m)
105/90 dB (SPL)
Effective frequency range (-10 dB)
100 Hz to 19 kHz
Rated input voltage
15.5/70/100 V
Rated impedance
8/163/333 ohm
Transducers
127 mm (5") woofer, 13 mm (0.51 ") dome tweeter
Connection
2 m (78.8 in.) two-wire cable
Mechanical
250x 60x140 mm
9.84x6.30x5.51 in
Weight
Approx. 2.4 kg (5.29 lb)
Color
White
Environmental
Operating temperature
-25 degrees C to +55 degrees C (-13 degrees F to +131 degrees F)
Storage and transport- temperature
-40 degrees C to +70 degrees C (-40 degrees F to +158 degrees F)
Relative humidity
<95%
