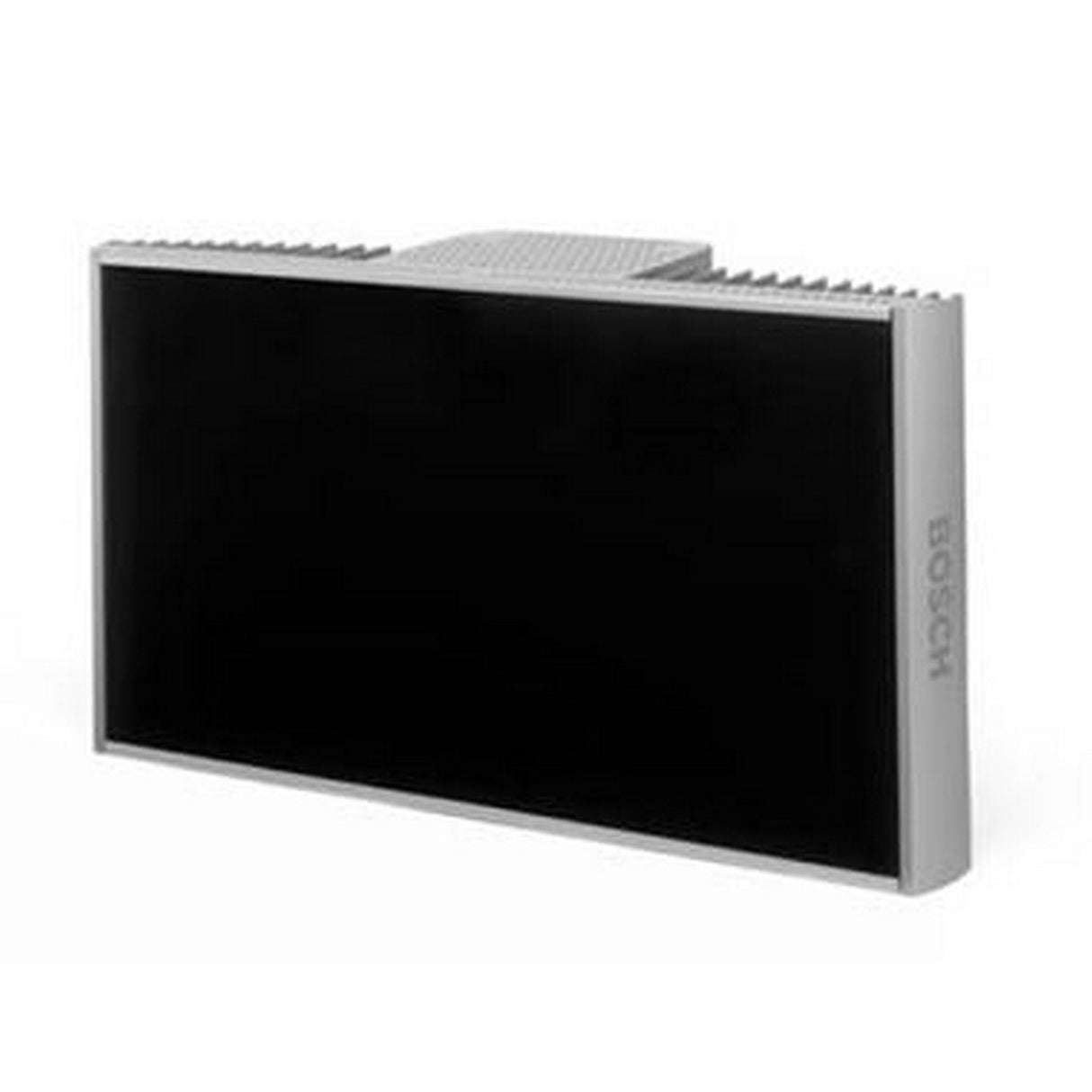

Bosch LBB4511/00-US Integrus Radiator for Medium Size Area

This radiator is used to distribute infrared signals throughout the conference venue, enabling delegates
to listen to the proceedings by means of personal pocket receivers.

Key Features

• LBB4511/00-US Radiator for medium size area
• Universal mains power facility allows use worldwide
• No fan - cooled by convection - resulting in quieter operation and less moving parts to wear out
• LED indicators for radiator status checking
• Communication between radiator and transmitter for easy checking by the operator
• Automatically switches on when transmitter is switched on and vice versa
• Automatic cable equalization ensures maximum transmission efficiency with different quality of cables
• Automatic cable termination simplifies installation
• Temperature protection circuitry automatically switches radiator from full- to half- power if the temperature becomes too high
• Adjustable radiator angle ensures maximum coverage
• IREDs protected by a cover plate, making the units easy to maintain and clean
• Attractive and stylish design

Technical Specifications

Mains Voltage
100-240 Vac, 50-60 Hz
Power Consumption
Operating: 100W
Standby: 8W
Number of IREDs
260
Total Optical Peak Intensity
12 W/sr
Angle of Half Intensity
+/- 22 deg
HF Input
Nominal 1 Vpp, minimum 10 mVpp
Mounting
Suspension bracket for direct ceiling mounting
Mounting plates for floor stands with M10 and 1/2 in Whitworth thread
Dimensions
7.9 x 19.7 x 6.9 in
Radiator Angle
Floor-stand mounting: 0, 15 and 30 deg
Wall/Ceiling Mounting: 0, 15, 30, 45, 60, 75 and 90 deg
Weight
15 lb without bracket
17 lb with bracket
