Bosch LBB4512/00-US Integrus Radiator for Large Size Area
Authorized Dealer
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

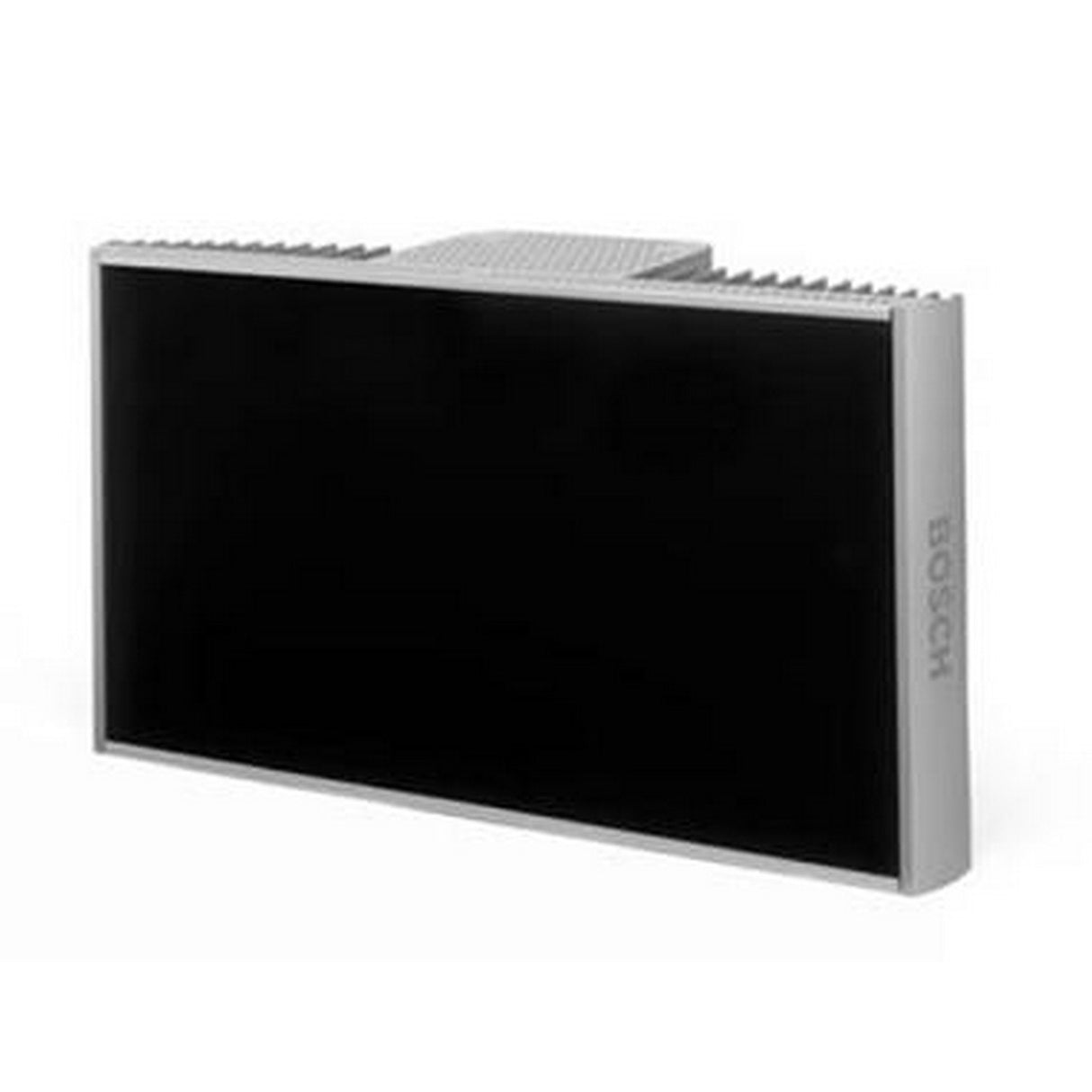

Bosch LBB4512/00-US Integrus Radiator for Large Size Area
This radiator is used to distribute infrared signals throughout the conference venue, enabling delegates
to listen to the proceedings by means of personal pocket receivers.
Key Features
- LBB4512/00-US Radiator for large size area
- Universal mains power facility allows use worldwide
- No fan - cooled by convection - resulting in quieter operation and less moving parts to wear out
- LED indicators for radiator status checking
- Communication between radiator and transmitter for easy checking by the operator
- Automatically switches on when transmitter is switched on and vice versa
- Automatic cable equalization ensures maximum transmission efficiency with different quality of cables
- Automatic cable termination simplifies installation
- Temperature protection circuitry automatically switches radiator from full- to half- power if the temperature becomes too high
- Adjustable radiator angle ensures maximum coverage
- IREDs protected by a cover plate, making the units easy to maintain and clean
- Attractive and stylish design
Technical Specifications
Mains Voltage
100-240 Vac, 50-60 Hz
Power Consumption
Operating: 180W
Standby: 8W
Number of IREDs
480
Total Optical Peak Intensity
24 W/sr
Angle of Half Intensity
+/- 22 deg
HF Input
Nominal 1 Vpp, minimum 10 mVpp
Mounting
Suspension bracket for direct ceiling mounting
Mounting plates for floor stands with M10 and 1/2 in Whitworth thread
Dimensions
11.0 x 19.7 x 6.9 in
Radiator Angle
Floor-stand mounting: 0, 15 and 30 deg
Wall/Ceiling Mounting: 0, 15, 30, 45, 60, 75 and 90 deg
Weight
21 lb without bracket
23 lb with bracket
Installation / Use Cases
- Use to distribute infrared signals throughout a conference venue.
- Suitable for conference systems where delegates listen to proceedings through personal pocket receivers.
- Use for large size area coverage with the LBB4512/00-US radiator.
- Suitable for installations requiring direct ceiling mounting with the suspension bracket.
- Suitable for floor-stand mounting using mounting plates with M10 and 1/2 inch Whitworth thread.
- Use in installations where adjustable radiator angles are needed for maximum coverage.
Package Contents
- Bosch LBB4512/00-US Integrus Radiator for Large Size Area
Frequently Asked Questions
What does the Bosch LBB4512/00-US do in an Integrus system?
The LBB4512/00-US distributes infrared signals throughout a conference venue so attendees can receive audio through personal pocket receivers.
What type of venue is this radiator intended for?
This model is intended for large-size area coverage in conference venues using Bosch Integrus infrared distribution.
Why is convection cooling useful in this radiator?
The radiator operates without a fan, so it runs more quietly and has fewer moving parts that can wear out over time.
How does the radiator simplify operator monitoring?
LED status indicators help operators check radiator status, and communication between the radiator and transmitter supports easier system supervision.
Does the LBB4512/00-US need to be powered on separately from the transmitter?
The radiator can automatically switch on when the transmitter switches on, and switch off when the transmitter switches off.
Can the Bosch LBB4512/00-US be used in different regions?
Yes. Its universal mains power facility supports worldwide use.
