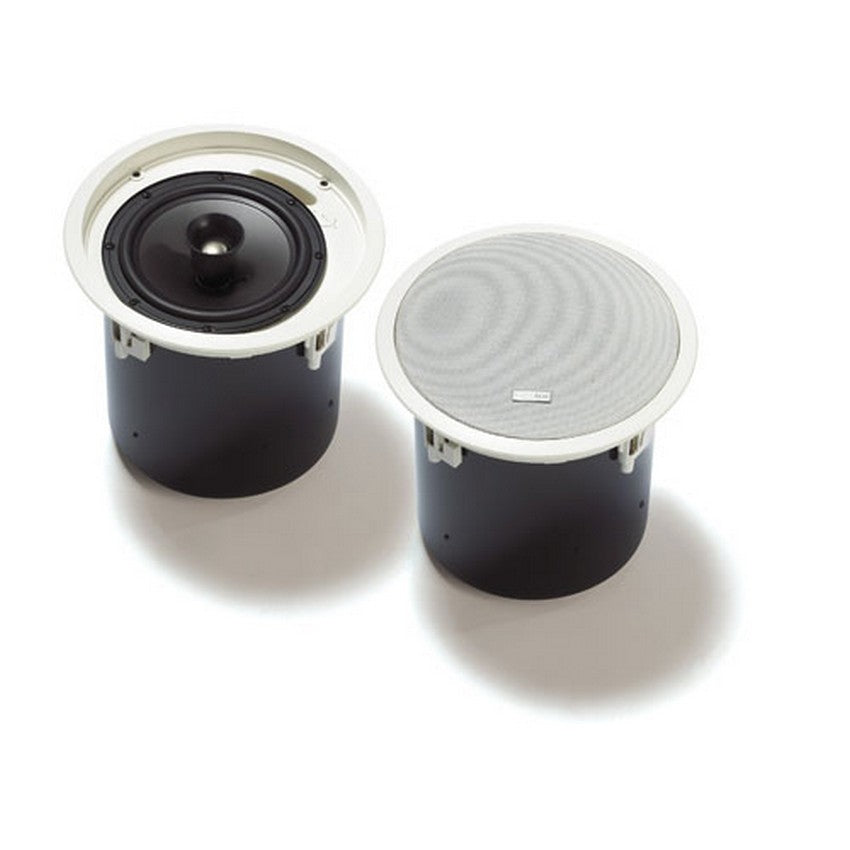

Bosch LC2-PC30G6-8 Premium 30W 8-Inch Ceiling Loudspeaker, Pair
Bosch LC2-PC30G6-8 Premium 30W 8-Inch Ceiling Loudspeaker, Pair
Bosch LC2-PC30G6-8 Premium 30W 8-Inch Ceiling Loudspeaker, Pair
Premium ceiling loudspeaker 30 watt, 8" coax - includes grille, back can enclosure, tile bridge, and mounting ring. For 70v/100v or 8-ohm operation. Taps at 30, 15, 7.5, 3.75, and 1.88 watts. EVAC compliant (packaged and priced as a pair)
Key Features
- 8 inch coaxial two way
- Waveguide coupled Ti tweeter
- Full bandwidth overload protection
- Front baffle wattage tap adjustment
- BS 5839 8 and EN 60849 compliant
Technical Specifications
Maximum power
75 W
Rated power
30 / 15 / 7.5 / 3.75 W (1.88 W only, 70 V).
Sound pressure levelat 30 W / 1 W (1 kHz, 1 m)
106 / 91 dB (SPL)
Effective frequency range (-10 dB)
50 Hz to 20 kHz
Coverage (conical)
110
Rated voltage
70 V or 100 V
Rated impedance
167 or 333 or 8 ohm
LF transducer
200 mm (8 in.) Polypropylene cone
HF transducer
25 mm (1 in.) Ti Mylar laminate
Connector
3pole ceramic screw terminal block
Diameter
300 mm (11.8 in)
Maximum depth
255 mm (10 in)
Ceiling thickness
4 to 25 mm (0.16 to 1.00 in.)
Mounting cut?out
272 + 5 mm (10.75 + 0.20 in.)
Baffle
ABS (UL94V0)
Back?can
Zinc?plated steel
Grille
Powder coated steel
Weight
5 kg (11 lb)
Color
White (RAL 9010)
Operating temperature
-25 C to +55 C (-13 F to +131 F)
Storage and transport temperature
-40 C to +70 C (-40 F to +158 F)
Relative humidity
<95%
