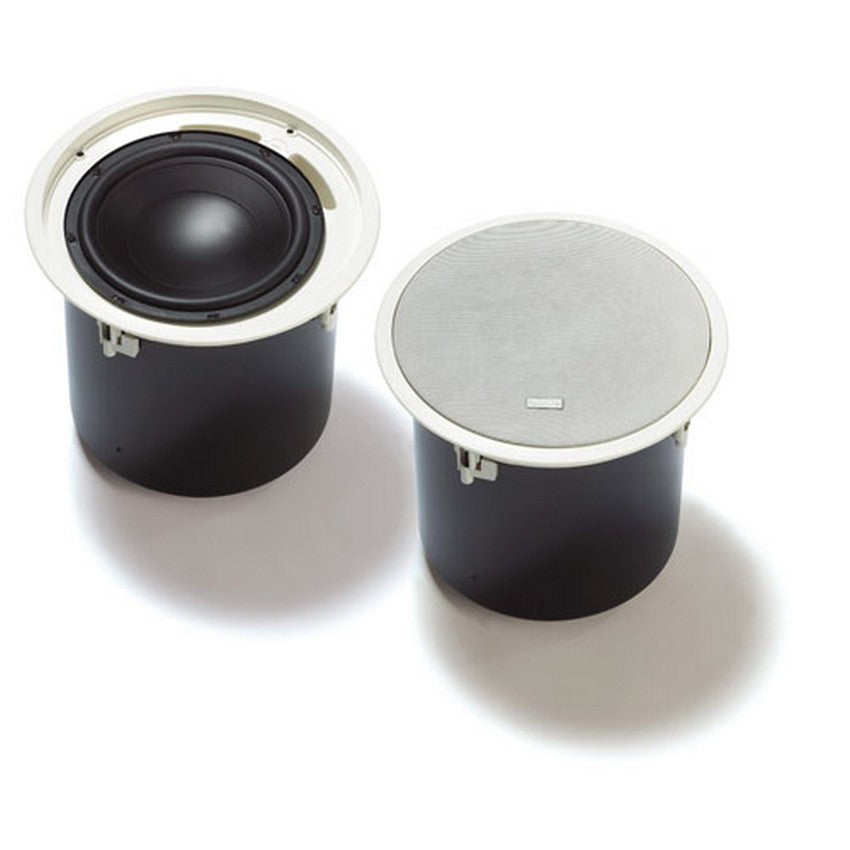

Bosch LC2-PC60G6-10 Premium 60W 10-Inch Ceiling Subwoofer, Pair
Premium ceiling loudspeaker 60 watt, 10" subwoofer - includes grille, back can enclosure, tile bridge, and mounting ring. For 70v/100v or 8-ohm operation. Taps at 30, 15, 7.5, 3.75, and 1.88 watts. EVAC compliant (packaged and priced as a pair)
Key Features
- 10 inch high-excursion loudspeaker for extended LF
- Low pass network with overload protection
- Front baffle wattage tap adjustment
- Includes tile bridge and mounting ring for easy installation
- BS 5839 8 and EN 60849 compliant
Technical Specifications
Maximum power
100 W
Rated power
60 / 30 / 15 / (7.5 W only, 70 V).
Sound pressure levelat 60 W / 1 W (70 Hz, 1 m)
112 / 94 dB (SPL)
Effective frequency range (-10 dB)
45 Hz to 150 Hz
Coverage (conical)
180
Rated voltage
70 V or 100 V
Rated impedance
83 or 167 or 8 ohm
LF transducer
254 mm (10 in.) Polypropylene cone
Connector
3pole ceramic screw terminal block
Diameter
350 mm (13.8 in)
Maximum depth
303 mm (11.9 in)
Ceiling thickness
4 to 25 mm (0.16 to 1.00 in.)
Mounting cut?out
322 + 5 mm (10.75 + 0.20 in.)
Baffle
ABS (UL94V0)
Back?can
Zinc?plated steel
Grille
Powder coated steel
Weight
7 kg (15.5 lb)
Color
White (RAL 9010)
Operating temperature
-25 C to +55 C (-13 F to +131 F)
Storage and transport temperature
-40 C to +70 C (-40 F to +158 F)
Relative humidity
<95%
