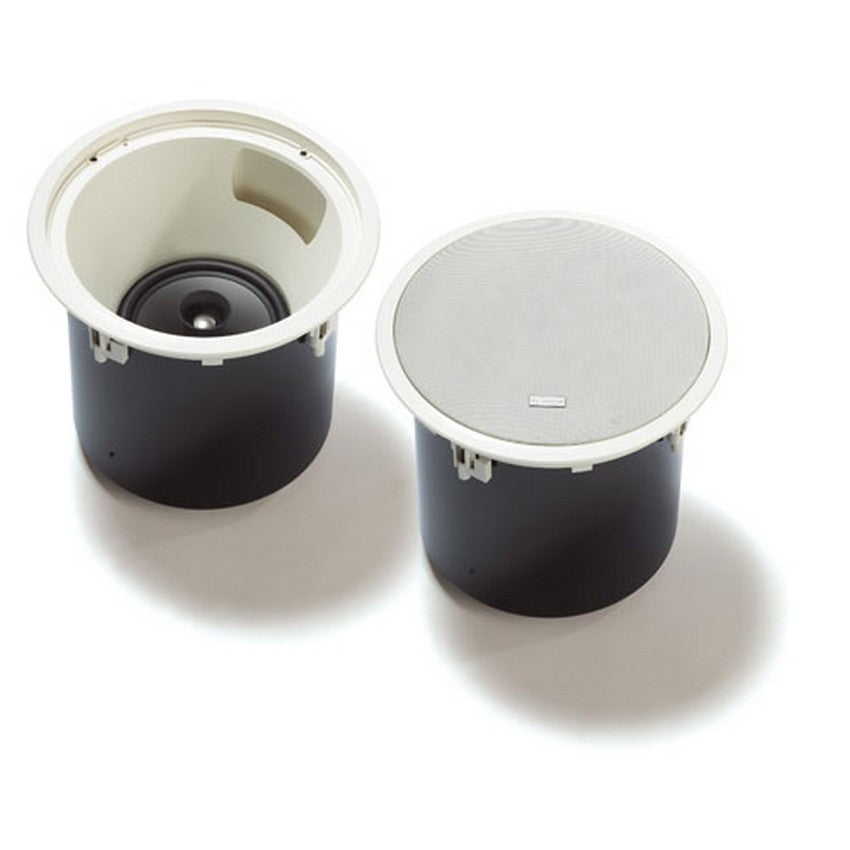

Bosch LC2-PC60G6-8H Premium Ceiling 60W 8-Inch Ceiling Loudspeaker with Dual Integrated Waveguides, Pair
Bosch LC2-PC60G6-8H Premium Ceiling 60W 8-Inch Ceiling Loudspeaker ...
Bosch LC2-PC60G6-8H Premium Ceiling 60W 8-Inch Ceiling Loudspeaker with Dual Integrated Waveguides, Pair
Premium ceiling loudspeaker 60 watt, 8" Waveguide Coupled (patent pending) coax speaker ideal for high ceiling environments - includes grille, back can enclosure, tile bridge, and mounting ring. For 70v/100v or 8-ohm operation. Taps at 30, 15, 7.5, 3.75, and 1.88 watts. EVAC compliant (packaged and priced as a pair)
Key Features
- 8 inch coaxial two way with dual integrated waveguides
- Waveguide coupled Ti tweeter
- Full bandwidth overload protection
- Front baffle wattage tap adjustment
- BS 5839 8 and EN 60849 compliant
Technical Specifications
Maximum power
75 W
Rated power
60 / 30 / 15 / (7.5 W only, 70 V).
Sound pressure levelat 60 W / 1 W (1 kHz, 1 m)
111 / 93 dB (SPL)
Effective frequency range (-10 dB)
50 Hz to 20 kHz
Coverage (conical)
75 (above 1kHz)
Rated voltage
70 V or 100 V
Rated impedance
83 or 167 or 8 ohm
LF transducer
200 mm (8 in.) Polypropylene cone
HF transducer
25 mm (1 in.) Ti Mylar laminate
Connector
3pole ceramic screw terminal block
Diameter
350 mm (13.8 in)
Maximum depth
303 mm (11.9 in)
Ceiling thickness
4 to 25 mm (0.16 to 1.00 in.)
Mounting cut?out
322 + 5 mm (10.75 + 0.20 in.)
Baffle
ABS (UL94V0)
Back?can
Zinc?plated steel
Grille
Powder coated steel
Weight
6 kg (13.2 lb)
Color
White (RAL 9010)
Operating temperature
-25 C to +55 C (-13 F to +131 F)
Storage and transport temperature
-40 C to +70 C (-40 F to +158 F)
Relative humidity
<95%
