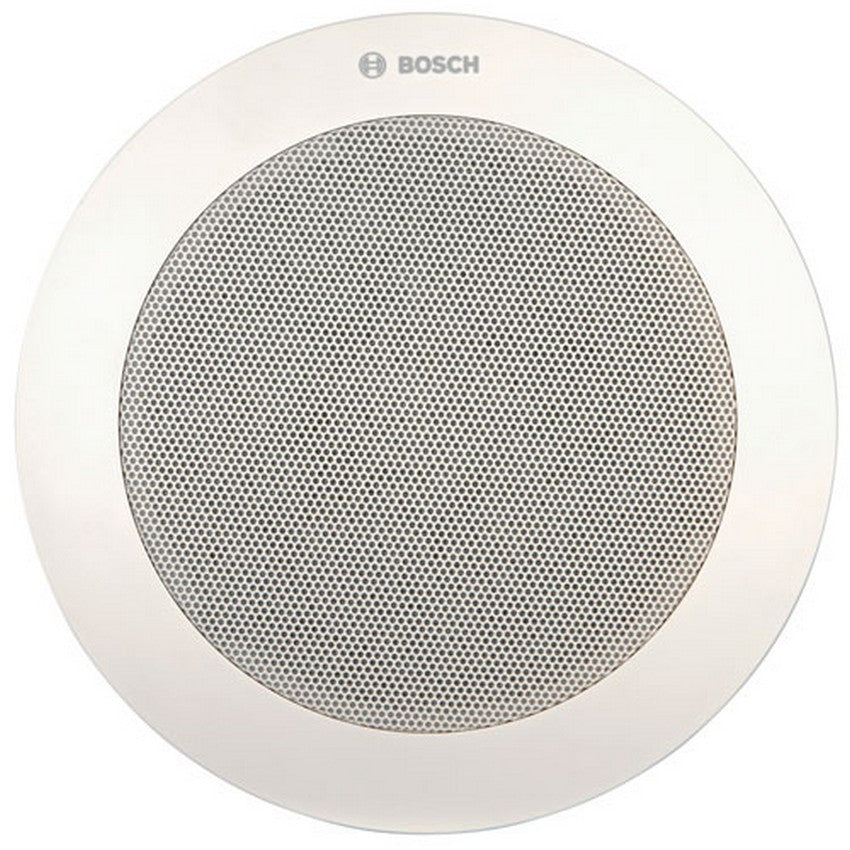

Bosch LC4-UC24E Premium 24W Ceiling Wide Angle Loudspeaker, Single Unit
Premium ceiling wide angle loudspeaker, 24 watt, EVAC compliant
Key Features
- Innovative CosCone full range driver
- Excellent speech and music reproduction
- Unrivalled opening angle for all octave frequencies
- Paintable grille
- EN 54 24, UL2043, UL1480 certified
Technical Specifications
Description
Ceiling loudspeaker
Rated power
24 W (24/12/6/3 W)
Sound pressure levelat 6 W power / 1 W (1 kHz, 1 m)
101 dB / 87 dB (SPL)
Sound pressure level at rated power / 1 W (1 kHz, 4 m) (reference axis 0 degrees, free field)
88 dB / 75 dB (SPL)
Opening angleat 1 kHz / 4kHz (-6 dB)
180 / 180 **
Effective frequency range(-10 dB)
65 Hz to 20 kHz
Rated input voltage LC4?UC24E
13.9 V , 70 V , 100 V
Rated impedance LC4?UC24E
24 W , 8 Ohm , 208 Ohm , 416 Ohm
12 W
N/A , 416 Ohm , 833 Ohm
6 W
N/A , 833 Ohm , 1667 Ohm
3 W
N/A , 1667 Ohm , 3333 Ohm
Electrical connection
4-way screw terminal block
Acceptable wire gauge
0.5 - 3 mm2
