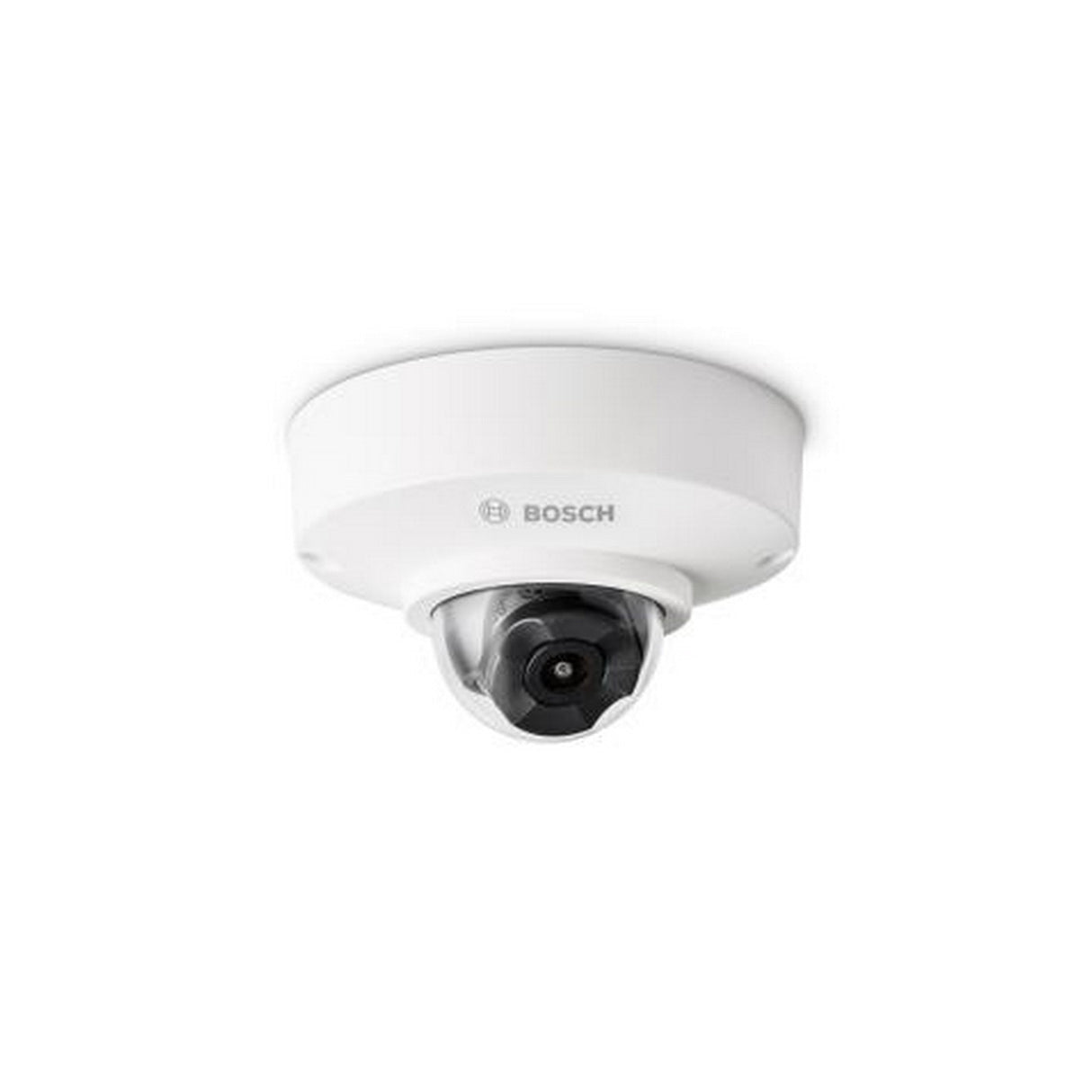

Bosch NUV 3702 Series CCTV Micro Dome Camera - High-Quality Surveillance

The Bosch NUV 3702 CCTV camera represents the cutting-edge in surveillance technology, designed to deliver exceptional performance and reliability. Equipped with high-definition imaging capabilities, this camera ensures clear and detailed video footage, even in low-light conditions. The NUV 3702 is ideal for a variety of applications, from securing commercial properties to enhancing residential safety. Its robust build and advanced features make it a top choice for those who demand the best in security solutions.

Featuring advanced image processing technologies, the Bosch NUV 3702 offers superior image clarity and precision. The camera supports a range of resolutions, allowing for flexible installation in various settings. With its weather-resistant housing and durable construction, the NUV 3702 is built to withstand harsh environmental conditions, ensuring reliable operation in all circumstances.

Installation is straightforward thanks to the camera's user-friendly design. The NUV 3702 integrates seamlessly with existing security systems, providing enhanced functionality without the need for extensive modifications. Its sophisticated design and comprehensive feature set make it an excellent choice for both new installations and upgrades to existing setups.

Key Features

• High-definition imaging for clear and detailed footage
• Advanced image processing for superior clarity
• Weather-resistant housing for reliable operation in all conditions
• Flexible resolution options to suit various needs
• Easy integration with existing security systems

Technical Specifications (Specs)

NUV-3702-F02

Dimensions
7.5" x 7.5" x 4.7"
Weight
2.2 lbs
Power Supply
12 VDC / 24 VAC
Operating Temperature
32 – 104 °F
Video Output
Analog: 1.0 Vpp / 75 Ω
Resolution
Up to 1080p
Frame Rate
1 – 30 fps
Horizontal Field of View
137°
Impact Protection
IK08
Lens Focal Length
2.49 mm
Operating Temperature
0 – 40 °C (32 – 104 °F)
Sensor Type
1/2.8 inch CMOS
Video Compression
H.264 (ISO/IEC 14496-10); M-JPEG; H.265/HEVC

NUV-3702-F04

Dimensions
7.5" x 7.5" x 4.7"
Weight
2.2 lbs
Power Supply
12 VDC / 24 VAC
Operating Temperature
32 – 104 °F
Video Output
Analog: 1.0 Vpp / 75 Ω
Resolution
Up to 1080p
Frame Rate
1 – 30 fps
Horizontal Field of View
106°
Impact Protection
IK08
Lens Focal Length
3.2 mm
Operating Temperature
0 – 40 °C (32 – 104 °F)
Sensor Type
1/2.8 inch CMOS
Video Compression
H.264 (ISO/IEC 14496-10); M-JPEG; H.265/HEVC
