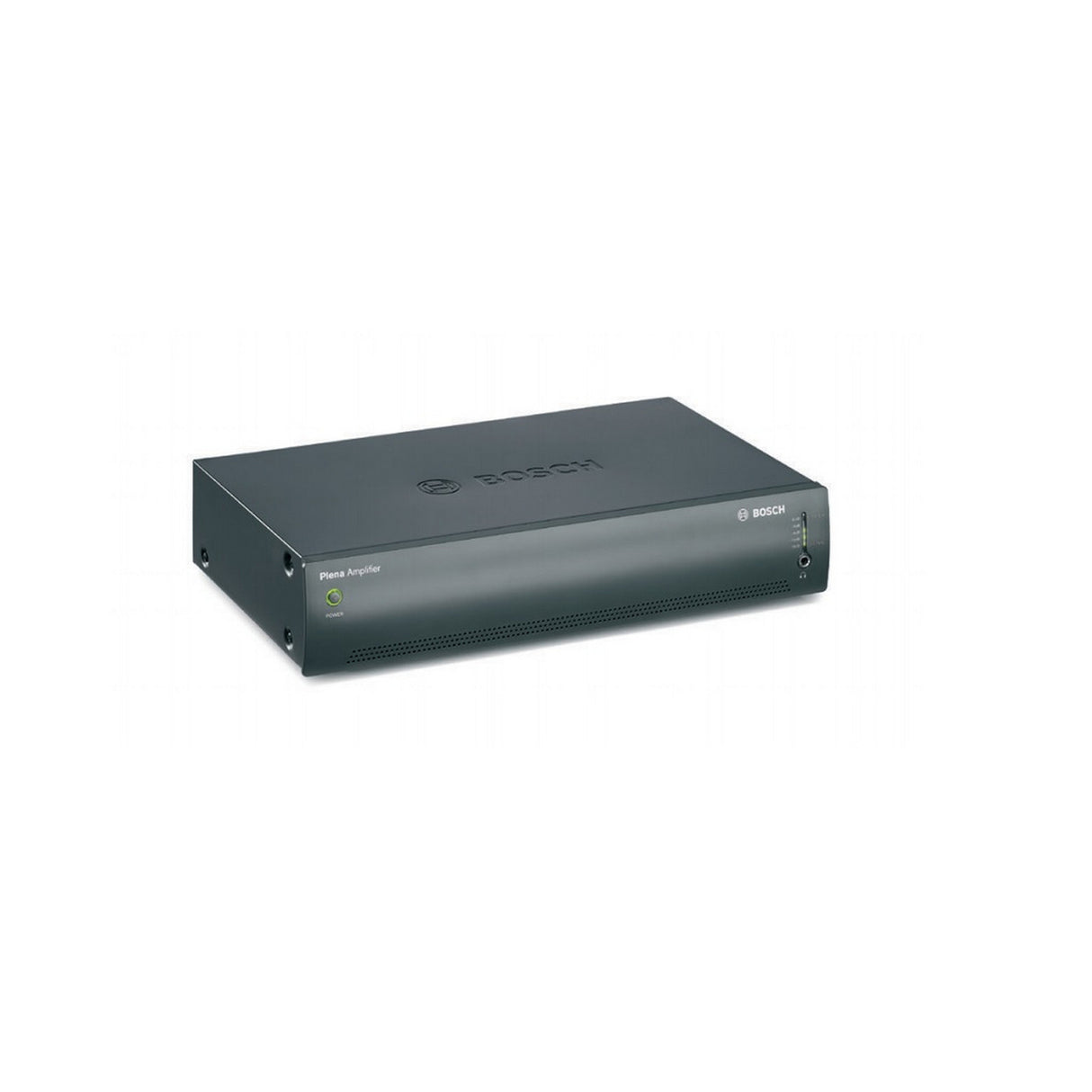

Bosch PLE-1P240-US 240 Watt Plena Amplifier
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Bosch PLE-1P240-US 240 Watt Plena Amplifier
The PLE-1P120-US and PLE-1P240-US are two high-power plug-and-play cost effective power amplifiers that deliver 120 and 240 Watts to constant voltage or 4 ohm loads. Built with premium quality and protections, they offer basic functionality at a budget price. The amplifiers offer straight 1 V and 70 V line in, and 25/70 V and 4 ohm outputs. They can extend the power of the PLE- series mixer-amplifiers or be combined with the PLE-10M2-US mixer, or work anywhere where more power on an existing 70 V line is needed or when a line level signal is provided.
Key Features
- 120 and 240 W power amplifier in a compact housing
- 1 V line level balanced input
- 70 V, 25 V and 4 ohm outputs
- 70 V input for slave operation on 70 V speaker line
- Temperature-controlled forced front to back ventilation (directly stackable)
- 24 VDC backup power with built-in charger
Technical Specifications
Electrical
Mains power supply
Voltage
115 - 230 VAC -,+ 10%, 50/60 Hz
Inrush Current PLE-1P240-US
9/18 A (230/115 VAC)
Power consumption PLE-1P240-US
760 VA
Battery power supply
Voltage
24 VDC -,+ 15%
Current PLE-1P240-US
11 A
Charge current
0.5 ADC
Charge float voltage
27.3 VDC
Power consumption (PLE-1P240-US)
Max power (mains)
451 W
-6dB (mains)
244 W
Idle (mains)
16 W
Max power (24 V)
12 A (290 W)
-6 dB (24 V)
8.1 A (194 W)
Idle (24 V)
0.3 A (7 W)
Performance
Max / rated power PLE-1P240-US
360 W / 240 W
Power reduction on backup power
-1 dB
Frequency response
50 Hz to 20 kHz (+1/-3 dB @ -10 dB ref. rated output)
Distortion
<1% @ rated output power, 1 kHz
Inputs
Connector 1
3-pin Euro style, balanced
Sensitivity
1 V
Impedance
20 kohm
Connector 2
3-pin Euro style, balanced
Sensitivity
70 V
Impedance
300 kohm
Dynamic range
100 dB
CMRR (mic)
>40 dB (50 Hz to 20 kHz)
Loudspeaker outputs 25 V and 70 V
Connector
Euro style pluggable screw terminals
Loudspeaker output 4 ohm
Connector
Euro style pluggable screw terminals
PLE-1P240-US
44 V (240 W)
Mechanical
Dimensions (H x W x D)
100 x 430 x 270 mm
(19" wide, 2U high)
Mounting
Stand-alone, 19" rack
Color
Charcoal
Weight (PLE-1P240-US)
Approx. 27.6 lb
Environmental
Operating temperature
+14 degrees F to +131 degrees F
Storage temperature
-40 degrees F to +158 degrees F
Relative humidity
<95%
