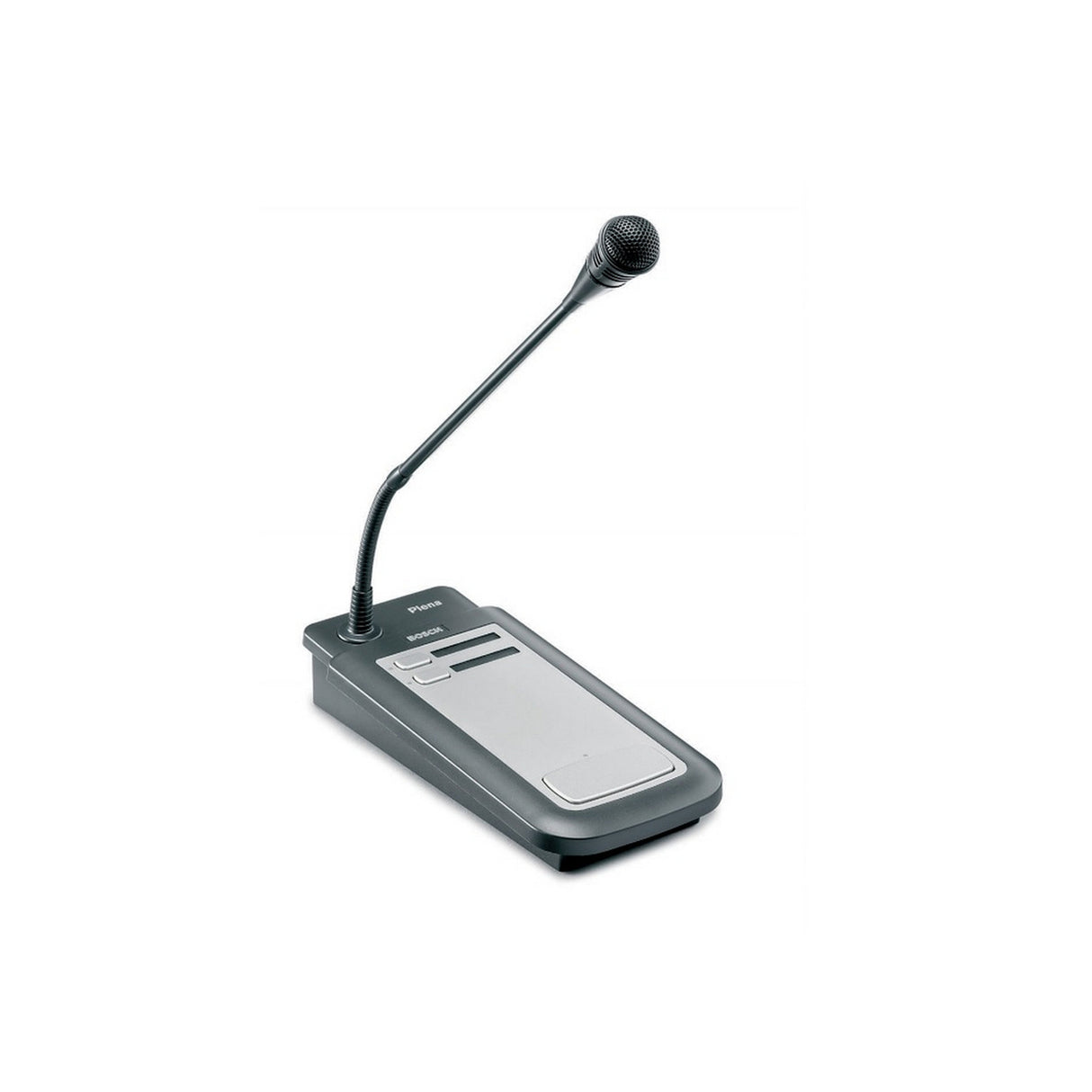

Bosch PLE-2CS Unidirectional Condenser Two Zone Tabletop Microphone
More finance options:
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Bosch PLE-2CS Unidirectional Condenser Two Zone Tabletop Microphone
The Plena two-zone call station is a modern, highquality call station with a stable metal base design, a flexible microphone stem and a unidirectional condenser microphone. It can make calls to selected zones in a public address system built with the PLE series two-zone mixer and mixer amplifiers. In addition to tabletop use, the Plena design allows neat flushmounting in desktops
Key Features
- Modern two-zone call station for the PLE series
- Selectable gain
- Speech filter and limiter
- Output level control
- Loop-through option for up to 8 call stations
Technical Specifications
Electrical
Voltage range
24 VDC supplied by PLE mixer amplifier or mixer
Current consumption
Performance
Nominal sensitivity
85 dB SPL (gain preset 0 dB)
Nominal output level
700 mV
Input sound level (max)
110 dB SPL
Gain preset
-15 / 0 / +6 dB
Limiter threshold
2 V
Compression ratio limiter
1:20
Distortion
<0.6% (maximum input)
Input noise level (equiv.)
25 dB SPLA
Frequency response
100 Hz to 16 kHz
Speech filter
-3 dB at 315 Hz, high-pass, 6 dB/oct
Output impedance
200 ohm
Selections
Chimes
6
Mechanical
Base dimensions (H x W x D) without microphone
40 x 100 x 235 mm (1.57 x 3.97 x 9.25 in)
Stem length with microphone
390 mm (15.35 in)
Cable length
5 m (16.4 ft)
Weight Approx.
1 kg (2.2 lb)
Mounting
Standalone
Color
Charcoal with silver
Environmental
Operating temperature
-10 degrees C to +45 degrees C (14 degrees F to +113 degrees F)
Storage temperature
-40 degrees C to +70 degrees C (-40 degrees F to +158 degrees F)
Relative humidity
<95%
