Bosch PRA-PSM48 48V Power Supply Module for PRAESENSA Power Amplifier
Bosch PRA-PSM48 48V Power Supply Module for PRAESENSA Power Amplifier
Bosch PRA-PSM48 48V Power Supply Module for PRAESENSA Power Amplifier

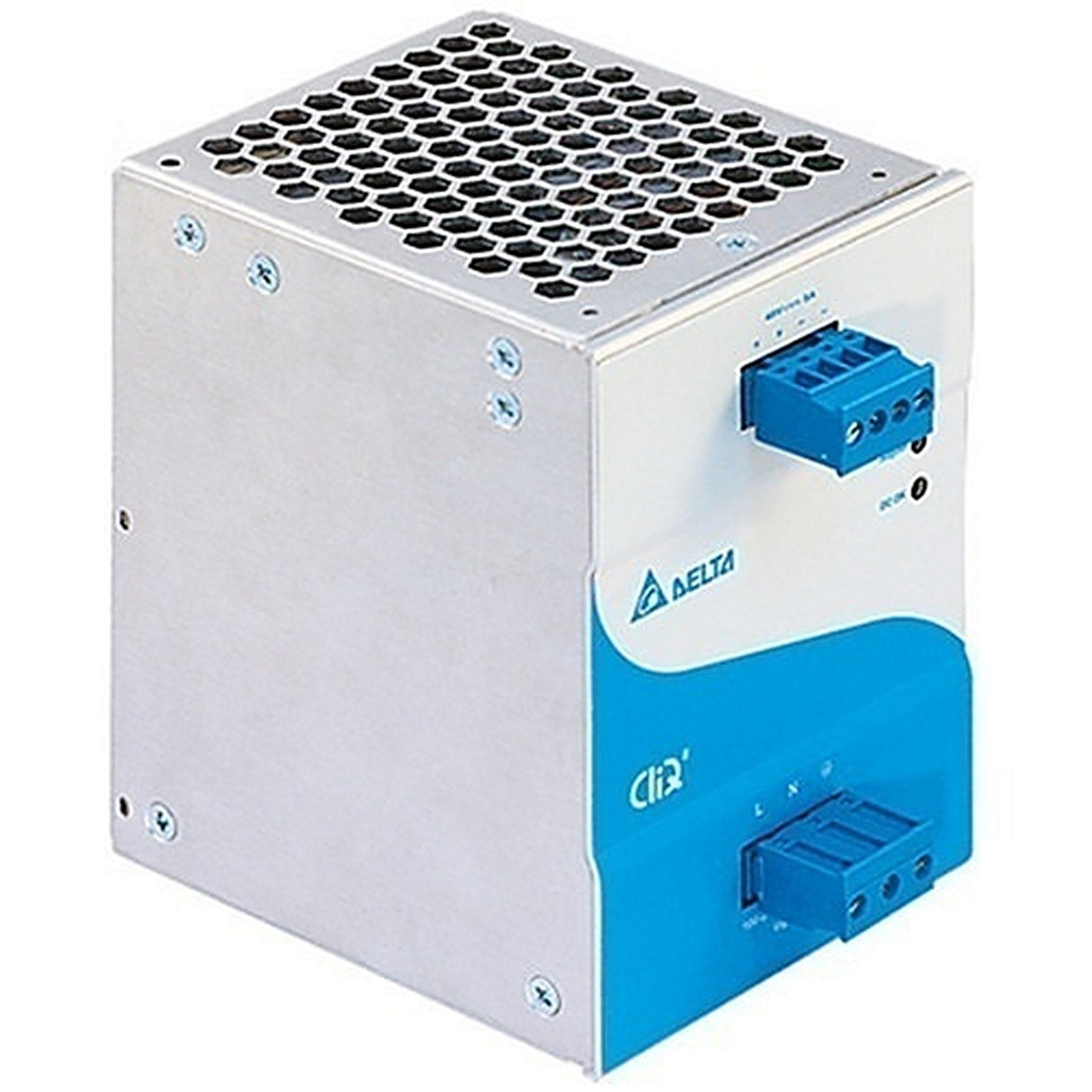

The PRA-PSM48 power supply module is a compact DIN‑rail mounted power supply, delivering 48 V at up to 5 A continuously. This power supply is an OEM power supply, made for Bosch by Delta Power Supply, as a cost-effective alternative to the PRAESENSA multifunction power supply PRA-MPS3 to power a PRAESENSA power amplifier in case the additional functions and characteristics of the multifunction power supply are not needed. It is not certified for EN 54‑4 and similar standards. Because of its ability to deliver high peak currents, this power supply module can supply sufficient power to a single fully loaded PRAESENSA 600 W power amplifier.
Key Features
- Universal mains input voltage
- Power factor correction
- Protection with automatic recovery
- Approved to power a PRAESENSA 600 W amplifier
- Compact and DIN rail mountable
Technical Specifications
Dimensions (H x W x D) (mm)
121 x 85 x 124 mm
Operating temperature (Degrees C)
-25 - 80 Degrees C
Operating voltage (VAC)
85 - 365 VAC
Power factor
0.90
Protection
Overheat; Overload; Overvoltage
Weight (kg)
0.96 kg
