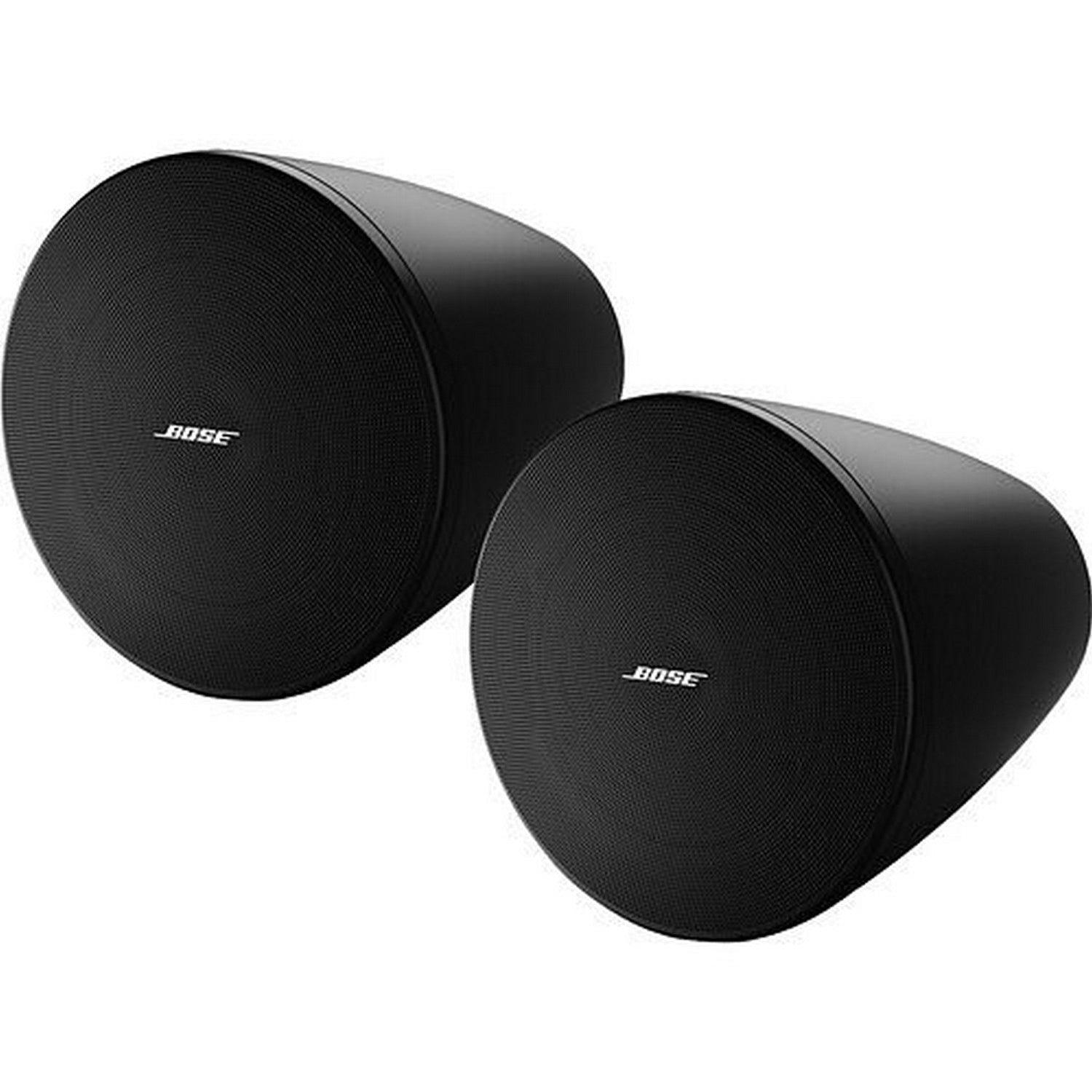

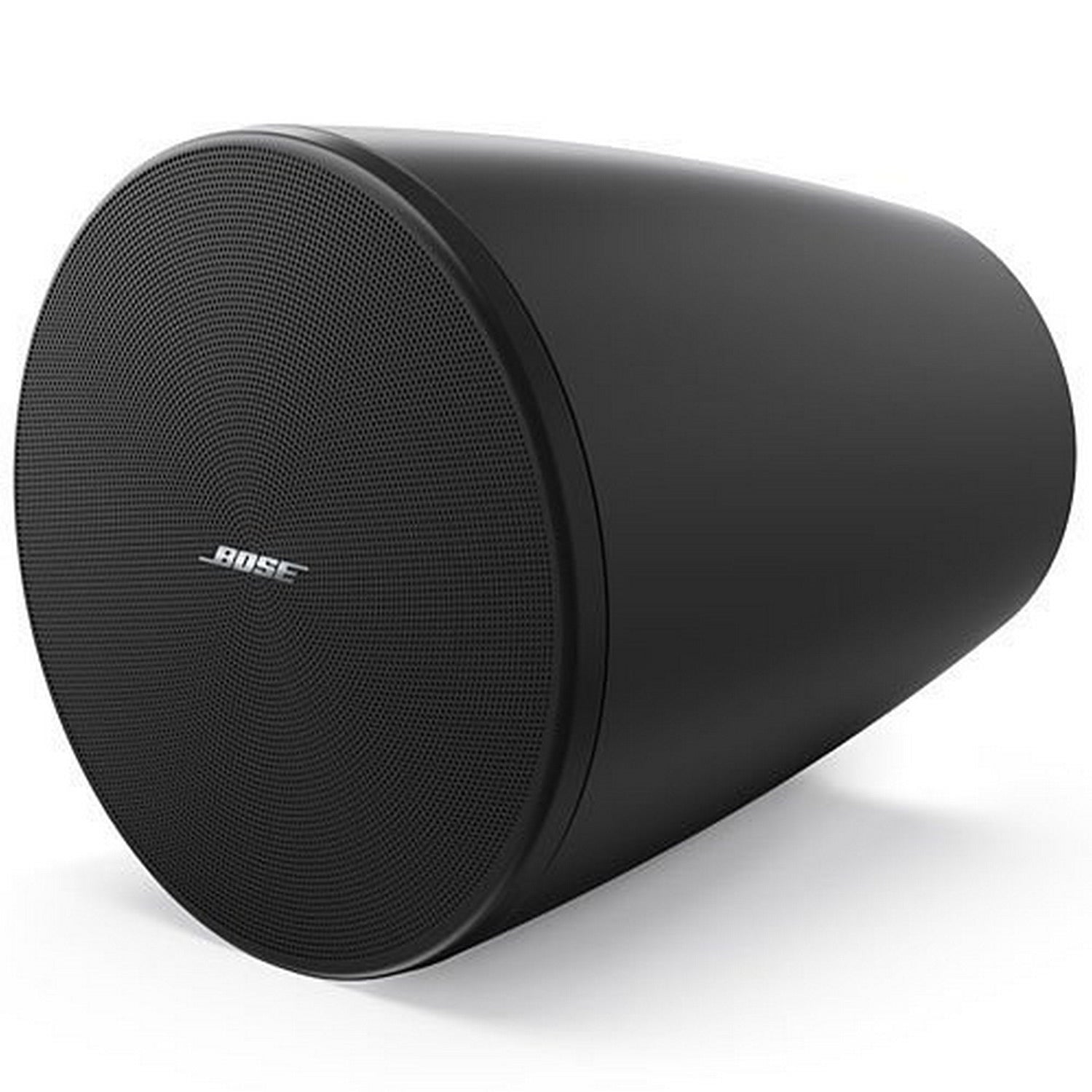

Bose DesignMax DM5P Loudspeaker (1 Pair)

The Bose DesignMax DM5P is a premium pendant-mount loudspeaker designed to deliver exceptional audio performance with a modern aesthetic. Perfect for open-ceiling spaces, this speaker is equipped with a 5.25-inch coaxial driver, offering clear high frequencies and deep lows, making it ideal for background music and voice applications.

Its sleek, contemporary design complements any decor while the integrated mounting system ensures a clean, secure installation. With 70V/100V transformer tap settings and 16-ohm bypass, the DM5P provides flexible compatibility for commercial sound systems. Whether for hospitality, retail, or commercial venues, the DM5P blends style and performance.

Key Features:

• 5.25" coaxial two-way driver
• 125° conical coverage pattern
• Frequency range: 65 Hz – 20 kHz
• Peak SPL: 107 dB
• 70V/100V transformer with 8 W, 16 W, 32 W, 64 W taps
• Bypass mode: 16 Ω operation

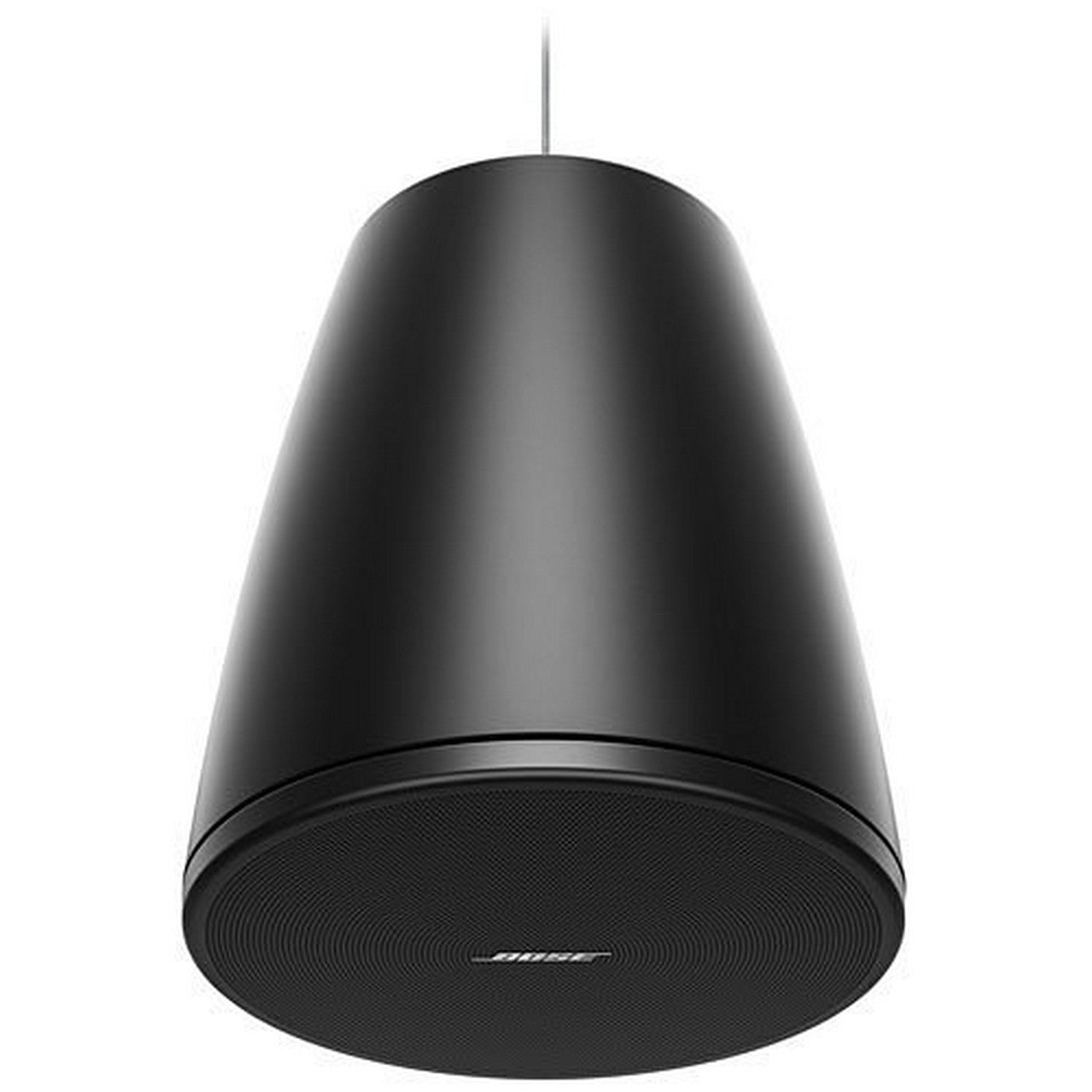

• Pendant-style mount with hidden wiring and integrated safety cable

Technical Specifications:

Transducer: 5.25" woofer + 1" tweeter
Frequency Range (-10 dB): 65 Hz – 20 kHz
Nominal Coverage: 125° conical
Sensitivity: 86 dB SPL (1 W at 1 m)
Maximum SPL: 101 dB continuous, 107 dB peak
Power Handling: 50 W continuous, 200 W peak
Transformer Taps: 70V/100V (8, 16, 32, 64 W), 16 Ω bypass
Connector: Euroblock 4-pin (input & loop-through)
Enclosure: UV-resistant ABS plastic
Grille: Powder-coated steel with detachable logo
Ingress Protection: IP55
Dimensions (H × Dia.): 13.2 × 8.5 in
Weight: 8.6 lb (3.9 kg) per speaker

Package Contents:

• 2 x DesignMax DM5P Loudspeakers
• 2 x Pendant mounting kits with safety cables
• 2 x Grilles with removable Bose logos
• Installation manual
