Bose DesignMax DM2C-LP Loudspeaker, Pair - White
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

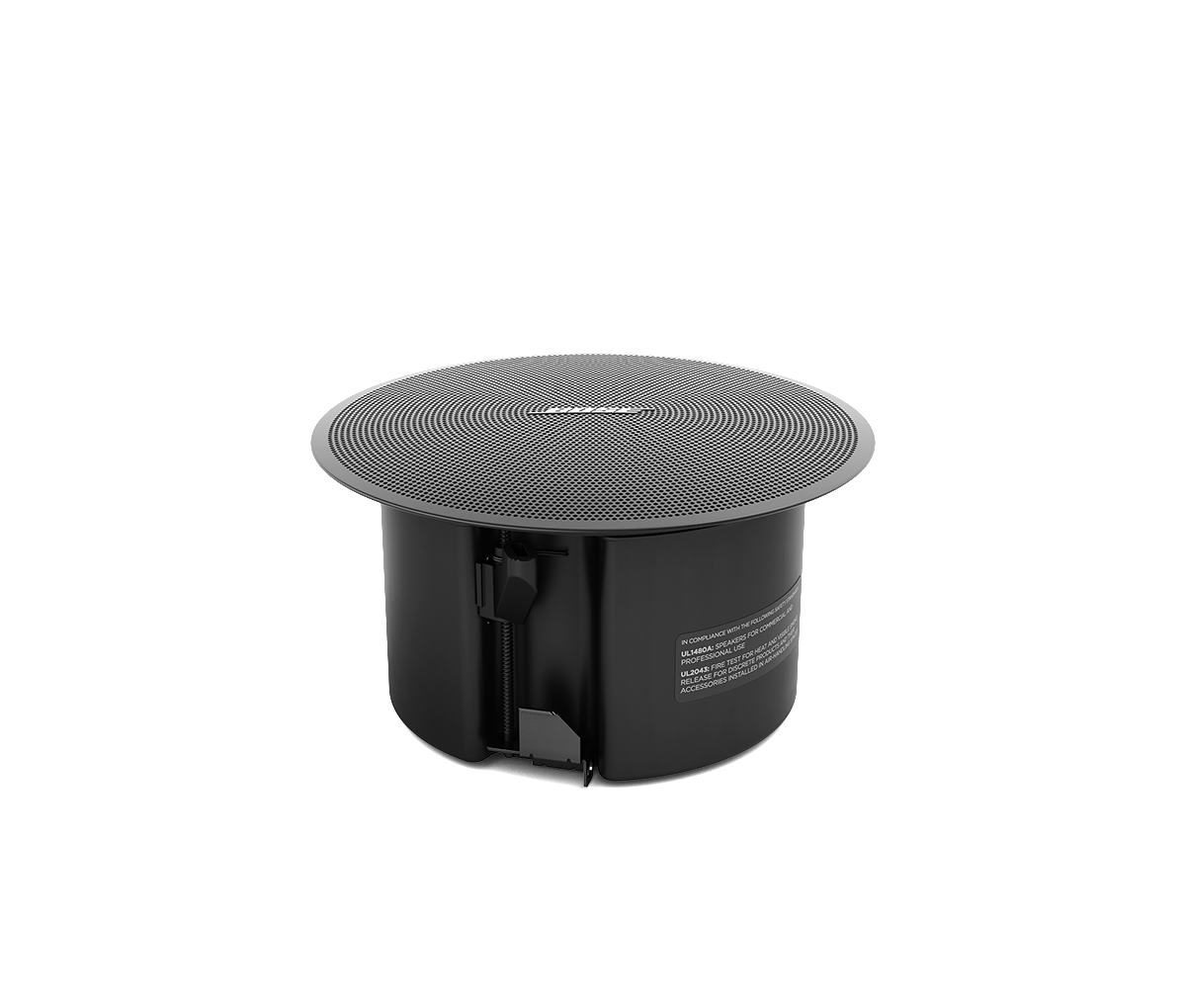

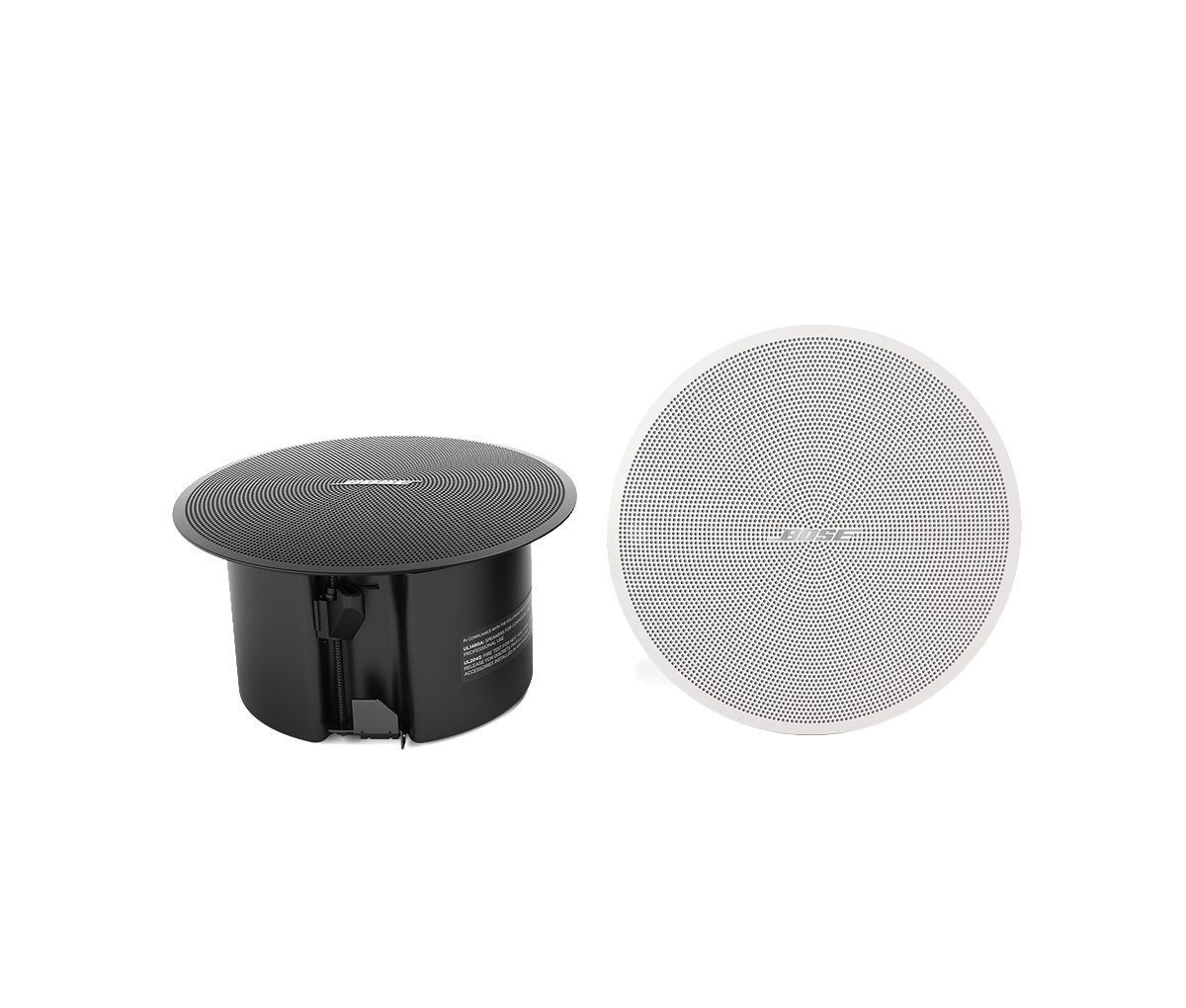

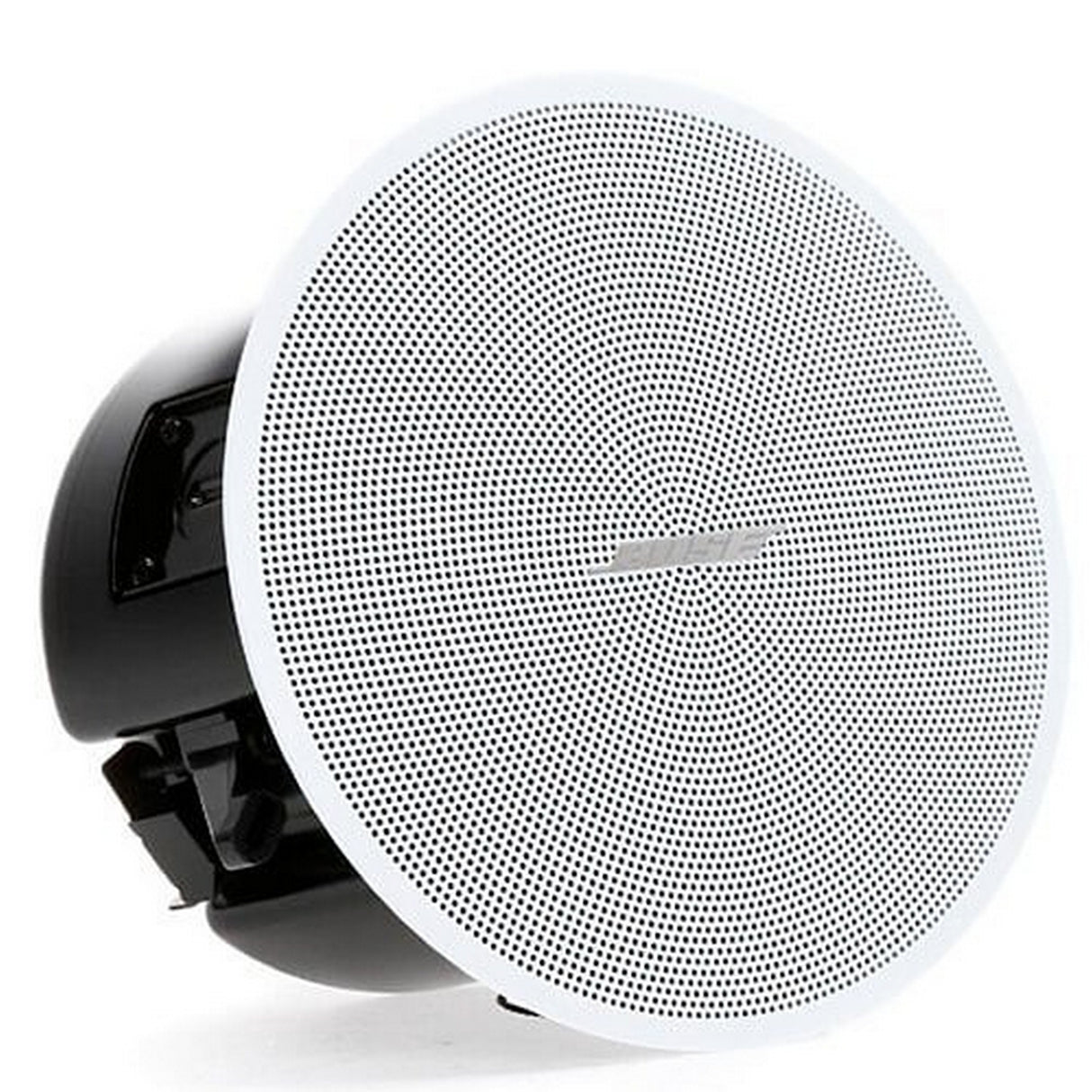

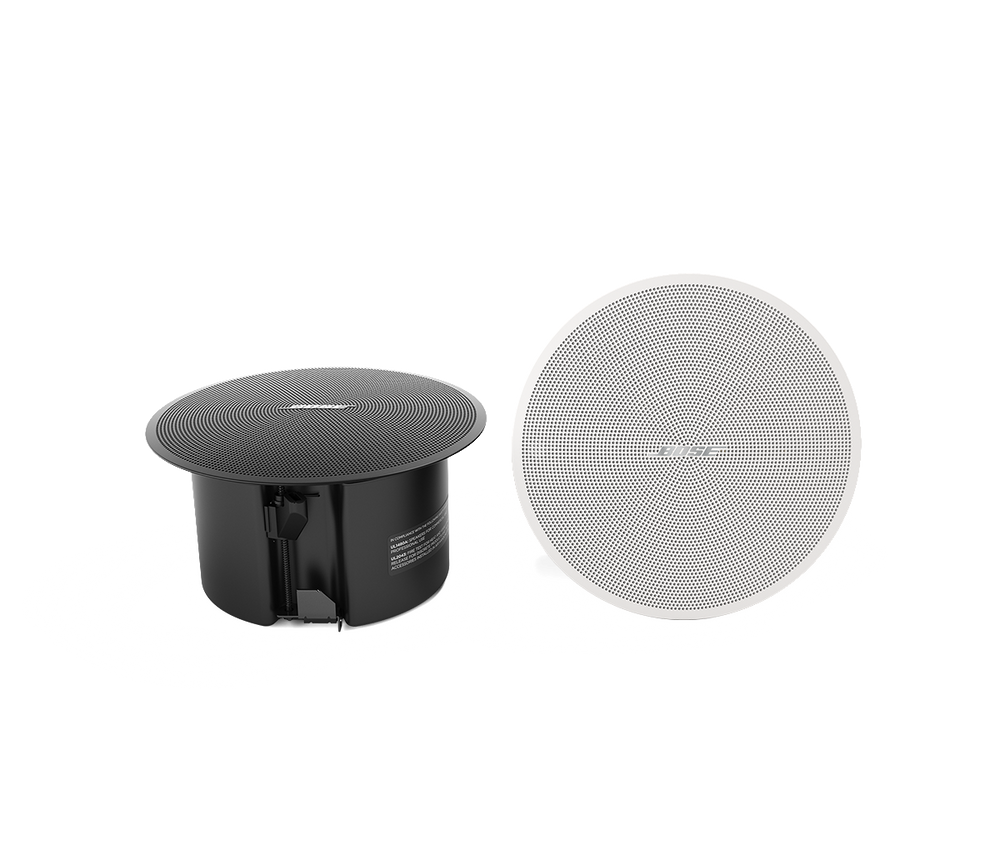

Bose DesignMax DM2C-LP Loudspeaker, Pair
A complete loudspeaker assortment to enhance any space, DesignMax loudspeakers offer rich lows, and clear, intelligible highs - along with premium aesthetics that complement any commercial sound installation. The 20-watt DesignMax DM2C-LP loudspeaker makes it easy to bring great sound to tight spaces. Ideal for background music, the DM2C-LP loudspeaker features a 2.25-inch transducer and 85 Hz - 19 kHz frequency range. The in-ceiling DM2C-LP has a low-profile backcan and is installed easily via QuickHold mounting arms.
Key Features
- Designed for background music applications in commercial spaces
- 2.25-inch transducer for clear, intelligible sound
- Low-profile backcan for installation in confined ceiling spaces
- QuickHold mounting system helps reduce installation time
- In-ceiling design with front-access audio wiring
- Includes plenum-rated backcans and tile bridges
- Part of the Bose DesignMax loudspeaker series for mixed-system installations
Technical Specifications
- Product Type: In-ceiling loudspeaker (pair)
- Driver: 2.25-inch transducer
- Frequency Response (+/-3 dB): 95 - 18,000 Hz
- Frequency Range (-10 dB): 85 - 19,000 Hz
- Nominal Coverage (H x V): 150° conical
- Power Handling, Long-Term Continuous: 20 W
- Power Handling, Peak: 80 W
- Maximum SPL @ 1 m: 97 dB
- Sensitivity (SPL/1W @ 1 m): 84 dB
- Nominal Impedance: 16 Ohm (transformer bypass)
Installation & Use Case
The DesignMax DM2C-LP is intended for installed commercial audio systems where ceiling depth is limited and consistent background sound coverage is required.
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
Package Contents
- Bose DesignMax DM2C-LP loudspeakers (pair)
- Plenum-rated backcans
- Tile bridges
Frequently Asked Questions
What is the Bose DesignMax DM2C-LP loudspeaker designed for?
The Bose DesignMax DM2C-LP loudspeaker is designed for background music applications in commercial environments, delivering clear and consistent sound in compact spaces.
What type of driver does the Bose DesignMax DM2C-LP use?
The Bose DesignMax DM2C-LP uses a full-range 2.25-inch transducer.
What type of installation is required for the Bose DesignMax DM2C-LP?
The Bose DesignMax DM2C-LP is an in-ceiling loudspeaker designed for installation using integrated QuickHold mounting arms.
Does the Bose DesignMax DM2C-LP support 70V or 100V systems?
Yes, the Bose DesignMax DM2C-LP supports 70V and 100V distributed audio systems and can also operate in low-impedance configurations.
