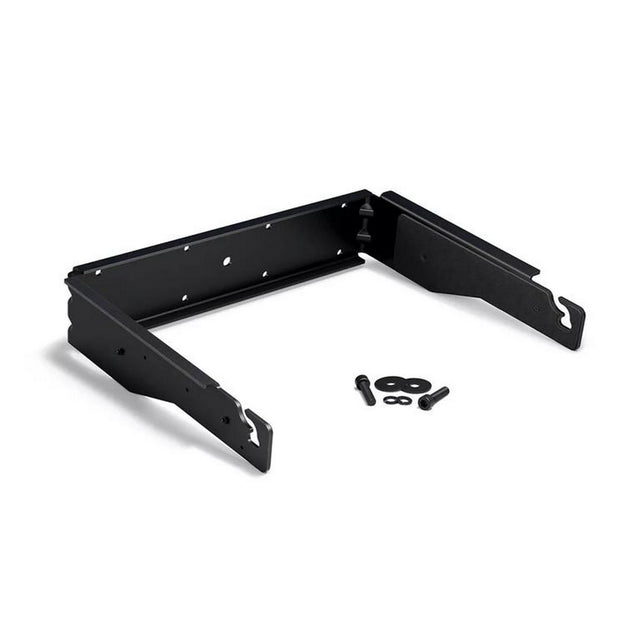

Bose Professional AMM112 U-Bracket Loudspeaker Mount

Bose Professional AMM112 U-Bracket Loudspeaker Mount

Bose Professional AMM112 U-Bracket is a mounting accessory designed for professional audio installation environments. It enables secure positioning and angle adjustment for a single AMM112 loudspeaker for system integrators, supporting wall, ceiling, or structural mounting workflows. This makes it ideal for installed sound applications where precise orientation and mechanical stability are critical.

The bracket mounts directly to the loudspeaker using the integrated M10 threaded inserts on the enclosure sides. Its rigid construction supports both two-point surface attachment and single-point center mounting to secondary structures such as poles or truss systems.

The design supports adjustable pitch angles while maintaining structural alignment of the loudspeaker. It is intended for indoor use and temporary or installed systems where controlled positioning is required.

Key Features

• Dedicated AMM112 compatibility: Designed specifically for mounting a single Bose Professional AMM112 loudspeaker
• Adjustable mounting angles: Allows rotation to accommodate various pitch requirements
• Dual mounting options: Supports two-point surface attachment or single-point center mounting
• M10 mounting interface: Attaches to factory M10 × 20 mm threaded inserts on the loudspeaker
• Structural steel construction: Provides mechanical rigidity for installed sound applications
• Indoor installation use: Not intended for permanent outdoor mounting

Technical Specifications

Color
Black

Product Dimensions (H×W×D)
4.1" × 18.6" × 15.4"
104 mm × 472 mm × 390 mm

Net Weight
8.4 lbs (3.8 kg)

Mounting Interface
M10 × 20 mm threaded attachment points

Intended Use
Indoor installation only

What’s in the Box

(1) AMM112 U-Bracket
(2) M10 × 20 mm screws
(2) M10 flat washers
(2) M10 lock washers
(1) Installation guide
