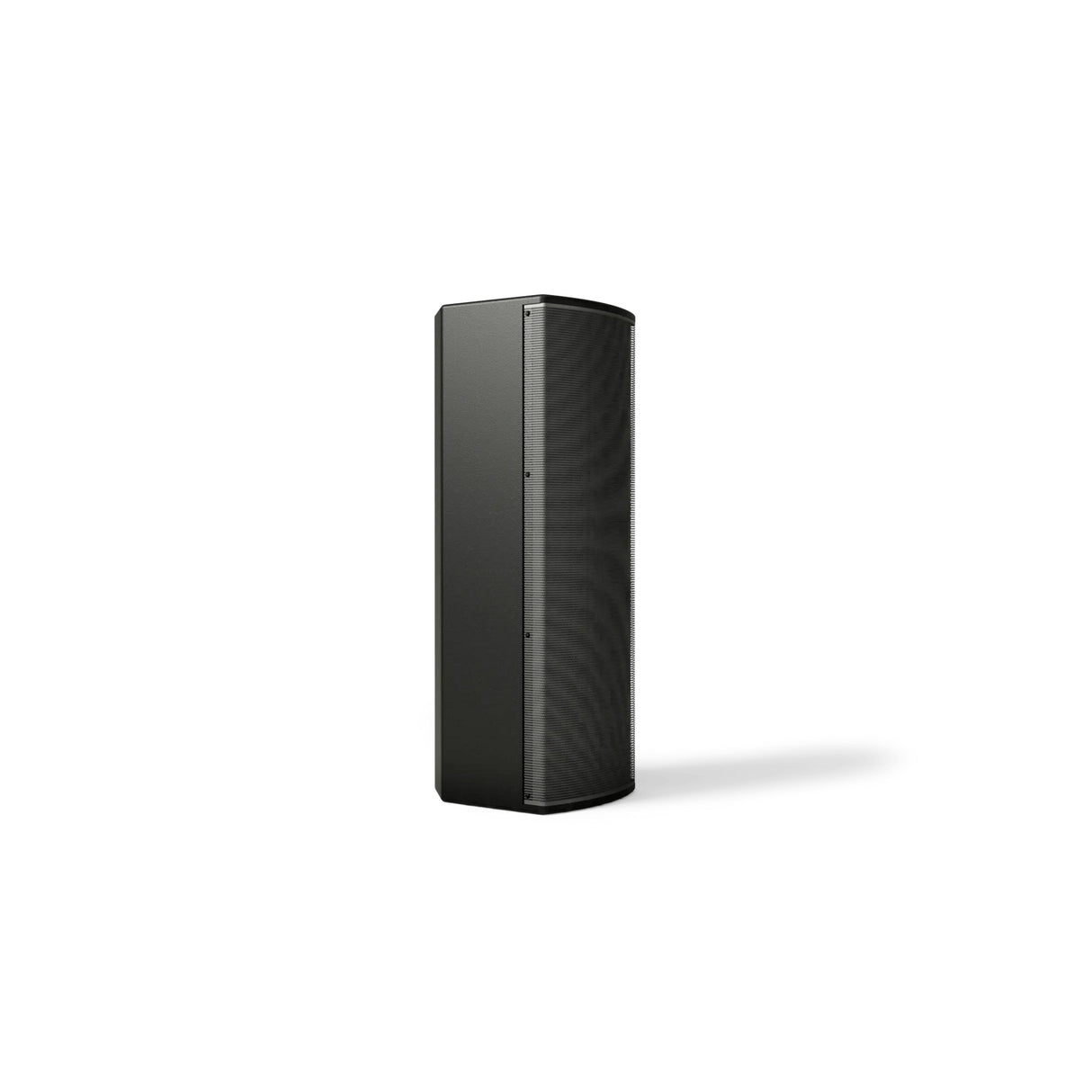

Bose Professional ArenaMatch Utility AMU208 Compact Loudspeaker (Each) - Black

Bose Professional ArenaMatch Utility AMU208 Compact Loudspeaker (Each)

Bose Professional ArenaMatch Utility AMU208 is a loudspeaker designed for indoor and outdoor commercial installations. It enables sound reinforcement and voice reproduction for system designers and integrators, supporting distributed and small- to mid-sized audio systems. This makes it ideal for public venues and shared spaces where consistent coverage and environmental durability are critical.

The loudspeaker operates using a two-way transducer system with passive crossover networks and a constant-directivity high-frequency horn. It supports low-impedance operation as well as distributed systems through an internal 70V and 100V transformer with selectable taps and bypass. The enclosure and components are engineered to maintain functional operation when exposed to weather and environmental conditions.

The system supports applications requiring compact form factors with controlled coverage in fixed installations. It is suited for hospitality, sports, worship, and public environments that require flexible mounting and orientation options. The design allows integration with compatible amplification and processing systems for predictable system behavior.

Key Features

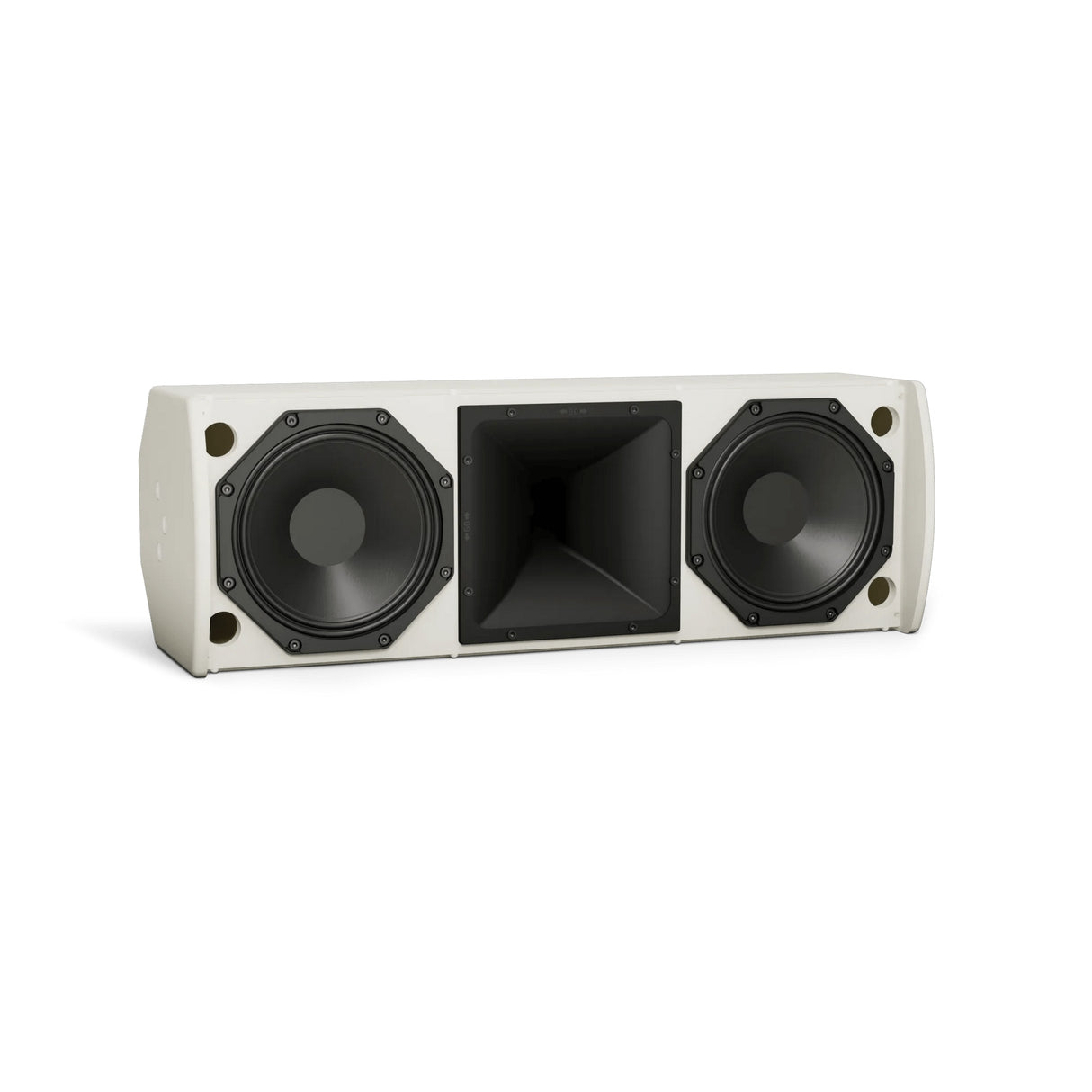

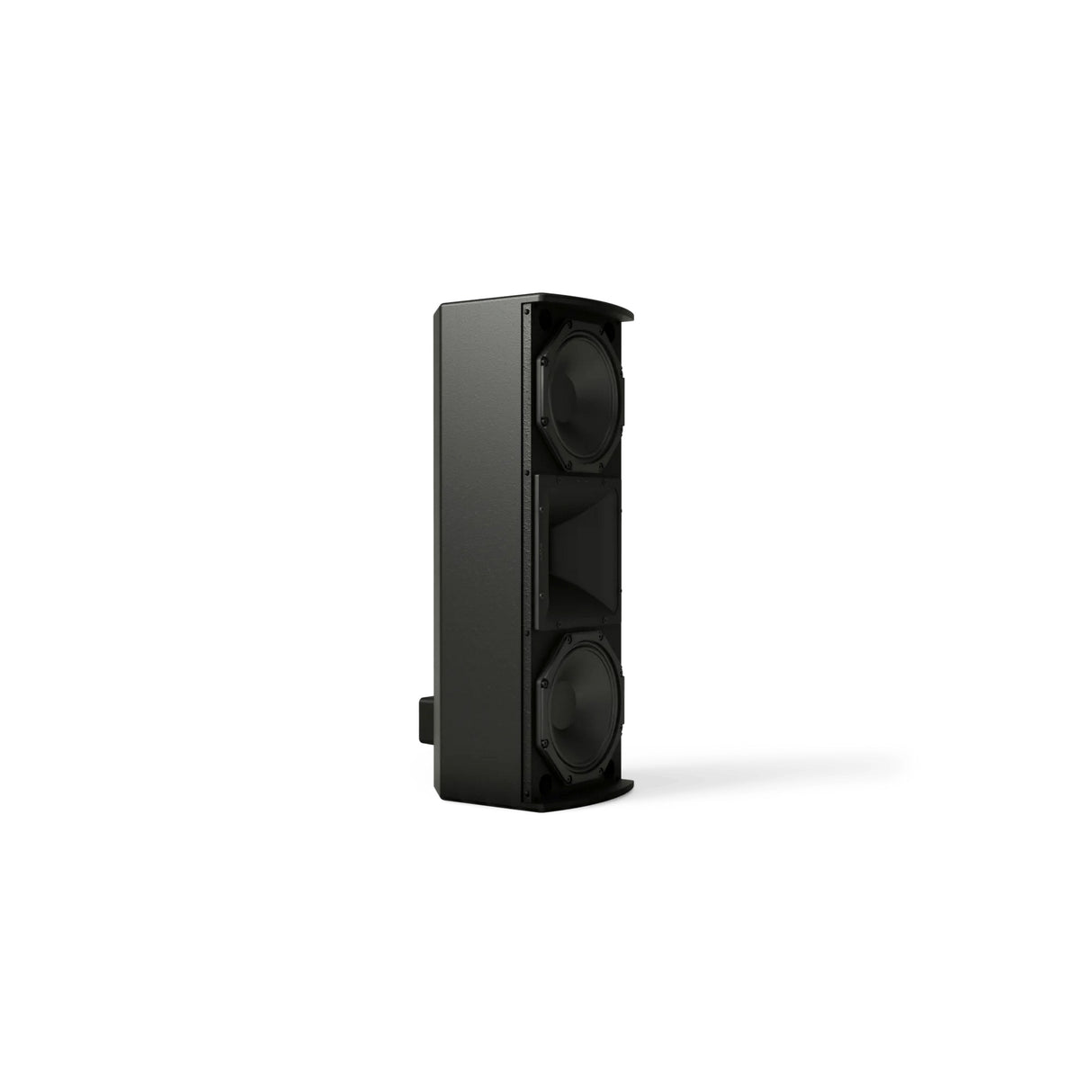

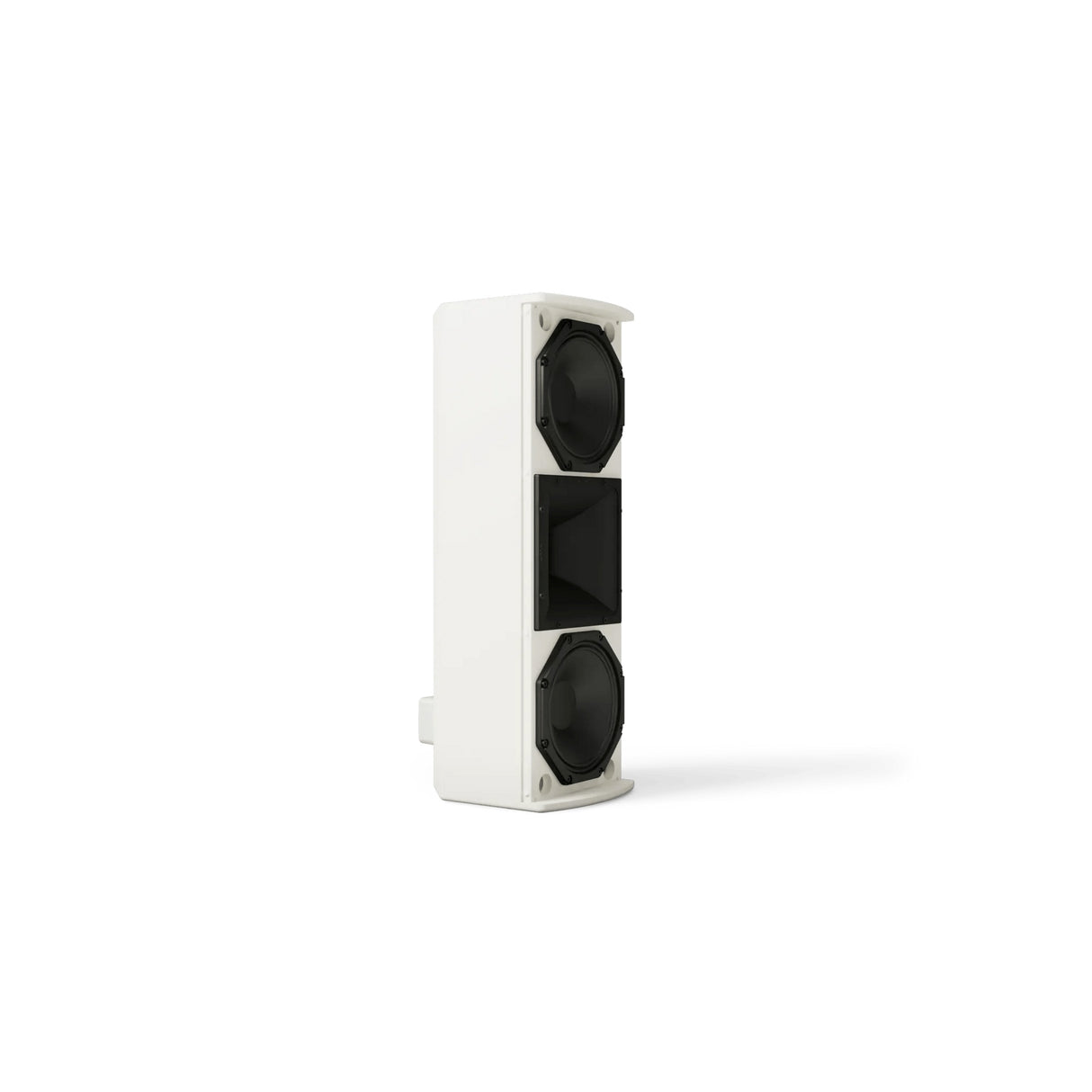

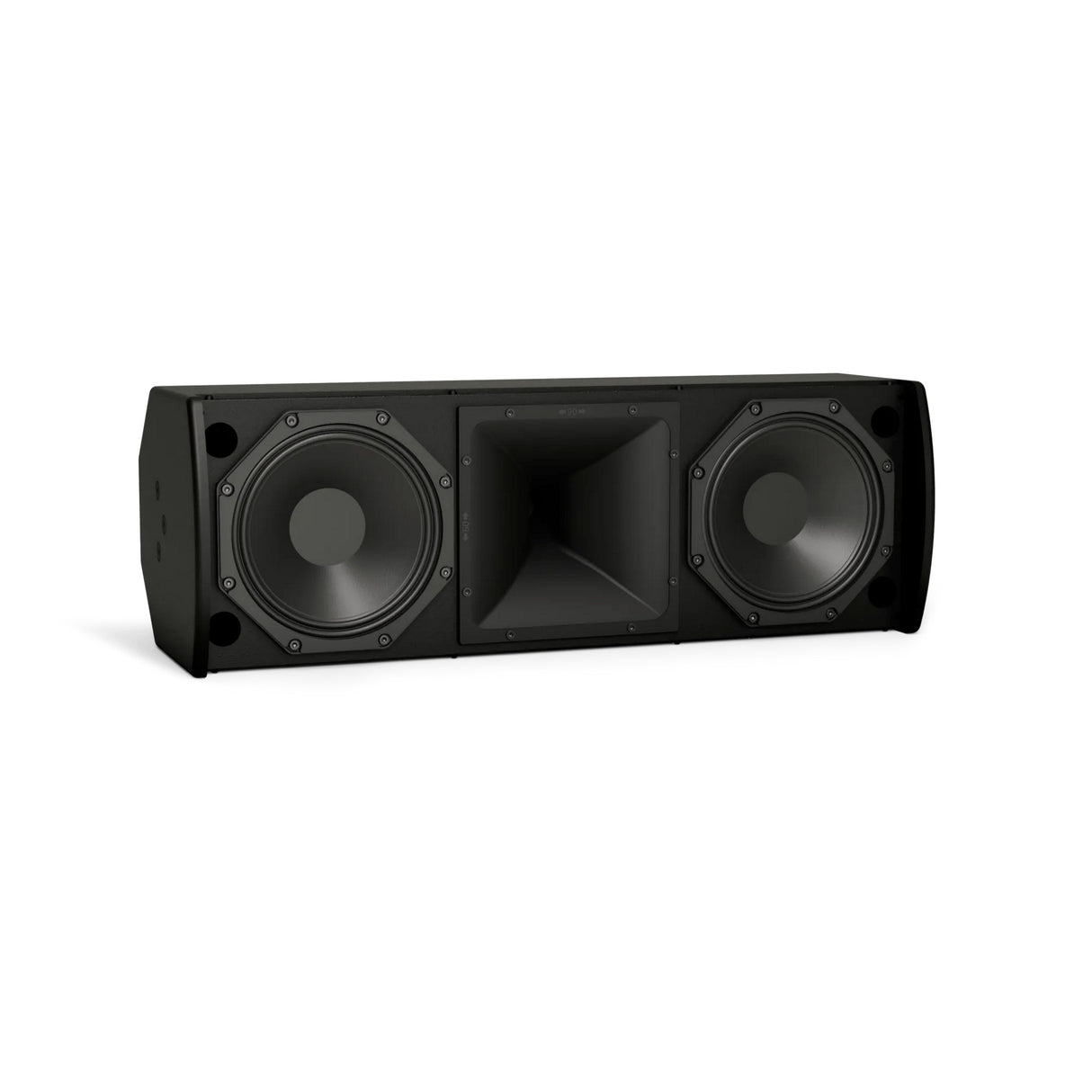

• Two-way transducer system: Uses dual low-frequency drivers and a high-frequency compression driver with passive crossover networks
• Weather-rated construction: IP55-rated enclosure supports direct outdoor exposure

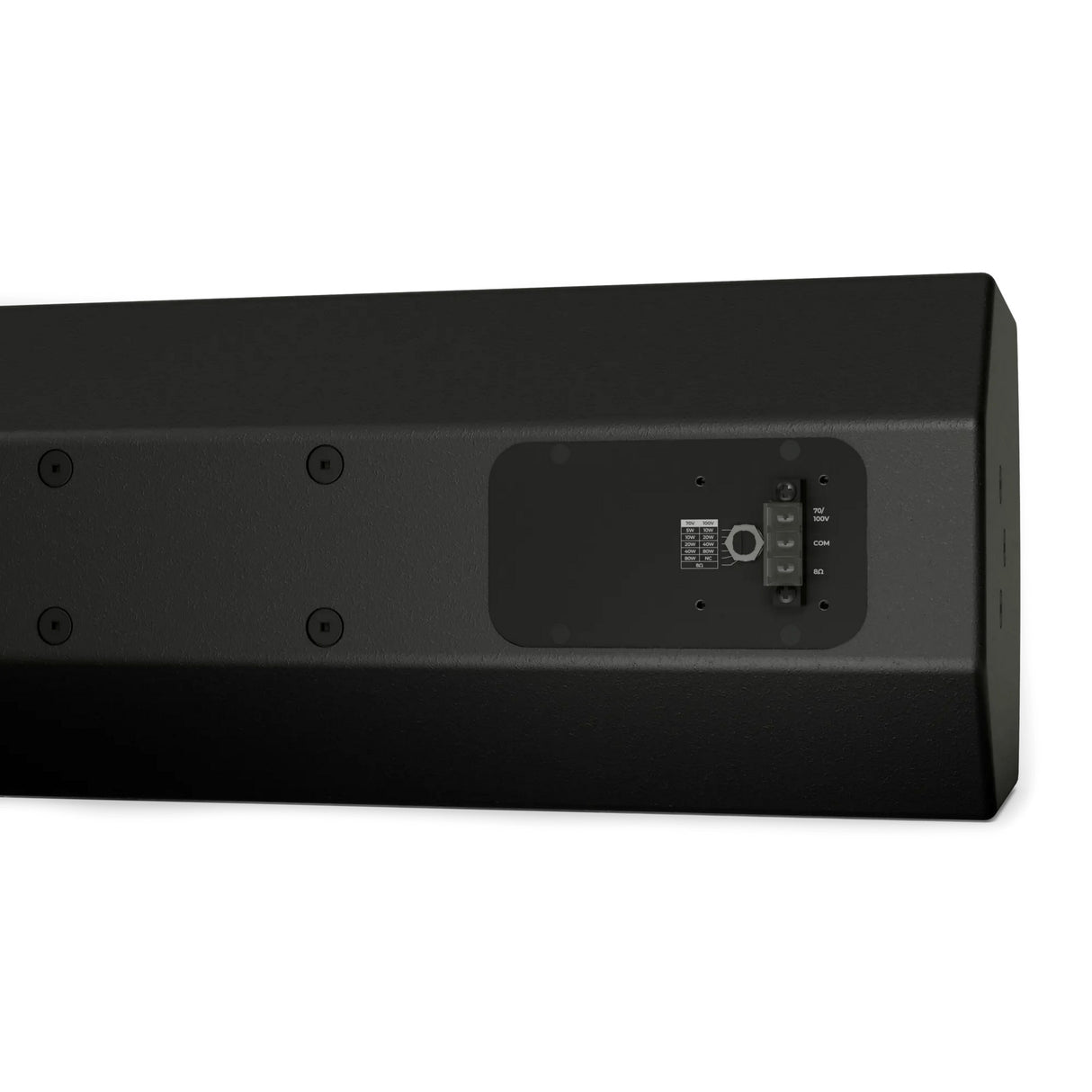

• Integrated transformer: Internal 70V and 100V transformer with selectable taps and 8 ohm bypass
• Controlled coverage pattern: Constant-directivity horn provides defined horizontal and vertical dispersion

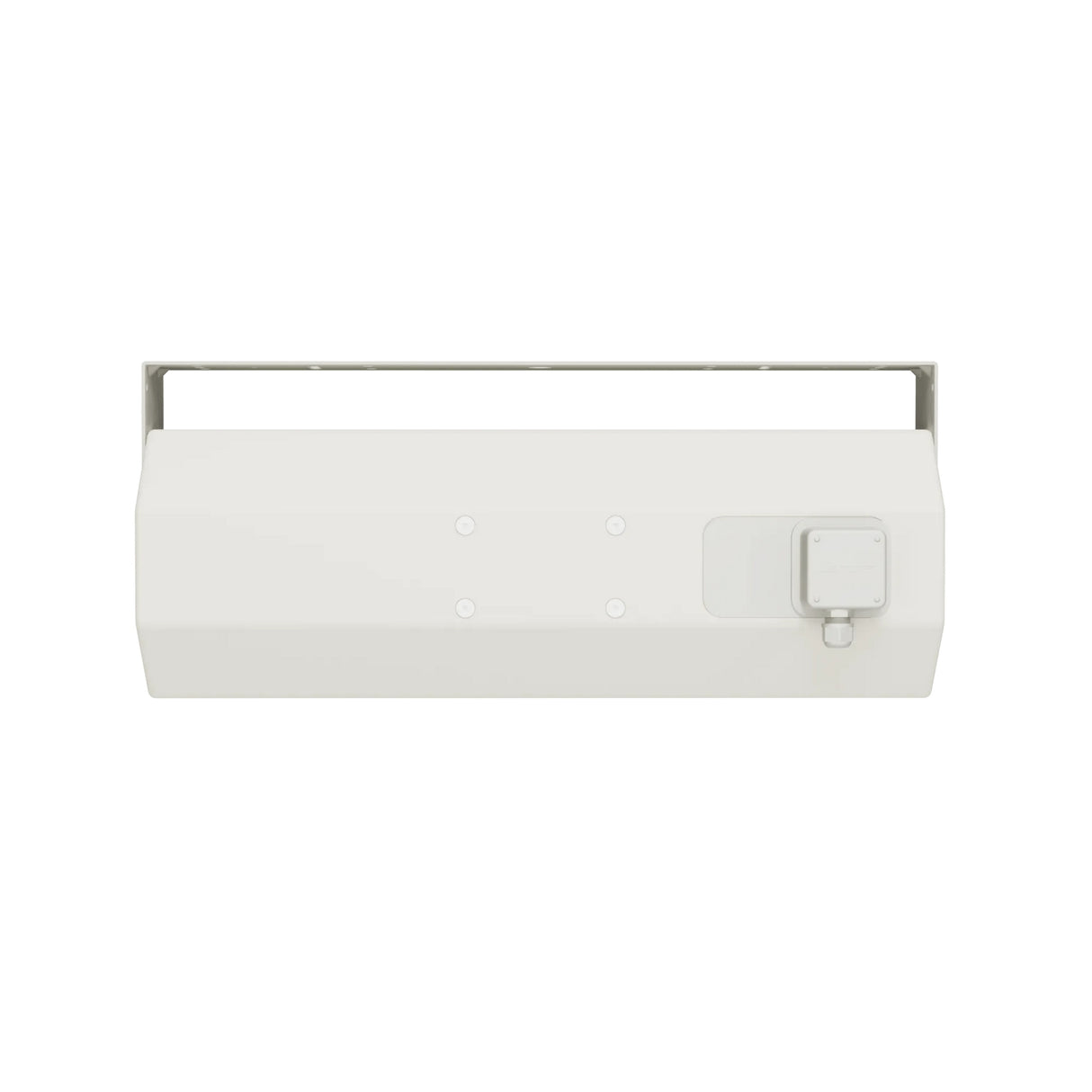

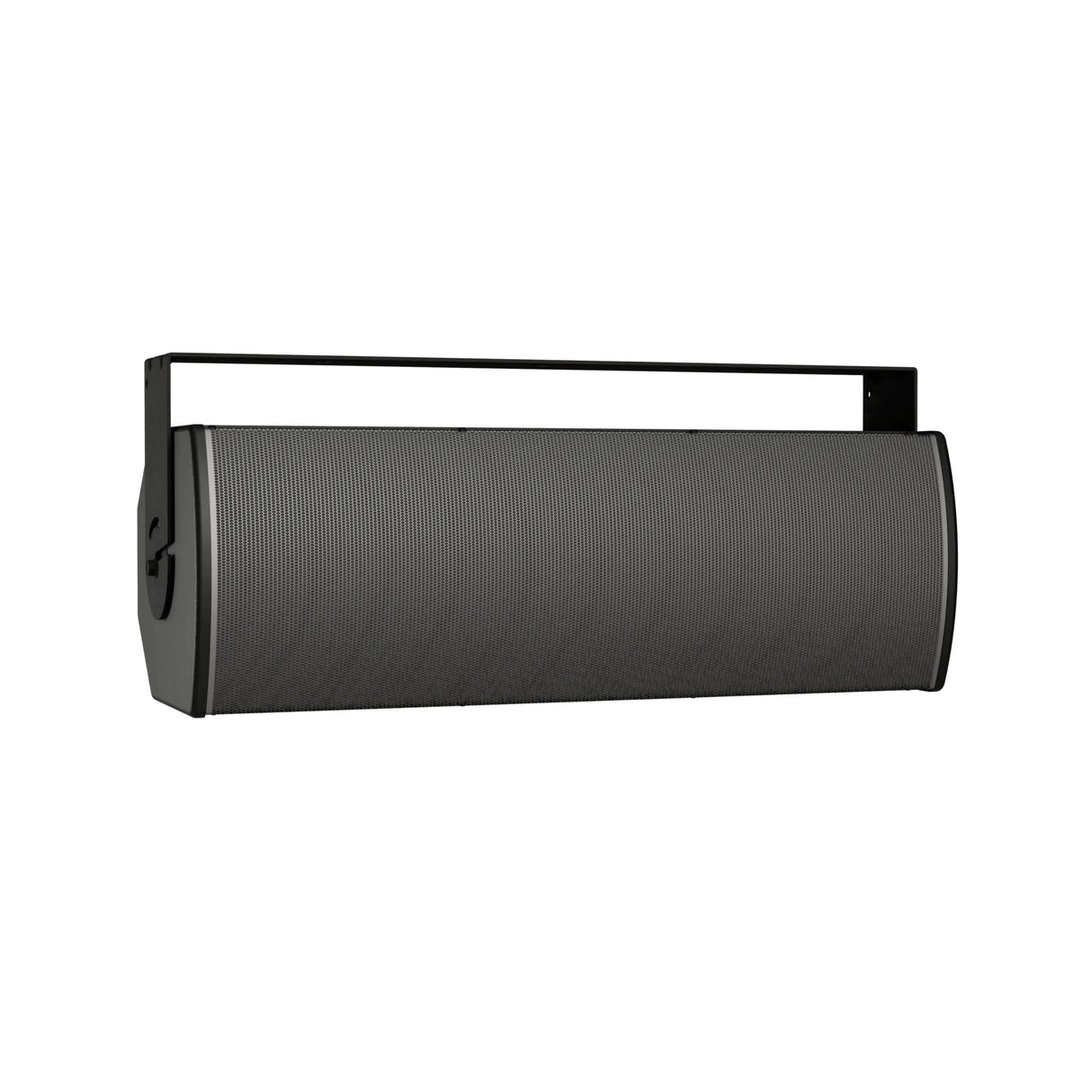

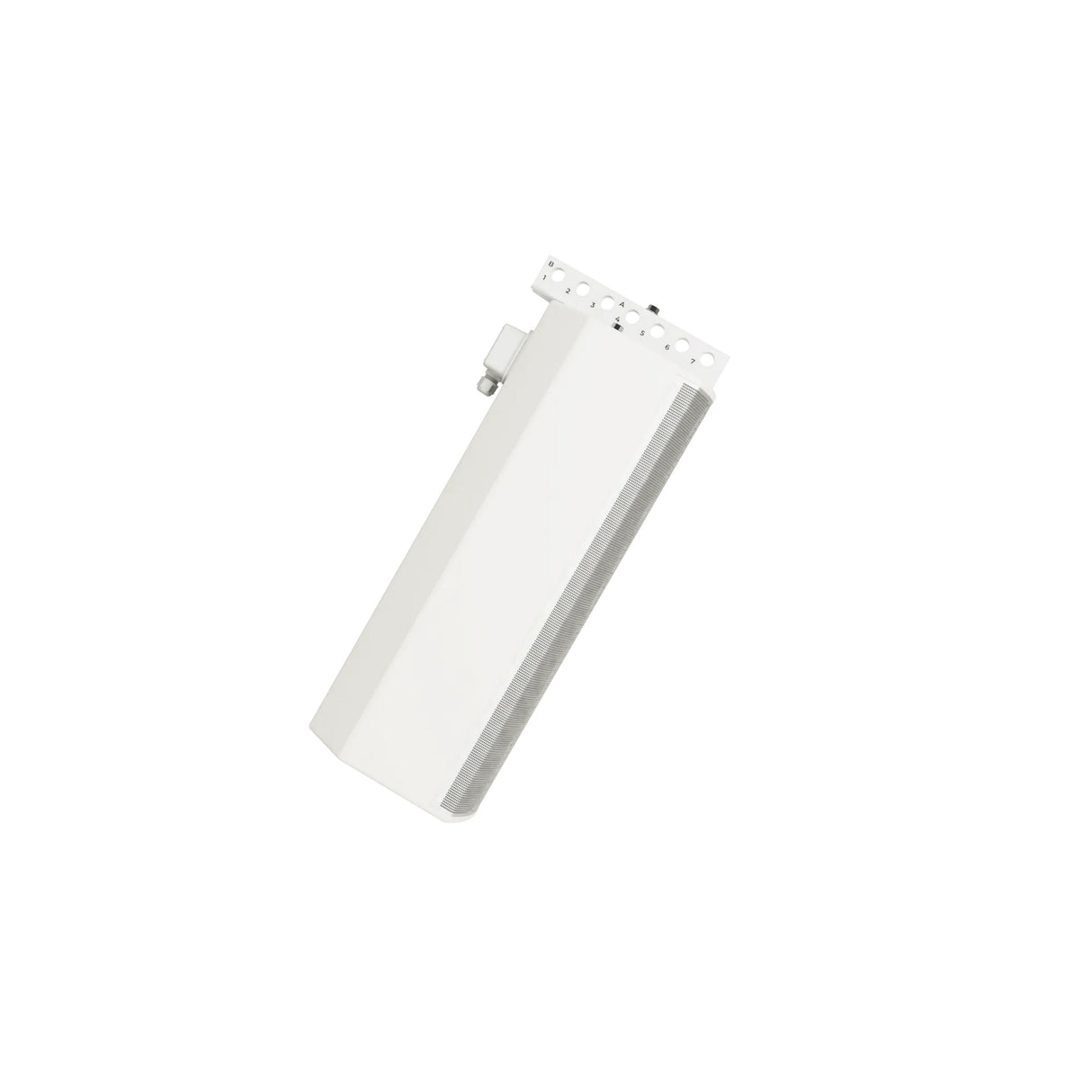

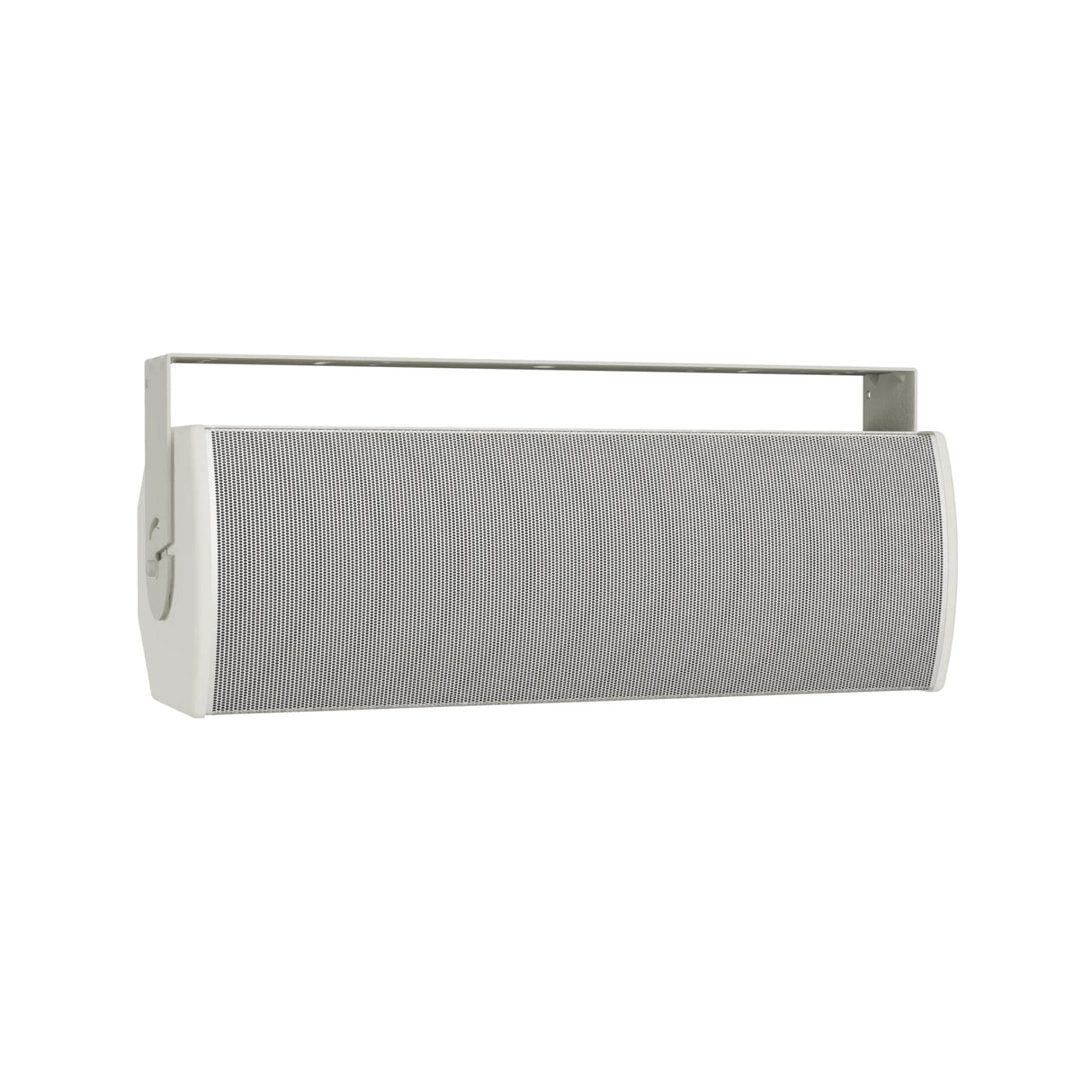

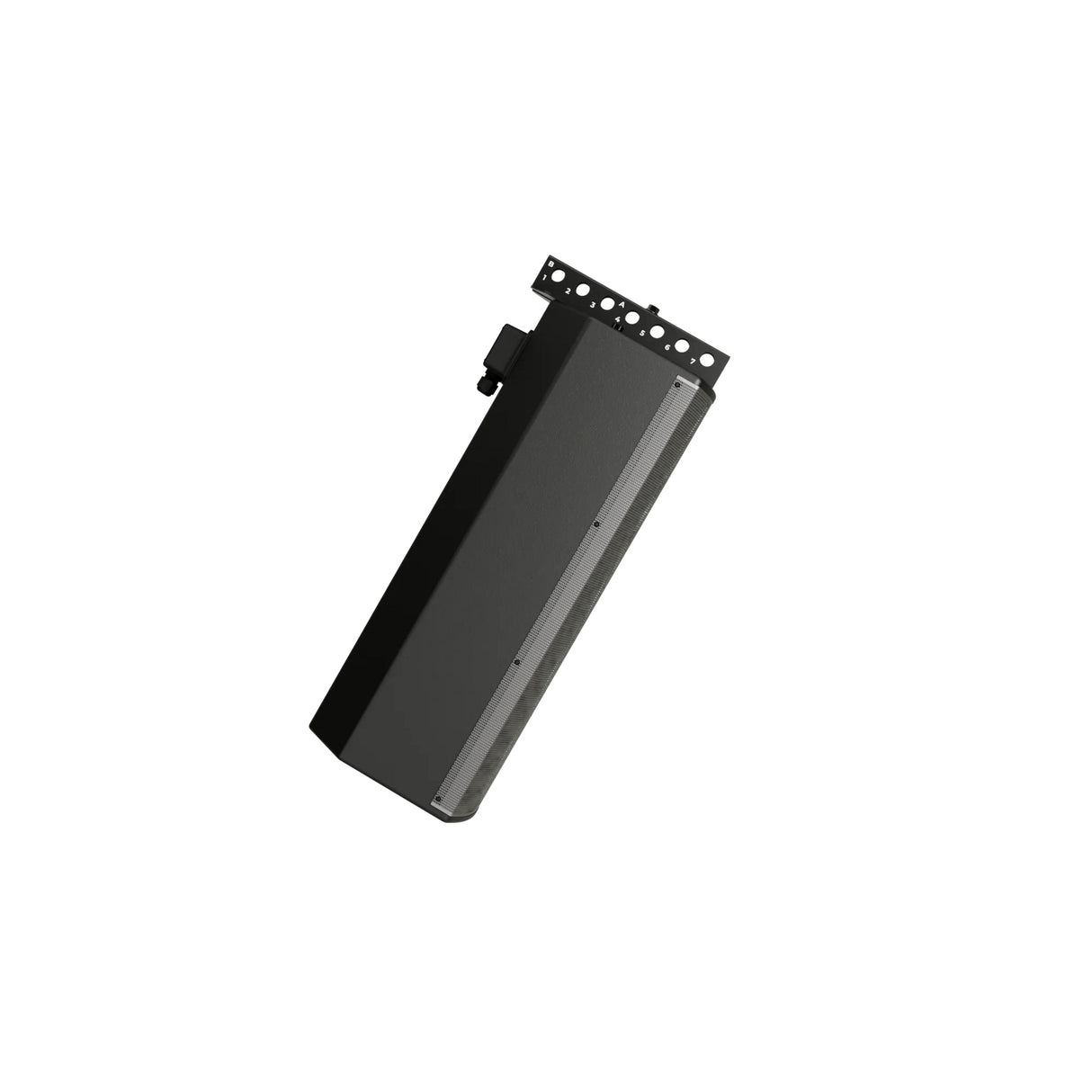

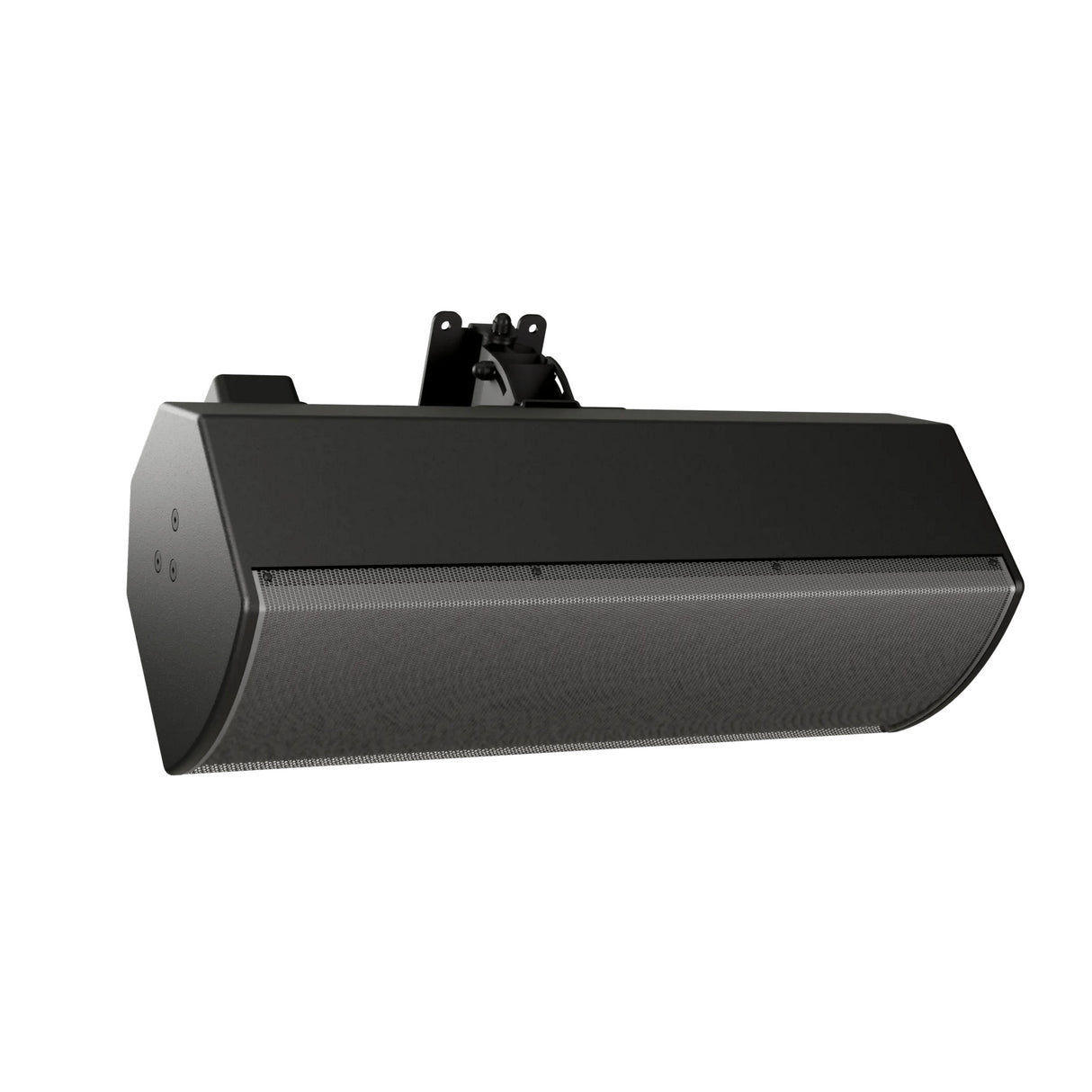

• Flexible mounting support: Includes stainless-steel U-bracket and threaded mounting points for accessory hardware
• System integration capability: Supports factory-optimized presets with compatible Bose Professional electronics

Technical Specifications

Compliance
EN 54-24 Certified

Colors
Black
White

Enclosure Material
Exterior-grade plywood

Environmental
Indoor or outdoor. IP55-rated for direct exposure outdoor ratings

Grille

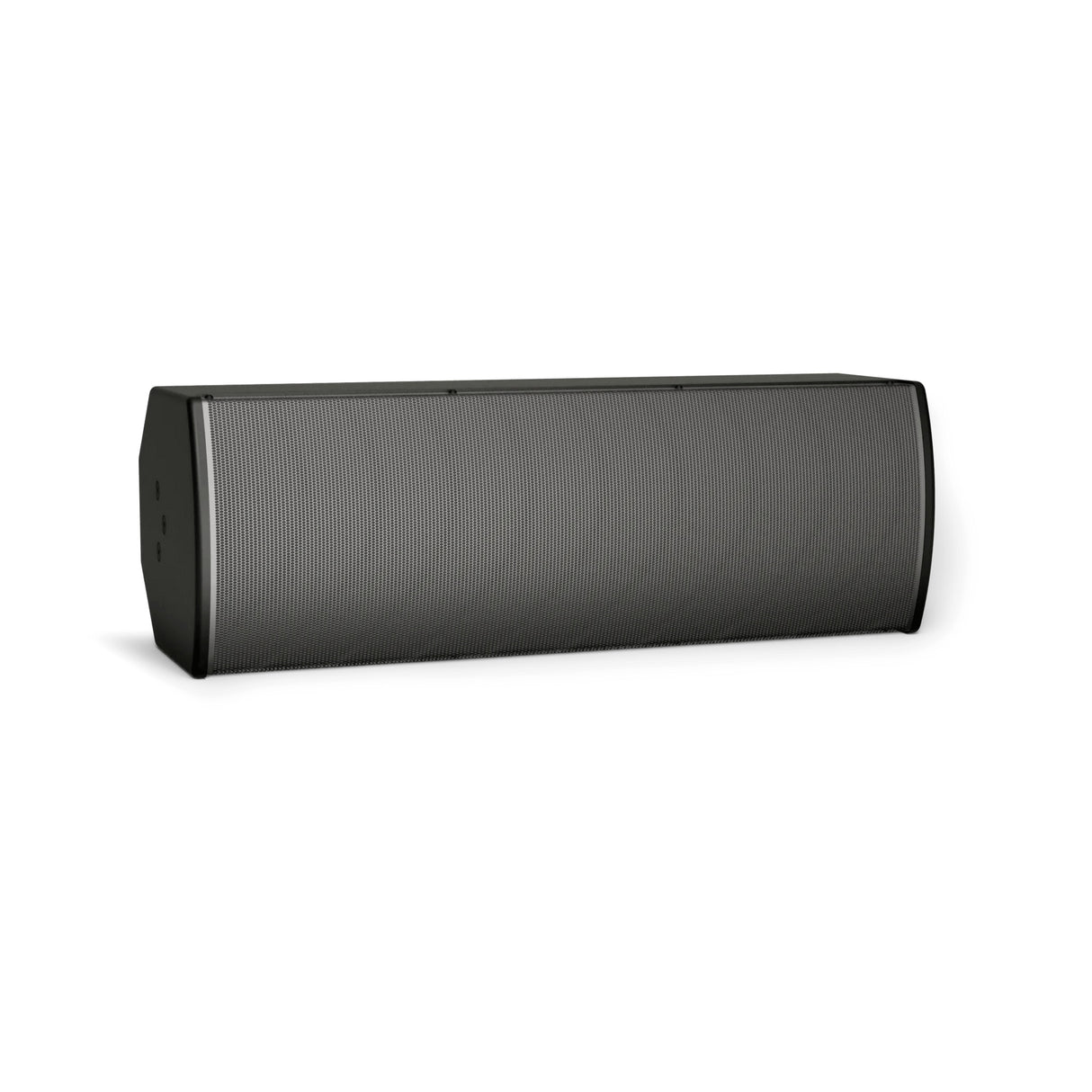

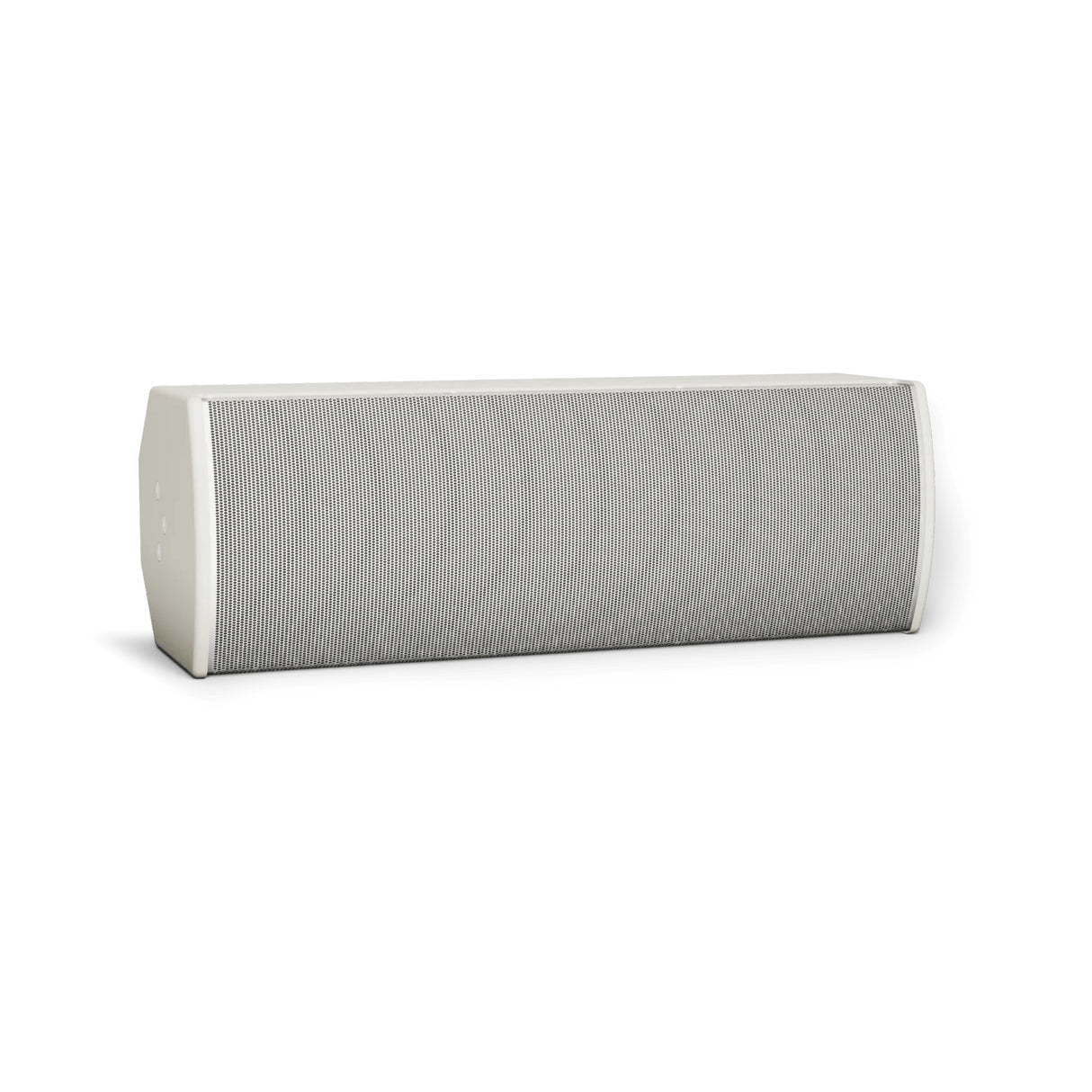

3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish

Ingress Protection
IP55 per EN60529; IP33C per EN 54-24

Suspension/Mounting

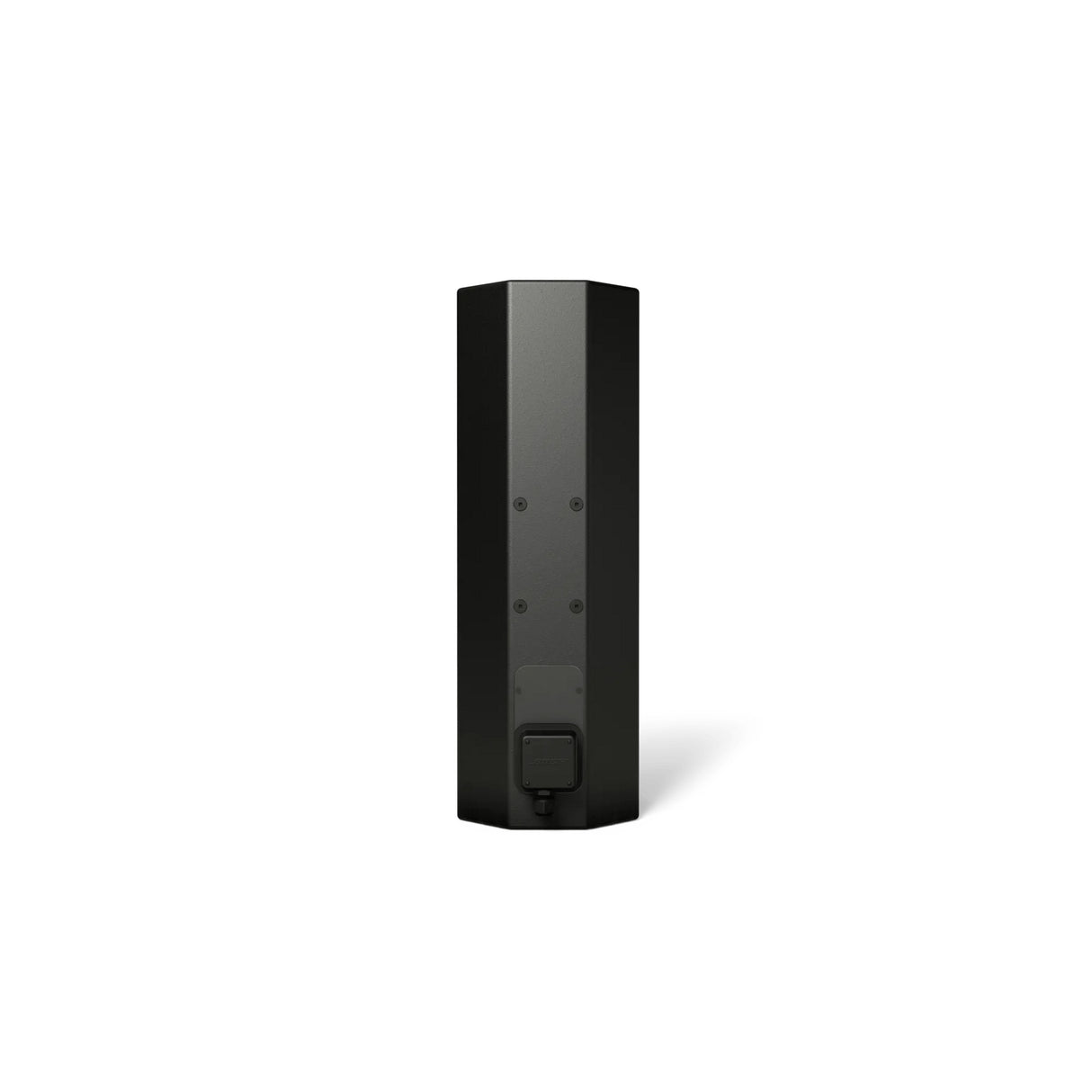

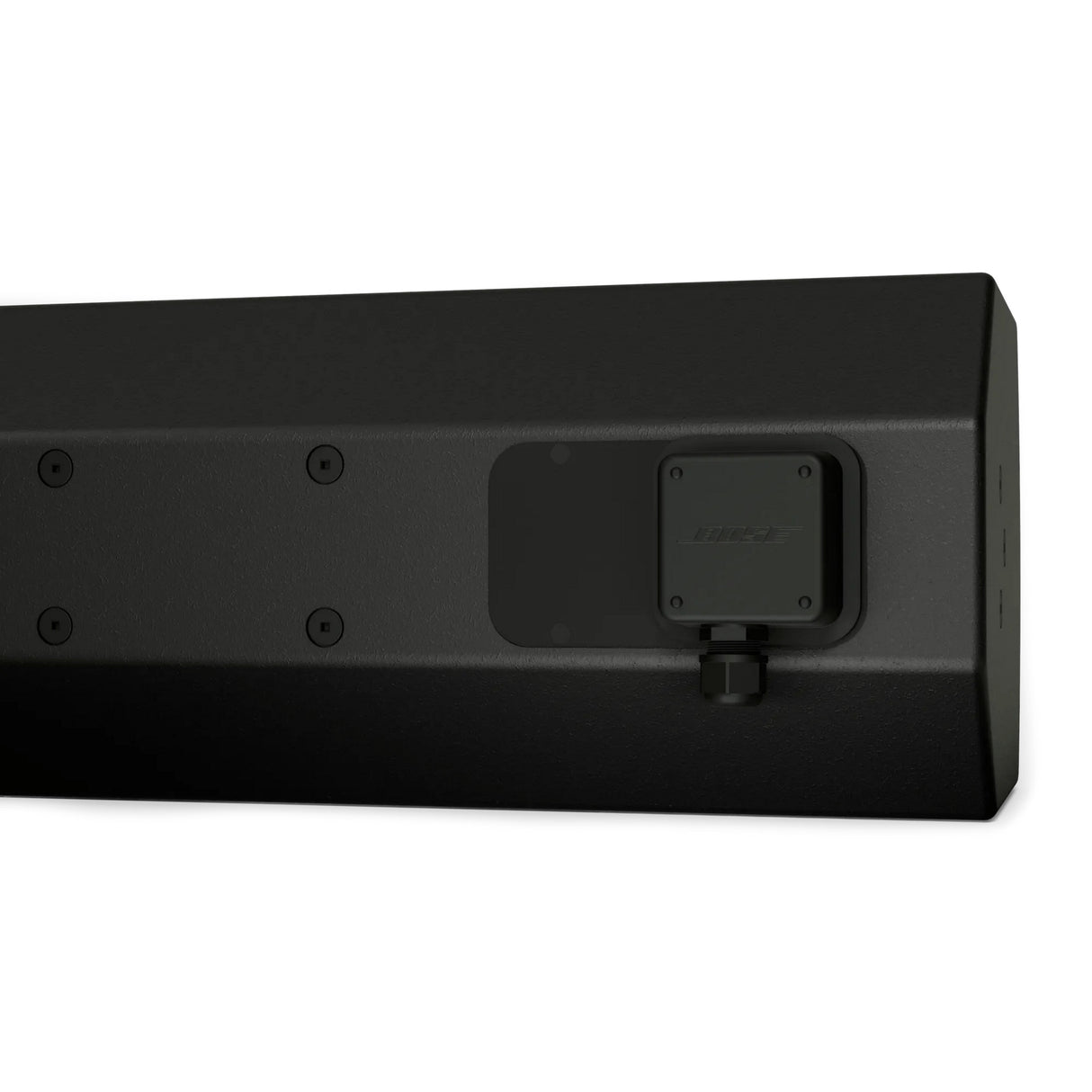

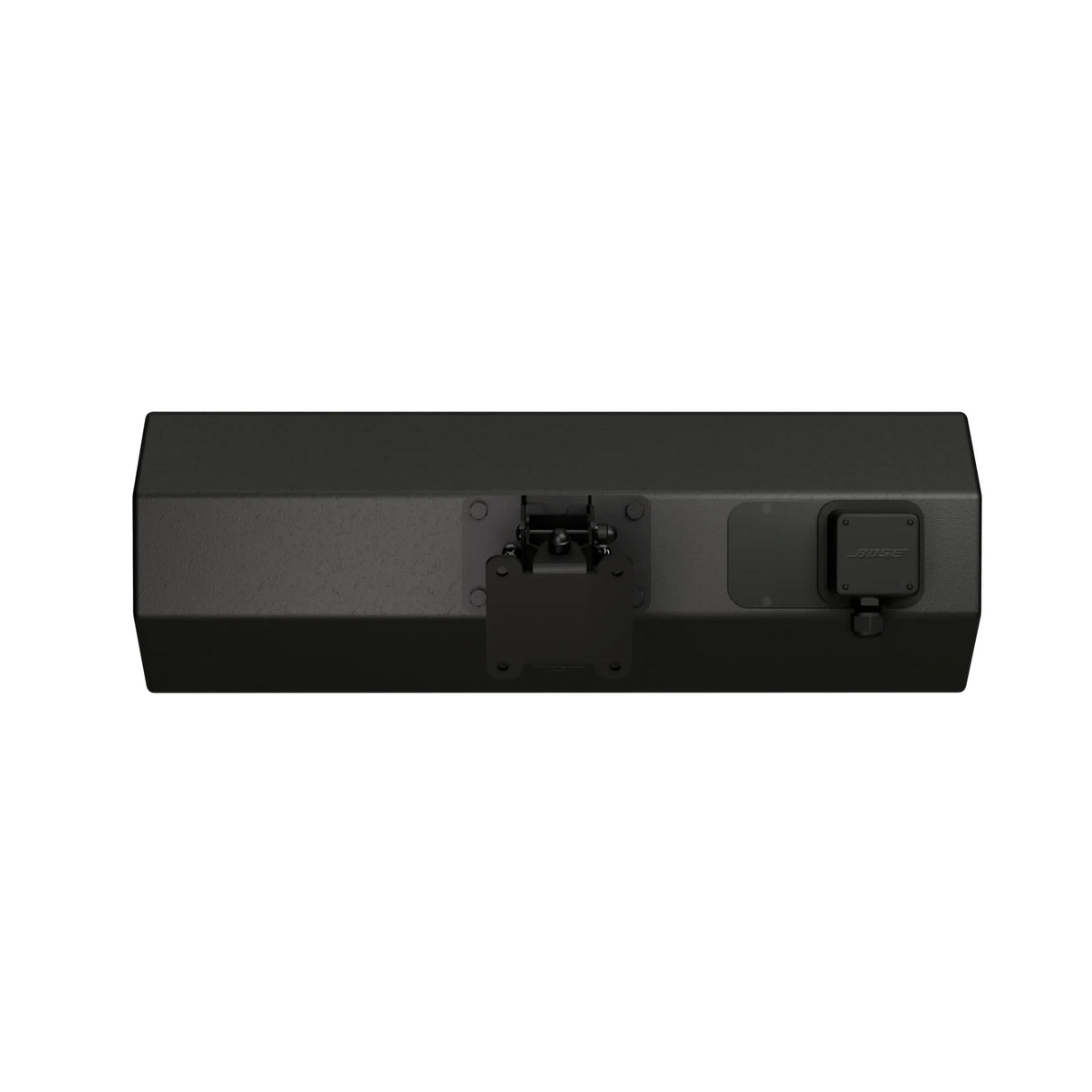

2 × M8 threaded inserts for U-bracket, 4 × M8 threaded inserts on rear (127 × 70 mm, 4-bolt pattern)

Product Dimensions (H×W×D)
9.3" × 27.0" × 11.0" (235 mm × 686 mm × 279 mm), loudspeaker with input cover

Net Weight
37.5 lbs (17.0 kg), loudspeaker
43.0 lbs (19.5 kg), loudspeaker with U-bracket

Shipping Weight
51.0 lbs (23.1 kg)

Frequency Range (-10 dB)
70 Hz - 18,000 Hz

Coverage, Horizontal
60°

Coverage, Vertical
90°

Calculated Maximum SPL @ 1 m
120 dB (free field), 122 dB (wall/ceiling)

Nominal Impedance
8 Ω (transformer bypass)

Power Handling, long-term continuous
300 W

Power Handling, Peak
1200 W

Sensitivity (SPL/1 W at 1 m)
95 dB (free field), 97 dB (wall/ceiling)

Transformer Taps, 100V
10, 20, 40, 80 W

Transformer Taps, 70V
5 W, 10 W, 20 W, 40 W, 80 W

Crossover
200 Hz & 1.2 kHz, passive, separate bandpass filters per transducer

High-Frequency
1 × Bose Professional EMB2S extended high-frequency compression driver, 2 in (51 mm) voice coil

Low-Frequency
2 × Bose Professional LF8 high-excursion 8 in (203 mm) woofer, 2 in (51 mm) voice coil

What’s in the Box

(1) ArenaMatch Utility AMU208 loudspeaker
(1) U-bracket
(4) M8 screws
(4) M4 screws
(1) input cover
(2) rubber washers
(1) T3 square drive
(1) installation guide
