Description

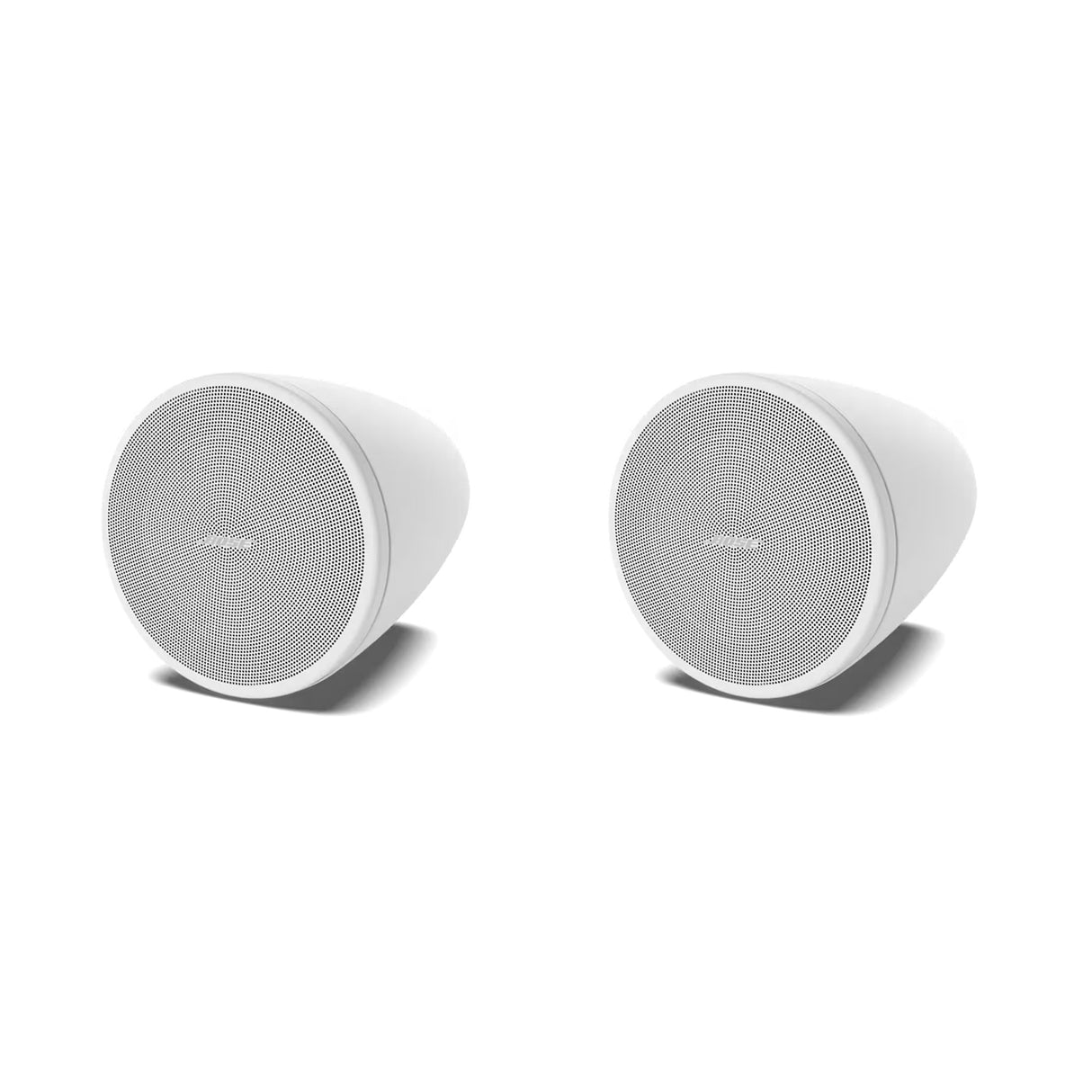

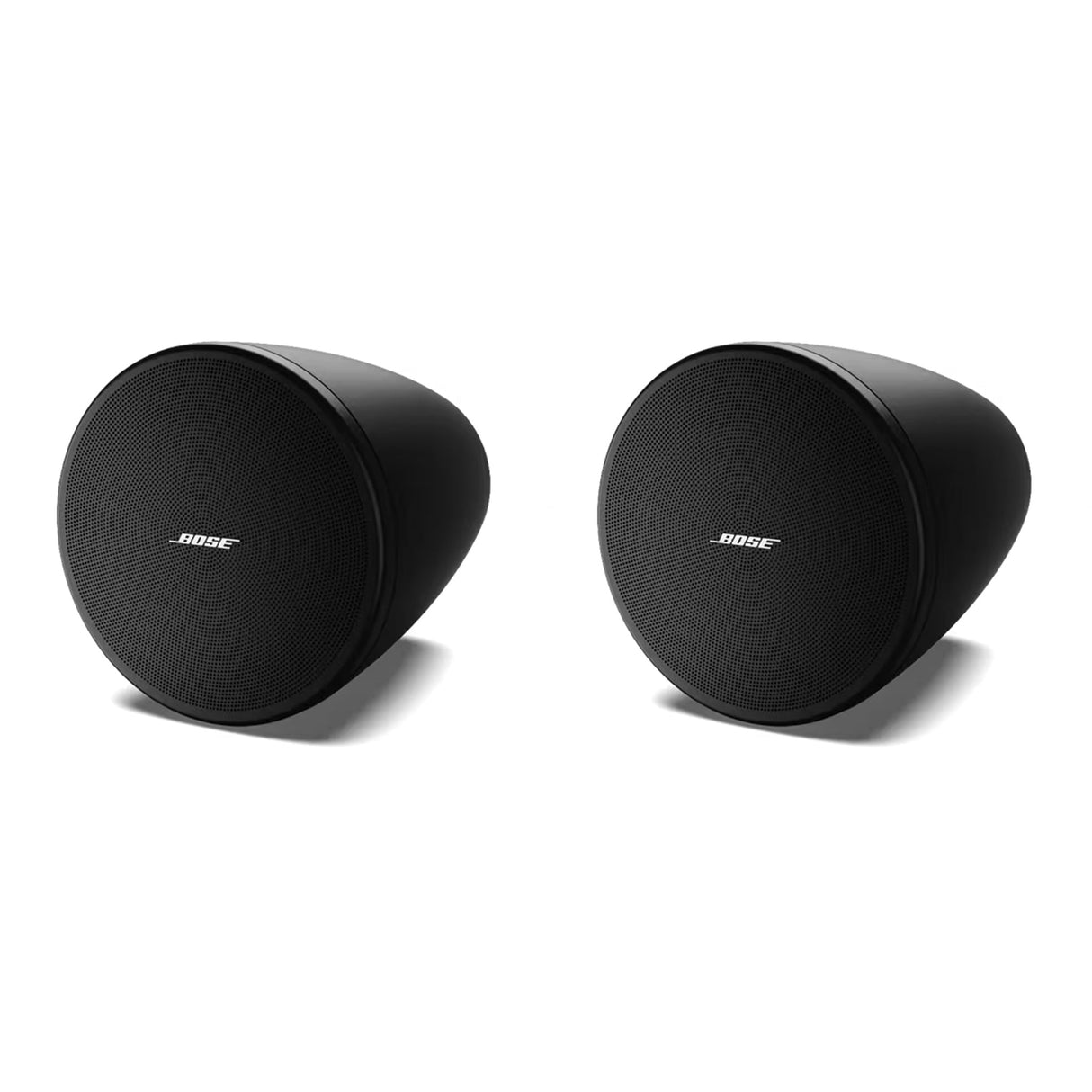

Bose Professional DesignMax DM3P Pendant Loudspeakers (Pair)
Bose Professional DesignMax DM3P is a pendant loudspeaker system designed for indoor commercial audio installations. It enables background music playback and voice reproduction for system designers and integrators, supporting distributed audio workflows. This makes it ideal for open-ceiling environments where consistent coverage and suspended mounting are required.
The loudspeakers operate using a coaxial two-way transducer design with a passive crossover and Dispersion Alignment system. They support low-impedance operation as well as 70V and 100V distributed systems through selectable transformer taps. The recessed single-point suspension system allows clean pendant installation while concealing hardware.
The system supports applications that require compact pendant loudspeakers with wide, even dispersion. It is suited for hospitality, retail, worship, and commercial venues with exposed ceilings. The design allows integration with other DesignMax loudspeakers and compatible Bose Professional electronics.
Key Features
- Pendant loudspeaker design: Provides suspended installation with a recessed single-point mounting system
- Coaxial two-way transducer: Combines a low-frequency woofer and high-frequency tweeter in a single acoustic axis
- Dispersion Alignment system: Matches woofer and tweeter coverage for consistent sound distribution
- Distributed system support: Includes 70V and 100V transformer taps with bypass
- Compact form factor: Designed for open-ceiling commercial environments
Technical Specifications
Safety Agency RatingsUL 1480A, UL 2239 for suspension cable, NFPA 70 & NFPA 90A, CE-compliant
Colors
Black
White
Enclosure Material
Engineered plastics
Environmental
Indoor only
Grille
Perforated steel, powder-coated finish
Logo
Rotatable, removable
Suspension/Mounting
1 suspension attachment point, 1 safety cable attachment point
Operating Temperature Range
0 °C to 50 °C (32 °F to 122 °F)
Product Dimensions (H×W×D)
8.2" × 9.8" (207 mm × 248 mm), loudspeaker diameter × depth
15.0' × 0.1" (4.6 m × 2 mm), suspension cable length × diameter
Net Weight
5.5 lbs (2.5 kg), single
Shipping Weight
15.4 lbs (7.0 kg), pair
Frequency Range (-10 dB)
75 Hz – 20,000 Hz
Coverage, Horizontal
130° conical
Coverage, Vertical
130° conical
Calculated Maximum SPL @ 1 m
99 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling, long-term continuous
25 W
Power Handling, Peak
100 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
84 dB
Transformer Taps, 100V
6, 12, 25 W, bypass
Transformer Taps, 70V
3 W, 6 W, 12 W, 25 W, bypass
Crossover
1.7 kHz, passive 2-way crossover
Driver Protection
Recommended high-pass protection 80 Hz with minimum 24 dB/octave filter
High-Frequency
1 × 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted
What’s in the Box
(2) DesignMax DM3P loudspeakers(2) Suspension cables, 15.0 ft (4.5 m) each
(8) Cable ties
(2) Cable fasteners
(2) Cable fastener tools
(1) Installation guide
