Description

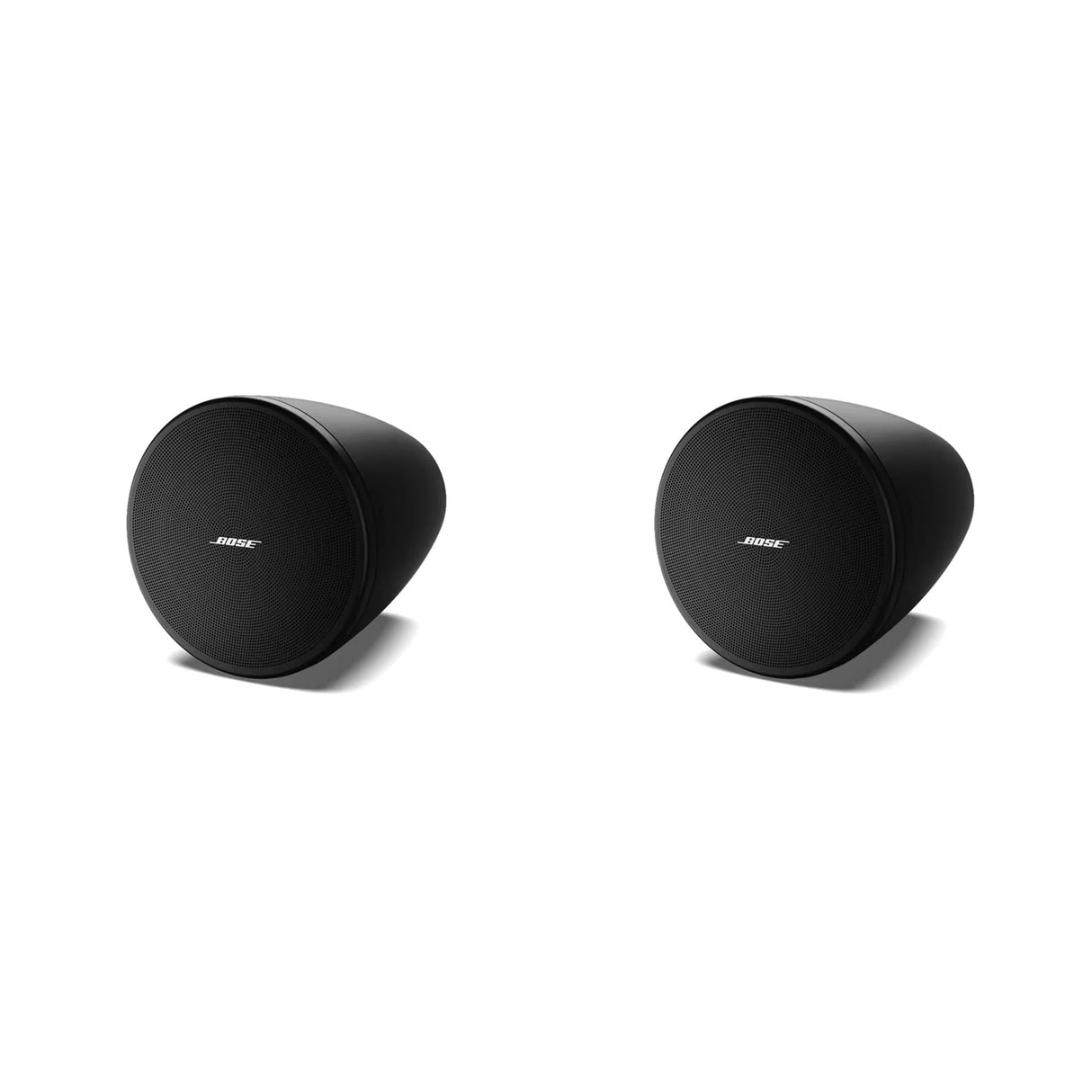

Bose Professional DesignMax DM5P Pendant Loudspeakers (Pair)
Bose Professional DesignMax DM5P is a pendant loudspeaker system designed for indoor commercial audio installations. It enables background music playback and voice reproduction for system designers and integrators, supporting distributed audio workflows. This makes it ideal for open-ceiling environments where suspended mounting and consistent coverage are required.
The loudspeakers operate using a coaxial two-way transducer design with a passive crossover and Dispersion Alignment system. They support low-impedance operation as well as 70V and 100V distributed systems through selectable transformer taps. A recessed single-point suspension system allows pendant installation while keeping mounting hardware concealed.
The system supports applications that require compact pendant loudspeakers with controlled, even dispersion. It is suited for hospitality, retail, worship, and commercial spaces with exposed ceilings. The design allows integration with other DesignMax loudspeakers and compatible Bose Professional electronics.
Key Features
- Pendant loudspeaker design: Provides suspended installation with a recessed single-point mounting system
- Coaxial two-way transducer: Combines low-frequency woofer and high-frequency tweeter on a shared acoustic axis
- Dispersion Alignment system: Matches woofer and tweeter coverage for consistent sound distribution
- Distributed system support: Includes 70V and 100V transformer taps with bypass
- Indoor-rated construction: Designed for interior commercial environments
Technical Specifications
Safety Agency RatingsUL 1480A, UL 2239 for suspension cable, NFPA 70 & NFPA 90A, CE-compliant
Colors
Black
White
Enclosure Material
Engineered plastics
Environmental
Indoor only
Grille
Perforated steel, powder-coated finish
Logo
Rotatable, removable
Suspension/Mounting
1 suspension attachment point, 1 safety cable attachment point
Operating Temperature Range
0 °C to 50 °C (32 °F to 122 °F)
Product Dimensions (H×W×D)
10.2" × 11.8" (259 mm × 300 mm), loudspeaker diameter × depth
15.0' × 0.1" (4.6 m × 2 mm), suspension cable length × diameter
Net Weight
9.1 lbs (4.1 kg), single
Shipping Weight
24.3 lbs (11.0 kg), pair
Frequency Range (-10 dB)
65 Hz – 20,000 Hz
Coverage, Horizontal
120° conical
Coverage, Vertical
120° conical
Calculated Maximum SPL @ 1 m
105 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling, long-term continuous
50 W
Power Handling, Peak
200 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
87 dB
Transformer Taps, 100V
6, 12, 25, 50 W, bypass
Transformer Taps, 70V
3 W, 6 W, 12 W, 25 W, 50 W, bypass
Crossover
1.8 kHz, passive 2-way crossover
Driver Protection
Recommended high-pass protection 65 Hz with minimum 24 dB/octave filter
High-Frequency
1 × 1" (25 mm) neodymium dome tweeter, coaxially mounted
Low-Frequency
1 × 5.25" (133 mm) woofer
What’s in the Box
(2) DesignMax DM5P loudspeakers(2) Suspension cables, 15.0 ft (4.5 m) each
(2) Cable fastener tools
(2) Cable fasteners
(8) Cable ties
(1) Installation guide
