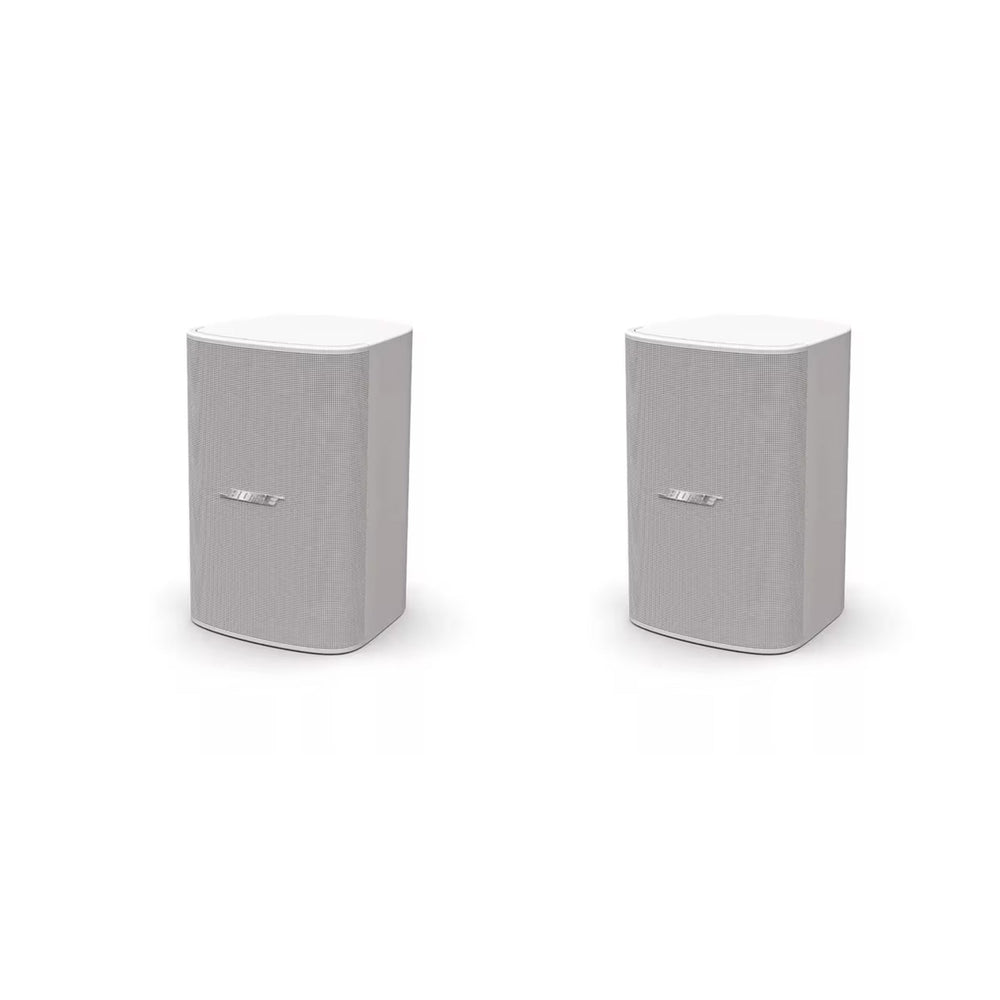

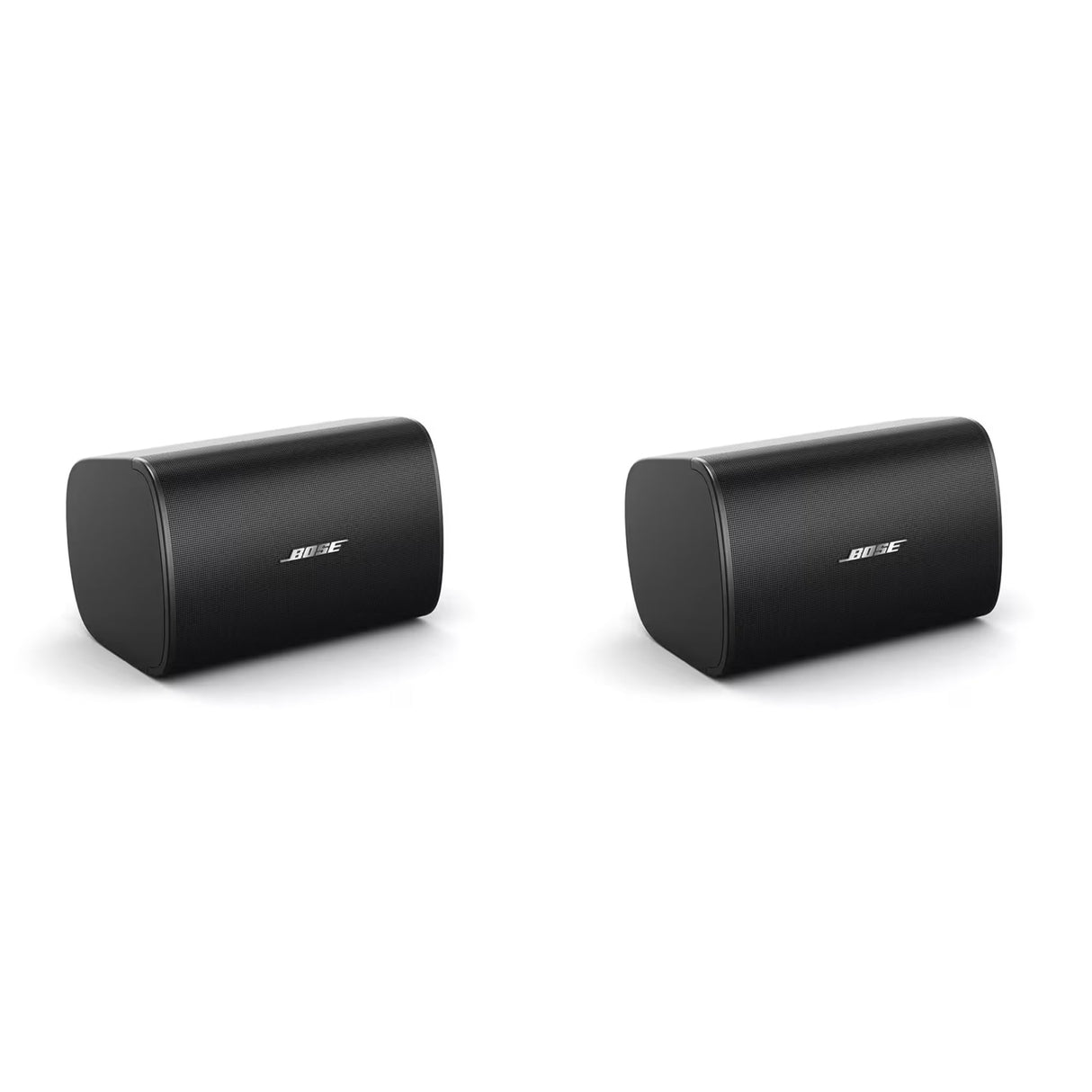

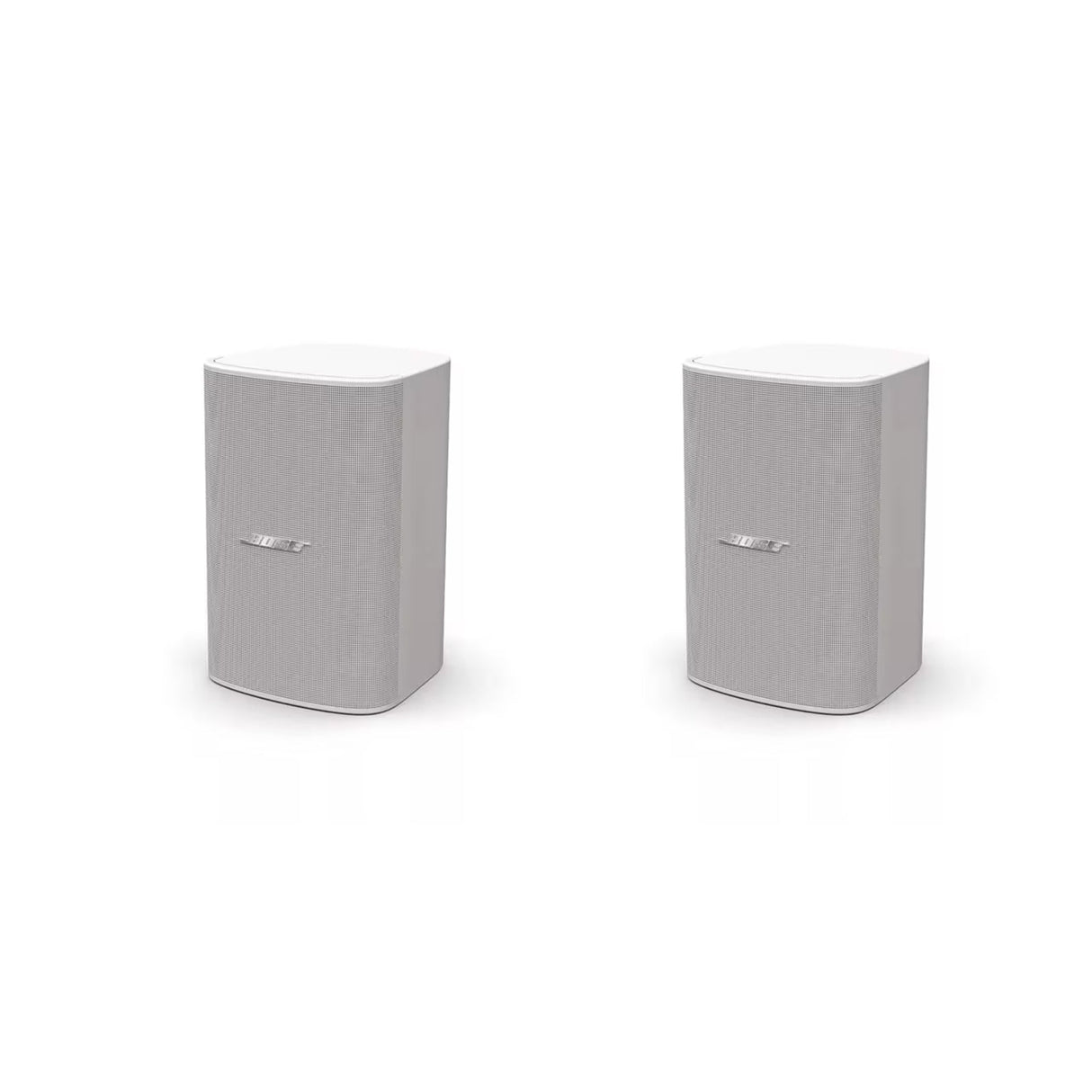

Bose Professional DesignMax DM5SE Surface-Mount Loudspeakers (Pair)
Bose Professional DesignMax DM5SE is a surface-mount loudspeaker pair designed for indoor and outdoor commercial audio installations. It enables full-range sound reproduction for system designers and integrators, supporting distributed background and foreground audio workflows. This makes it ideal for venues where weather resistance and controlled coverage are required.
The loudspeakers operate using coaxial two-way drivers with a passive crossover and the Dispersion Alignment system. They support low-impedance operation as well as 70V and 100V distributed systems through selectable transformer taps. Installation is performed using the QuickHold mounting system with an included U-bracket.
The system supports applications that require flexible surface mounting and consistent sound distribution. It is suited for hospitality, retail, worship, and performance environments. The design allows integration with compatible Bose Professional electronics and mounting accessories.
Key Features
- Coaxial two-way design: Combines a 5.25-inch woofer and coaxially mounted 1-inch tweeter
- Outdoor-rated construction: IP55-rated for use in wet outdoor locations
- Dispersion Alignment system: Matches woofer and tweeter coverage patterns for consistent listening
- QuickHold mounting system: Enables fast and secure surface installation with hidden U-bracket
- Distributed audio support: Includes 70V and 100V transformer taps with bypass
Technical Specifications
Frequency Range (-10 dB)65 Hz – 20,000 Hz
Frequency Response (-3 dB)
73 Hz – 17,000 Hz
Coverage, Horizontal
130° conical
Coverage, Vertical
130° conical
Calculated Maximum SPL @ 1 m
107 dB
Calculated Maximum SPL @ 1 m, Peak
113 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling, long-term continuous
60 W
Power Handling, Peak
240 W
Sensitivity (SPL/1 W at 1 m)
89 dB
Transformer Taps, 70V
3, 6, 12, 25, 50 W, bypass
Transformer Taps, 100V
6, 12, 25, 50 W, bypass
Crossover
1.8 kHz, passive 2-way crossover
Recommended High-Pass Protection
65 Hz with minimum 24 dB/octave filter
Low-Frequency
1 × 5.25" (133 mm) woofer, weather-treated
High-Frequency
1 × 1" (25 mm) neodymium dome tweeter, coaxially mounted, weather-treated
Enclosure Material
Engineered plastics, highly UV fade-resistant
Bracket Material
Powder-coated steel
Grille
Perforated aluminum, powder-coated finish, tamper-resistant design, paintable
Environmental
Outdoor per IEC 529 IP55,"cludes aluminum grille and weather resistant"put cover
Operating Temperature Range
-25 °C to 70 °C (-13 °F to 158 °F)
Connectors
Euroblock 6-pin connector with loop-through, rear-mounted
Suspension/Mounting
QuickHold mounting system with included U-bracket, four preset angles 0°, 15°, 30°, 45°
Product Dimensions (H×W×D)
286 × 192 × 197 mm (11.2 × 7.5 × 7.7")
Product Dimensions with Bracket (H×W×D)
286 × 192 × 215 mm (11.2 × 7.5 × 8.4")
Net Weight
4.4 kg (9.7 lbs), loudspeaker with grille (single)
Shipping Weight
11.4 kg (25.2 lbs), pair
What’s in the Box
(2) DesignMax DM5SE Surface-Mount Loudspeakers (1) U-bracketpowder-coated steel
