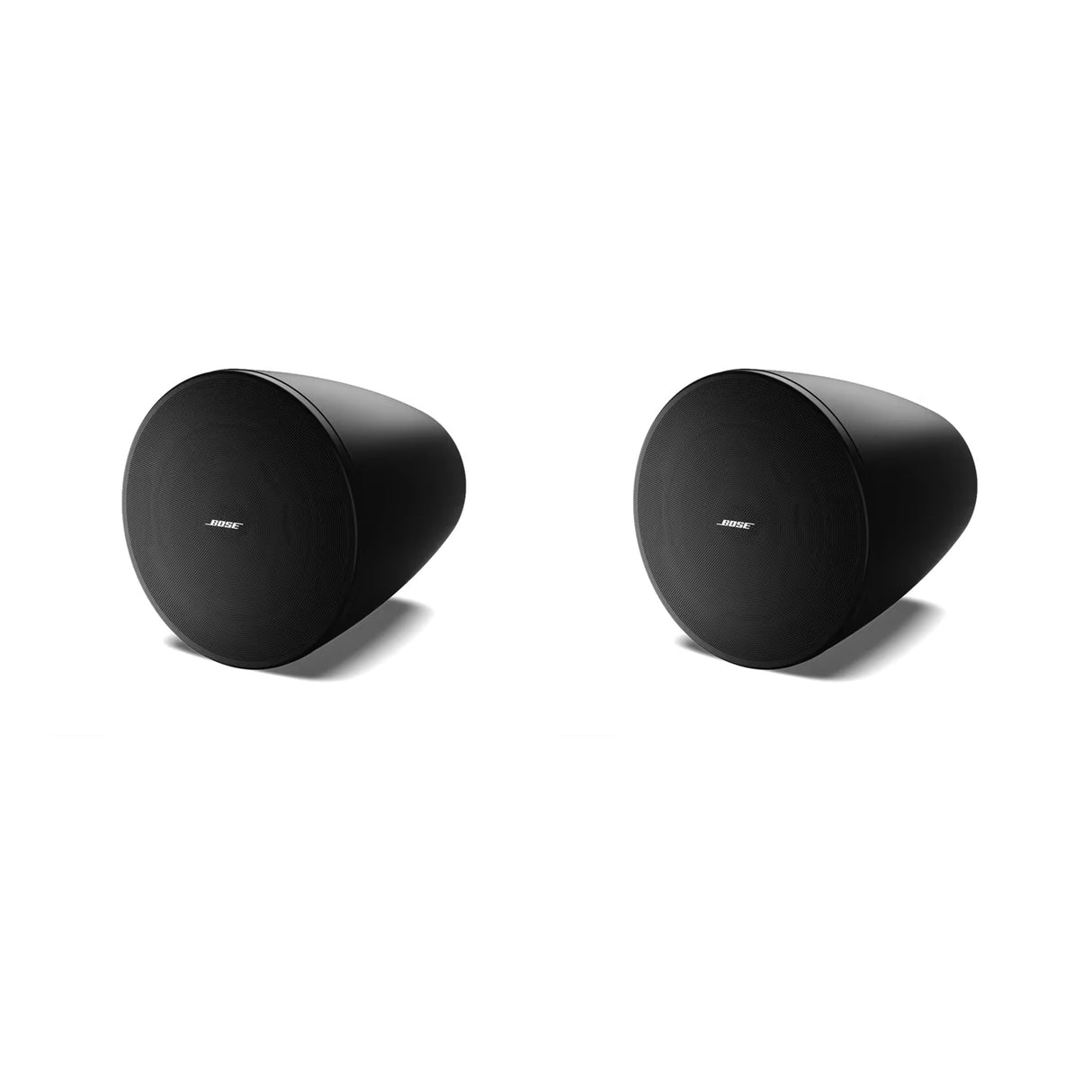

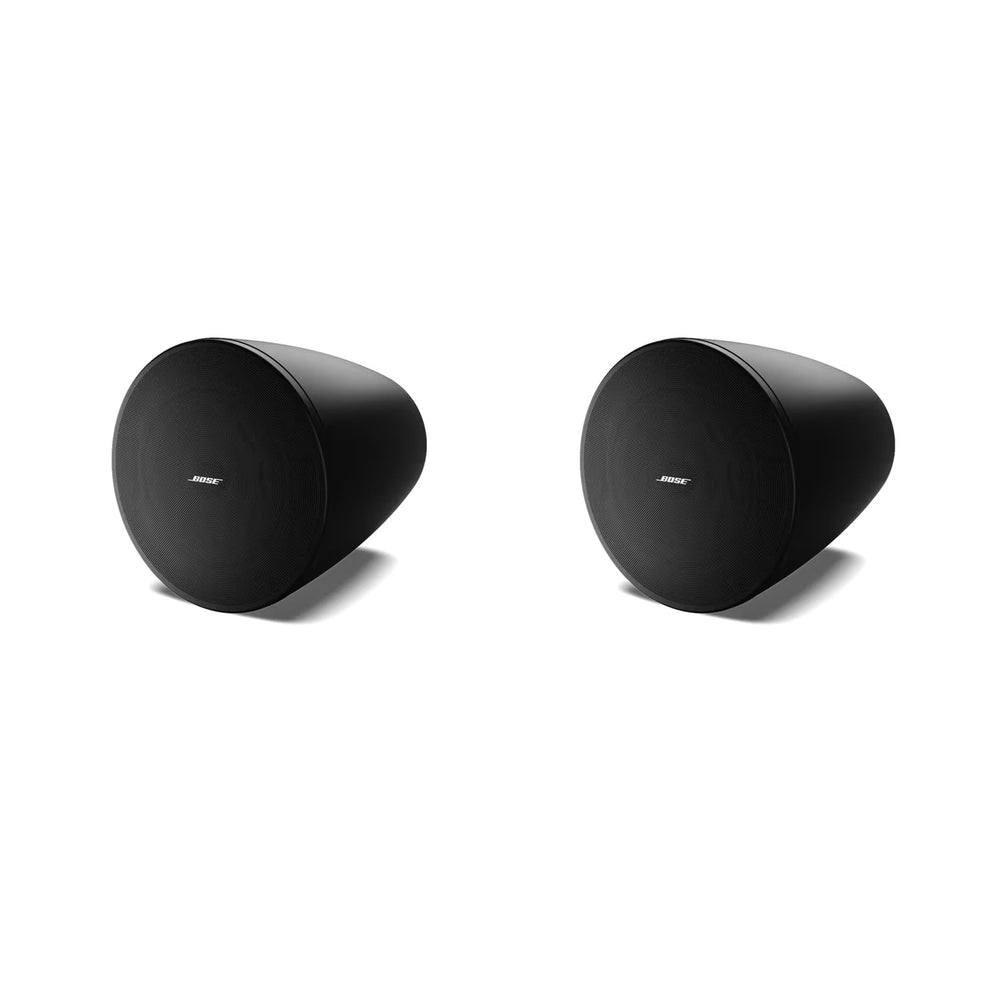

Bose Professional DesignMax DM6PE Pendant Loudspeakers (Pair)
Bose Professional DesignMax DM6PE is a pendant loudspeaker system designed for indoor and outdoor commercial audio installations. It enables background music playback and voice reproduction for system designers and integrators, supporting distributed audio workflows. This makes it ideal for open-ceiling environments where suspended mounting, weather resistance, and consistent coverage are critical.
The loudspeakers operate using a coaxial two-way transducer design with a passive crossover and Dispersion Alignment system. They support low-impedance operation as well as 70V and 100V distributed systems through selectable transformer taps. The recessed single-point suspension system allows pendant installation while keeping mounting hardware concealed.
The system supports applications that require compact pendant loudspeakers with controlled, even dispersion in exposed or outdoor environments. It is suited for hospitality, retail, worship, and commercial spaces where durability and predictable coverage are required. The design allows integration with other DesignMax loudspeakers and compatible Bose Professional electronics.
Key Features
- Outdoor-rated pendant loudspeaker: IP55-rated design supports wet and outdoor installations
- Coaxial two-way transducer: Combines a 6.5-inch woofer and 1.25-inch tweeter for consistent coverage
- Dispersion Alignment system: Matches woofer and tweeter patterns for uniform sound distribution
- Distributed system support: Includes 70V and 100V transformer taps with bypass
- Recessed suspension system: Single-point pendant mounting maintains a clean visual appearance
Technical Specifications
Safety Agency RatingsUL 1480A, UL 2239 for suspension cable, NFPA 70 & NFPA 90A, CE-compliant
Colors
Black (similar to RAL 9005)

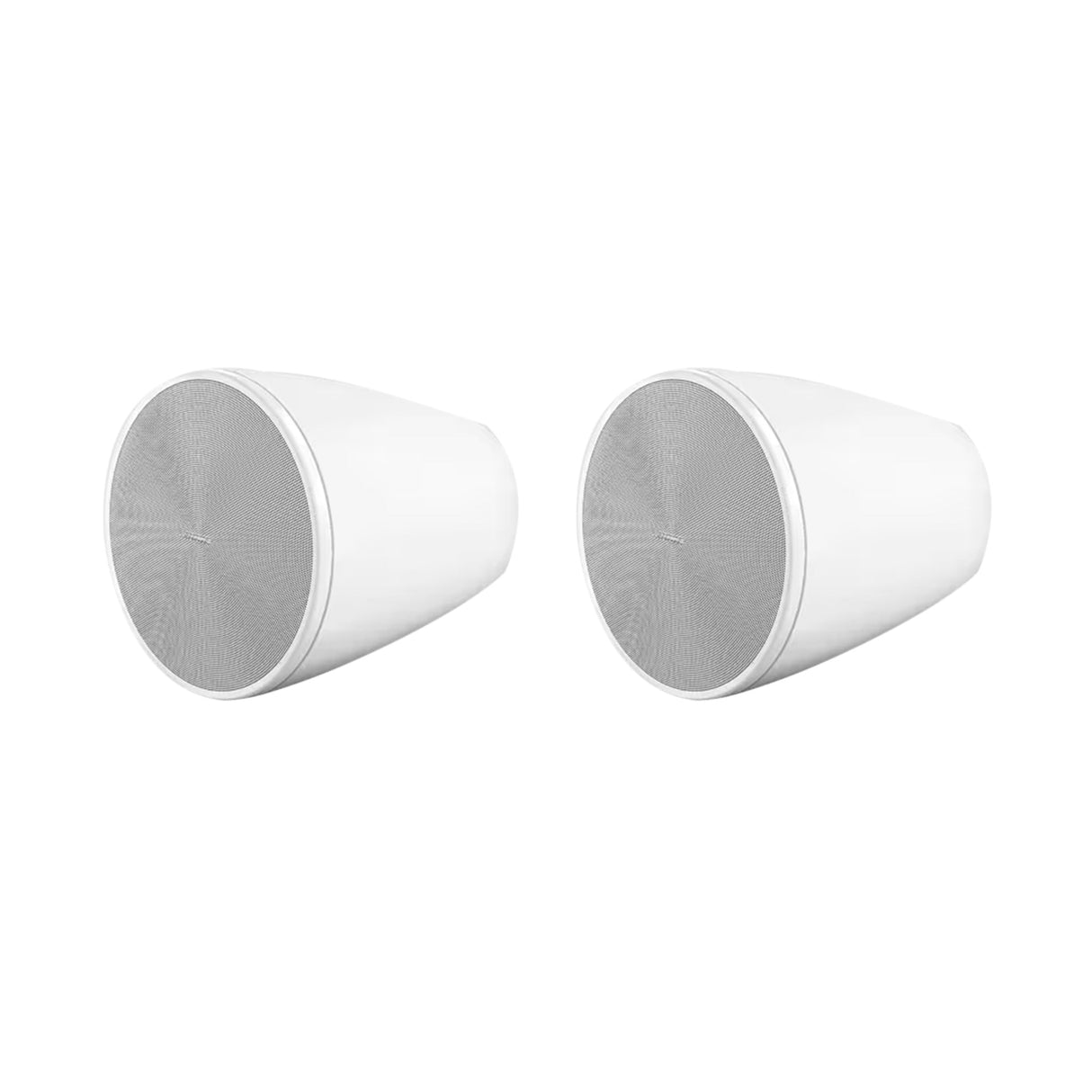

White (similar to RAL 9003)
Enclosure Material
Engineered plastics, highly UV fade-resistant
Environmental
Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover
Grille
Perforated steel, powder-coated finish
Ingress Protection
IP55
Logo
Rotatable, removable
Suspension/Mounting
1 suspension attachment point, 1 safety cable attachment point
Operating Temperature Range
-25 °C to 65 °C (-13 °F to 149 °F)
Product Dimensions (H×W×D)
12.1" × 14.8" (308 mm × 375 mm), loudspeaker diameter × depth
Net Weight
12.5 lbs (5.7 kg), single
Shipping Weight
33.1 lbs (15.0 kg), pair
Frequency Range (-10 dB)
62 Hz – 20,000 Hz
Coverage, Horizontal
115° conical
Coverage, Vertical
115° conical
Calculated Maximum SPL @ 1 m
110 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling, long-term continuous
100 W
Power Handling, Peak
400 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
89 dB
Transformer Taps, 100V
5, 10, 20, 40, 80 W, bypass
Transformer Taps, 70V
2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
Crossover
1.7 kHz, passive 2-way crossover
Driver Protection
Recommended high-pass protection 60 Hz with recommended 24 dB/octave filter
High-Frequency
1 × 1.25" (32 mm) neodymium dome tweeter, coaxially mounted, weather-treated
Low-Frequency
1 × 6.5" (165 mm) woofer, weather-treated
What’s" the Box
(2) DesignMax DM6PE Pendant Loudspeakers(4) Cable ties
(2) Suspension cables, 15.0 ft (4.5 m) each
(1) Ceather-resistant cover
