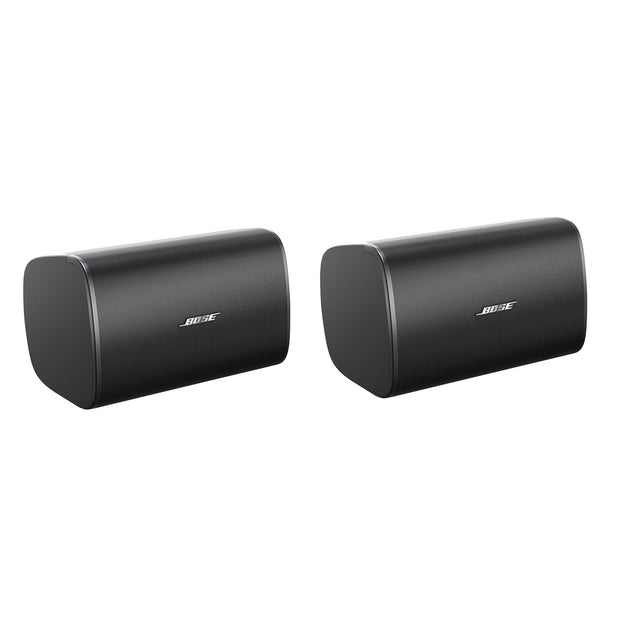

Bose Professional DesignMax DM6SE Surface-Mount Loudspeakers (Black, Pair)
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
Bose Professional DesignMax DM6SE Surface-Mount Loudspeakers (Black, Pair)
Bose Professional DesignMax DM6SE is a surface-mount loudspeaker pair designed for indoor and outdoor commercial audio installations. It enables full-range sound reproduction for system designers and integrators, supporting distributed background and foreground audio workflows. This makes it ideal for venues where weather resistance and consistent coverage are critical.
The loudspeakers operate using coaxial two-way drivers with a passive crossover and Dispersion Alignment system. They support low-impedance operation as well as 70V and 100V distributed systems through selectable transformer taps. The enclosure and components are engineered for outdoor exposure with an IP55 rating.
The system supports applications that require flexible surface mounting with controlled coverage. It is suited for hospitality, retail, worship, and performance environments. The design allows integration with compatible Bose Professional electronics and mounting hardware.
Key Features
- Coaxial two-way design: Combines a 6.5-inch woofer and coaxially mounted tweeter for full-range reproduction
- Outdoor-rated construction: IP55-rated enclosure supports use in wet outdoor locations
- Dispersion Alignment system: Matches woofer and tweeter coverage patterns for consistent sound
- QuickHold mounting: Locks onto a hidden U-bracket for secure surface installation
- Distributed audio support: Includes 70V and 100V transformer taps with bypass
Technical Specifications
Safety Agency RatingsUL 1480A, NFPA 70, CE-compliant
Colors
Black (RAL 9005), paintable
Enclosure Material
Engineered plastics, highly UV fade-resistant
Environmental
Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover
Grille
Perforated aluminum, powder-coated finish, tamper-resistant design, paintable
Ingress Protection
IP55
Logo
Rotatable, removable
Operating Temperature Range
-25 Ā°C to 70 Ā°C (-13 Ā°F to 158 Ā°F)
Product Dimensions (HĆWĆD)
13.4" Ć 8.7" Ć 9.0" (340 mm Ć 222 mm Ć 229 mm), loudspeaker
13.4" Ć 8.7" Ć 9.7" (340 mm Ć 222 mm Ć 245 mm), loudspeaker with bracket
Net Weight
13.1 lb (5.9 kg), loudspeaker with grille (single)
Shipping Weight
32.5 lb (14.7 kg), pair
Frequency Range (-10 dB)
59 Hz ā 20,000 Hz
Coverage, Horizontal
125Ā° conical
Coverage, Vertical
125Ā° conical
Calculated Maximum SPL @ 1 m
111 dB
Nominal Impedance
8 Ī© (transformer bypass)
Power Handling, long-term continuous
125 W
Power Handling, Peak
500 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
90 dB
Transformer Taps, 100V
5, 10, 20, 40, 80 W, bypass
Transformer Taps, 70V
2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
Crossover
1.7 kHz, passive 2-way crossover
Driver Protection
Recommended high-pass protection 60 Hz with recommended 24 dB/octave filter
High-Frequency
1 Ć 1.25" (32 mm) neodymium dome tweeter, coaxially mounted, weather-treated
Low-Frequency
1 Ć 6.5" (165 mm) woofer, weather-treated
Whatās in the Box
(1) U-bracketpowder-coated steel
